Kali Audio WS6.2 Project Watts Dual 6 Inch Subwoofer

About: Kali Audio WS6.2 Project Watts Dual 6 Inch Subwoofer

The WS-6.2 is a studio subwoofer with 2 x 6.5-Inch high excursion woofers. Designed to be both powerful and small, the WS-6.2 takes up less than half as much space as comparably performing subwoofers.  Despite its diminutive form factor, it is capable of 120 dB max SPL and 27 Hz lower frequency response.

The woofers are horizontally opposed, meaning that there is no net vibration from the subwoofer. A built-in 80 Hz high-passed output makes it ideal for pairing with most popular studio monitors, including Kali’s LP- and IN-Series monitors. A footswitch jack allows users to bypass both the sub and the crossover so they can hear their mix on their full range speakers. Footswitches are sold separately, but a number of inexpensive options are available at every music retailer.

In addition to the 80 Hz crossover, the subwoofer can be set for LFE mode or be used with an external crossover. Polarity may also be reversed if necessary.

Like all of Kali’s speakers, the WS-6.2 uses a unique port tube that virtually eliminates chuffing and port compression, allowing for clear, powerful bass with minimal distortion.

Small form factor

The W2-6.2 takes up slightly more than one cubic foot. It is about the same size as most 8-inch studio monitors, or about half as large as comparably performing subwoofers.

This makes it ideal for use under your desk, or in other positions where space is at a premium.

• Easy to put the sub almost anywhere
• including under a desk and/or in a very small room

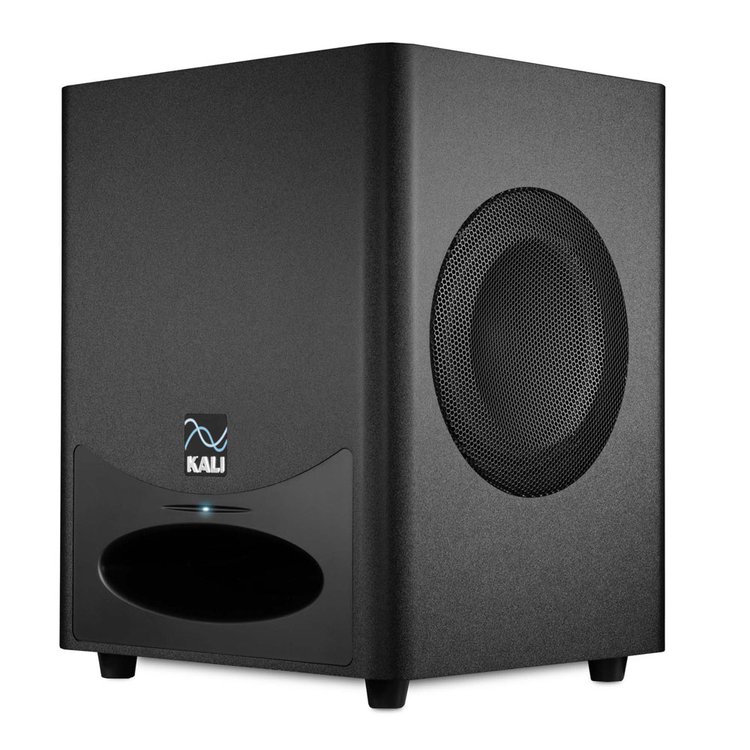

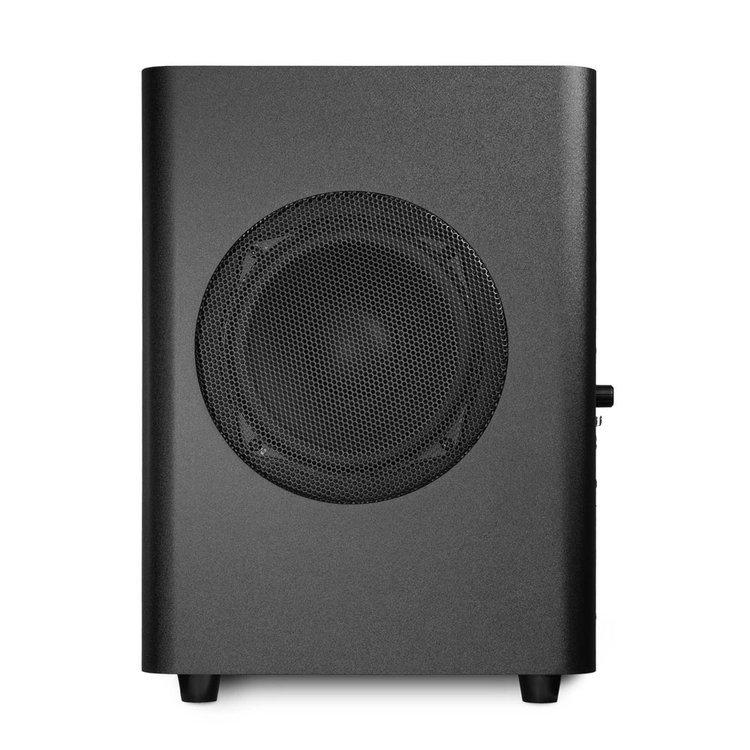

Horizontally opposed 6.5-Inch high-excursion woofers

The WS-6.2 uses two horizontally opposed 6.5-Inch high-excursion woofers. The movement of the two woofers cancel each other out, giving you deep, clear, powerful bass without any vibration. A lack of vibration means that the subwoofer won’t scoot across the floor, and it won’t cause objects it might be touching to rattle or buzz.

Using two woofers allows the WS-6.2 to have output similar to a subwoofer with a 10-inch driver while taking up far less space.

• Deep, clear, powerful bass
• No vibrating

120 dB max SPL, 27 Hz lower frequency response

Despite its diminutive size, the WS-6.2 is capable of 120 dB max SPL, and lower frequency extension down to 27 Hz. This makes it an ideal companion to almost any set of stereo studio monitors.

With the LFE crossover, the WS-6.2 can be used on its own in small multichannel setups. For medium sized setups, including immersive mixing applications, another subwoofer can be added without breaking the bank.

• High output and plenty of low end for almost any stereo setup
• Can be used on its own in small multichannel setups
• Easy to combine multiple subs for small-to-medium sized multichannel and immersive setups.

80 Hz, LFE, and External Crossover Modes

The WS-6.2 features 80 Hz, LFE, and External Crossover modes. The 80 Hz crossover mode is engineered to work with Kali’s full-range monitors, but it will also pair well with full range monitors from most popular manufacturers.

LFE mode turns the outputs off, and low passes the sub at 120 Hz. This allows the sub to be used as the .1 channel in configurations like 5.1 or Atmos.

For users wanting more flexibility, the external crossover mode turns the crossover off entirely.

• Ideal pairing for Kali monitors, and most others
• LFE mode allows sub to be used as the LFE channel in x.1 setups
• External mode allows users to use an external crossover for more control

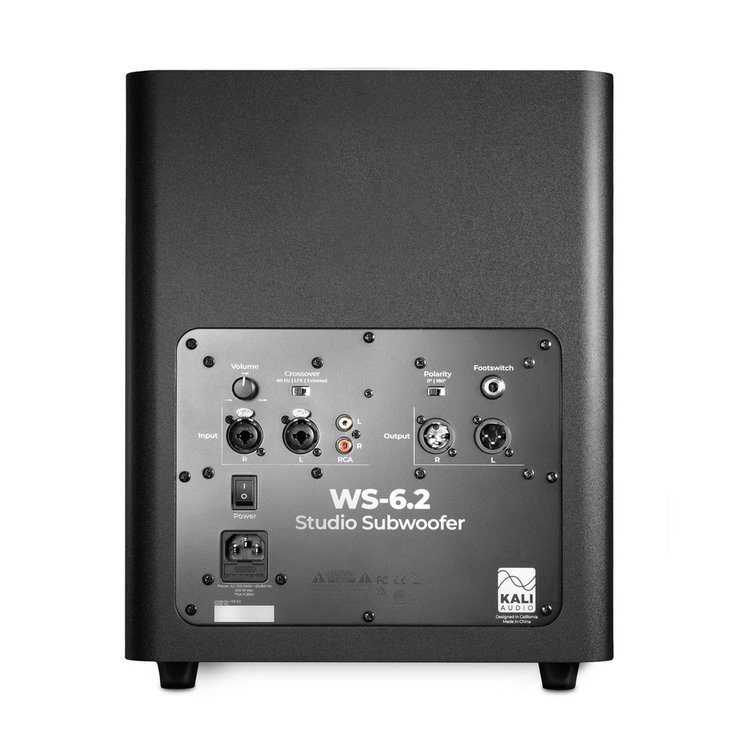

TRS/XLR Combi Jacks and RCA input

The WS-6.2 can accept XLR, TRS, or RCA input, so you can plug whatever gear you’re already using into the WS-6.2. Output to full range monitors is provided via XLR.

• Plug in to whichever input is convenient

Bypass Switch

A footswitch jack allows users to bypass both the sub and the crossover so they can hear their mix on their full range speakers. Footswitches are sold separately, but a number of inexpensive options are available at every music retailer.

• Turn the subwoofer and crossover off to listen to your full range speakers without the sub.

Polarity inversion

Depending on the shape and size of your room, the position of the subwoofer relative to the monitors, and your listening position relative to all of those factors, the subwoofer may sum better with the monitors with the polarity reversed.

• Change the polarity for better system integration.

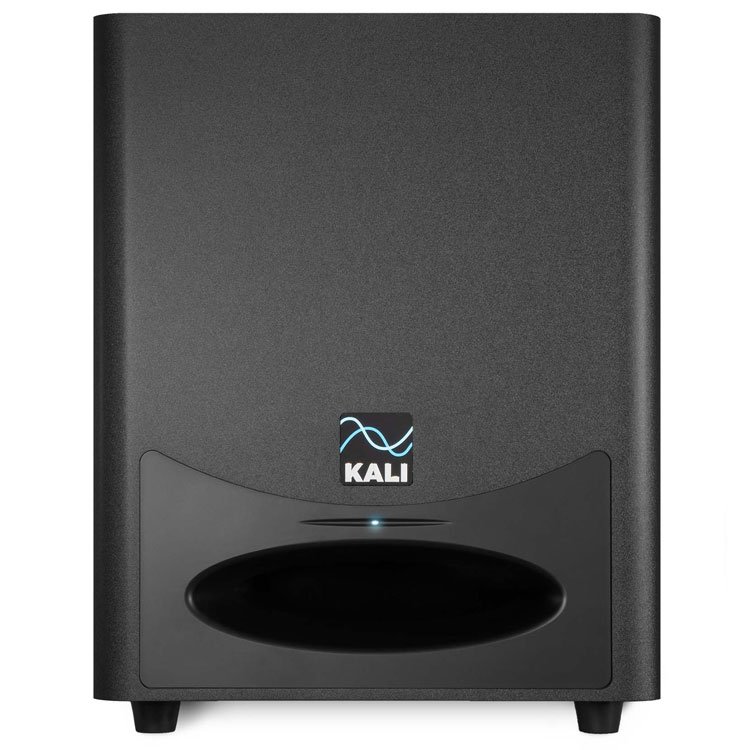

Low Noise Port Tube

On most port tubes, air leaves at different speeds from different points of the opening, creating noisy turbulence. This turbulence can be heard as "chuffing," or an audible air sound coming from the system. This sound will add to the noise floor and obscure the details of the low end.

The port tube on the WS-6.2  was designed to ensure that all of the air leaves the port tube at the same velocity. This helps add to the low end response of the subwoofer, while keeping the bass clean, tight, and devoid of extra noise.

• Extended bass response
• Port tube does not add to noise floor
• Air leaving the port tube is neither heard nor felt

Specifications

• Powered: Yes
• Amp Class: D
• Continuous Power: 400W
• Peak Power: 1000W
• Driver Complement: 2 x 6.5-Inch High Excursion Woofers
• Freq Response: (-10 dB): 27 Hz - 200 Hz
• Freq Range: (+/-3 dB): 31.5 Hz - 180 Hz
• Recommended Listening Distance: Up to 4 meters
• Max SPL: 120 dB
• System THD: <2% (90 dB SPL @1m)
• Unbalanced Inputs: Stereo RCA (-10 dBV)
• Balanced Inputs: Stereo XLR/TRS Combijack (+4 dBu)
• Balanced Outputs: XLR
• Other Inputs/Outputs: 1/4-Inch Footswitch for Sub Bypass (Sold Sep.)
• Enclosure: Front-ported, side-firing woofers
• Product Height: 14.5 Inches (40 cm)
• Product Width: 12.2 Inches (36.8 cm)
• Product Depth: 11 Inches (27.9 cm)
• Product Weight: 31 Lbs (14 kg)
