ATC SCM 12i - Install Version of SCM 12 Studio Monitor w/ Mounting Points
Model: ATC-SCM12I
About: ATC SCM 12i - Install Version of SCM 12 Studio Monitor w/ Mounting Points

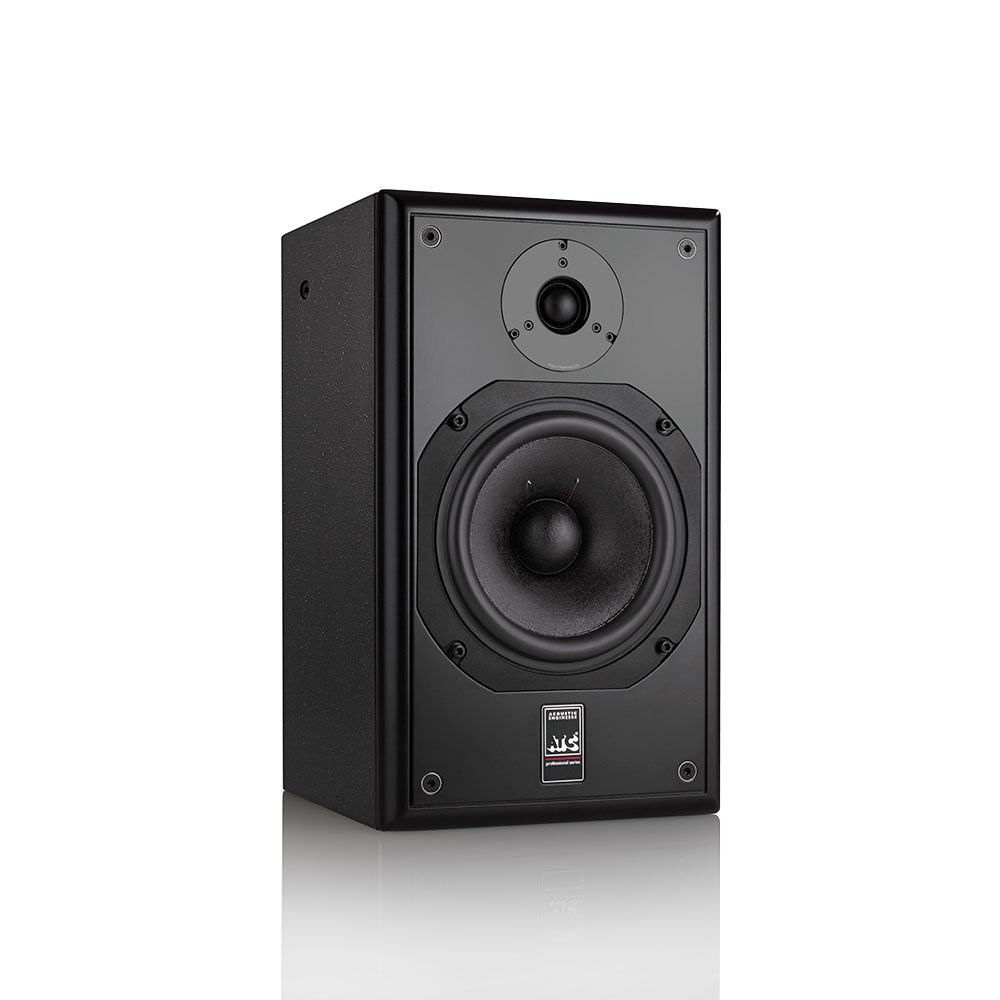

The SCM12i Pro is a compact 2-way passive monitor designed for installation into recording, post production, broadcast and film studios.
It’s compact size and exceptional performance make it an ideal loudspeaker for use in surround/multi-channel recording/mixing and immersive audio applications such as Dolby Atmos, DTS:X and Auro 3D.
To facilitate simple install, the cabinet features mounting points compatible with popular wall/ceiling brackets.
The SCM12i is designed around the same philosophy as ATC’s 2 and 3-way active monitor loudspeakers and also employs driver components & technology found in these larger models resulting in exceptional consistency across the product range.
Features
- Wide bandwidth & high SPL capability
- Neutral timbre & low distortion for low listener fatigue
- 150mm / 6” ATC CLD Bass Driver
- 25mm / 1” ATC Dual-Suspension HF Driver

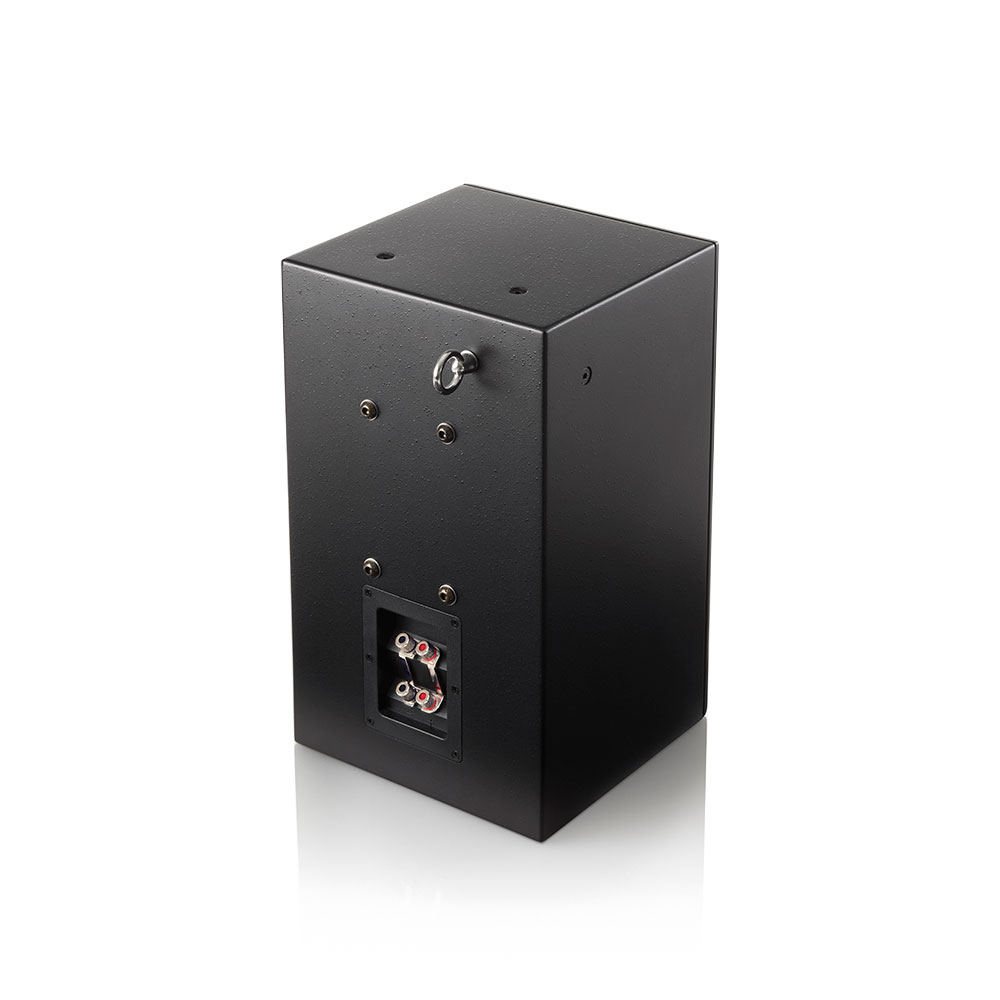

- Cabinet mounting points for wall/ceiling mount
- 6 year warranty
Specifications
- Drivers
- HF ATC 1 ̋/25mm dual suspension Soft Dome (SH25-76 6 Ohm)
- LF ATC 6 ̋/150mm Constrained Layer Damping (CLD) (SB45-150CLD 8 Ohm)
- Amplitude Linearity - 80Hz - 16kHz (+/-2dB)
- Cut Off Frequencies - 56Hz - 22kHz (-6dB freestanding)
- Dispersion - ±80° Coherent Horizontal, ±10° Coherent Vertical
- Maximum Continuous SPL - 108dB (per pair @ 1m)
- Crossover Frequency - 2.2kHz
- Recommended Power Amplifier - 75 to 300 Watts
- Nominal Impedance - 8 Ohm
- Connectors - Binding Posts/4mm Plugs, bi-wire
- Cabinet Dimensions (HxWxD) - 400x238x235mm/15.7˝x9.4˝x9.3˝ (eye bolt adds 40mm to the depth)
- Weight - 15kg/33lbs
Reviews: ATC SCM 12i - Install Version of SCM 12 Studio Monitor w/ Mounting Points
Warranty: ATC SCM 12i - Install Version of SCM 12 Studio Monitor w/ Mounting Points
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Loudspeaker Technology Ltd provides you with a two-year product warranty for your ATC product, valid from the date of purchase from an authorised ATC dealer. This warranty can be extended up to a period of six years by registering the product with ATC.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
