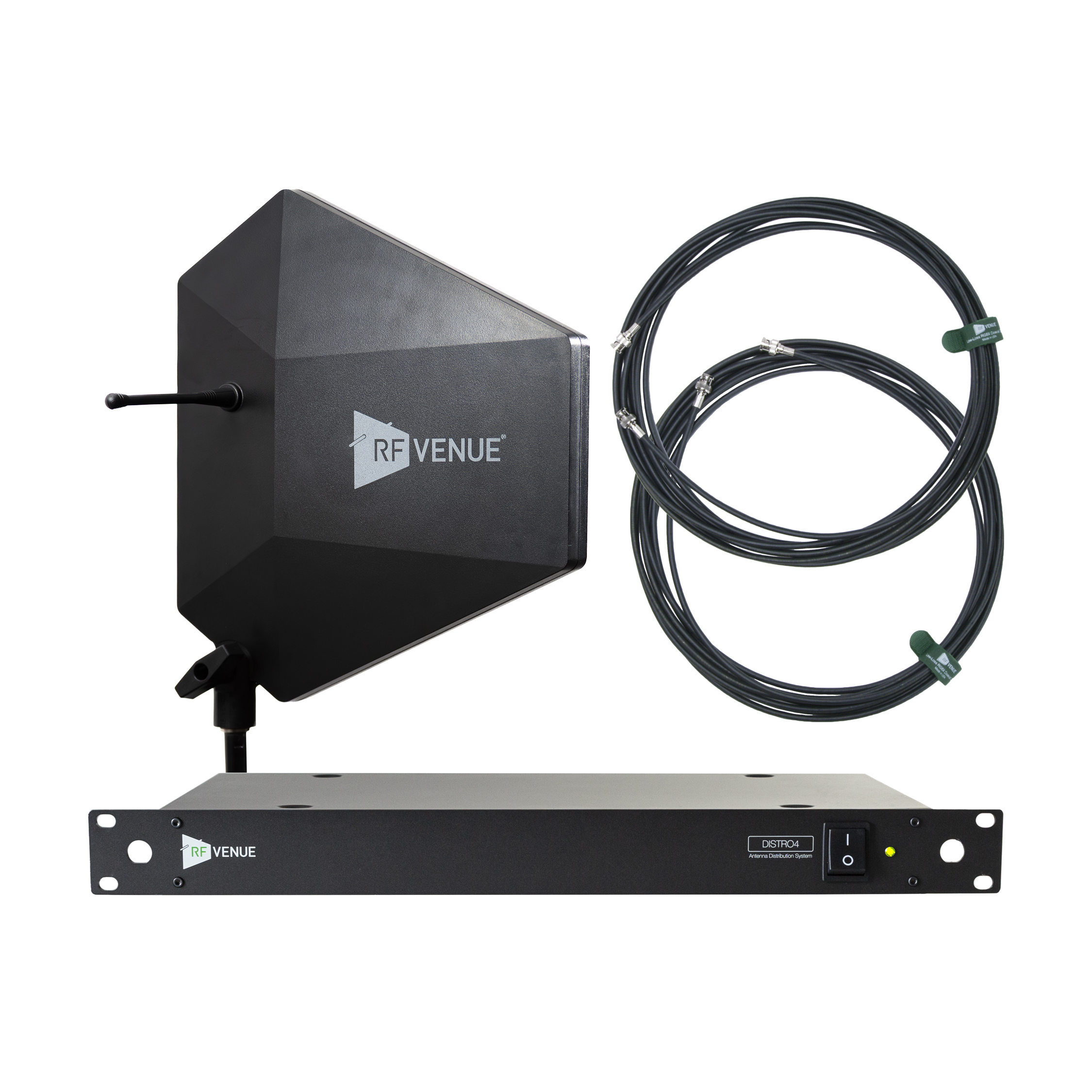

RF Venue Diversity Fin IPX 4-Channel Wireless Mic Upgrade Pack - Black

About: RF Venue Diversity Fin IPX 4-Channel Wireless Mic Upgrade Pack - Black

Struggling with dropouts is frustrating. RF Venue 4 Channel Upgrade Pack ensure you're using the right antenna and right accessories. And there's no need to guess if you have everything you need. No backtracking, no “forgot to order cables,” and no last-minute compatibility surprises.

We provide plug and play products that give integrators and their customers confidence that their wireless systems will work every time - with no wireless expertise needed. This turnkey bundle includes everything needed to configure up to 4 channels of wireless microphones.

• Eliminates multiple factory antennas using a single remote antenna
• Provides 12V DC power for up to 4 receivers
• Features BNC outputs for 4 receivers, plus cascade BNC for 5th receiver or to connect to another unit

The Diversity Fin IPX Antenna is the next evolution of RF Venue’s industry-standard flagship. Engineered to provide the same legendary performance as the original Diversity Fin, the IPX version is built to withstand the rigors of the road and the unpredictability of the outdoor elements.

• IP44 Rated: IPX is Rated IP44, featuring a weather-resistant seal and downward-facing BNC connectors to protect against rain and dust.
• Patented Cross-Polarized Design: Replaces two traditional "shark fin" paddle antennas with a single, high-performance unit that reduces cost, setup time, and user error.
• Superior Signal Integrity: Designed specifically to combat multi-path interference, vastly reducing dropouts and providing a more stable RF environment for wireless microphones.
• Built for the Road: Ruggedized enclosure with newly designed watertight threaded dipole antennas that can withstand impact. Designed to survive touring, festivals, and permanent outdoor installs.
• Versatile Mounting: Durable Twist Lock 5/8”-27 threaded microphone stand mount (EU adapter included). Need to wall-mount? We've designed a new universal wall-mount bracket system that can be purchased separately.
• High Compatibility: Operates across 470–928 MHz—compatible with nearly all modern wireless microphone systems.

Whether deployed in the harsh environments of touring and rental systems or as part of a permanent outdoor installation, the Diversity Fin IPX Antenna delivers a consistently reliable wireless microphone signal. Its robust design effectively eliminates multi-path interference and signal dropouts. This is achieved by combining log-periodic dipole array (LPDA) and a dipole antenna within a single, IP-rated ruggedized housing, allowing the IPX to capture both vertical and horizontal signals.

The Diversity Fin IPX Antenna is designed to operate between 470 and 928 MHz. This range covers North American UHF band frequencies 470-698 MHz, European 823-832 and 863-865 MHz bands and the 902-928 MHz ISM band.

The Diversity Fin IPX Antenna is best set up facing edgewise, with the narrow most part of the antenna being aimed toward the wireless microphones. On the left side of the antenna are the labeled LPDA and Dipole antenna outputs; plug both of these BNC outputs into your wireless microphone receiver or Distro to achieve diversity with your wireless microphones. For best results, maintain line of sight between the antenna and the wireless microphones.

The DISTRO4 distributes diversity RF and DC power across four wireless microphone receivers of any brand. A true “distribution amplifier,” DISTRO4 splits signals from two antennas (or one Diversity Fin) connected to the rear panel and amplifies them before delivering the signals to multiple receivers in a rack. An additional cascade port is included for daisy chaining multiple units together to accommodate up to 16 receivers per antenna pair.

DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. It includes all RF and DC power cables needed to connect a 4 channel wireless microphone system as well as cascade to one additional DISTRO4.

Specifications

• Diversity Fin IPX Antenna
  • Electrical
    • Operating Frequency: 470 – 928 MHz
    • Impedance: 50 Ω
    • Polarization: LPDA Vertical
    • Polarization: Dipole Horizontal
  • Physical
    • Mounting Interface: 5/8”-27, 3/8”-16
    • IP Rating: IP44
    • Connectors: 2x BNC
    • Dimensions: 11.3 x 13.62 x 1.85 in (287 x 346 x 47 mm)
    • Weight: 3.97 lbs (1.8 kg)
• DISTRO4
  • Frequency range: 470-952 MHz
  • RF output level (gain): 3 dB (±2 dB)
  • Cascade output level: 0 dB ~ +2 dB
  • Output connection isolation: ≥ 25 dB
  • Third order intercept point: 24 dBm
  • Impedance: 50Ω
  • Power consumption: 60 W
  • Input AC voltage: 100~240 V switching
  • DC over coax (to external antennas): 12-14 V D C
  • Output DC voltage (to receiver jacks): +12 V
  • Dimensions (WxHxD): 19 x 1.77 x 9.8 i x 1.nch (480 x 45 x 250mm)
  • Weight: 4.74 lbs (2.15 kg)

What's Included

• 1x Diversity Fin IPX Antenna
  • 2x Dipole Antennas
  • 2x Spare Dipole Antennas
  • 1x Dipole Storage Case
  • 1x Threaded EU Microphone Stand Adapter
• 1x DISTRO4 Antenna Distribution System
• 2x  25' RG8X Low-Loss Coax Cables
• 10x BNC Jumpers
• 4x DC Jumpers
