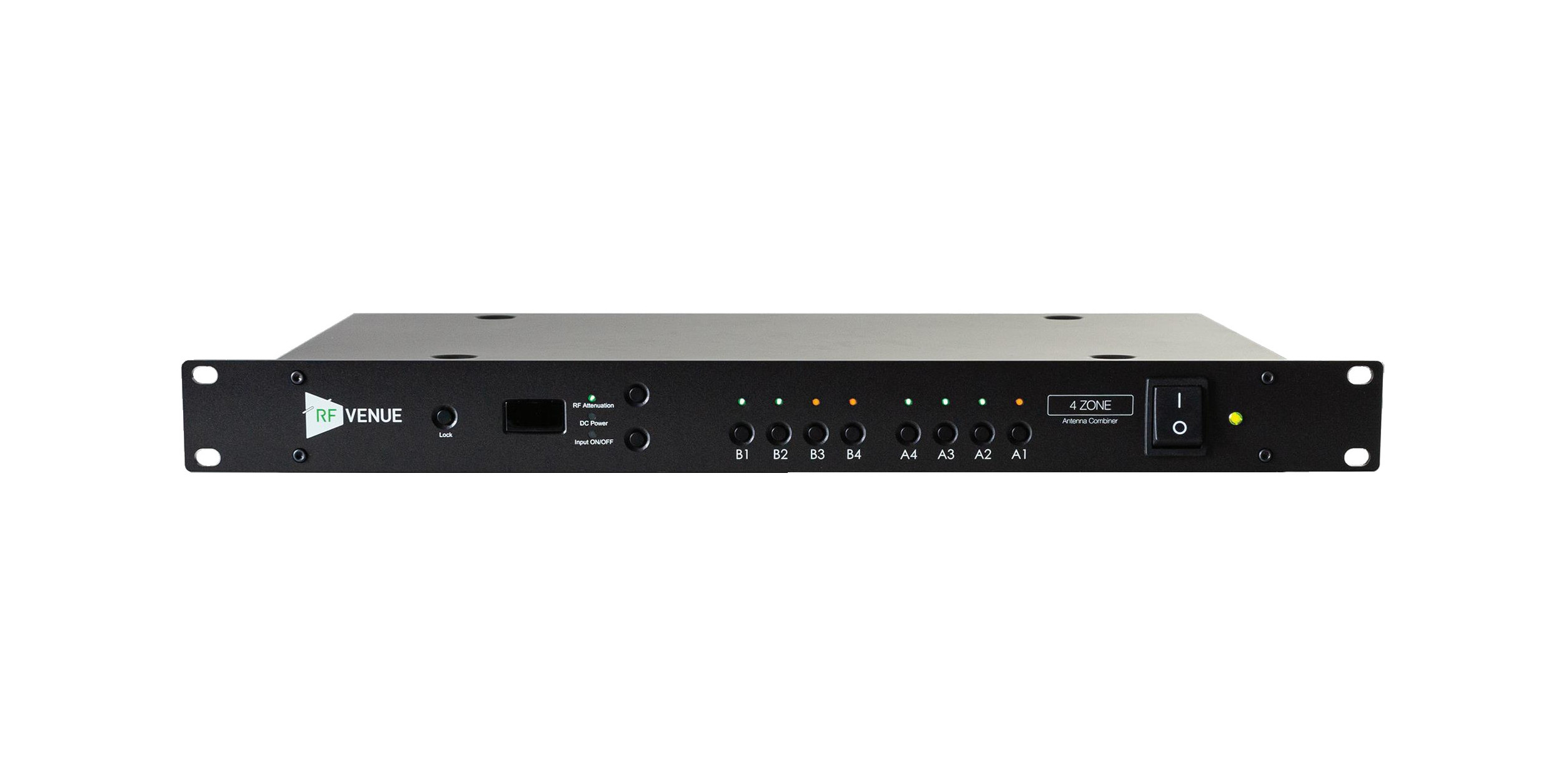

RF Venue 4 Zone Active Antenna Combiner

About: RF Venue 4 Zone Active Antenna Combiner

The 4 ZONE antenna combiner takes the complexity out of multi-zone wireless microphone projects. 4 ZONE combines together up to four separate pairs of diversity antenna connections for multi-purpose rooms, indoor-outdoor configurations, or main stages with secondary breakout rooms.

• Single Rack Space: A unique one rack space design allows microphones to operate in up to four separate coverage areas.
• Keeps you Covered: Seamlessly cover wireless microphones between building locations or indoor and outdoor areas. User configurable to allow which zones are active.

For fine tuning RF levels in each coverage area, 4 ZONE provides individual channel RF signal attenuation control down to -31dB in 1 dB steps. And for active antennas or in-line amplifiers, it features selectable 12V DC power to accommodate long cable runs.

With selectable ON/OFF inputs, 4 ZONE also allows for quick control of coverage zones for roaming microphone transmitters, so you can choose which zones are active as a live event or location sound project progresses, saving setup and breakdown time onsite.

When used in conjunction with up to four Diversity Fin Antennas and one or more DISTRO4 antenna distributors, 4 ZONE completes a turnkey package for any multi-zone wireless microphone project.

Product Setup

Use in conjunction with up to four Diversity Series Antennas (or any four diversity antenna pairs) and one or more antenna distributors (such as our DISTRO5 HDR) to get a complete turnkey package for any multi-zone wireless microphone project across any brand wireless audio system.  For larger coverage areas with long cabling requirements, add OPTIX2-S3 RF over Fiber systems for each antenna zone required.

Specifications

• Carrier Frequency Range: 470-960MHz
• Full System Gain: 3dB(±3dB)
• Input/Output Impedance: 50 Ω
• A/B Antenna Input: 4+4
• OIP3: -35dBm(typ.) @ 2-tone; Pi=-15dBm/tone
• RF Input Attenuation: -31~0dB (Step:1dB)

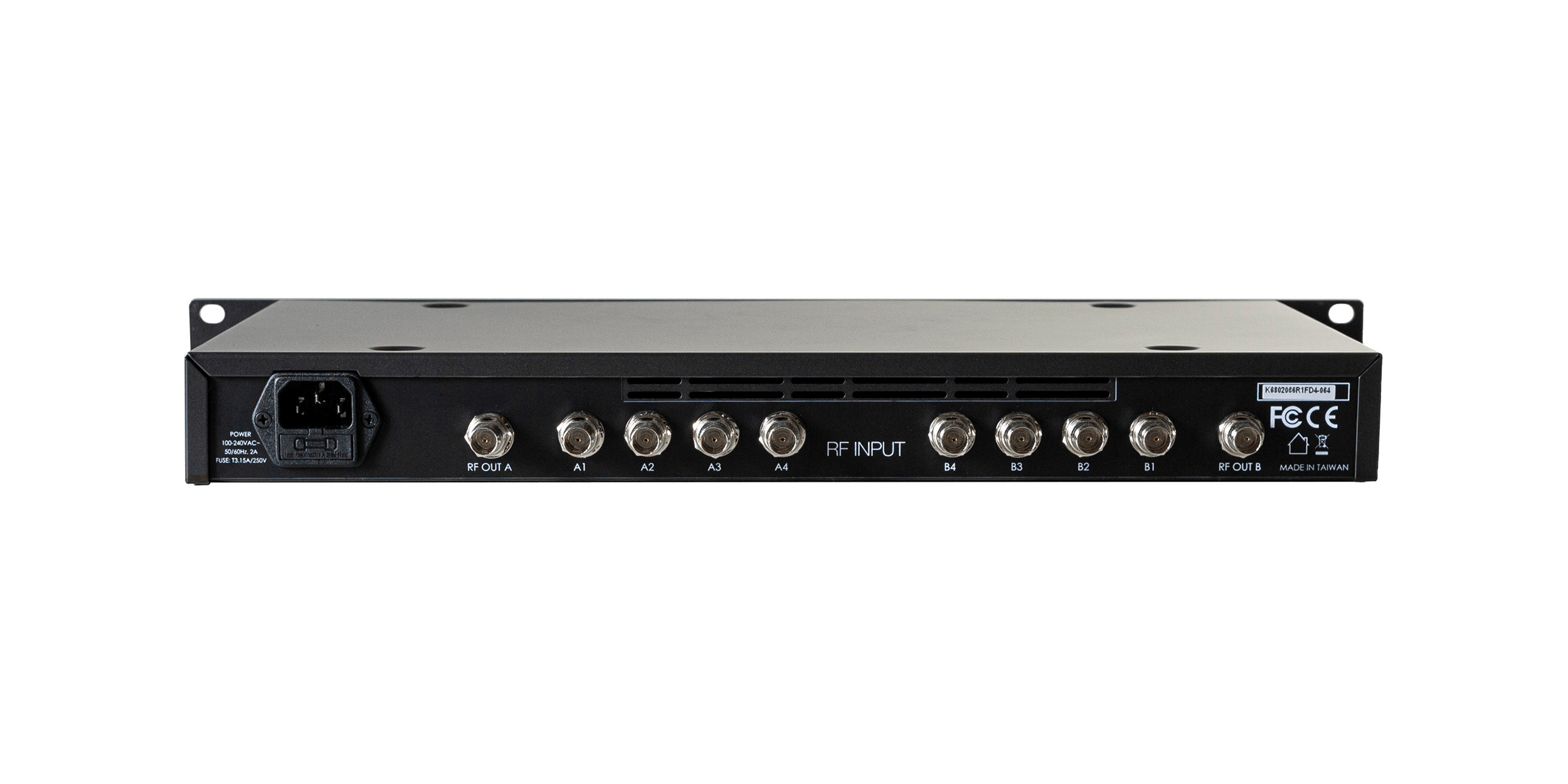

• Input/Output Connectors: BNC(F)
  • Input: x8
  • Output: x2
• Functions
  1. DC Power (for In-Line Amplier) ON/OFF Control
  2. RF Input Attenuation Control
  3. RF Input Signal ON/OFF Control
• DC Over Coax (to external antennas)​: 12V/200mA*8
• Power Supply: 100~240VAC; MAX 2A 50/60Hz
• Dimension (WxHxD): 18.9 x 1.77 x 9.84 inch (480 x 45 x 250mm)
• Weight: 5.51 lbs (2.5kg)

What's in the Box

• 1x 4 Zone Antenna Combiner
• 2x BNC jumpers
• 1x AC power cord
