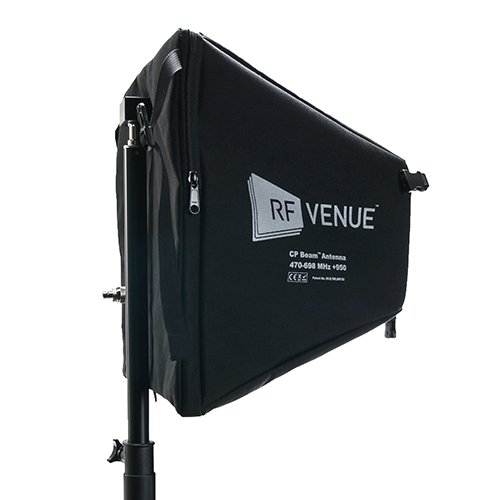

RF Venue CP Beam Directional UHF Antenna
Model: CPB
About: RF Venue CP Beam Directional UHF Antenna

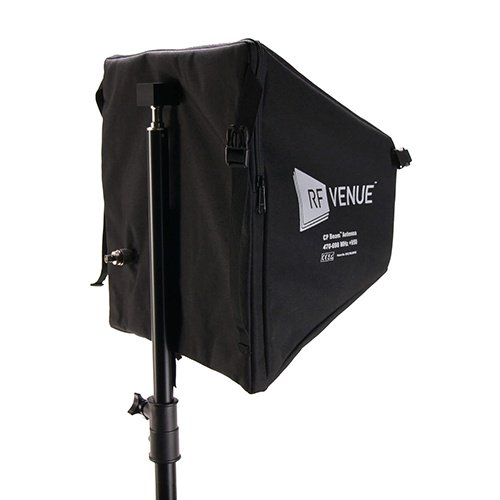

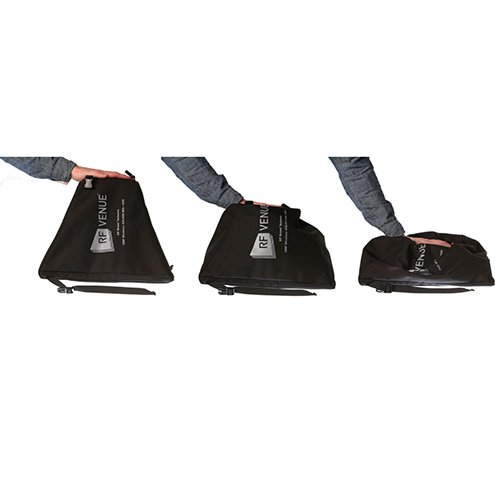

The CP Beam™ antenna is a high performance, directional UHF antenna in a lightweight, portable package. Unlike other bulky helicals that require flight cases, the CP Beam is quickly deployed and stowed - fitting in a 2RU rack drawer and weighing just 2.5 lbs. 9 dBd of gain makes it an ideal choice for long range applications. Widely used on major concert tours for monitoring and comms, the CP Beam connects to any brand IEM, wireless mic, or UHF intercom. A parts kit is available separately to replace connectors.
Electrical
- Operating frequency: 470–698 MHz
- Bandwidth: 228 MHz
- Average return loss: -13 .15 dB
- Impedance: 50Ω
- Pattern type: Beam
- Polarization: RHCP
Azimuth X
- Beam width: 63°
- F/B ratio: -10 dB
- F/S ratio: -12 dB
Azimuth Y
- Beam width: 70°
- F/B ratio: -9 dB
- F/S ratio: -12 dB
- Squint: < 2 dB
- Gain: 9 dBd
Physical
- Length: 355mm
- Height: 355mm
- Weight: 110 0 g
- Mount threads: 1/4-20, 3/8-16, 5/8-27
- Operating temperature: -23°C–54°C
- Color: Black fabric
- Connector(s): N female (BNC supplied)
UPC: 718122340217
