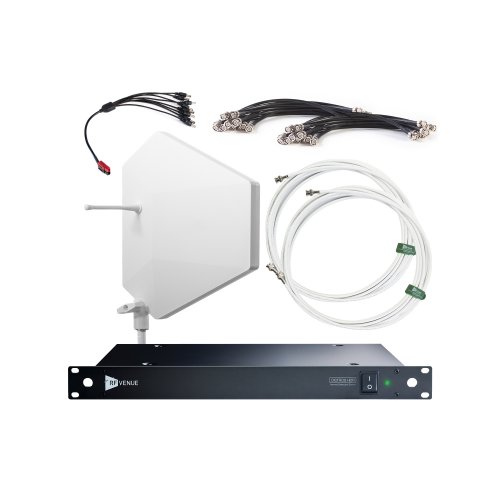

RF Venue Diversity Fin IPX 9-Channel Wireless Mic Upgrade Pack - White

About: RF Venue Diversity Fin IPX 9-Channel Wireless Mic Upgrade Pack - White

Struggling with dropouts is frustrating. RF Venue 9 Channel Upgrade Pack ensure you're using the right antenna and right accessories. And there's no need to guess if you have everything you need. No backtracking, no “forgot to order cables,” and no last-minute compatibility surprises.

We provide plug and play products that give integrators and their customers confidence that their wireless systems will work every time - with no wireless expertise needed. This turnkey bundle includes everything needed to configure up to 9 channels of wireless microphones with high performance

• Eliminates multiple factory antennas using a single remote antenna
• High Performance with 9 channels in 1RU rack space
• Highly expandable, up to 81 channels - cascade from any output
• Power up to 8 receivers with DC-OCTOPUS

The Diversity Fin IPX Antenna is the next evolution of RF Venue’s industry-standard flagship. Engineered to provide the same legendary performance as the original Diversity Fin, the IPX version is built to withstand the rigors of the road and the unpredictability of the outdoor elements.

• IP44 Rated: IPX is Rated IP44, featuring a weather-resistant seal and downward-facing BNC connectors to protect against rain and dust.
• Patented Cross-Polarized Design: Replaces two traditional "shark fin" paddle antennas with a single, high-performance unit that reduces cost, setup time, and user error.
• Superior Signal Integrity: Designed specifically to combat multi-path interference, vastly reducing dropouts and providing a more stable RF environment for wireless microphones.
• Built for the Road: Ruggedized enclosure with newly designed watertight threaded dipole antennas that can withstand impact. Designed to survive touring, festivals, and permanent outdoor installs.
• Versatile Mounting: Durable Twist Lock 5/8”-27 threaded microphone stand mount (EU adapter included). Need to wall-mount? We've designed a new universal wall-mount bracket system that can be purchased separately.
• High Compatibility: Operates across 470–928 MHz—compatible with nearly all modern wireless microphone systems.

Whether deployed in the harsh environments of touring and rental systems or as part of a permanent outdoor installation, the Diversity Fin IPX Antenna delivers a consistently reliable wireless microphone signal. Its robust design effectively eliminates multi-path interference and signal dropouts. This is achieved by combining log-periodic dipole array (LPDA) and a dipole antenna within a single, IP-rated ruggedized housing, allowing the IPX to capture both vertical and horizontal signals.

The Diversity Fin IPX Antenna is designed to operate between 470 and 928 MHz. This range covers North American UHF band frequencies 470-698 MHz, European 823-832 and 863-865 MHz bands and the 902-928 MHz ISM band.

The Diversity Fin IPX Antenna is best set up facing edgewise, with the narrow most part of the antenna being aimed toward the wireless microphones. On the left side of the antenna are the labeled LPDA and Dipole antenna outputs; plug both of these BNC outputs into your wireless microphone receiver or Distro to achieve diversity with your wireless microphones. For best results, maintain line of sight between the antenna and the wireless microphones.

The RF Venue DISTRO9 HDR represents a unique approach to high quality RF signal distribution for wireless microphones. A new and proprietary design eliminates old internal splitters most antenna distribution systems still use and replaces them with state of the art “divide by three” circuitry, providing up to 9 low-noise channels of diversity wireless. And each output is clean: DISTRO9 HDR employs low noise figure amplifiers and superior gain structure providing the high dynamic range over the spectrum.

• Connect up to 9 receivers in 1RU
• High dynamic range for lowest IMD for more usable spectrum
• Two zones of antenna coverage built-in
• Superior gain flatness and stability across VHF, T-Band, and UHF
• Dedicated DC power port for receivers and accessories
• High end RF performance at a competitive price

Any DISTRO9 HDR RF output can be cascaded to a second DISTRO9 HDR, eliminating the need for dedicated cascade ports and providing up to 17 wireless microphone channels in just two units of rack space.

Multizone installations are easy with the DISTRO9 HDR two zone antenna inputs, providing coverage for large areas or multiple rooms, each with DC power available for in-line amplifiers or active antennas.

Featuring a robust internal power supply, the DISTRO9 HDR can provide clean DC power to wireless microphone receivers with an optional DC cable kit, and can also be powered directly from a DC battery source for location sound cart applications. The DISTRO9 HDR is also ETL listed to meet bid specification requirements on municipal, government, and other high profile projects.

An internal I/O section provides a range of future module add-on capabilities ranging from remote web-based spectrum monitoring to bandpass filtering, and more. As RF spectrum congestion grows and operating bands evolve worldwide, the DISTRO9 HDR is highly configurable to meet the current and future needs of any professional wireless microphone system.

​Specifications

• Diversity Fin IPX Antenna
  • Electrical
    • Operating Frequency: 470 – 928 MHz
    • Impedance: 50 Ω
    • Polarization: LPDA Vertical
    • Polarization: Dipole Horizontal
  • Physical
    • Mounting Interface: 5/8”-27, 3/8”-16
    • IP Rating: IP44
    • Connectors: 2x BNC
    • Dimensions: 11.3 x 13.62 x 1.85 in (287 x 346 x 47 mm)
    • Weight: 3.97 lbs (1.8 kg)
• DISTRO9
  • Frequency range: 50-1000 MHz (VHF, UHF, +900 bands)
  • RF output level (gain): ± 3dB
  • Output connection isolation: 60dB @ 510MHz, 80dB @ 200 MHz
  • Third order intercept point: 15dBm @ VHF, 20+ @ UHF
  • Impedance: 50Ω
  • Power Requirements: 50/60 HZ, 2A
  • Fuse: T 3 .15 A / 2 5 0 V
  • Input AC voltage: 100-240 VAC
  • DC over coax (to external antennas):12 VDC 50mA
  • Output DC voltage (to receiver jacks): 12V 3A
  • Output DC connectors: Anderson Power Pole
  • Dimensions(WxHxD): 18.9 x 1.77 x 9.84 inch (480 x 45 x 250 mm)
  • Weight: 5.95 lbs (2.7 kg)

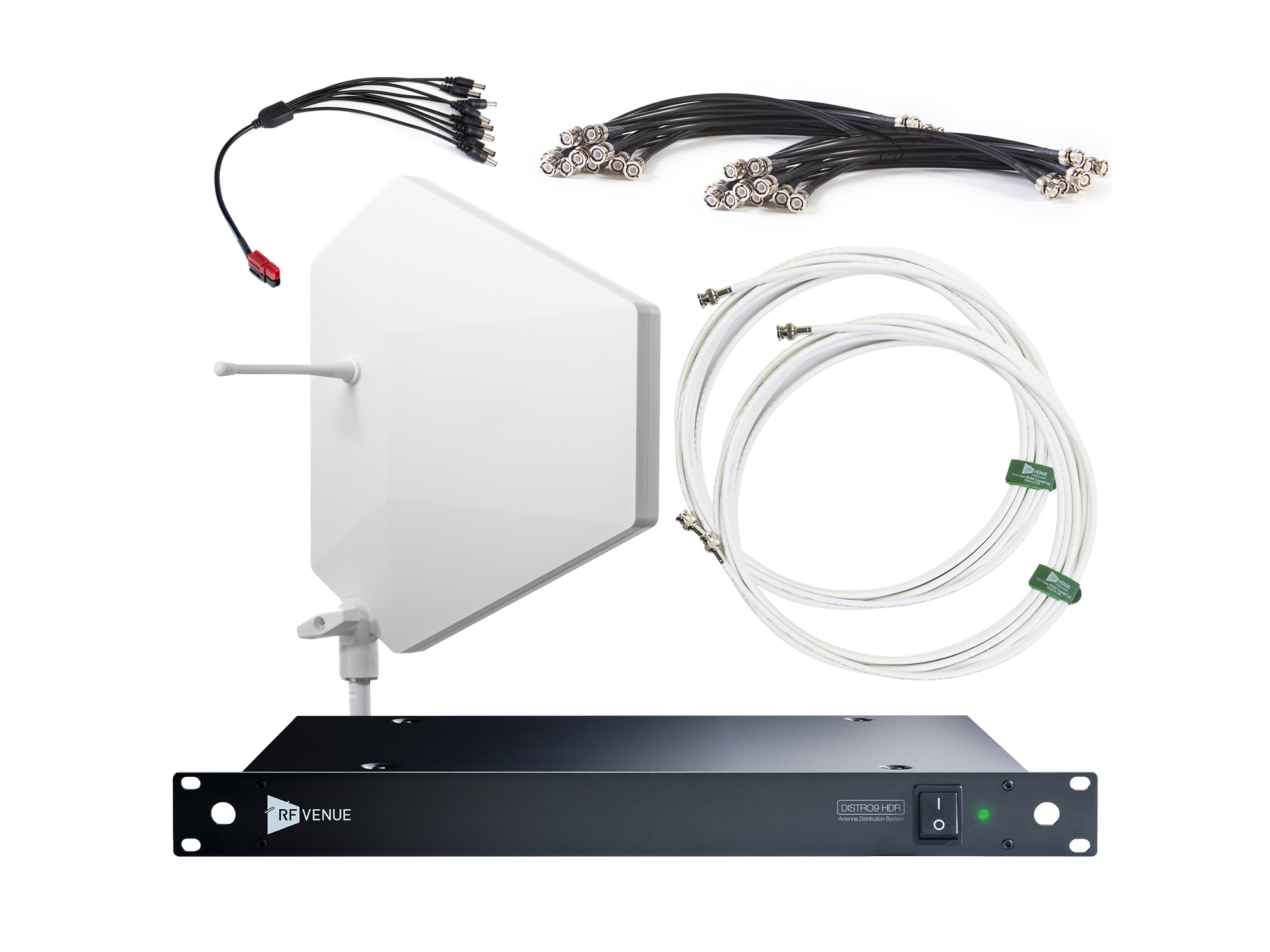

What's Included

• 1x Diversity Fin IPX Antenna
  • 2x Dipole Antennas
  • 2x Spare Dipole Antennas
  • 1x Dipole Storage Case
  • 1x Threaded EU Microphone Stand Adapter
• 1x DISTRO9 HDR Antenna Distribution system
• 2x 25' RG8X Low-Loss Coax Cables
• 10x 1.5' RG8X  Low-Loss BNC cables
• 10x 2' RG8X Low-Loss BNC cables
• 1x DC-OCTOPUS Power accessory cable
