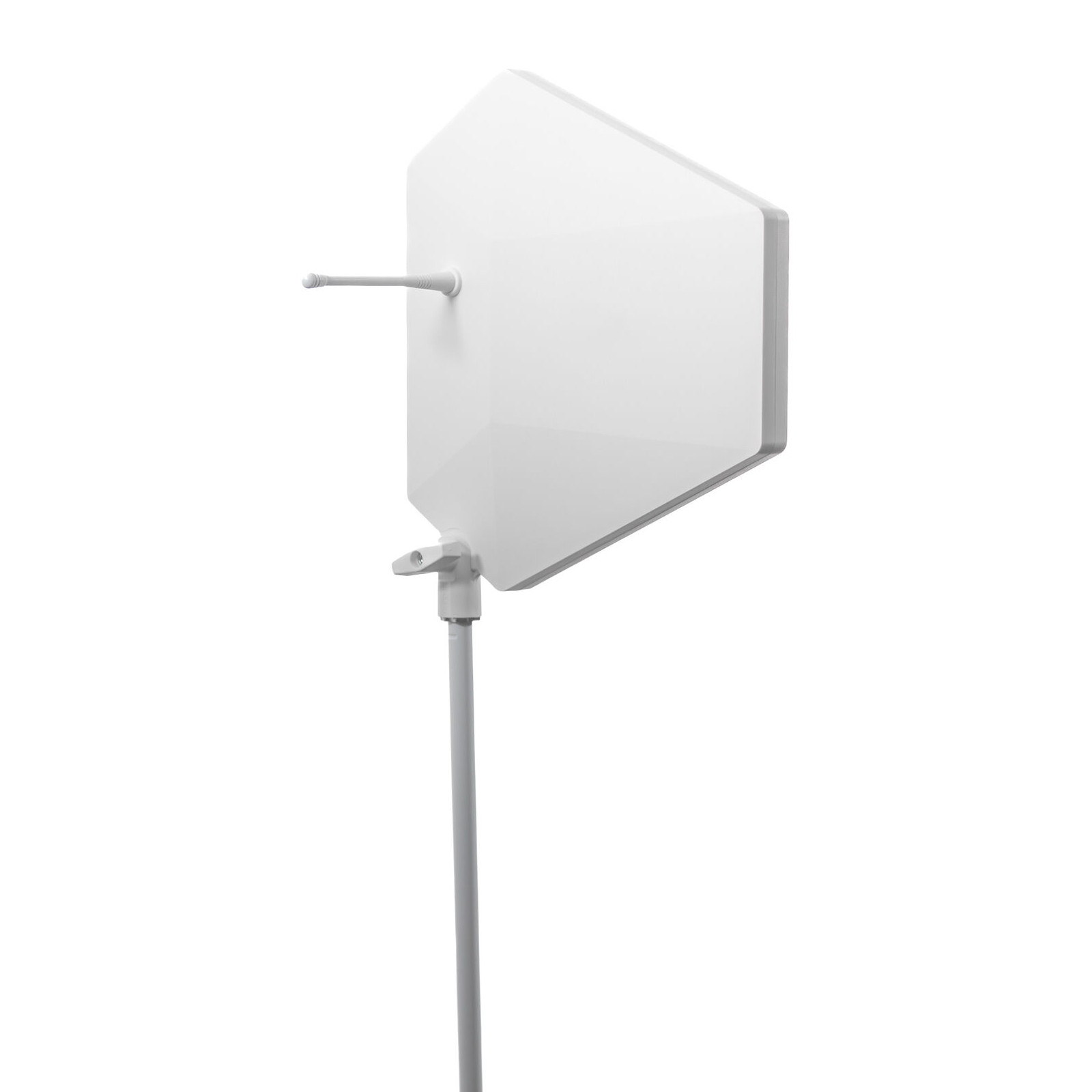

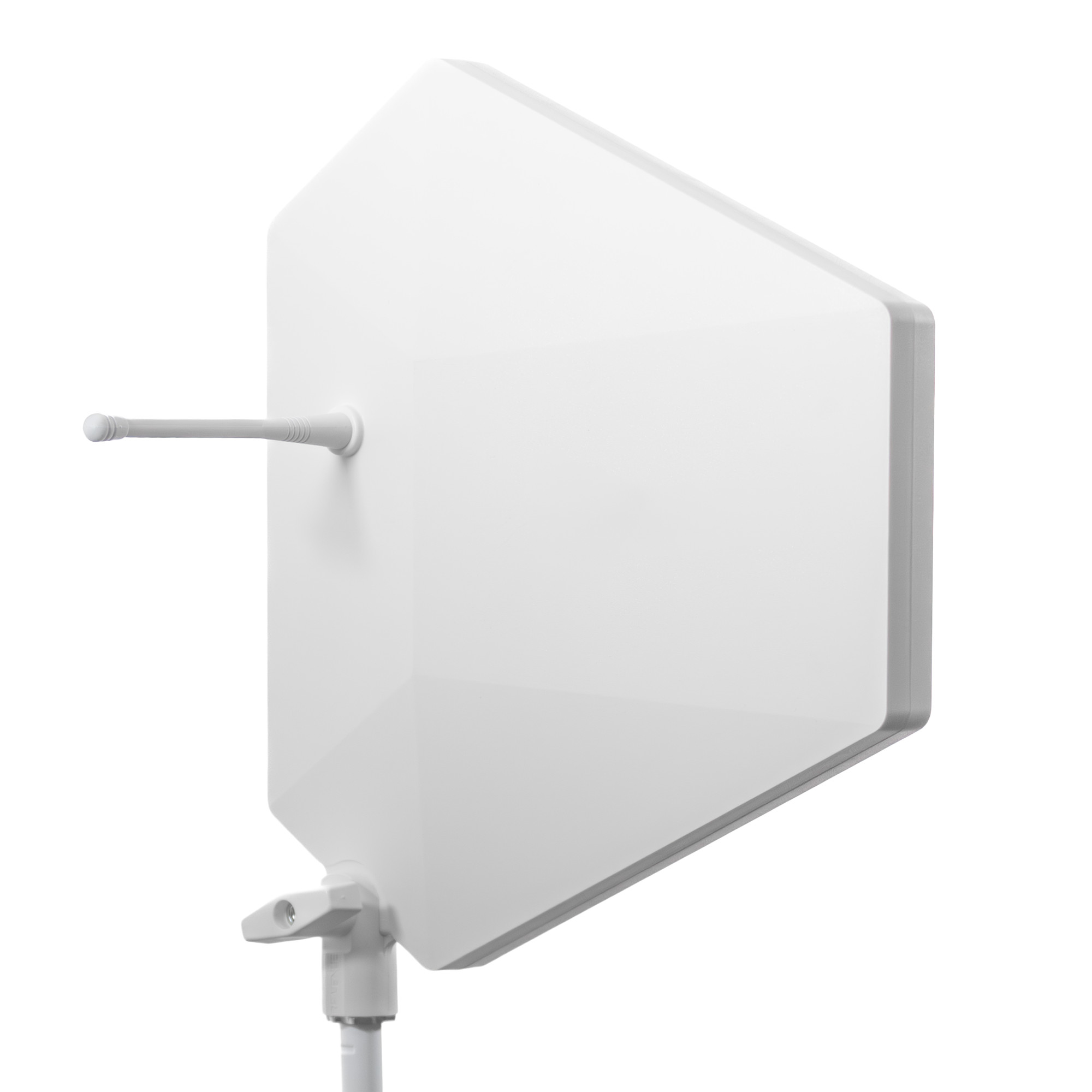

RF Venue Diversity Fin IPX Weather-Resistant Antenna - White

About: RF Venue Diversity Fin IPX Weather-Resistant Antenna - White

The Diversity Fin IPX Antenna is the next evolution of RF Venue’s industry-standard flagship. Engineered to provide the same legendary performance as the original Diversity Fin, the IPX version is built to withstand the rigors of the road and the unpredictability of the outdoor elements.

• IP44 Rated: IPX is Rated IP44, featuring a weather-resistant seal and downward-facing BNC connectors to protect against rain and dust.
• Patented Cross-Polarized Design: Replaces two traditional "shark fin" paddle antennas with a single, high-performance unit that reduces cost, setup time, and user error.
• Superior Signal Integrity: Designed specifically to combat multi-path interference, vastly reducing dropouts and providing a more stable RF environment for wireless microphones.
• Built for the Road: Ruggedized enclosure with newly designed watertight threaded dipole antennas that can withstand impact. Designed to survive touring, festivals, and permanent outdoor installs.
• Versatile Mounting: Durable Twist Lock 5/8”-27 threaded microphone stand mount (EU adapter included). Need to wall-mount? We've designed a new universal wall-mount bracket system that can be purchased separately.
• High Compatibility: Operates across 470–928 MHz—compatible with nearly all modern wireless microphone systems.

Whether deployed in the harsh environments of touring and rental systems or as part of a permanent outdoor installation, the Diversity Fin IPX Antenna delivers a consistently reliable wireless microphone signal. Its robust design effectively eliminates multi-path interference and signal dropouts. This is achieved by combining log-periodic dipole array (LPDA) and a dipole antenna within a single, IP-rated ruggedized housing, allowing the IPX to capture both vertical and horizontal signals.

The Diversity Fin IPX Antenna is designed to operate between 470 and 928 MHz. This range covers North American UHF band frequencies 470-698 MHz, European 823-832 and 863-865 MHz bands and the 902-928 MHz ISM band.

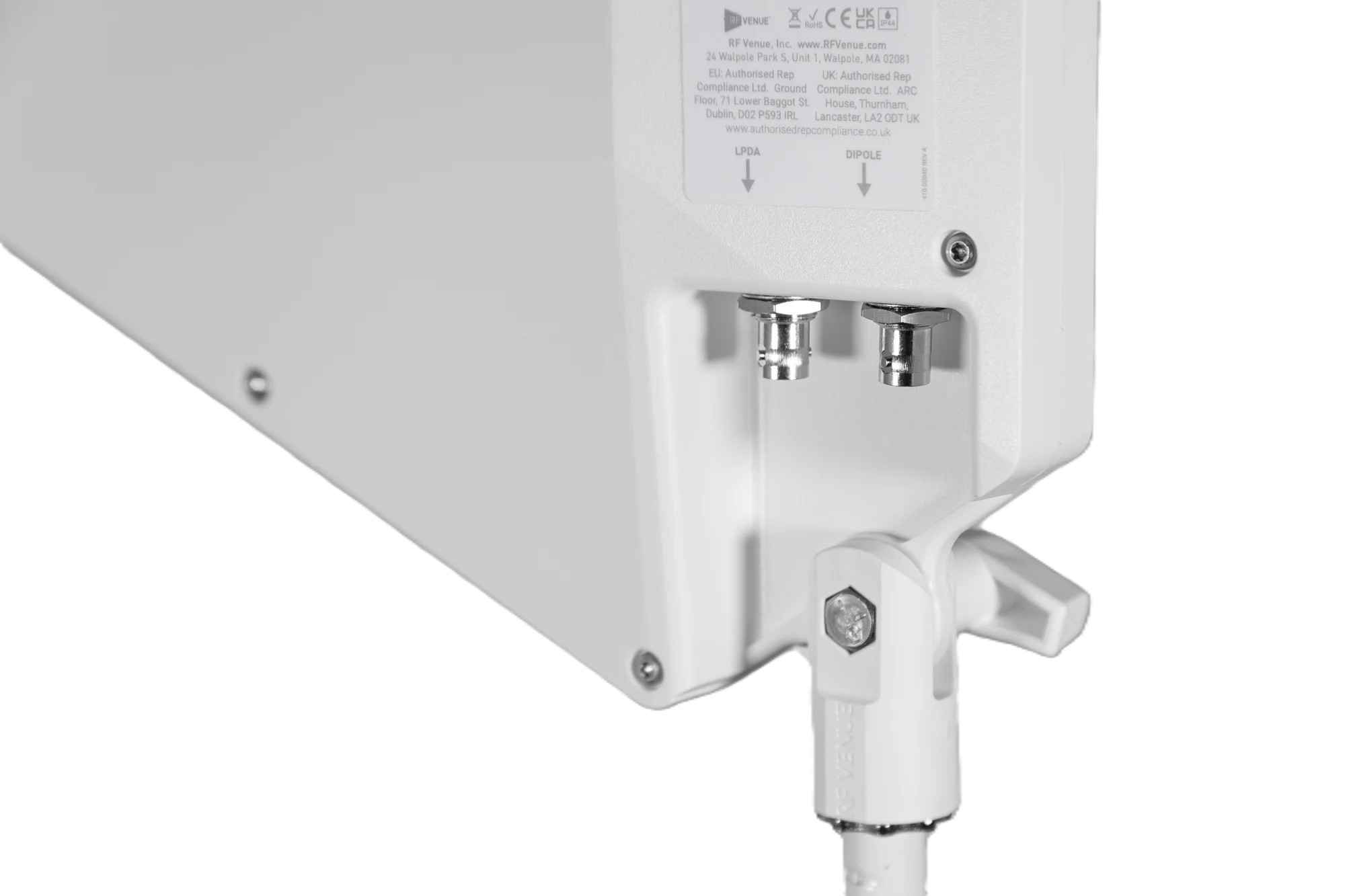

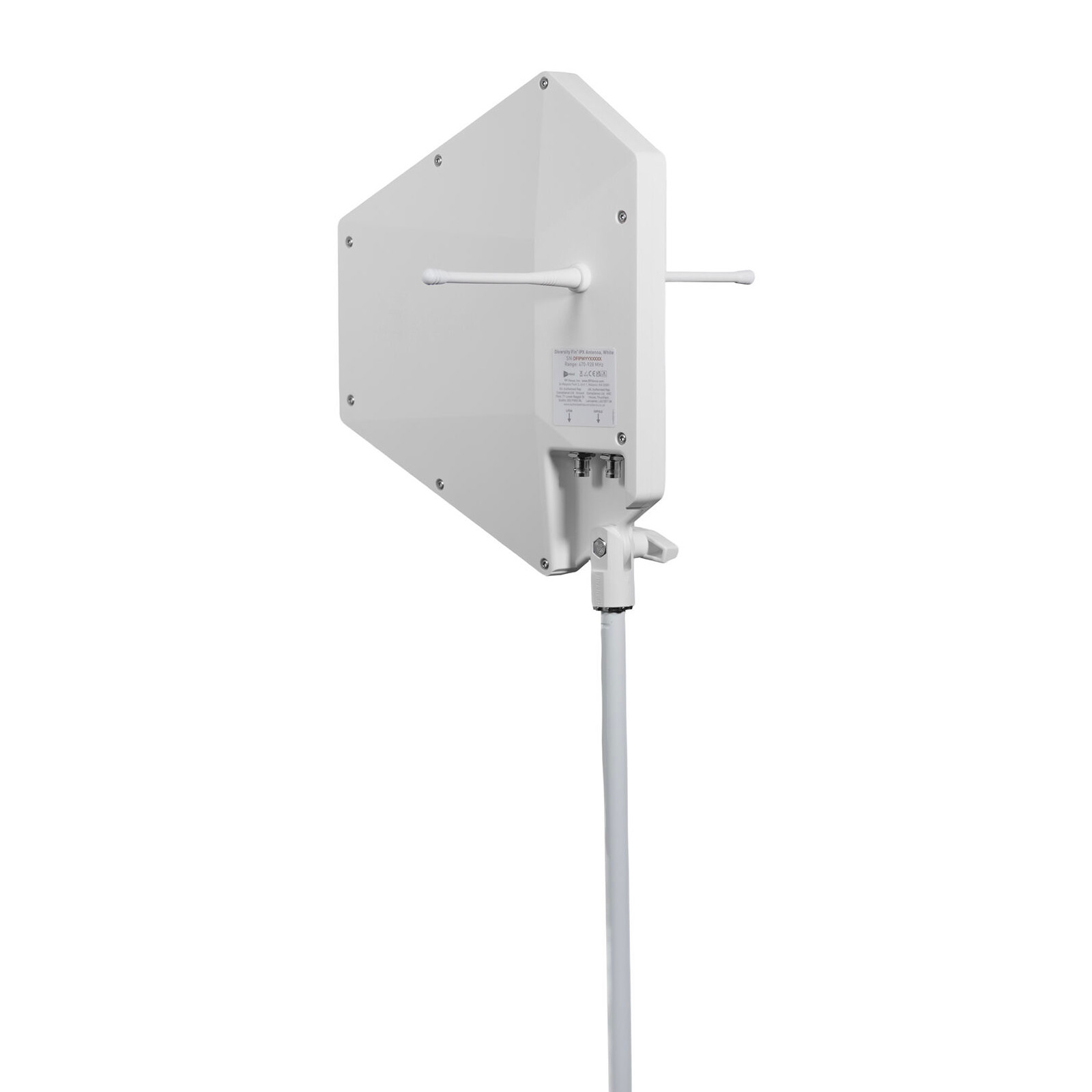

The Diversity Fin IPX Antenna is best set up facing edgewise, with the narrow most part of the antenna being aimed toward the wireless microphones. On the left side of the antenna are the labeled LPDA and Dipole antenna outputs; plug both of these BNC outputs into your wireless microphone receiver or Distro to achieve diversity with your wireless microphones. For best results, maintain line of sight between the antenna and the wireless microphones.

Specifications

• Electrical
  • Operating Frequency: 470 – 928 MHz
  • Impedance: 50 Ω
  • Polarization: LPDA Vertical
  • Polarization: Dipole Horizontal
• Physical
  • Mounting Interface: 5/8”-27, 3/8”-16
  • IP Rating: IP44
  • Connectors: 2x BNC
  • Dimensions: 11.3 x 13.62 x 1.85 in (287 x 346 x 47 mm)
  • Weight: 3.97 lbs (1.8 kg)

What's Included

• 1x Diversity Fin IPX Antenna
• 2x Dipole Antennas
• 2x Spare Dipole Antennas
• 1x Dipole Storage Case
• 1x Threaded EU Microphone Stand Adapter
