RF Venue DISTRO4 w/ DFIN Antenna Distribution Bundle

Model: DFINDISTRO4

RF Venue DISTRO4 w/ DFIN Antenna Distribution Bundle
  • Free Shipping!
  •  More Coming Soon! Contact us for Lead Time
  • Not yet reviewed




About: RF Venue DISTRO4 w/ DFIN Antenna Distribution Bundle

DISTRO4 distributes diversity RF and DC power across four wireless microphone receivers of any brand. A true “distribution amplifier,” DISTRO4 splits signals from two antennas (or one Diversity Fin) connected to the rear panel and amplifies them before delivering the signals to multiple receivers in a rack. An additional cascade port is included for daisy chaining multiple units together to accommodate up to 16 receivers per antenna pair.

DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. It includes all RF and DC power cables needed to connect a 4 channel wireless microphone system as well as cascade to one additional DISTRO4.

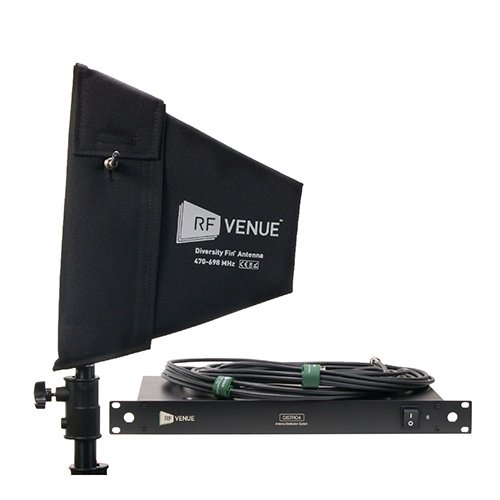

Comes with Diversity Fin Antenna, DISTRO4 - 4 channel antenna distributor with cascade, RG8X 25' premium coaxial cables and WaveTower remote spectrum monitoring and management system

DISTRO4 Package Includes:

  • 1x DISTRO4 Distribution System
  • 1x Diversity Fin Antenna w/ Cover
  • 10x BNC jumpers
  • 4x DC cables
  • 1x AC cables
  • 2x 25ft RGB8 cables

Specifications

  • Frequency range: 470-952 MHz
  • RF output level (gain): 3 dB (±2 dB)
  • Cascade output level: 0 dB ~ +2 dB
  • Output connection isolation: ≥ 25 dB
  • Third order intercept point: 24 dBm
  • Impedance: 50Ω
  • Power consumption: 60 W
  • Input AC voltage: 100~240 V switching
  • DC over coax (to external antennas): 12-14 V D C
  • Output DC voltage (to receiver jacks): +12 V
  • Dimensions: 480(W) X 45(H) X 250(D) mm
  • Weight: 2.15 Kgs

UPC: 459225903762
