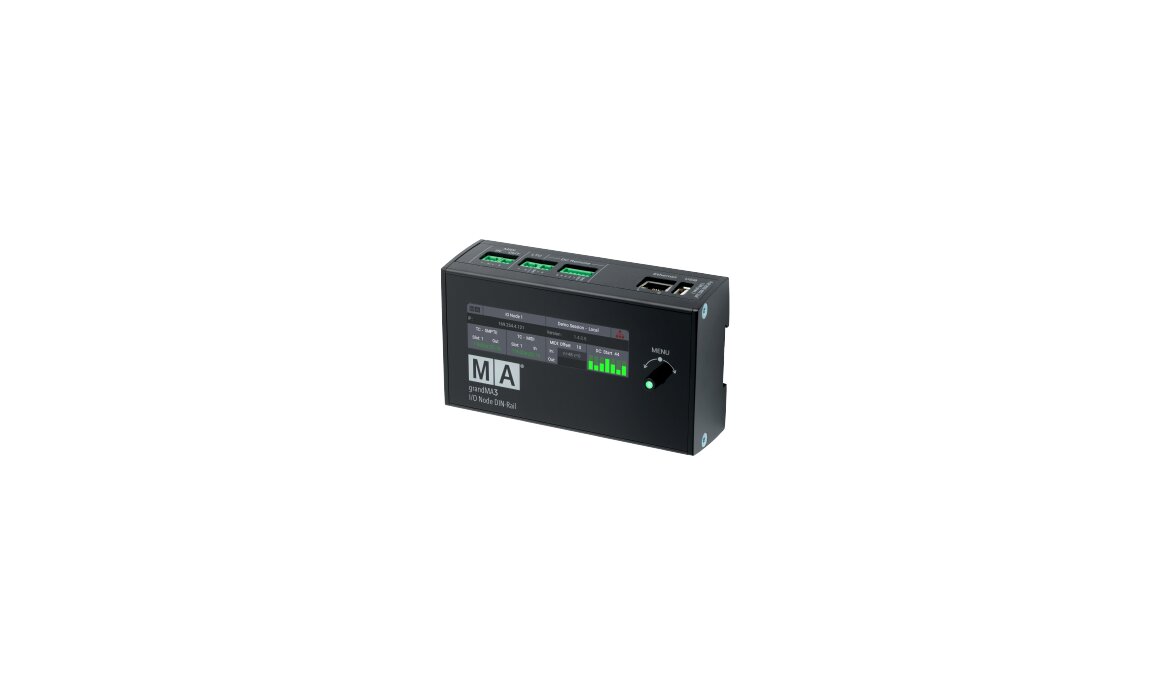

MA Lighting grandMA3 I/O Node DIN-Rail

Model: MA4023578

MA Lighting grandMA3 I/O Node DIN-Rail
MA Lighting grandMA3 I/O Node DIN-Rail
MA Lighting grandMA3 I/O Node DIN-Rail
MA Lighting grandMA3 I/O Node DIN-Rail
Call for Price
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed
Call for details

More models to choose from:

I/O Node
I/O Node PoE
I/O Node DIN-Rail



About: MA Lighting grandMA3 I/O Node DIN-Rail

The grandMA3 I/O Node DIN-Rail is the multi-tool of signal distribution within a grandMA3 lighting control system, especially for fixed installations. Wherever the signal is generated or needed – just place a grandMA3 I/O Node DIN-Rail there and receive or send external signals.

The grandMA3 I/O Node DIN-Rail comes in the same housing as a grandMA3 xPort Node DIN-Rail.

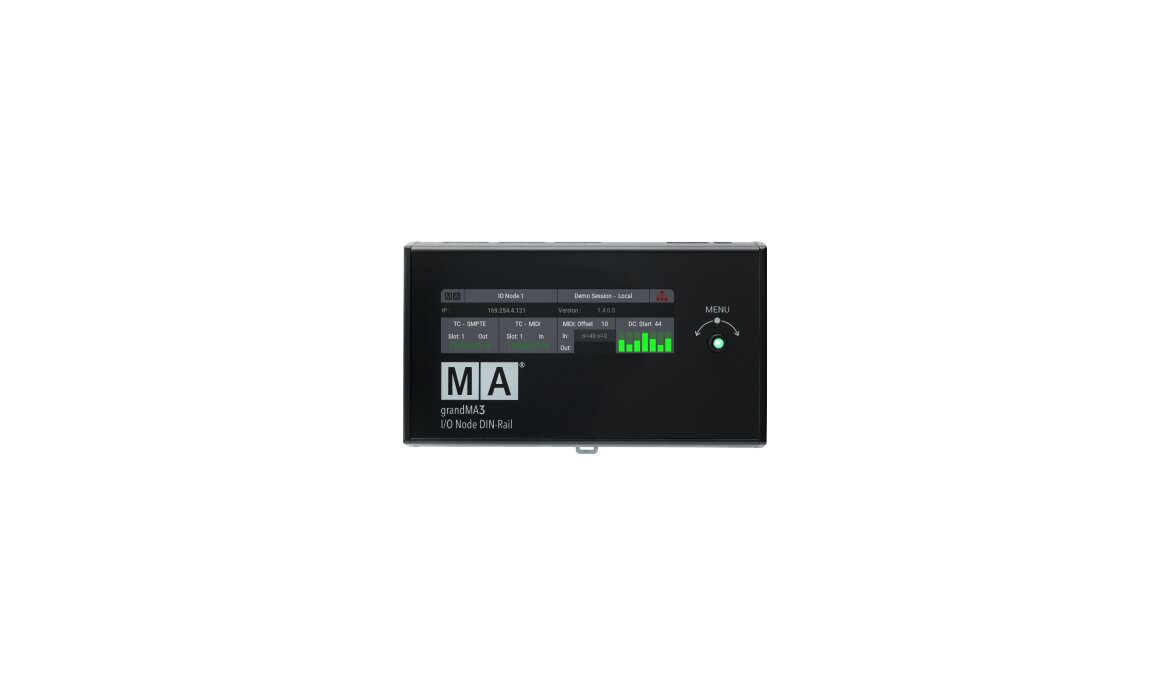

The display shows the status of all input and output signals. Just add the grandMA3 I/O Node DIN-Rail as a Session Member and it is ready to go.

It has never been easier to integrate external signal flows into the MA-Net workflow. Once a grandMA3 I/O Node DIN-Rail receives MIDI, Timecode or DC Remote signals, these are available immediately throughout the grandMA3 lighting control system, and can be used in any grandMA3 onPC or console. The same is true for transmitting MIDI or Timecode signals.

Just add a grandMA3 I/O Node DIN-Rail and connect locally with external signals to integrate them into the MA-Net3 workflow.

Specifications

  • Parameters -  none
  • Parameters Mode2 -  none
  • Operating voltage/ Supply voltage
    • AC 100 - 240 V; 50/60 Hz
    • PoE (IEEE 802.3af; 48 V DC/max. 12 W)
  • Power -  max. 15 VA
  • Operating Temperature -  -10 °C up to 50 °C / 14 °F up to 122 °F
  • Dimensions -  150 x 50 x 90 mm / 6 x 2 x 4 in (width x depth x height)
  • Net weight -  1 kg / 3 lbs

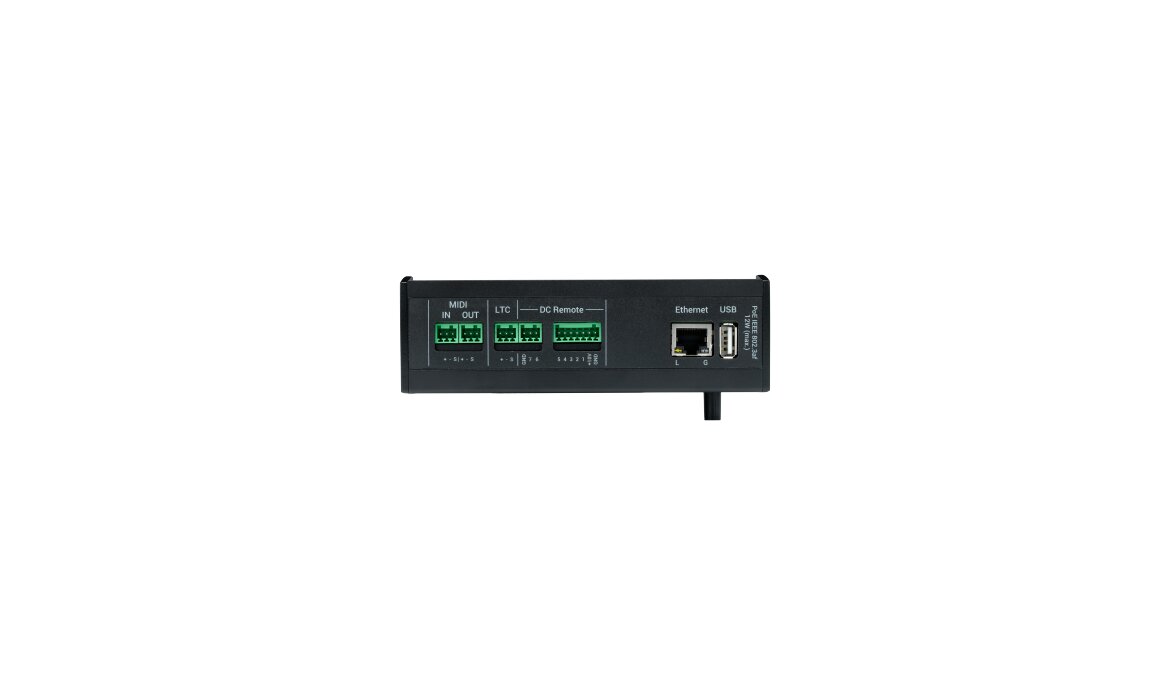

  • Connectors

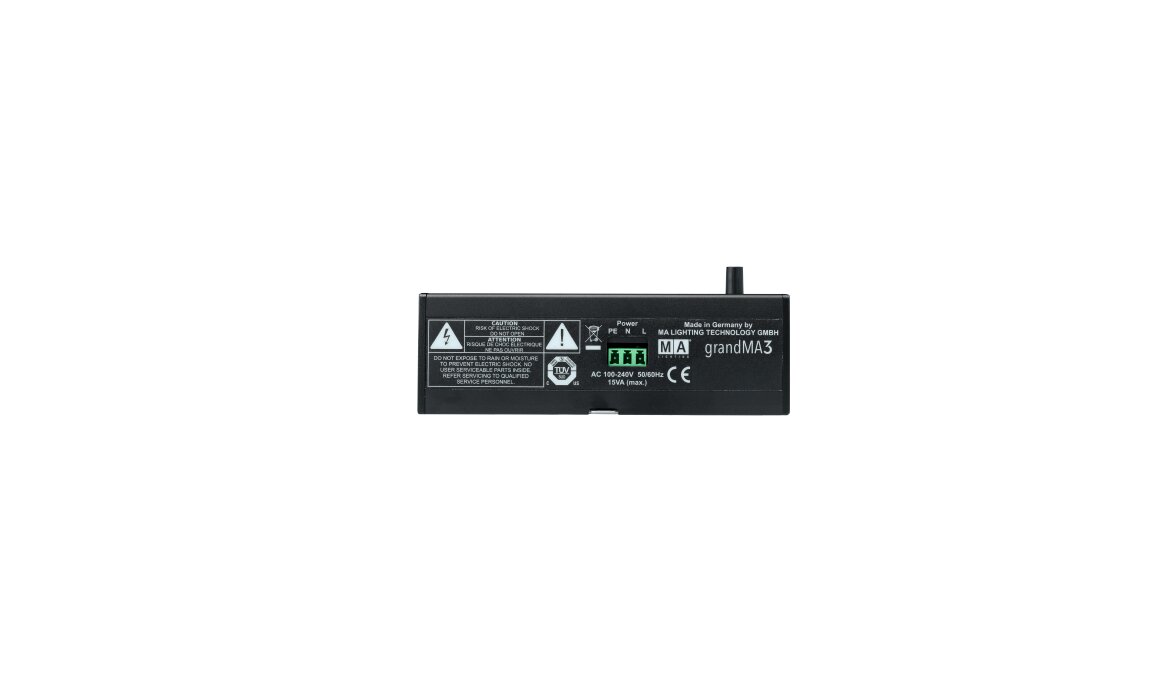

    • 1 x Power (3pin PCB connector)
    • 1 x Ethernet/RJ45
    • 1 x MIDI In (3pin PCB connector)
    • 1 x MIDI Out (3pin PCB connector)
    • 1 x Linear Timecode (3pin PCB connector)
    • 1 x GPI General Purpose Interface (3pin and 7pin PCB connector) for remote control
    • 1 x USB 2.0 (type A)

Supplied with

  • 1x MA Quick Manual for grandMA3 I/O Nodes

Reviews: MA Lighting grandMA3 I/O Node DIN-Rail

There are currently no product reviews.


Warranty: MA Lighting grandMA3 I/O Node DIN-Rail

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

2 Years from date of purchase
