MA Lighting grandMA3 onPC 2Port Node 2k PoE

Model: MA4010512-1

MA Lighting grandMA3 onPC 2Port Node 2k PoE
MA Lighting grandMA3 onPC 2Port Node 2k PoE
MA Lighting grandMA3 onPC 2Port Node 2k PoE
Call for Price
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed
Call for details

More models to choose from:

2Port Node 2K
2Port Node 2k PoE
2Port Node DIN-Rail 2k



About: MA Lighting grandMA3 onPC 2Port Node 2k PoE

What do we need to control real devices? DMX outputs! This is where the grandMA3 onPC xPort Nodes come into play. The nodes fulfill two different tasks: They convert Ethernet data to DMX and they can add parameters to your grandMA3 onPC system. So just download the grandMA3 onPC software, connect a grandMA3 onPC xPort Node and you are ready to control your fixtures!

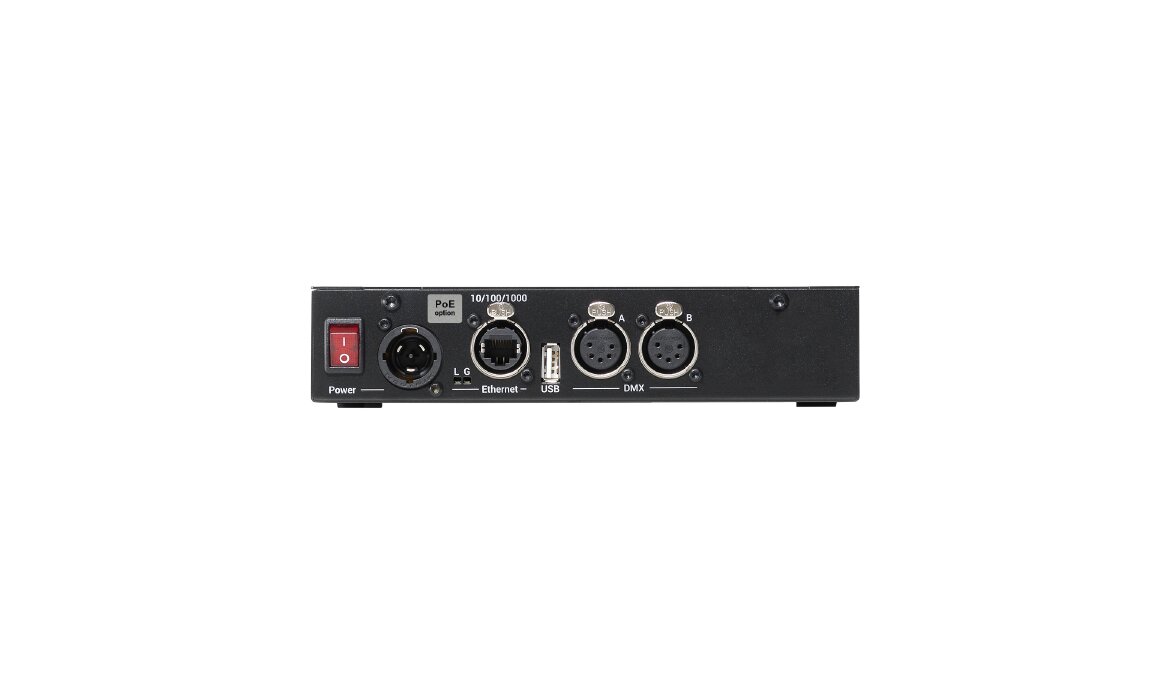

The grandMA3 onPC 2Port Node 2k PoE offers you two DMX outputs on the rear panel. The half-width, 1RU chassis is the perfect size for touring or permanent installations. However, you will also find a wide range of accessories for alternative mounting methods or customization. The node directly enables 4 096 parameters - the maximum for your grandMA3 onPC system!

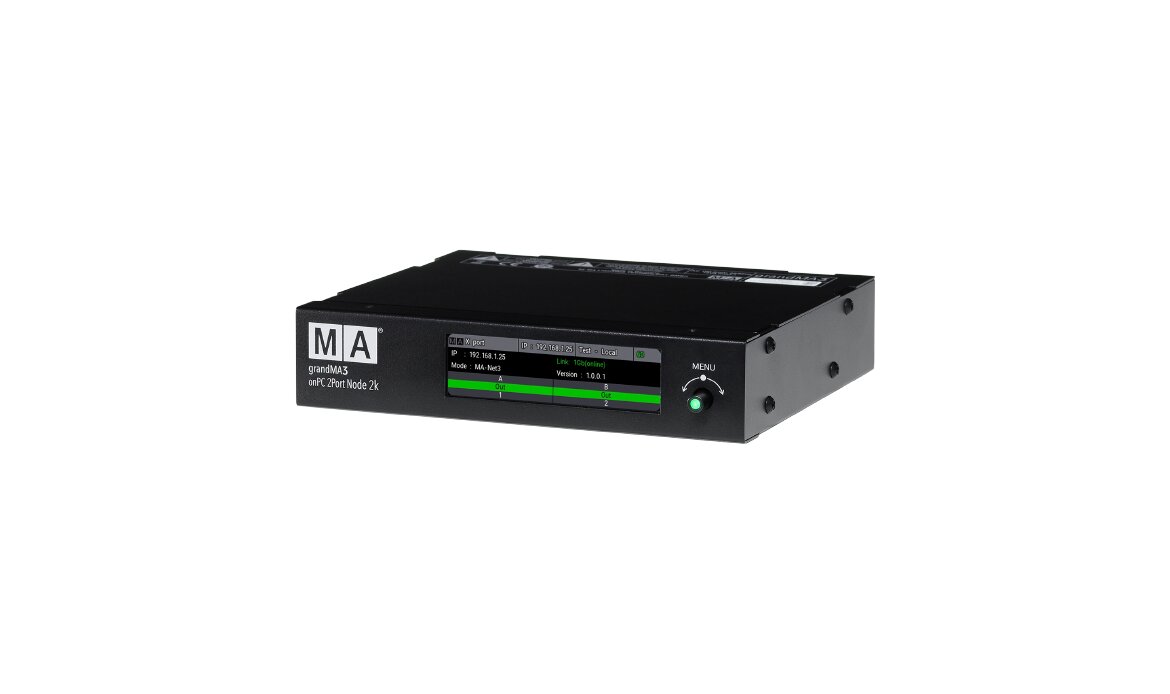

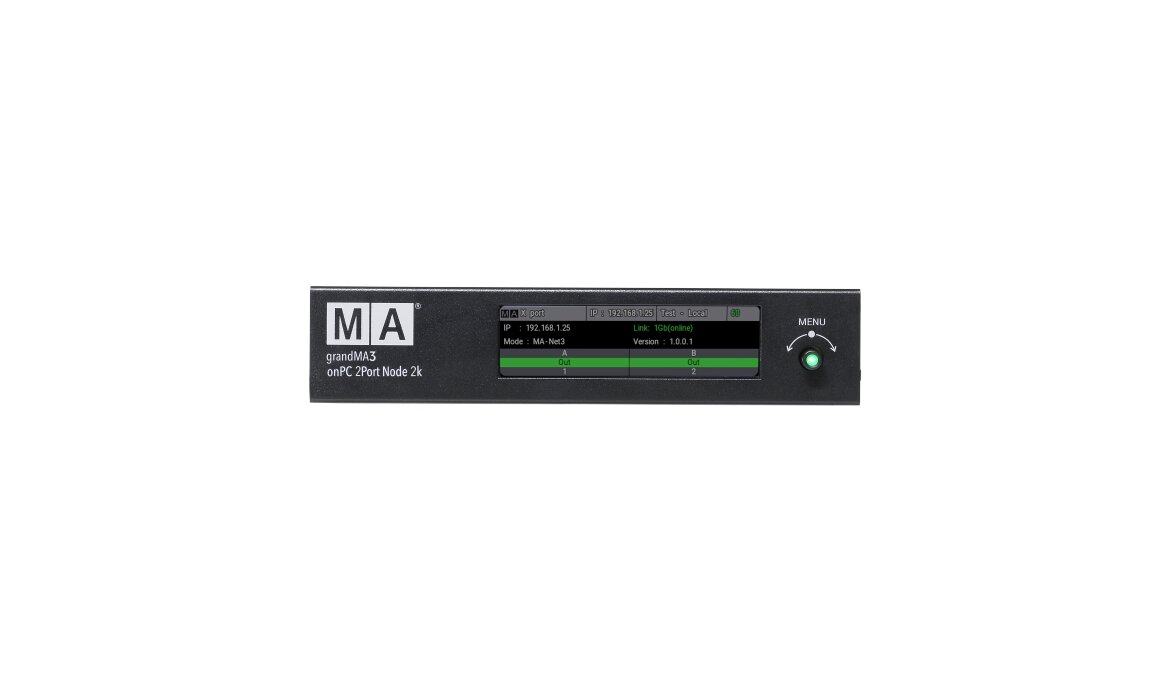

A few more facts? All grandMA3 onPC xPort Nodes can handle MA-Net3, MA-Net2, sACN and Art-Net data. They are fully RDM compliant and have a 3.9" color display on the front for easy configuration and status overview. A big advantage for installations: The PoE variant (Power over Ethernet) does not require any additional power cabling!

The configuration of your nodes can easily be done via the grandMA3 onPC software. And do not forget - the grandMA3 onPC software offers the same features as the larger consoles. So you get a small, compact and affordable control system without compromising on features for your show!

Specifications

  • Parameters -  4 096 (HTP/LTP)
  • Parameters Mode2 -  1 024 (HTP/LTP)
  • Operating voltage/ Supply voltage
    • AC 100 - 240 V; 50/60 Hz
    • PoE (IEEE 802.3af; 48 V DC/max. 12 W)
  • Power -  max. 15 VA
  • Operating Temperature -  0 °C up to 40 °C / 32 °F up to 104 °F
  • Dimensions -  207 x 184 x 43 mm / 9 x 8 x 2 in (width x depth x height)
  • Net weight -  2 kg / 5 lbs
  • Connectors
    • 1 x powerCON TRUE1
    • 1 x etherCON/RJ45
    • 2 x DMX512-A Out (5pin XLR female)
    • 1 x USB 2.0 (type A)

Supplied with

  • 1x MA Quick Manual for grandMA3 Nodes

Reviews: MA Lighting grandMA3 onPC 2Port Node 2k PoE

There are currently no product reviews.


Warranty: MA Lighting grandMA3 onPC 2Port Node 2k PoE

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

2 Years from date of purchase
