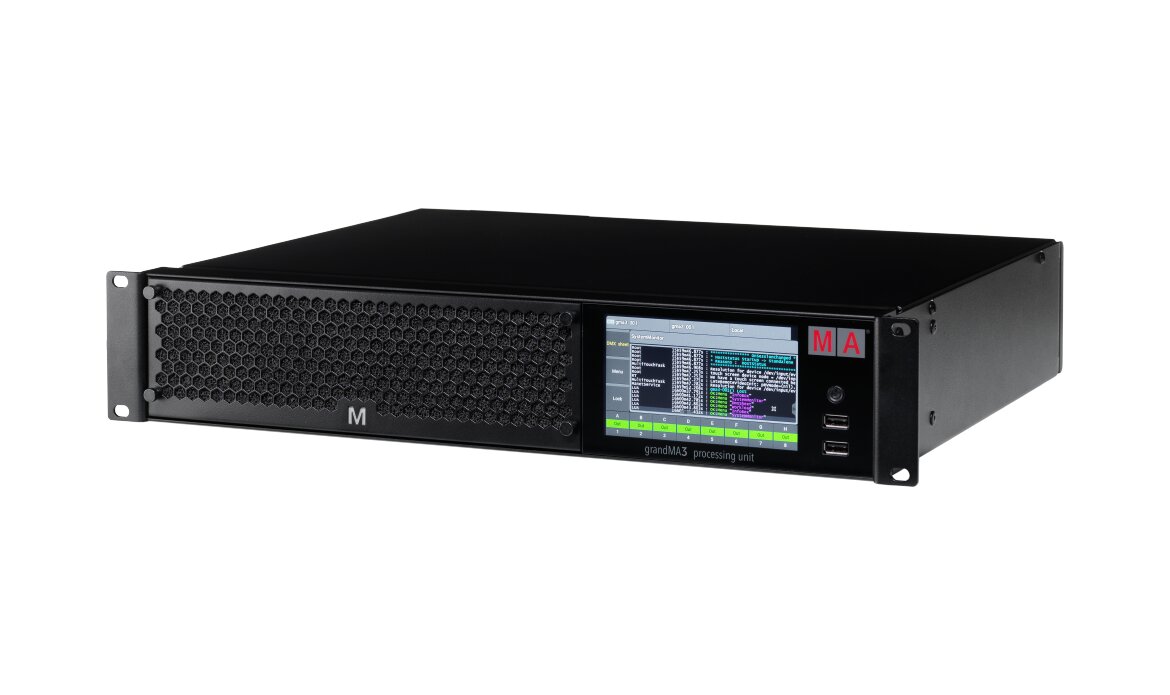

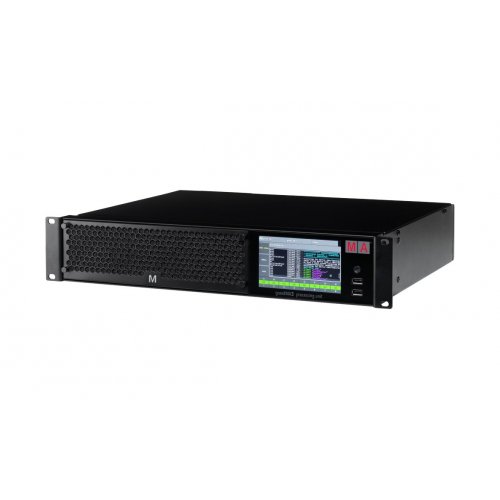

MA Lighting grandMA3 processing unit M
Model: MA4010510
About: MA Lighting grandMA3 processing unit M
Expanding the grandMA3 system is simple with addition of grandMA3 processing units! The grandMA3 processing unit M increases the overall grandMA3 system by 4 096 parameters and enables the system designer to expand the lighting control system in small steps. Besides the powerful CPU for frame-synchronous calculation, the grandMA3 processing unit M additionally offers a Mode2 to expand existing grandMA2 systems by 4 096 parameters.
The grandMA3 processing units are designed for rack mounting and all models are only 2RU, allowing for efficient touring solutions. Each model is equipped with 8 DMX outputs for frame-synchronous DMX output throughout the network. Additional frame-synchronous DMX outputs are available with the addition of grandMA3 xPort Nodes.

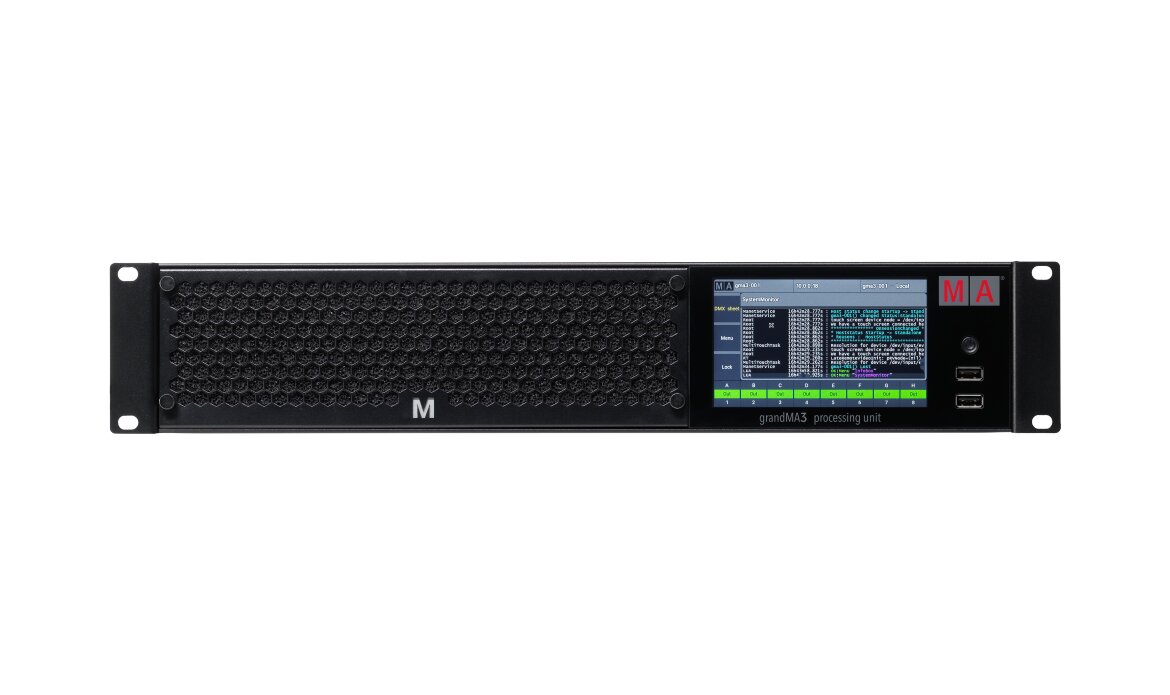

grandMA3 processing units offer a perfect system overview on the integrated touchscreen. This easy access to important functions allows for best maintenance if installed in a dedicated rack whilst every function can be monitored from the grandMA3 session.
For larger systems it is suggested to keep the grandMA3 processing units in a centralized position for parameter expansion and to use grandMA3 xPort Nodes to distribute and output the frame-synchronous DMX data.
Specifications
- Parameters - 4 096 (HTP/LTP)
- Parameters Mode2 - 4 096 (HTP/LTP)
- Operating voltage/ Supply voltage - AC 100 - 240 V; 50/60 Hz
- Power - max. 200 VA
- Operating Temperature - 0 °C up to 40 °C / 32 °F up to 104 °F
- Dimensions - 482 x 372 x 87 mm / 19 x 15 x 4 in (width x depth x height)
- Net weight - 5 kg / 12 lbs

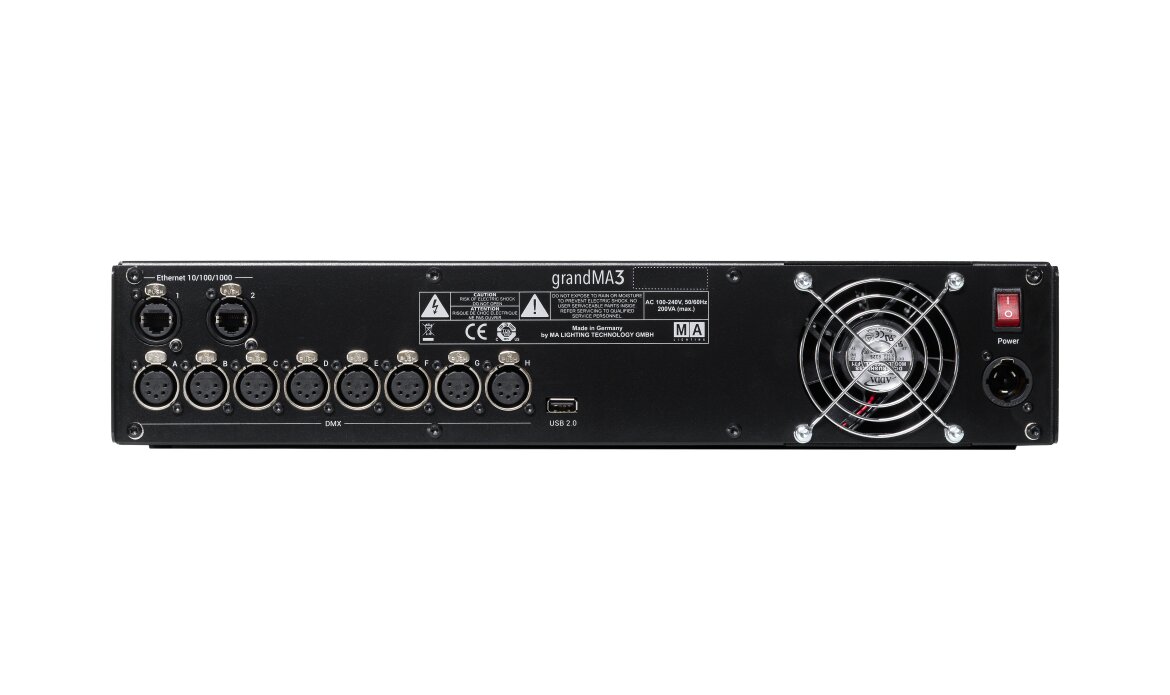

- Connectors
- 1 x powerCON TRUE1
- 2 x etherCON/RJ45
- 8 x DMX512-A Out (5pin XLR female)
- 3 x USB 2.0 (type A)
Supplied with
- 1x MA Quick Manual for grandMA3 processing units
