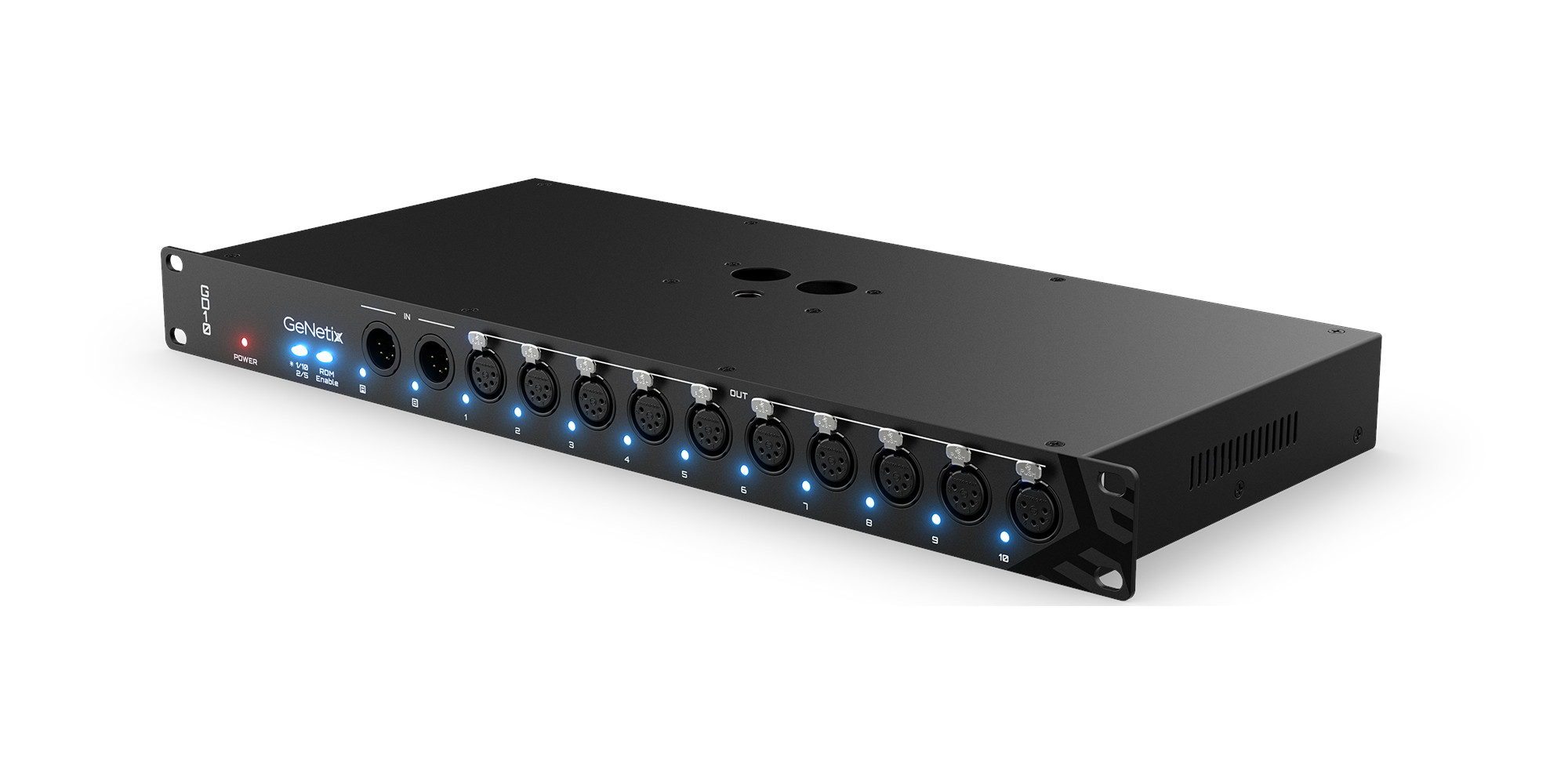

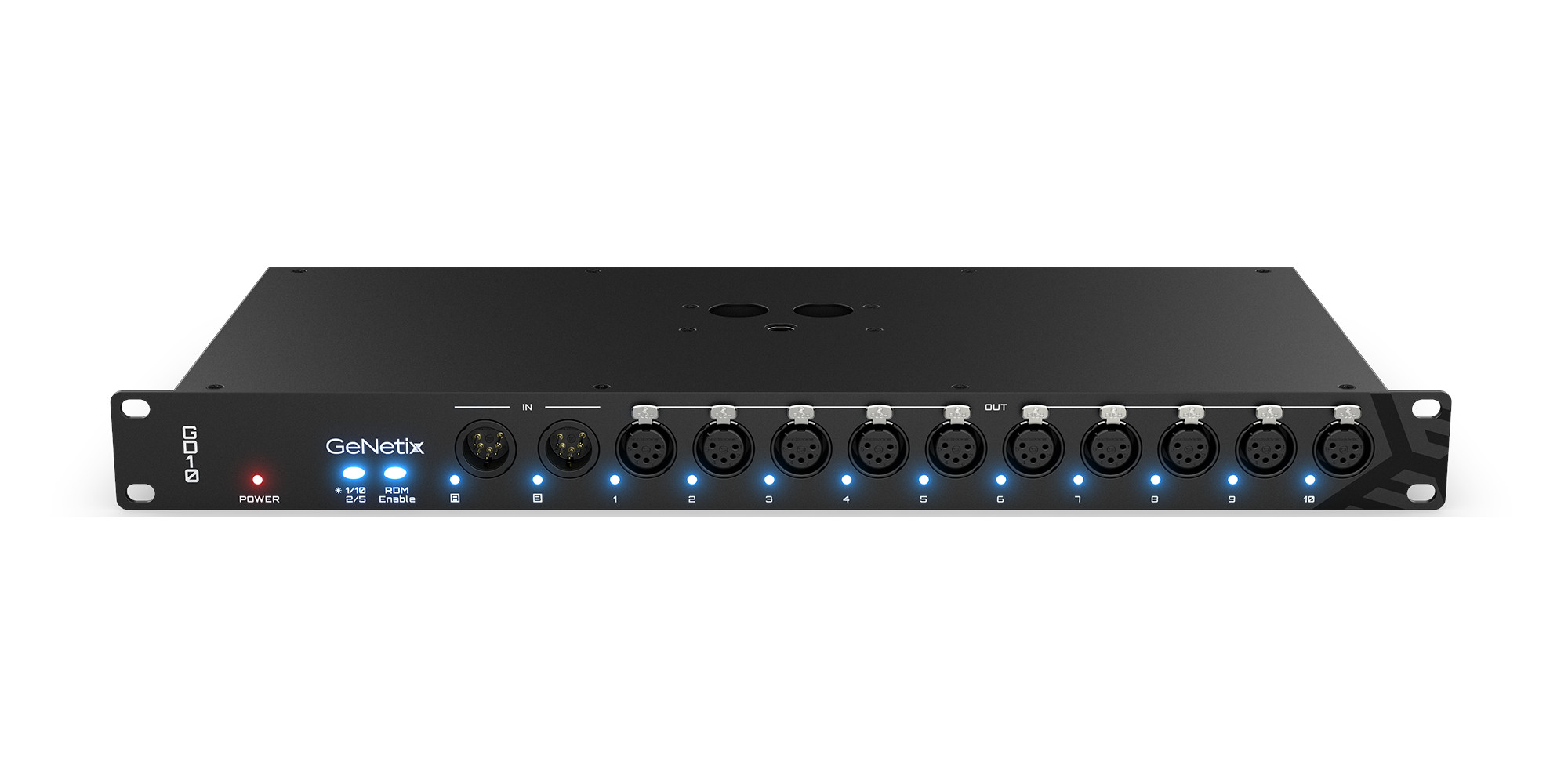

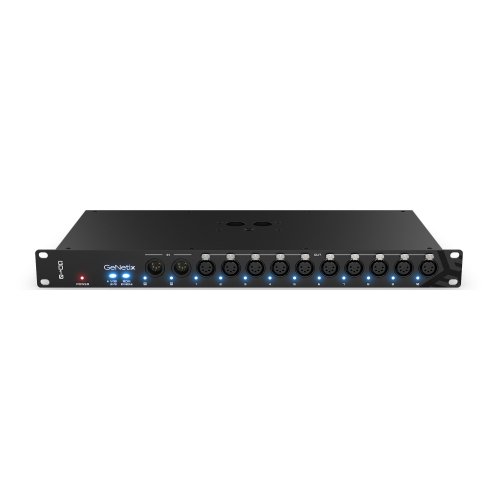

ChamSys GeNetix GD10 19in 1U Rack-Mountable 10-Port DMX Splitter
Model: GENETIX-GD10
About: ChamSys GeNetix GD10 19in 1U Rack-Mountable 10-Port DMX Splitter
GeNetix GD10 is a 19″ 1U rack-mountable, RDM-capable 10-Port DMX Splitter at home in many different environments, with a design suited for both long-term installations and live events. Two selectable operating modes offer either 1×10 or 2×5 DMX signal distribution. GD10 features an ‘RDM Disable button’ to strip out RDM data and retime the DMX signal, and its ruggedly built construction includes a PowerCon True1 Mains Input connector.
- 10 Port RDM E1.20 Compliant DMX Splitter
- 2 Operating Modes: 1 In / 10 Out or 2 In / 5 Out
- PowerCon True1 Top Mains Input
- M12 Threaded Insert for Clamp Mounting
- Designed for safe and secure rack or truss mounting
GeNetix Nodes
GeNetix Nodes provide a solution for remote data distribution in a wide variety of applications. Supporting industry standard protocols like Art-Net, sACN, RDM along with advanced features including DMX Fallback, Merging and Scene Storage
Specifications
- Hardware
- 5 Pin DMX Output Ports: 10
- 5 Pin DMX Input Ports: 2
- RDM Enable/Disable Option: Yes
- M12 Clamp Fixing: Yes
- Power Input: Neutrik powerCON TRUE1 110 to 240 VAC
- Software (When used with PC Systems)
- RDM E1.20 Compliant: Yes
- Dimensions (WxDxH): 18.9 x 8.59 x 1.75 inch (480 x 218 x 44.4mm)
- Weight: 6.06 lb (2.75 kg)
What's Included
- 1x Neutrik powerCON TRUE1 Power Cable
