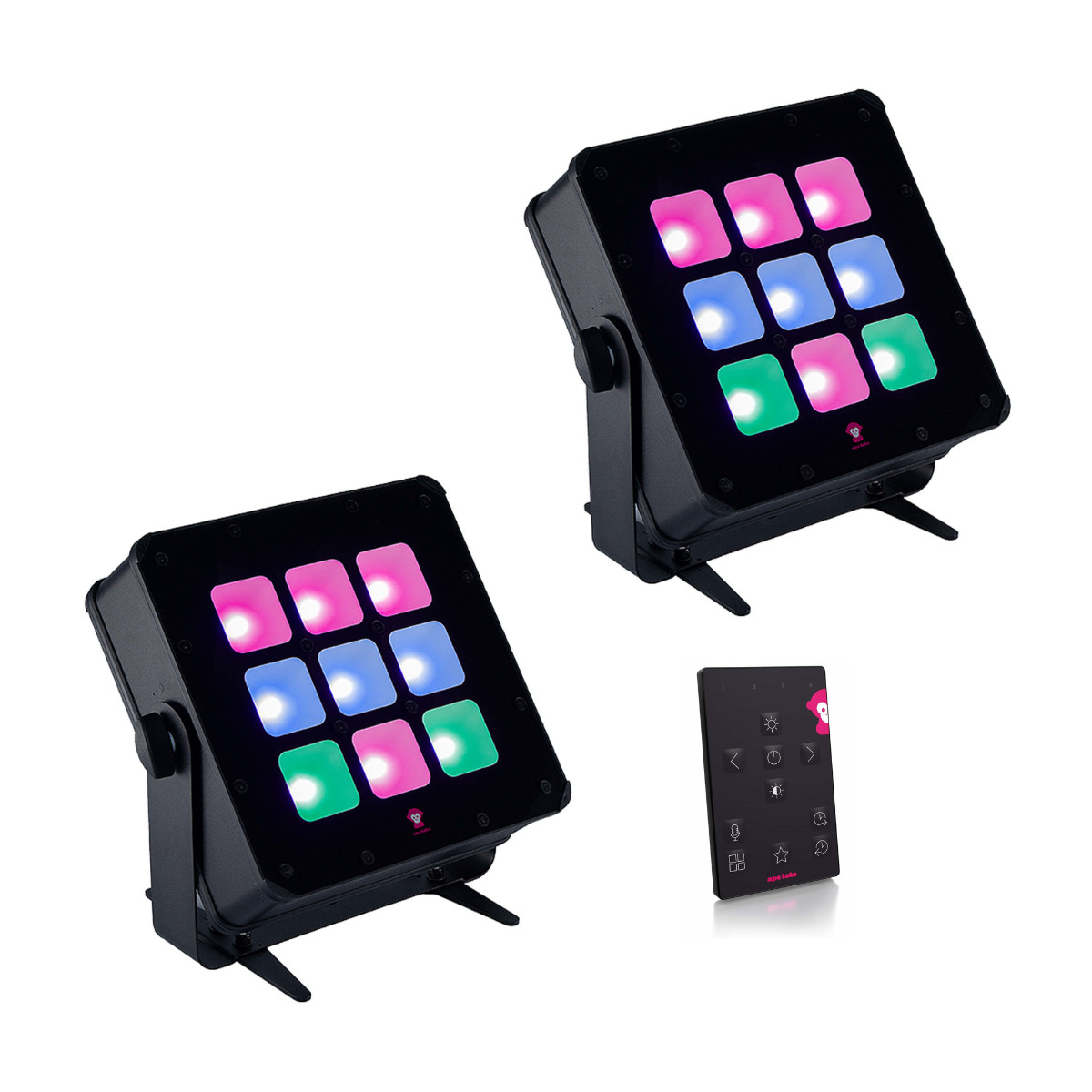

Ape Labs Marvel Pix Wash RGBwWcWL Battery-Powered Pixel LED - Set of 2

About: Ape Labs Marvel Pix Wash RGBwWcWL Battery-Powered Pixel LED - Set of 2

The Marvel Pix Wash is a powerful, professional LED wash fixture built for wide coverage on cycs, stages, and dance floors - both indoors and outdoors. Equipped with 9 individually controllable 18W pixel LEDs and 150 degrees wash optics, the Pix Wash produces smooth color blends, app-based control, and CRMX wireless DMX in a durable, fanless IP65-rated housing.

• Outdoor-ready LED wash light with IP65 rating
• 9 x 18W RGB + Warm White (2700K) + Cool White (6000K) + Lime pixel LEDs
• 7 mm 6-in-1 RGBLwWcW LED chips
• CRI rating: 90
• 150 degrees wash optics
• Even, smooth light output and color blending
• 8-hour runtime from 96Wh Li-Ion battery
• TRUE1 input for continuous operation with power-fail backup
• DUAL-DRIVE flicker-free LED control
• 360 degrees bracket with locking legs and safety eyelets
• Signal repeater extends control range up to approx 0.75 mile (1200 m)
• Manage up to 4 groups via app, remote, or DMX universes
• Cloud storage for lamp settings
• Silent, fanless design
• Ongoing free software upgrades
• Built-in theft protection system

The Marvel Pix Wash was created for professionals who need wide, even coverage with pixel-level control. Its nine 18W LEDs combine RGB, Lime, Warm White (2700K), and Cool White (6000K) to deliver rich colors and clean whites at CRI 90. The 150 degrees optics ensure smooth, shadow-free coverage, making it the perfect solution for cycs, stages, and large dance floors.

Control options are extensive: use the CONNECT app, CRMX (LumenRadio) DMX, or RF remote. DUAL-DRIVE technology eliminates flicker, making it safe for video applications. The integrated 96Wh battery runs 8 hours on standard output (70% of max brightness), and runtime can be extended up to 48 hours with power-save mode. The unit also supports continuous AC operation.

The IP65 aluminum housing, scratch-resistant acrylic front, and rugged mounting hardware make it tour-ready. Features include automatic signal repeating, cloud-based setup storage, pairing for secure wireless operation, and theft-protection. Free software updates add new capabilities regularly.

Specifications

• LEDs: 9 x 18W (162W total)
• Color Temperatures: Warm White 2700K, Cool White 6000K
• CRI: 90
• Beam Angle: 15 degrees
• Dimmable: Yes
• Battery Type: Li-Ion 96Wh
• Battery Runtime: 8 hours on standard output, up to 48 hours on power-save mode
  • 100% Max Brightness = 2hr Battery Life
  • 80% Brightness = 6hr Battery Life
  • 75% Brightness = 8hr Battery Life
  • 60% Brightness = 12.5hr Battery Life
  • 40% Brightness = 20hr Battery Life
  • 20% Brightness = 26hr Battery Life
  • Up to 48 Hour Battery Life on Power Save Mode
  • 100% Brightness While Plugged in is Fully Operational All Day
    • NOTE: Brightness settings for battery operation during event use is 80% or less. Max brightness on battery is only recommended for film use, due to battery consumption.
• Cooling: Fanless
• Flicker-Free: Yes, DUAL-DRIVE system
• Housing: Aluminum with scratch-resistant acrylic glass (Optical HC)
• Protection Class: IP65 (waterproof and UV-resistant)
• Mounting Options: 360 degrees bracket, fold-out feet, dual M6 eyelets
• Control Methods: App (via CONNECT), RF remote, CRMX, Wireless DMX, on-unit button backup
• Control Range: Up to 1-mile (app & DMX), 200ft (remote)
• Signal Repeater: Yes (up to 0.75 mile range)
• Frequency: 2.400 - 2.485 GHz
• Output Power: 20 dBm (~100mW EIRP)
• DMX Channel Modes
  • 6ch - 8-bit: R,G,B,wW,cW,L
  • 7ch - simplified mode
  • 12ch - 16-bit fine control
  • 36ch - 9-pixel RGBwW
  • 54ch - 9-pixel RGBwWcWL
• Power Input: TRUE1 Loop (100-240 VAC, 50/60Hz)
• Operating Voltage: 12V
• Charging Voltage: 16-19V
• Charging Current: ~1A
• Color: Black
• Size: 11.2 x 10.4 x 3.1 in (28.5 x 26.5 x 8.0 cm)
• Weight (each): 8.2 lbs (3.7 kg)

What's in the Box

• 2x Marvel Pix Wash
• 2x Yoke
• 2x M6 Eyelet
• 2x True1 Charging Cord
• 1x Remote
