Astera AX2 PixelBar Wireless LED Bar 50CM

About: Astera AX2 PixelBar Wireless LED Bar 50CM

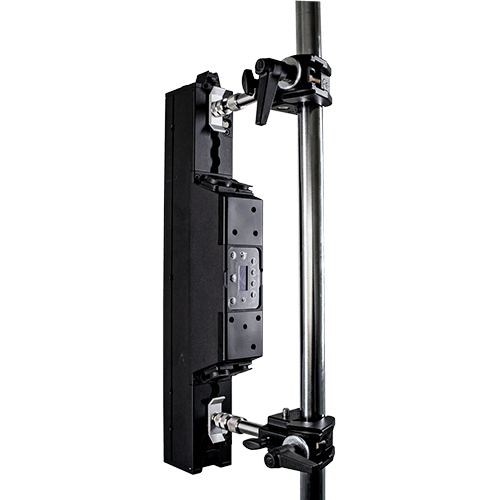

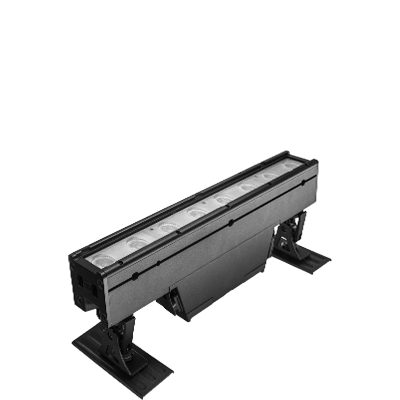

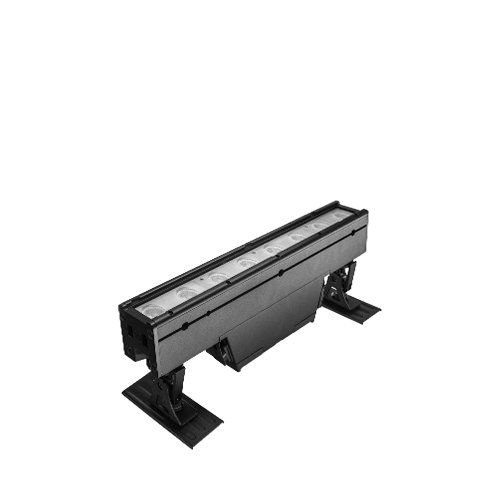

Astera’s Wireless PixelBar is a linear wash fixture with built-in battery pack. Each of its LEDs can be individually addressed and offers ultra-high color rendering, digital color calibration and a native 21° beam. Thanks to its smart stands, hanging bracket, connectable endcaps and the integrated airline track it can be quickly assembled in numerous ways and is suitable for a wide variety of applications such as concert/touring, corporate events, TV etc.

The PixelBar will be available in 1m (16 x 10W LEDs) and 50cm (8 x 10W LEDs).

Features unique to AX2 PixelBar

• Talkback+ - Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
• Seamless Runtime - Set the length of your production and be sure that your lights won`t run out while still getting the maximum brightness.
• TruColor Calibration - Individually calibrated lights lead to 100% color consistency and exact color reproduction of color temperature and filter gels.
• Effects - Quickly build programs out of colors and effects, trigger them or make them match a beat.
• Flicker Free - Scrambled PWM technology to avoid flickering when filming.
• Green/Magenta Correction - Adjust green/magenta during content creation to reduce postproduction work.
• Scheduled StandBy - Switch lights into power-saving standby and schedule them to wake up when the production starts.
• Dynamic PowerBoost - This exclusive feature makes the light able to display the maximum brightness at all time and intensify non-white colors.
• Emergency Lights - Switches to white light when AC power is cut to keep your event save
• Anti-Theft - The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.
• DJ Feature - Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.
• Other Features - The AsteraApp is packed with many additional items and new features are frequently added via software update.

Specifications:

Optical

• Colors: Red, Green, Blue, Mint, Amber
• Total LED power: 160W / 80W
• Power draw: 80W / 40W
• TLCI (3200k-6500k)*: ≥96
• CRI (3200k-6500k)*: ≥96
• Light output – 2700k, 3200k,5500k (100)*:  3600lm, 4460lm, 4530lm
• Light output – 2700k, 3200k,5500k (50)*: 1800lm, 2230lm, 2265lm
• Strobe: 0-25Hz
• Pixels: 16 (8)

(*Typical value)

Electrical

• Battery Lifetime: 70% after 300 cycles
• Battery Runtime: Up to 20 hours
• Charging time (nominal): 5 Hours
• Input Voltage : 110 – 240V, 50/60 Hz

Control

• Backside Display with HSI control
• Infrared
• Wireless Frequencies: CRMX 2.4GHz, UHF
• Range: 300m | 330 Yards
• CRMX Receiver: Built-in

Construction

• Housing: Aluminum
• IP Rating: IP65
• Ambient Temperature: 0-40˚C | 32-104˚F
• Weight (50): 4.5 kg (9.9 lbs)
• Weight (100): 7.4 kg (16.3 lbs)
• Dimensions with hook 50 (mm/inches): 520 x 165 x 65 / 20.5 x 6.5 x2.6
• Dimensions with hook 100 (mm/inches):1020 x 165 x 65 / 40.1 x 6,5 x 2,6
• Dimensions without hook 50 (mm/inches): 500 x 165 x 65 / 19.7 x 6.5 x2.6
• Dimensions without hook 100(mm/inches):1000 x 165 x 65 / 39.4 x 6.5 x 2.6
