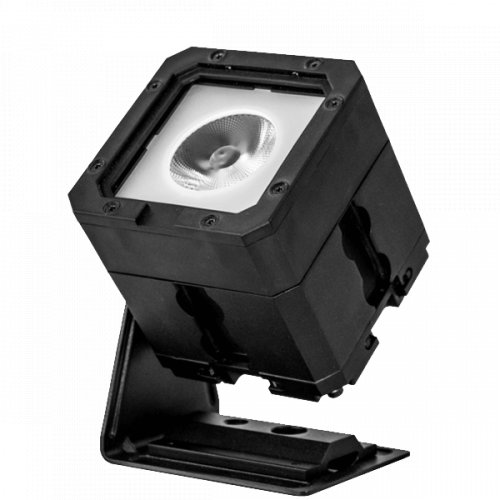

Astera PixelBrick Wireless Light

About: Astera PixelBrick Wireless Light

Say hello to our next-generation multi-purpose light. In addition to being a battery-powered uplight and spotlight with 5 different beam options, multiple PixelBricks can be connected to form clusters and shapes. With about 10cm edge length and 1kg weight, it is small and lightweight while still featuring a powerful output of high-quality light which meets the highest demands of film, TV and stage clients.

Features unique to PixelBrick

• Talkback+ - Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
• Seamless Runtime - Set the length of your production and be sure that your lights won`t run out while still getting the maximum brightness.
• TruColor Calibration - Individually calibrated lights lead to 100% color consistency and exact color reproduction of color temperature and filter gels.
• Effects - Quickly build programs out of colors and effects, trigger them or make them match a beat.
• Flicker Free - Scrambled PWM technology to avoid flickering when filming.
• Green/Magenta Correction - Adjust green/magenta during content creation to reduce postproduction work.
• Scheduled StandBy - Switch lights into power-saving standby and schedule them to wake up when the production starts.
• Dynamic PowerBoost - This exclusive feature makes the light able to display the maximum brightness at all time and intensify non-white colors.
• Emergency Lights - Switches to white light when AC power is cut to keep your event save
• Anti-Theft - The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.
• DJ Feature - Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.
• Other Features - The AsteraApp is packed with many additional items and new features are frequently added via software update.

Includes:

• 1x PixelBrick
• 1x BrickConnect
• 1x BrickBracket
• 1x BeamSoftener
• 1x FloodFilter

Power supply not included; Required FP1 Charger or PowerBox

Optical

• Order Code: PB15
• LED Engine: Titan LED Engine
• Colors: RGB Mint Amber
• Total LED Power: 15W
• Power Draw: 12W
• Light output: 2700K, 3200K, 5500K:* 388lm, 450lm, 375lm
• CRI(Ra)/TLCI 3200-6500K*: ≥96
• Beam Angle: 13°
• Strobe: 0 – 25Hz
• Pixels: 1

*Typical value

Electrical

• Battery Lifetime: 70 % after 300 cycles
• Battery Runtime: up to 20 hours
• Charging Time (nominal): 4 hrs
• Input Voltage: 24VDC
• Input Current: 0.8A

Control

• Wired DMX: Yes (via PWB-2-86)
• CRMX Receiver: Built-in
• Wireless Frequencies: CRMX 2.4GHz, UHF, Bluetooth
• Range (m/yds): 300 / 330yds

Construction

• Housing: Aluminium
• IP Rating: IP65
• Ambient Temperature (°C/°F): 0°- 40° / 32°- 104°
• Weight (kg/lbs): 1.12 kg / 2.47 lbs
• Dimensions (mm/inches): 91 x 91 x 94 / 3.6 x 3.6 x 3.7
