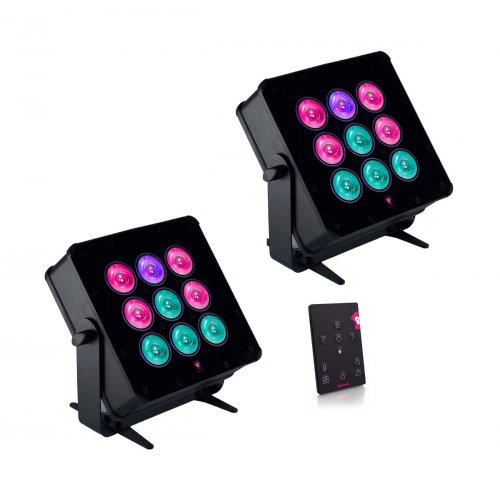

Ape Labs Marvel Pix RGBwWcWL Battery-Powered Pixel LED Spotlight - Set of 2

About: Ape Labs Marvel Pix RGBwWcWL Battery-Powered Pixel LED Spotlight - Set of 2

The Marvel Pix is a 162 Watt, super high-output, production-grade spotlight designed for precision uplighting, pixel effects, stage washes, and architectural lighting, indoors or out. With 9 individually controllable 18W pixel LEDs, the Marvel Pix offers perfectly homogeneous color mixing, app-based control, and CRMX wireless DMX integration, all inside a rugged, fanless IP65-rated housing.

• Battery-powered outdoor LED spotlight (IP65)
• 9 x 18W RGB + WW (2700K) + cW (6000K) + Lime LEDs with full pixel control
• LED Type: 7mm 6-in-1 RGBLwWcW chips
• Color rendering index (CRI): 90
• Integrated 15 degree optics (swappable to 10, 25, or 45 degree)
• Perfectly homogeneous light output and color mixing
• 8-hour battery runtime (Li-Ion 96Wh)
• True1 main input for continuous operation with auto power-fail backup
• Flicker-free LED control with DUAL-DRIVE (no PWM)
• 360 degree rotatable bracket with locking feet
• Mounting via bracket or dual M6 eyelets for safety
• Automatic signal repeater (up to 0.75 mile range)
• Full group management (4 groups) via remote, app, or 4 DMX universes
• Cloud-based lamp setting storage
• Fanless, solid-state design
• Free software updates for fixture, CONNECT, and app
• Theft protection with motion sensor & audible alarm

The Marvel Pix is built for lighting professionals who require unmatched flexibility and power in a compact form factor. Featuring 9 individually addressable 18W LEDs, each combining RGB, Lime, Warm White (2700K), and Cool White (6000K), this fixture delivers crisp, vibrant colors and clean whites with a CRI of 90. Its optical system ensures a smooth and homogeneous wash, ideal for both uplighting and long-throw applications.

The Marvel Pix supports complete control via smartphone app (iOS & Android via CONNECT), CRMX wireless DMX (LumenRadio), and RF Remote. Its DUAL-DRIVE system eliminates PWM flicker, making it an excellent choice for video, live-streaming, or camera-heavy events. Its built-in 96Wh battery powers the fixture for 8 hours on standard output (70% of max brightness), with up to 48 hours of runtime while using power save mode.

This IP65-rated fixture features a rugged aluminum housing with scratch-resistant acrylic glass (Optical HC material), a 360 degree rotatable bracket with fold-out feet, and secure mounting options. Whether you are lighting a wedding venue, washing a dance floor, or on tour, the Marvel Pix offers pixel-level control and reliability in any setting. Future-proof by design, with free firmware updates and regularly added community-driven features, plus upcoming AI enhancements already in the Ape Labs software pipeline.

Specifications

• Number of LEDs: 9
• LED Power: 18W per LED (162W total)
• Color Temperatures: Warm White 2700K, Cool White 6000K
• CRI (Ra): 90
• Beam Angle: 15 degree (default); swappable to 10, 25, 45 degree
• Dimmable: Yes
• Battery Type: Li-Ion 96Wh
• Battery Runtime: 8 hours on standard output, up to 48 hours on power-save mode
  • 100% Max Brightness = 2hr Battery Life
  • 80% Brightness = 6hr Battery Life
  • 75% Brightness = 8hr Battery Life
  • 60% Brightness = 12.5hr Battery Life
  • 40% Brightness = 20hr Battery Life
  • 20% Brightness = 26hr Battery Life
  • Up to 48 Hour Battery Life on Power Save Mode
  • 100% Brightness While Plugged in is Fully Operational All Day
    • NOTE: Brightness settings for battery operation during event use is 80% or less. Max brightness on battery is only recommended for film use, due to battery consumption.
• Fanless: Yes
• Flicker-Free: Yes (DUAL-DRIVE, no PWM)
• Housing: Aluminum with scratch-resistant acrylic glass (Optical HC)
• Protection Class: IP65 (waterproof and UV-resistant)
• Mounting Options: 360 degree bracket w/ fold-out feet and 2x M6 eyelet safety points
• Control Methods: App (via CONNECT), RF remote, CRMX, Wireless DMX
• Control Range: Up to 1-mile (app & DMX), 200ft (remote)
• Signal Repeater: Yes (up to 0.75 mile range)
• Radio Frequency: 2.400 - 2.485 GHz
• Output Power: Max. 20 dBm (~100mW EIRP)
• DMX Channel Modes
  • 6ch- 8-bit: R,G,B,wW,cW,L
  • 7ch- R,G,B,wW, Dimmer, Speed, MusikMode
  • 12ch- 16-bit: R,R-fine,G,G-fine,B,B-fine,wW,wW-fine,cW,cW-fine,L,L-fine
  • 36ch- 9-pixel: RGBwW
  • 54ch- 9-pixel: RGBwWcWL
• Power Input: TRUE1 Loop (100-240 VAC, 50/60Hz)
• Operating Voltage: 12V (lamp), 16-19V (charging), ~1A charging current
• Color: Black
• Size: 11.2 x 10.4 x 3.1 in (28.5 x 26.5 x 8.0 cm)
• Weight (each): 8.2 lbs (3.7 kg)

What's in the Box

• 2x Marvel Pix
• 2x Yoke
• 2x M6 Eyelet
• 2x True1 Charging Cord
• 1x Remote
