Elation KL Fresnel 8 FC RGBMA Light w/ Motorized Zoom

Model: KL-FRESNEL-8-FC

Elation KL Fresnel 8 FC RGBMA Light w/ Motorized Zoom
Elation KL Fresnel 8 FC RGBMA Light w/ Motorized Zoom
Elation KL Fresnel 8 FC RGBMA Light w/ Motorized Zoom
Elation KL Fresnel 8 FC RGBMA Light w/ Motorized Zoom
Elation KL Fresnel 8 FC RGBMA Light w/ Motorized Zoom
  • Shipping Charges Apply
  •  In Stock - Shipping Only
  • Not yet reviewed




About: Elation KL Fresnel 8 FC RGBMA Light w/ Motorized Zoom

The KL Fresnel 8 FC™ is a full-color-spectrum LED fixture that provides high output, precise color temperature control, full spectrum color rendering and even wash coverage.
Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels.

The KL Fresnel 8 FC incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 18,000 field lumens with a motorized Zoom range of 10° to 50°.

Outstanding color rendering quality, precise CCT presets and remotely adjustable LED refresh frequency makes this unit the perfect choice for todays fast paced production environments. Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. It is fully self-contained without the need for an external power supply and offers locking power pass through for easy linking of multiple units.

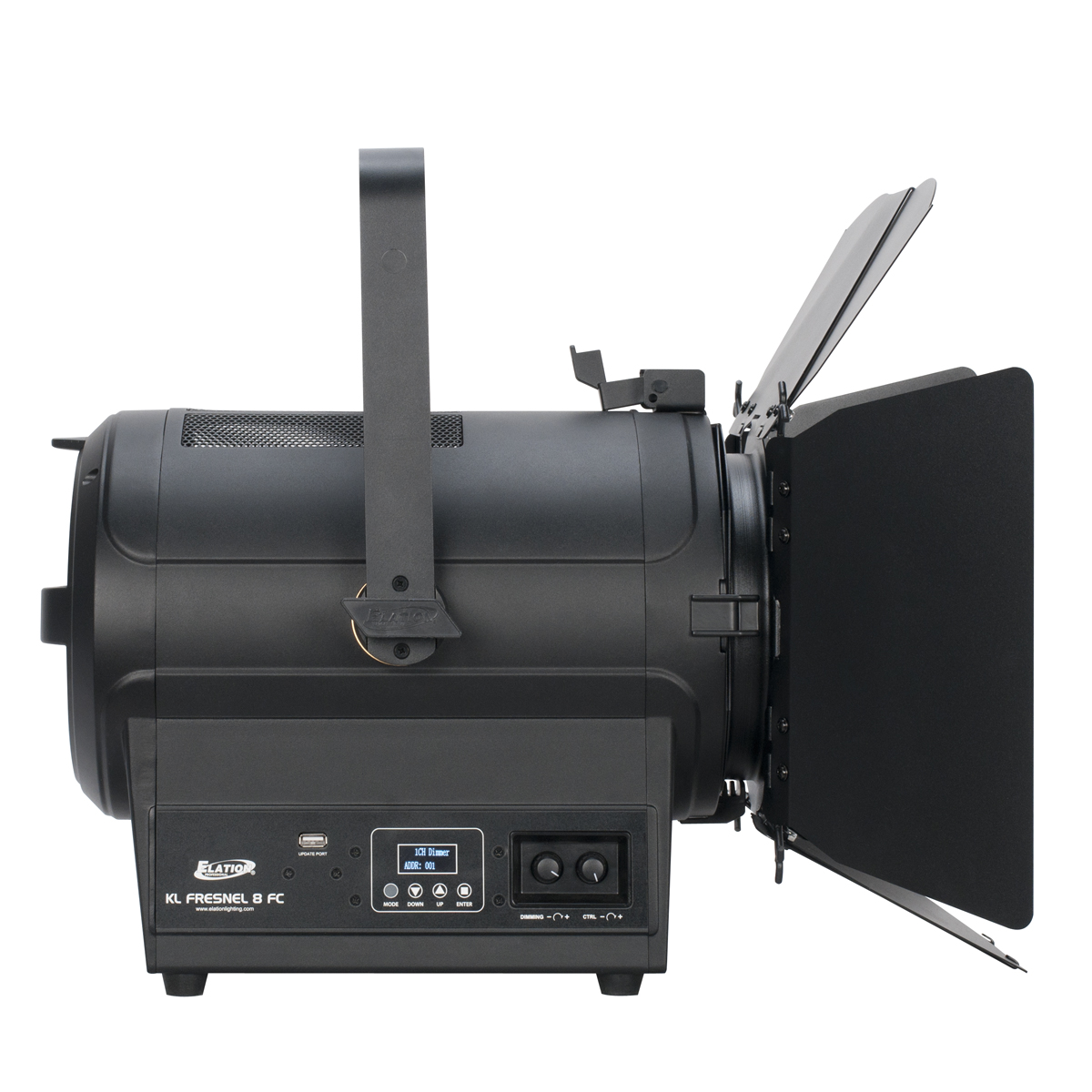

The KL Fresnel 8 FC can be operated through industry standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoders and display, providing instant control of Zoom, Intensity, Color temperature, Green shift and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand.

Features

  • RGBMA LED EngineDynamic White + Full Spectrum Color Control
  • 18,000 Total Fixture Lumen Output
  • 10° to 50° Wide Motorized Zoom
  • Stand-Alone control with 2 Encoders and LED Display
  • Smooth 16-bit Selectable Dimming Modes and Curves
  • LED Refresh Rate Adjustment
  • Flicker Free Operation for TV and FILM
  • RDM (Remote Device Management)
  • 8-leaf Barn Doors, Gel Frame and Junior Pin (1 1/8” - 28mm) included

Specifications

SOURCE

  • 6500K RGBMA LED Engine
  • 50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

  • 18,000 Total Lumen OutputCRI 94.5
  • TLCI 94
  • Zoom Range 10° - 50°
  • Beam Angle 10.4° - 50.8°
  • Field Angle 20.6° - 66.1°

EFFECTS

  • Motorized Zoom
  • Electronic Dimmer and Strobe
  • Variable 16-bit Dimming Modes and Curves

COLOR

  • RGBMA Color Array
  • CMY Emulation
  • Variable CCT 2,400K - 8,500K
  • Green/Magenta Shift
  • Virtual Gel Swatch Book

CONTROL / CONNECTIONS

  • 6 DMX Channel Modes (1 to 18 channels)
  • Manual and DMX Controlled Dimmer, Color and Zoom
  • Dual Rotary Dials
  • 4 Button Control Panel, LED Display
  • RDM (Remote Device Management)

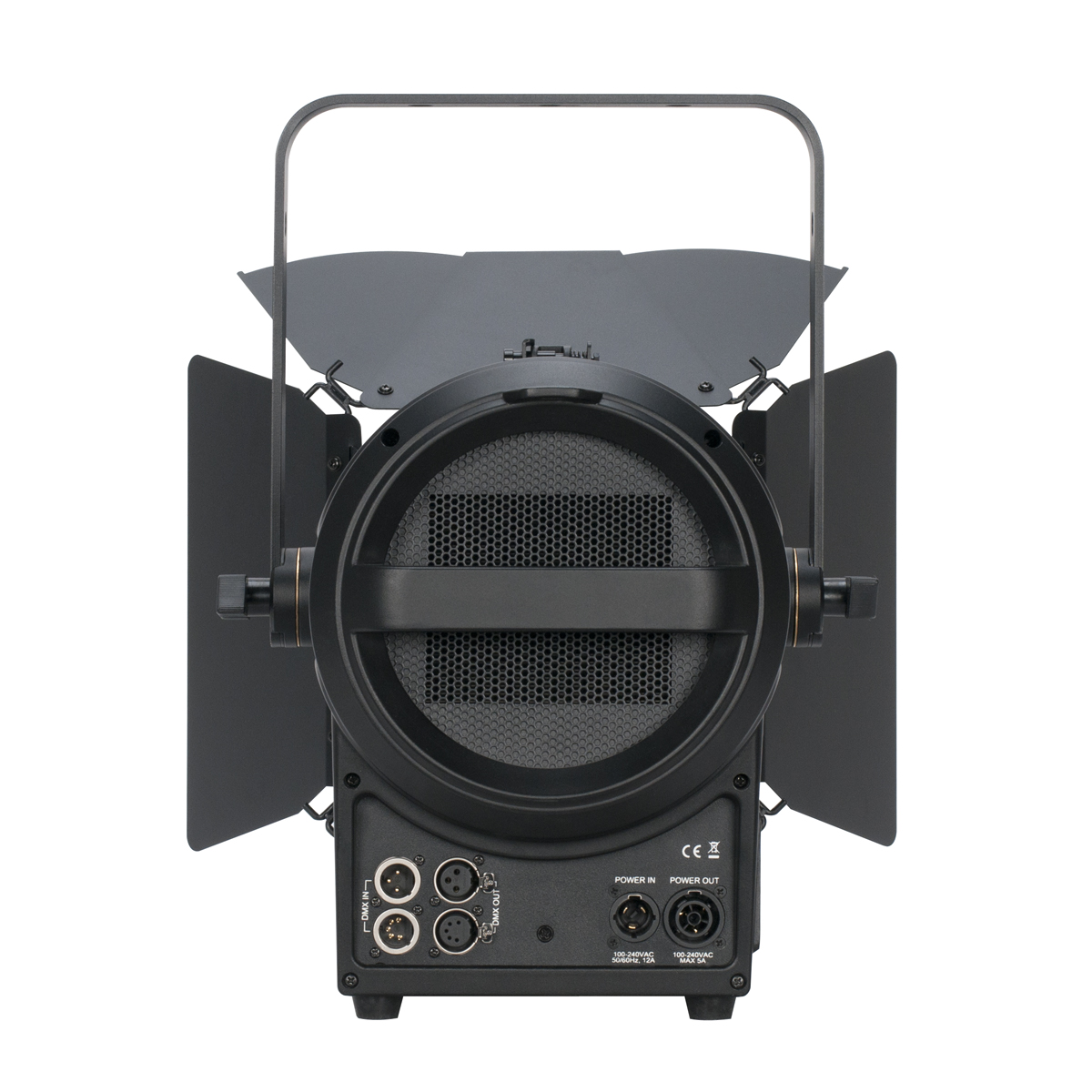

  • 3/5pin DMX and IP65 Locking Power In/Out Connection

SIZE / WEIGHT

  • Length: 15.1” (382.5mm)
  • Width: 12.9” (326.5mm)
  • Vertical Height: 17.9” (455mm)
  • Weight: 23.15 lbs. (10.5kg)

ELECTRICAL / THERMAL

  • AC 100-240V - 50/60Hz
  • 514W Max Power Consumption
  • 5°F to 113°F (-15°C to 45°C)
  • BTU/hr (+/- 10%) 1752.74

INCLUDED ITEMS

  • Gel Frame and Rotating 8-leaf Barn Doors
  • Junior Pin (1 1/8"  - 28mm)
  • IP65 Locking Power Cable

UPC: 810008262481

Videos: Elation KL Fresnel 8 FC RGBMA Light w/ Motorized Zoom

Reviews: Elation KL Fresnel 8 FC RGBMA Light w/ Motorized Zoom

There are currently no product reviews.


Warranty: Elation KL Fresnel 8 FC RGBMA Light w/ Motorized Zoom

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

2 Year Warranty

Elation Professional Product Rechargeable Batteries: 6 months limited
Discharge lamps and all product accessories are not covered by a warranty
