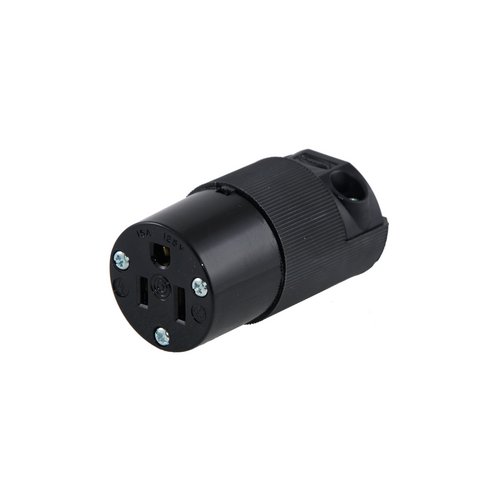

Hubbell HBL5269CM2 Female Round UGround Edison 15a 125v 2P3W

Model: HBL5269CM2

Hubbell HBL5269CM2 Female Round UGround Edison 15a 125v 2P3W
  • Free Shipping on orders over $199
  •  In Stock - Ship or Pick-up
  • Not yet reviewed



About: Hubbell HBL5269CM2 Female Round UGround Edison 15a 125v 2P3W

Straight Blade Products, Insulgrip Series

  •  Body Style  Straight
  •  Standard  NEMA
  •  Amperage  15A
  •  Voltage  125V
  •  Poles and Wires  2 Pole, 3-Wire Grounding
  •  Wiring Method  Back Wire
  •  Hospital Grade ?  No
  •  Plug/Connector Grade  Insulgrip
  •  Color
  •  NEMA No.  5-15R
  •  Cord Dia.  .230"-.720" (5.8-18.3)
  •  Type  2 Pole, 3 Wire, Grounding
  •  Rating  15A, 125V
  •  Certification  UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
  •  IP Suitability  IP20
  •  Housing Material  Nylon-Black
  •  Retainer Material  Polycarbonate-Clear
  •  Cord Clamp Material  Nylon-Natural
  •  Terminal Screw Material  #8-32 Brass, Multiple Drive
  •  Ground Screw Material  #8-32 Brass, Multiple Drive (Green)
  •  Contact Holder Material  Nylon-Natural
  •  Power Contacts Material  .040" (1.0) Copper Alloy
  •  Dielectric Voltage  Withstands 2,000V minimum.
  •  Current Interrupting  Certified for current interrupting at full rated current.
  •  Temperature Rise  Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
  •  Terminal Identification  Terminals identified in accordance with UL498 (Brass, White, Green).
  •  Terminal Accommodation  #18-#10 AWG copper stranded conductor
  •  Product Identification  Ratings are a permanent part of the device.
  •  Flammability  UL 94 HB or better.
  •  Operating Temperatures  Maximum continuous 75°C, minimum -40°C (w/o impact).
  •  UPC Number  783585173252
  •  Weight in LBs  0.150

UPC: 783585848525

Reviews: Hubbell HBL5269CM2 Female Round UGround Edison 15a 125v 2P3W

There are currently no product reviews.


Warranty: Hubbell HBL5269CM2 Female Round UGround Edison 15a 125v 2P3W

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

1 Year Warranty

Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
