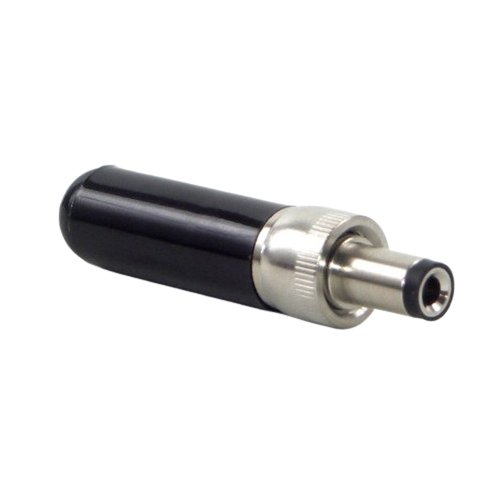

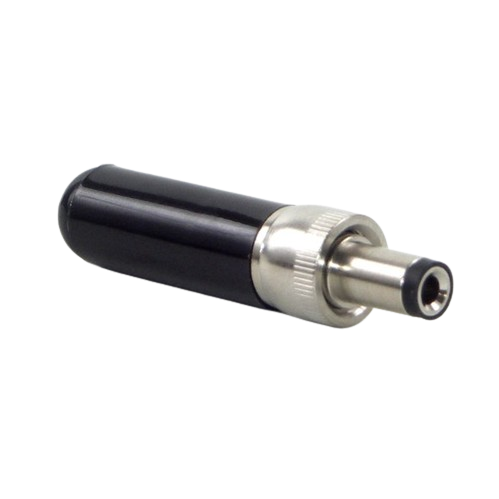

Switchcraft 760K DC Power Plug 2.5mm
Model: 760K
About: Switchcraft 760K DC Power Plug 2.5mm
DC POWER PLUG, 0.100" (2.5mm) ID pin, 1.7" (43.18mm) overall length, black insulator tip, black handle, locking
Configuration
- Number of Conductors: 2
- Product Line: Power Jax
- Mounting Type: Cord
- Termination Style: Solder
- Contact Plating: Nickel
- Color: Black
- High Temperature: Standard Temperature
- High Current: Standard Current
- Locking: Locking
- Sealed: Not Sealed
- Handle Material: Thermoplastic
- Packaging Type: Bulk
- Standard Connector Type: DC Barrel Connectors
- Jack-Plug Type: Plug
- Center Pin Size: 2.5 mm
Electrical
- Contact Resistance: 0.01 Ohms
- Dielectric Withstanding Voltage: 500 Volts
- Insulation Resistance: 1000 MOhms
- Voltage Rating: 24 Volts
- Current Rating: 5 Amps
Mechanical
- Life Cycle: 5000 Cycles
- Coupling Locking Style: Threaded
Environmental
- Temperature Range: -55C to +85C
- Shielding: Unshielded
- Minimum Temperature: -55 C
- Maxiumum Temperature: 85 C
Compliance
- RoHS Compliant: Compliant
- REACH Compliant: Compliant
- Brand: Switchcraft
Dimensional
- Inner Diameter: 0.1 in
- Cable Opening: 0.218 in
Material
- Body Material: Copper Alloy
- Body Plating: Nickel
- Contact Material: Copper Alloy
- Contact Plating Type: Nickel
- Terminal Material: Copper Alloy
- Sleeve Material: Copper Alloy
