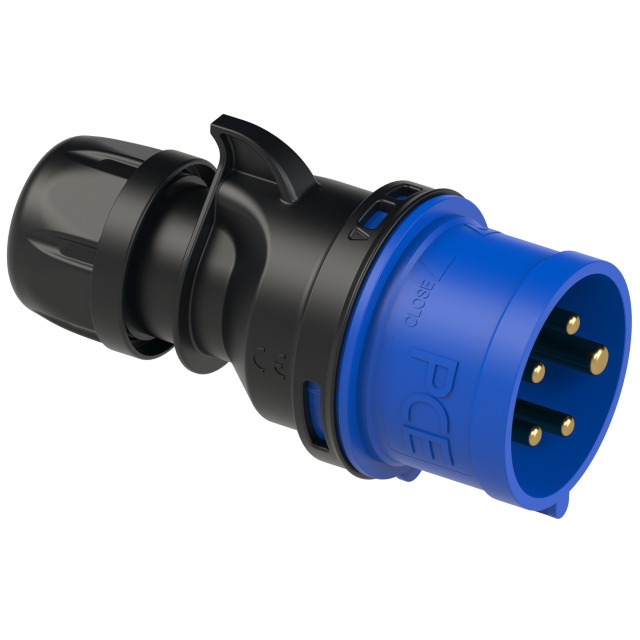

PCE PS530P9 CEE 30A 120/208v Pin & Sleeve P&S Male C5 4P5W
Model: PCE PCE530P9
About: PCE PS530P9 CEE 30A 120/208v Pin & Sleeve P&S Male C5 4P5W
CEE-plug AKA C5 30A 4P5W (3 hot phases + neutral / ground) 9h IP44 UL
housing material: PA6
rated current: 32A/30A
number of poles: 4P5W (5p)
clock position: 9h
rated voltage: 120/208Vac
contacts: brass
connection technology: screw terminals
IP protection class: IP44
according to UL1682 und IEC/EN 60309-2 (SERIE II)
UL-product category: QLHN / QLHN7
UL-file number: E232901
