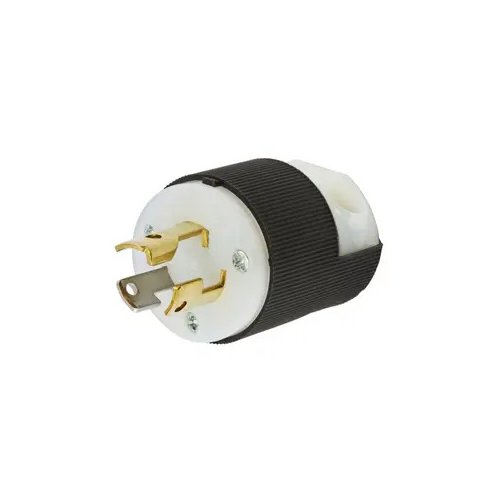

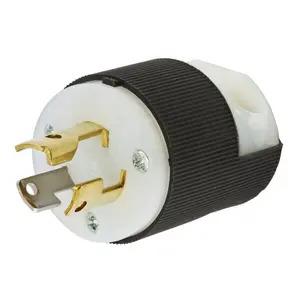

Hubbell 15A Twist-Lock - Male (Black / White)
Model: HBL4720C
About: Hubbell 15A Twist-Lock - Male (Black / White)
Locking Devices, Twist-Lock, Insulgrip Plug, 15A, 125V, 2 Pole, 3 Wire Grounding, NEMA L5-15P, black/white nylon
- Individually molded face for each blade configuration
- Roomy wiring chamber provides ample space for wiring
- Ribbed nylon housing provides a secure grip that’s impact and chemical resistant
Specifications
- General
- Application - Extra Heavy Duty Industrial
- Color - Black
- Cord Range - 0.230"-0.720"(5.8-18.3)
- Environmental Conditions - Indoor Dry Unless Protected By Additional Means
- Horsepower - Maximum - 0.5
- Item Type - 15A Insulgrip Plug
- Listings
- UL 498
- Fed.Spec. W-C-596
- CSA C22.2 No.42
- Material - Nylon
- Material - Mounting Hardware - Cord Mounted
- Number Of Poles - 2-Pole
- OEM Brand Name - Hubbell Wiring Device-Kellems
- Operating Temperature - Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical-Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.6
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C
- Minimum -40°C (w/o impact)
- Dimensions
- Dimensions - 1.53 in x 1.53 in x 1.97 in
- Display Size - Standard Sized
- Height - 1.97 in
- Length - 1.53 in
- Weight - 0.15 lb
- Width - 1.53 in
- Electrical Ratings
- Amperage Rating - 15 A
- Connectivity - Pressure Terminal Screws
- Current / Amperage Rating - 15 A
- Current Rating - 15 A
- Dielectric Strength - Withstands 2,000V minimum
- Phase - Single Phase
- Voltage Rating - 125 VAC
- Voltage Rating Description - 125 VAC
- Conductor Related
- Cord Type - All Listed Portables
- Number Of Wires - 3-Wire Grounding
- Wire Size - #18 AWG to #10 AWG
UPC: 783585171159
