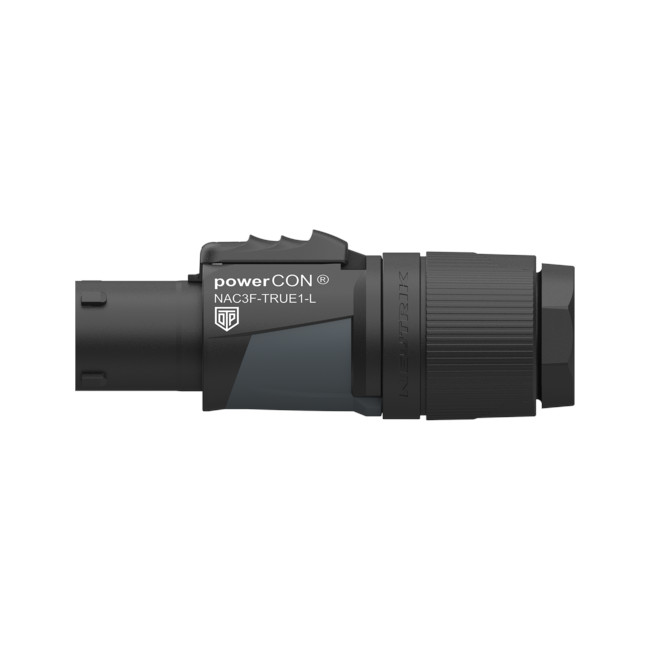

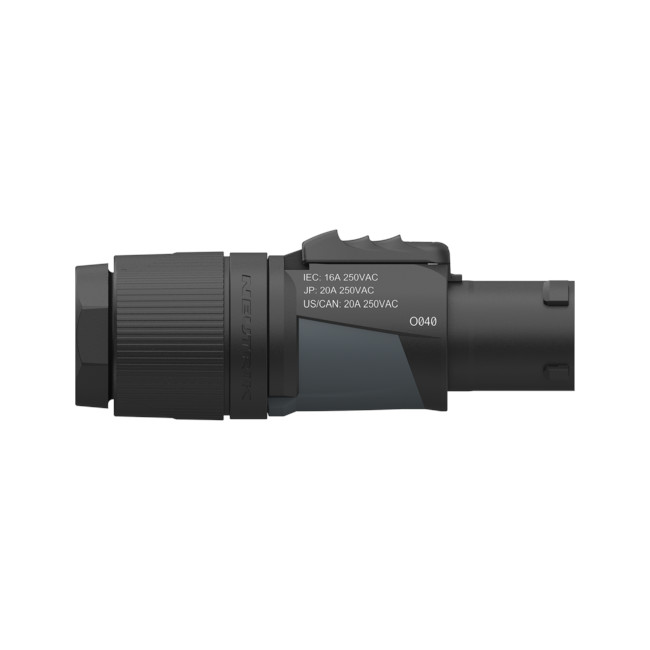

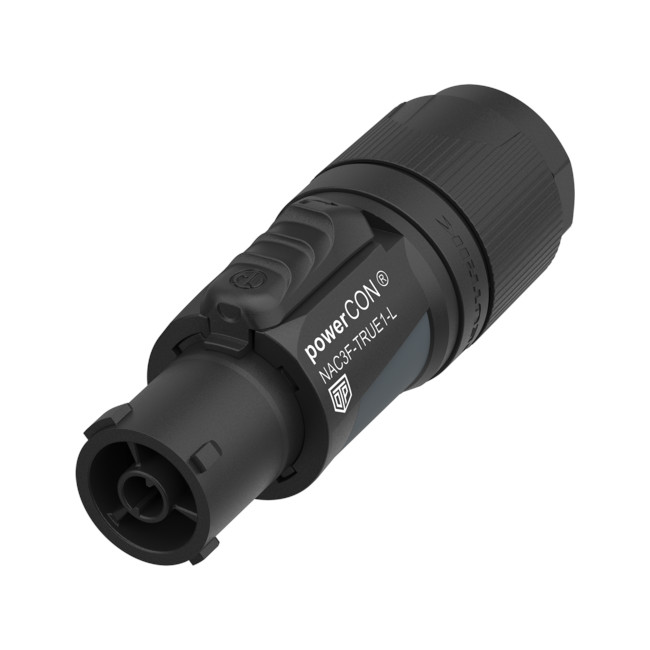

Neutrik NAC3F-TRUE1-L Female powerCON TRUE1 Connector (Large)

About: Neutrik NAC3F-TRUE1-L Female powerCON TRUE1 Connector (Large)

The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

• Heavy duty sealed power connector for harsh and demanding environment
• Uses high impact UV-resistant materials
• Lockable single phase connector
• Extremely robust and reliable
• ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
• UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
• IP65 and IP67 (mated or with closed cap)
• True mains connector with breaking capacity (CBC)
• Easy and reliable twist lock system
• Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm (0.39 – 0.63 inches)

Specifications

• Electrical
  • Contact resistance: ≤ 2 mΩ
  • Dielectric strength 4 kVdc: / 2.8 kVac
  • Insulation resistance: >0.1GΩ (after damp and heat test IEC 68-2-30)
  • Number of electrical contacts: 2 + PE
  • Rating Europe: 16 A / 250 V AC according to EN IEC 60320-1
  • Rating America
    • 20 A / 250 V AC according to UL 60320-1
    • 20 A / 250 V AC according to CSA C22.2 No. 60320-1
• Mechanical
  • Cable O.D.: 10 - 16 mm (0.39 – 0.63 inches)
  • Lifetime: > 5000 mating cycles
  • Wiresize (mm²): 1.0 – 2.5mm²
  • Wiresize (AWG): 14 - 12 AWG
• Material
  • Contact plating: 2 μm Ag
  • Locking element: Polyamide (PA 66)
  • Contacts: Copper Alloy
  • Insert: Polyamide (PA 66)
  • Shell: Polyamide (PA 66)
  • Strain relief: Polyketon
• Environmental
  • Flammability: UL 94 V-0
  • Protection class: IP 65 / 67 (mated or with closed caps)
  • UV resistance: F1 rated material withstands UV exposure
  • Temperature range
    • -30°C to +80°C according to IEC 61984
    • -5°C to +40°C according to IEC 60320-1
