Lightware MX2-8x8-HDMI20 L HDMI 2.0 Compatible Full 4K Matrix Switcher

About: Lightware MX2-8x8-HDMI20 L HDMI 2.0 Compatible Full 4K Matrix Switcher

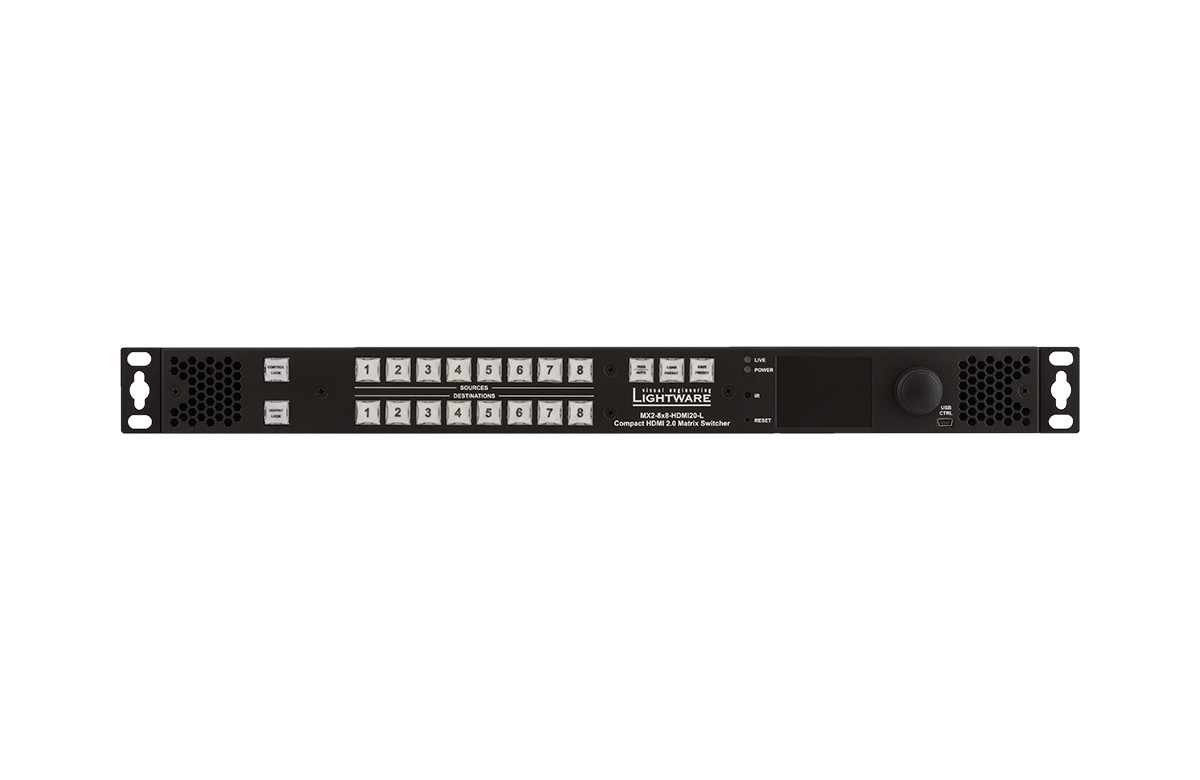

The MX2-8x8-HDMI20 L is an HDMI 2.0 compatible, standalone matrix switcher that supports uncompromised 4K UHD resolution at 60Hz 4:4:4.Its compact size, silent design and its crosspoint switching front panel keys make it is particularly suitable for live events.

• High bitrate Audio Support - including Dolby Atmos, TrueHD, DTS-HD
• HDCP 2.3 and HDCP 1.4 compliant - with cross conversion capabilities
• Device control via Ethernet - RS-232 and USB
• Supports HDMI 4K signal formats - 4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
• HDMI 2.0, 1.4 and DVI 1.0 compliant
• HDR and Low Latency Dolby Vision
• Supports HDMI 5K signal formats - 5120×2160 HDMI 2.0: 30hz 4:4:4 or 60hz 4:2:0
• Uncompressed video - up to 18 Gbps datarate (600 MHz pixel clock)

This standalone product has 8 HDMI 2.0 inputs and 8 HDMI 2.0 outputs transmitting up to 4K at 60Hz in 4:4:4 format, while supporting 3D, Dolby TrueHD and DTS-HD Master Audio.

The MX2-8x8-HDMI20 L matrix switcher supports both HDR and Dolby Vision in the HDMI signal.

Supporting 5K

The Lightware MX2 series delivers flawless switching for 5K 21:9 ultrawide displays, unlocking a new level of visual performance for modern meeting and control environments. Designed to enhance layouts like Microsoft Teams Front Row and other collaboration platforms, MX2 provides expanded screen real estate for design, data visualization, and multi-window workflows. With uncompressed HDMI 2.0 video and ultra-low latency, it’s the ideal choice for simulation, engineering, broadcast, and executive boardroom applications.

Specifications

• Recommended application: Rental and staging
• HDMI inputs: 8x
• HDMI outputs: 8x
• Audio inputs: No
• Audio outputs: No
• Front panel buttons: Yes
• Front panel LCD menu: Yes

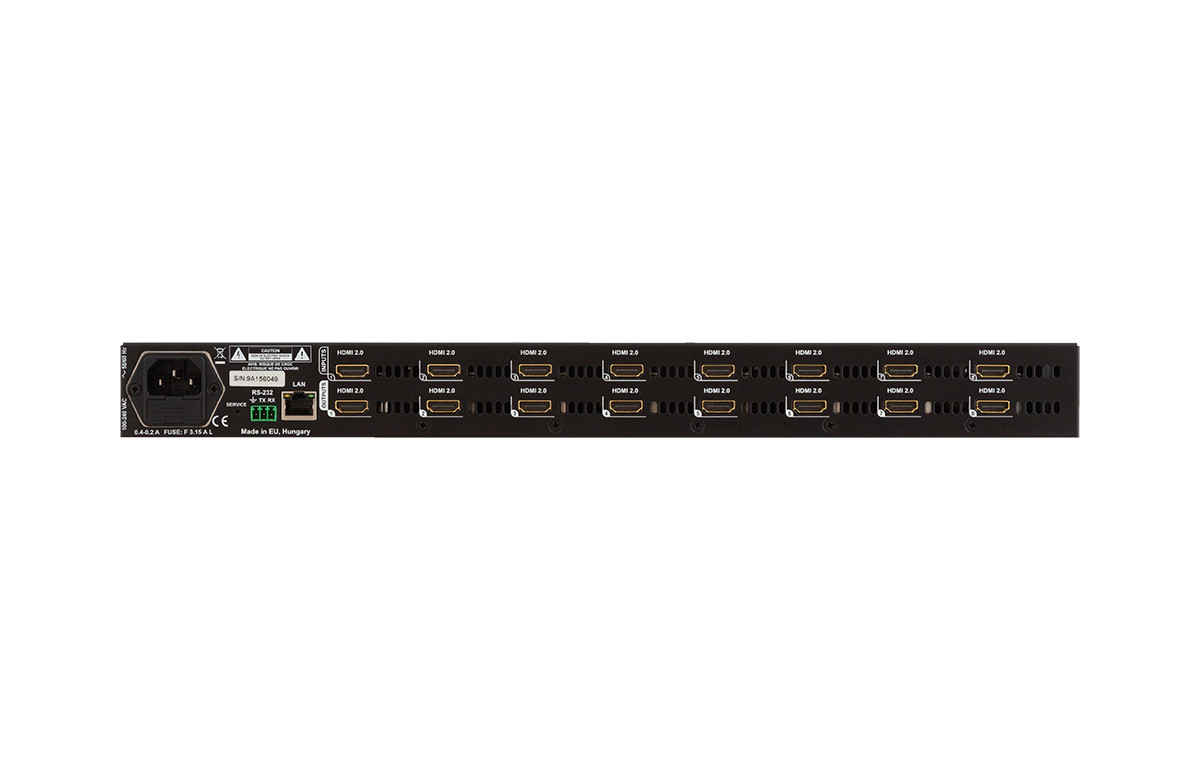

• Connectors
  • Power: IEC standard, 110/220V
  • Video inputs: 8 x HDMI 2.0
  • Video outputs: 8 x HDMI 2.0
  • Audio inputs / outputs: Stereo, balanced, 5-pole Phoenix
  • Serial control: 3-pole Phoenix
  • Ethernet: RJ45
  • USB: mini USB
• Routing: 8 input 8 output, non blocking architecture
• Speed: 18 Gbps per port
• Resolution: Up to 4096x2160@60Hz at RGB 4:4:4
  • (up to 600MHz pixel clock)
• 5K Resolution: 5120×2160 HDMI 2.0: 30hz 4:4:4 or 60hz 4:2:0
• Mounting: Rack mountable, removable rack ears
• Dimensions (WxDxH): 17.4 x 10.93 x 1.72 inch (442 x 277.5 x 43.7 mm)
  • 1RU height
• Weight: 7.17 lbs (3.25kg)
