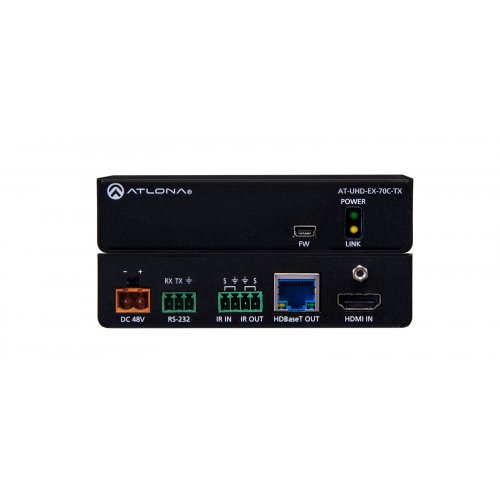

Atlona AT-UHD-EX-70C-TX 4K/UHD HDMI Over HDBaseT Transmitter

About: Atlona AT-UHD-EX-70C-TX 4K/UHD HDMI Over HDBaseT Transmitter

The Atlona AT-UHD-EX-70C-TX is an HDBaseT transmitter for HDMI transmission up to 230 feet (70 meters) over category cable with RS-232 and IR control pass-through. It transmits video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded multi-channel audio. The AT-UHD-EX-70C-TX is HDCP 2.2 compliant and supports EDID communication. This HDBaseT transmitter is externally powered by the included power supply, making it ideal for extending AV and control directly to a projector with an HDBaseT input.

The AT-UHD-EX-70C-TX provides a value-oriented integration solution for simple point-to-point signal extension to a display, or expanding the scope of an AV system design with remote input connectivity. It features a quarter rack width metal enclosure and includes surface mounting brackets for easy under-table, furniture, or on-wall installation.

Applications

The AT-UHD-EX-70C-TX is ideal for use in:

• Extending AV and control to HDBaseT-equipped projectors and flat-panel displays
• Integrating a remote source or HDMI connection point into an Atlona switcher with an HDBaseT input
• Installations in which UHD-EX Series transmitters are to be used with third-party HDBaseT devices

Product Compatibility

The AT-UHD-EX-70C-TX is compatible with the AT-UHD-EX-70C-RX receiver, as well as Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter is also ideal for extending AV and control to displays with HDBaseT inputs.

Features

4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling

• Supports 4K/60 4:2:0 and 4K/30 4:4:4
• Allows 4K/UHD transmission when used with a compatible HDBaseT-equipped display or HDBaseT receiver

HDCP 2.2 compliant

• Adheres to latest specification for High-bandwidth Digital Content Protection
• Allows protected content stream to pass between devices

Supports 4K HDR10 @ 24 Hz

• Extends 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)

Local AC powering

• Includes external power supply – ideal for point-to-point installations with an HDBaseT-equipped projector
• IEEE 802.3af PoE Power Sourcing Equipment (PSE) – can supply power over HDBaseT to a remote receiver, such as the AT-UHD-EX-70C-RX*
• Saves time and integration costs
  • * The transmitter and receiver can be purchased together as the AT-UHD-EX-70C-KIT.

Long distance HDBaseT extension

• Transmits AV and control up to 230 feet (70 meters) @ 1080p or 130 feet (40 meters) @ 4K/UHD using CAT6a/7 cable
• Uses easy-to-integrate category cable for low-cost, reliable system installation

Extends bidirectional RS-232 and IR control signals

• Control signals travel over HDBaseT link to device for maximum control system flexibility
• Simplifies integration of source, control system, and display

Rear panel I/O connectors

• Placement of ports on rear panel simplifies wire management
• Saves installation time and eliminates clutter

Multi-channel audio compliant

• Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, DTS-HD Master Audio™, and DTS:X™
• Allows any multi-channel audio stream to be used within a professional audio system

Field-updatable firmware

• Front panel USB port provides an easy means for device updates
• Ensures long-term system return on investment

Front panel Power and Link status LEDs

• LED indicators provide power and HDBaseT link status information
• Provides easy setup and troubleshooting

Power chaining

• Included power supply provides ample power for up to three Atlona HDBaseT extenders
• Four Atlona HDBaseT extenders can be powered using the optional AT-PS-483125-C power supply
• Reduces clutter from multiple power supplies in equipment racks

Low-profile, 1 inch (25 mm) high quarter rack-width enclosure

• Easy installation into racks and confined spaces
• Keeps devices out-of-sight when placed in public spaces

Included accessories

• User guide, surface mounting brackets, and external universal power supply
