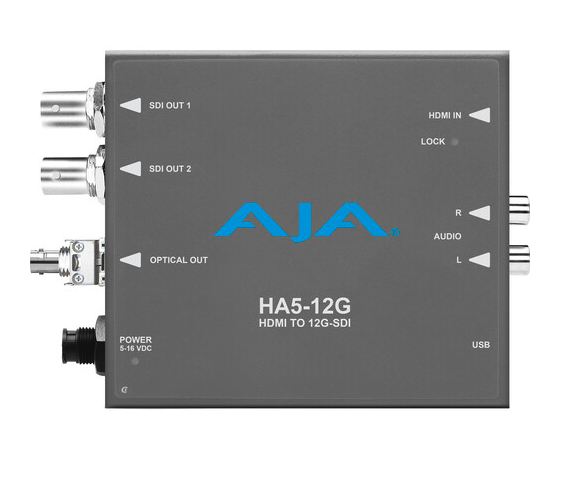

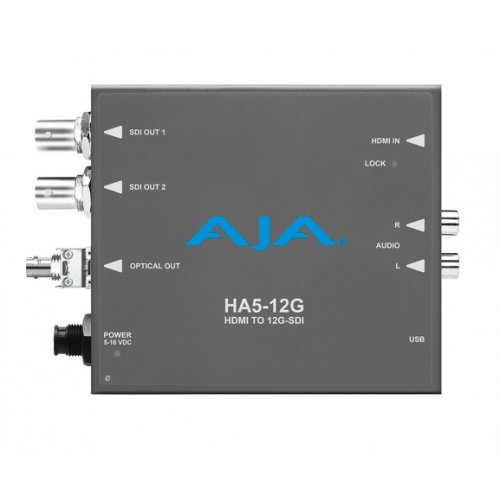

AJA HA5-12G-T-ST HDMI 2.0 to 12G-SDI Conversion with ST Fiber Transmitter
Model: HA5-12G-T-ST
About: AJA HA5-12G-T-ST HDMI 2.0 to 12G-SDI Conversion with ST Fiber Transmitter
AJA HA5-12G-T-ST is a compact HDMI 2.0 to 12G-SDI converter equipped with a single-channel 12G ST fiber transmitter. This device enables the transmission of high-resolution 4K/UltraHD signals over long distances, up to 10 km, via a single-mode fiber link, making it ideal for professional broadcast and production environments.
Features
- Converts HDMI 2.0b input up to 4K 60p to 12G-SDI with a second mirrored output
- Includes a single-channel Fiber 12G ST transmitter for extended signal reach
- Supports high frame rates up to 60p at 4:4:4, 4:2:2, and 4:2:0 chroma subsampling
- Offers EDID emulation to ensure continuous signal compatibility
- Analyzes HDR Infoframe data in accordance with HDMI v2.0b/CTA-861-G standards
- Provides simple frame rate conversion between fractional and integer rates
- Selectable audio embedding from HDMI or analog stereo inputs
- Pass-through support for compressed audio formats, including AC-3 and E-AC-3 (Dolby Digital Plus), as well as DD+ Atmos (also known as DD+ JOC)
- Configurable via USB port using AJA's Mini-Config software
- Compact design suitable for various installation environments
- Includes a universal power supply (5-16 VDC input)
- Backed by a five-year warranty
Specifications
| Video Input | 1 x HDMI 2.0b |
|---|---|
| Video Output | 2 x 12G-SDI (mirrored); 1 x 12G ST fiber |
| Audio Input | Embedded HDMI audio; 2 x RCA analog stereo inputs |
| Supported Resolutions | Up to 4K/UltraHD at 60 fps |
| Transmission Distance | Up to 10 km over single-mode fiber |
| Control Interface | USB port for configuration via AJA Mini-Config software |
| Power Supply | 5-16 VDC input (universal power supply included) |
| Dimensions (H x W x D) | 1.0 x 2.4 x 4.4 inches (25 x 61 x 112 mm) |
| Weight | 0.3 lb (0.2 kg) |
UPC: 812321032284
Reviews: AJA HA5-12G-T-ST HDMI 2.0 to 12G-SDI Conversion with ST Fiber Transmitter
Warranty: AJA HA5-12G-T-ST HDMI 2.0 to 12G-SDI Conversion with ST Fiber Transmitter
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
