AJA KONA-XM-P Video I/O for AI/AR Medical Devices - Passive Cooled
Model: KONA-XM-P
About: AJA KONA-XM-P Video I/O for AI/AR Medical Devices - Passive Cooled

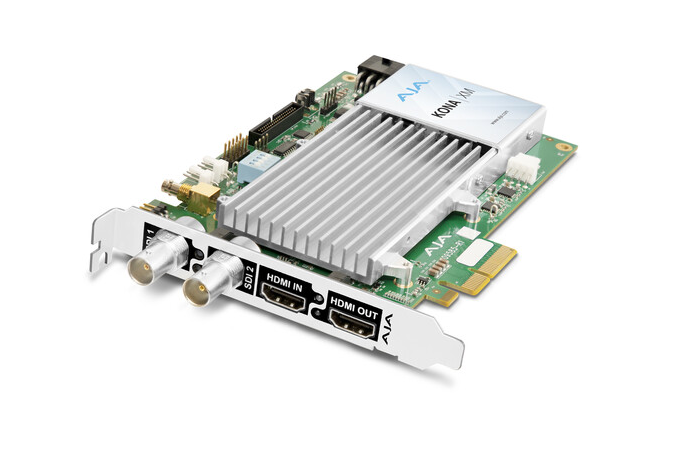

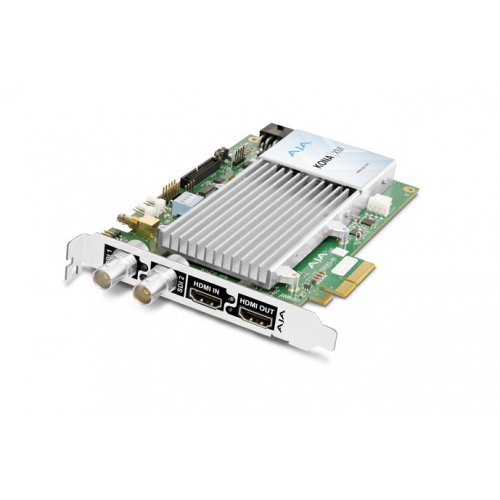

AJA KONA XM is a high-performance PCIe 3.0 video I/O card engineered for ultra-low latency applications, particularly in medical and healthcare environments. Equipped with dual 12G-SDI and HDMI 2.0 connections, it supports high-quality 4K/UltraHD video capture and playback, making it ideal for AI/AR-assisted surgical procedures and other mission-critical video applications.
Features
- Supports 4K/UltraHD/2K/HD/SD video capture and playback up to 60p
- Ultra-low latency design with sub-frame delay on processed video output
- Dual 12G-SDI connections with 16-channel embedded audio
- HDMI 2.0 input and output with VESA support
- Supports RGB 4:4:4 12-bit and YCbCr 4:2:2 10-bit workflows
- Compatible with Windows and Linux operating systems via AJA SDK
- In-firmware microcontroller for supervisory and safety functions
- VPID signaling for SDR/HDR transfer characteristics, colorimetry, and luminance via SDI
- HDR support for HLG and HDR10 via HDMI
- Available in active (with fan) and passive (fanless) cooling options
- Three-year warranty
Specifications
| Video Input/Output | 2 x 12G-SDI BNC (1 input, 1 output); 2 x HDMI 2.0 (1 input, 1 output) |
|---|---|
| Audio Channels | 16-channel embedded audio via SDI |
| Color Depth | RGB 4:4:4 12-bit; YCbCr 4:2:2 10-bit |
| Compatibility | Windows and Linux operating systems |
| Cooling Options | Active (with fan) or Passive (fanless) |
| Dimensions | Standard PCIe form factor |
| Weight | Not specified |
