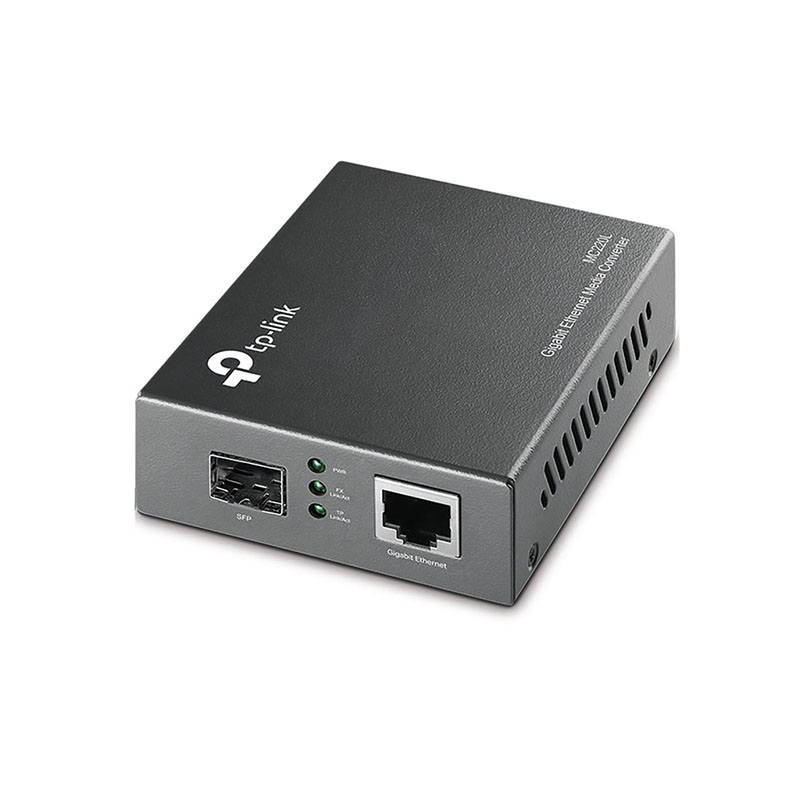

TP-Link MC220L Gigabit SFP Media Converter

About: TP-Link MC220L Gigabit SFP Media Converter

The MC220L is a media converter designed to convert between 1000BASE-SX/LX fiber and 10/100/1000Base-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC220L applies the IEEE802.3ab 1000Base-T & IEEE802.3z 1000Base-SX/LX standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.

MC220L offers flexible installation on standalone desktops or inserted into a chassis (TP-Link TL-MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module.

• 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Complies with IEEE 802.3ab and IEEE 802.3z
• FX port supports hot-swappable
• Maximum transmission distance depends on the inserting SFP

Specifications

• Standards and Protocols - IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
• Basic Function
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Maximum transmission distance depends on the inserting SFP module
• Ports
  • 1 1000M SFP port
  • 1 10/100/1000M RJ45 port (Auto MDI/MDIX)
• Wave Length - Depends on the used SFP module
• Network Media 1000BASE-X - Multi-mode/Single-mode SFP module
• Network Media 1000BASE-T
  • UTP category 5, 5e cable (maxium 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
• LED Indicators - PWR, Link/Act
• Dimensions (WxDxH) - 3.7x2.9x1.1 in. (94.5x73.0x27.0 mm)
• Power Supply - External Power Adapter
• Max Power Consumption - 1.7W
• Safety & Emission - FCC, CE, RoHS
• Environment
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

What's Included

• Media Converter MC220L
• Power Adapter
• Installation Guide
