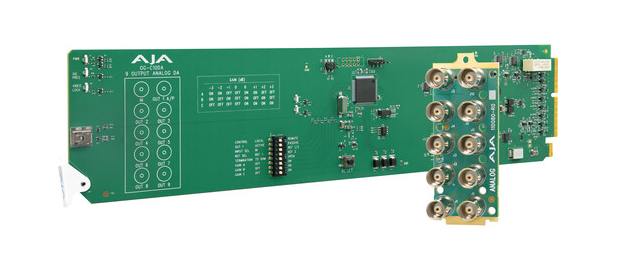

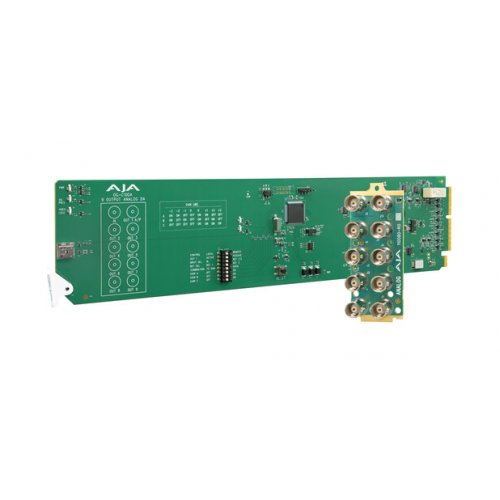

AJA OG-C10DA Analog Video 1x9 openGear Distribution Amplifier
Model: OG-C10DA
About: AJA OG-C10DA Analog Video 1x9 openGear Distribution Amplifier
AJA OG-C10DA is an openGear-compatible 1x9 analog video distribution amplifier designed to distribute multiple copies of incoming signals or extend composite video content with gain adjustment, compensating for long cable runs. Supporting NTSC and PAL formats, as well as bi-level and tri-level reference signals, the OG-C10DA is ideal for broadcast and professional video applications.
Features
- 1x9 analog distribution amplifier with one input, one loop output, and eight outputs
- Supports NTSC, PAL, bi-level, and tri-level sync signals
- Selectable input from external BNC, frame input Ref 1, or frame input Ref 2
- Gain adjustment to compensate for long cable runs
- Monitor and control via Ross DashBoard software on Windows, macOS, or Linux
- DIP switches for local control of loop, reference input, termination, and gain
- Input Present LED indicator
- Hot-swappable design for easy maintenance
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
- Five-year warranty
Specifications
| Formats | NTSC, PAL, bi-level reference, tri-level reference, AES3-id, LTC |
|---|---|
| Inputs | 1 x BNC analog differential; 2 x openGear frame reference inputs |
| Outputs | 1 x BNC analog loop-out (active/passive); 8 x BNC analog |
| Termination | 75 Ohms or non-terminated |
| Video Bandwidth | 0 – 6 MHz ±0.1 dB |
| Gain | -3 dB to +3 dB in 1 dB increments ±0.3 dB |
| Power Consumption | 6.75 watts max per card |
| Dimensions | openGear standard form factor; requires two slots per card |
| Weight | 0.5 lb (0.3 kg) |
