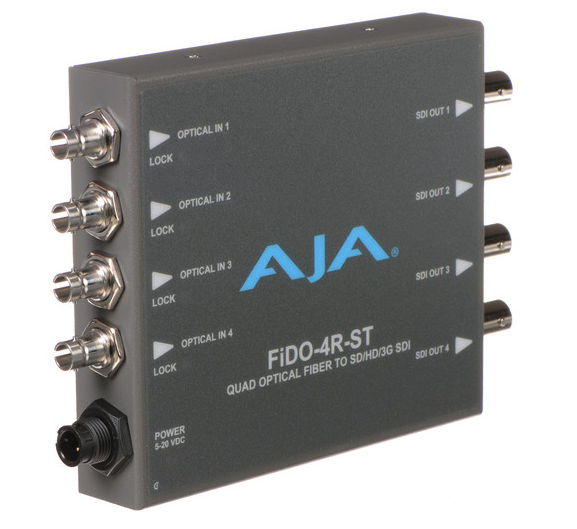

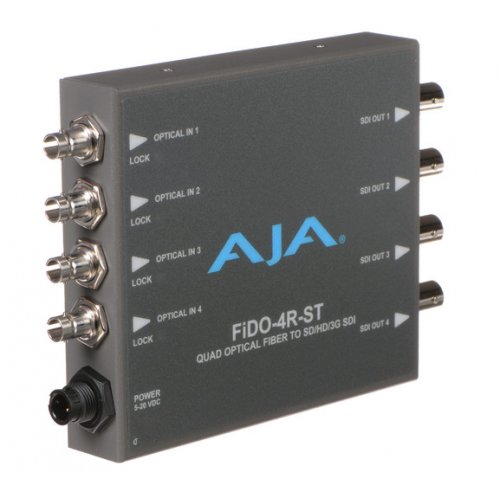

AJA FiDO-4R-ST 4-Channel Single Mode ST Fiber to 3G-SDI Receiver
Model: FiDO-4R-ST
About: AJA FiDO-4R-ST 4-Channel Single Mode ST Fiber to 3G-SDI Receiver
AJA FiDO-4R-ST is a versatile 4-channel single-mode ST fiber to 3G-SDI receiver designed to facilitate long-distance transmission of high-resolution video signals. This compact device offers flexibility and cost efficiency for SDI-to-fiber conversion, enabling cable runs up to 10 km (32,808 ft) with electrical isolation, which is beneficial for eliminating ground loop issues. The FiDO-4R-ST is ideal for broadcast, production, and professional AV environments where secure and reliable connectivity is essential.
Features
- Converts four independent single-mode ST fiber inputs to 3G-SDI outputs
- Supports 3G-SDI, HD-SDI, and SD-SDI formats
- Enables long-distance signal transmission up to 10 km (32,808 ft) over standard single-mode fiber optic cable
- Compact and rugged design suitable for tight spaces around equipment racks, trucks, and cameras
- Universal power supply with international plug adapters included
- Five-year warranty
Specifications
| Video Formats | 150 Mbps to 3 Gbps, format agnostic |
|---|---|
| Video Inputs | 4 x single-mode ST fiber connectors, SMPTE-297 |
| Video Outputs | 4 x 3G-SDI BNC connectors, SMPTE-259/292/424 |
| Nominal Wavelength | 1260 nm to 1620 nm |
| Optical Sensitivity | -18 dBm (Max) |
| Overload Power | -3 dBm (Min) |
| Reclocking | 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select; all other rates are passed through and not reclocked |
| Dimensions (W x D x H) | 4.6 x 4.02 x 0.85 inches (117 x 102.11 x 21.6 mm) |
| Weight | 0.8 lb (0.4 kg) |
| Power | 5 watts max; uses 5-20 VDC power (universal power supply included) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -40 to 60°C (-40 to 140°F) |
| Operating Humidity | 10-90% non-condensing |
| Operating Altitude | <3,000 meters (<10,000 feet) |
UPC: 892448000786
Reviews: AJA FiDO-4R-ST 4-Channel Single Mode ST Fiber to 3G-SDI Receiver
Warranty: AJA FiDO-4R-ST 4-Channel Single Mode ST Fiber to 3G-SDI Receiver
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
