AJA HA5-12G HDMI 2.0 to 12G-SDI Converters
Model: HA5-12G
About: AJA HA5-12G HDMI 2.0 to 12G-SDI Converters

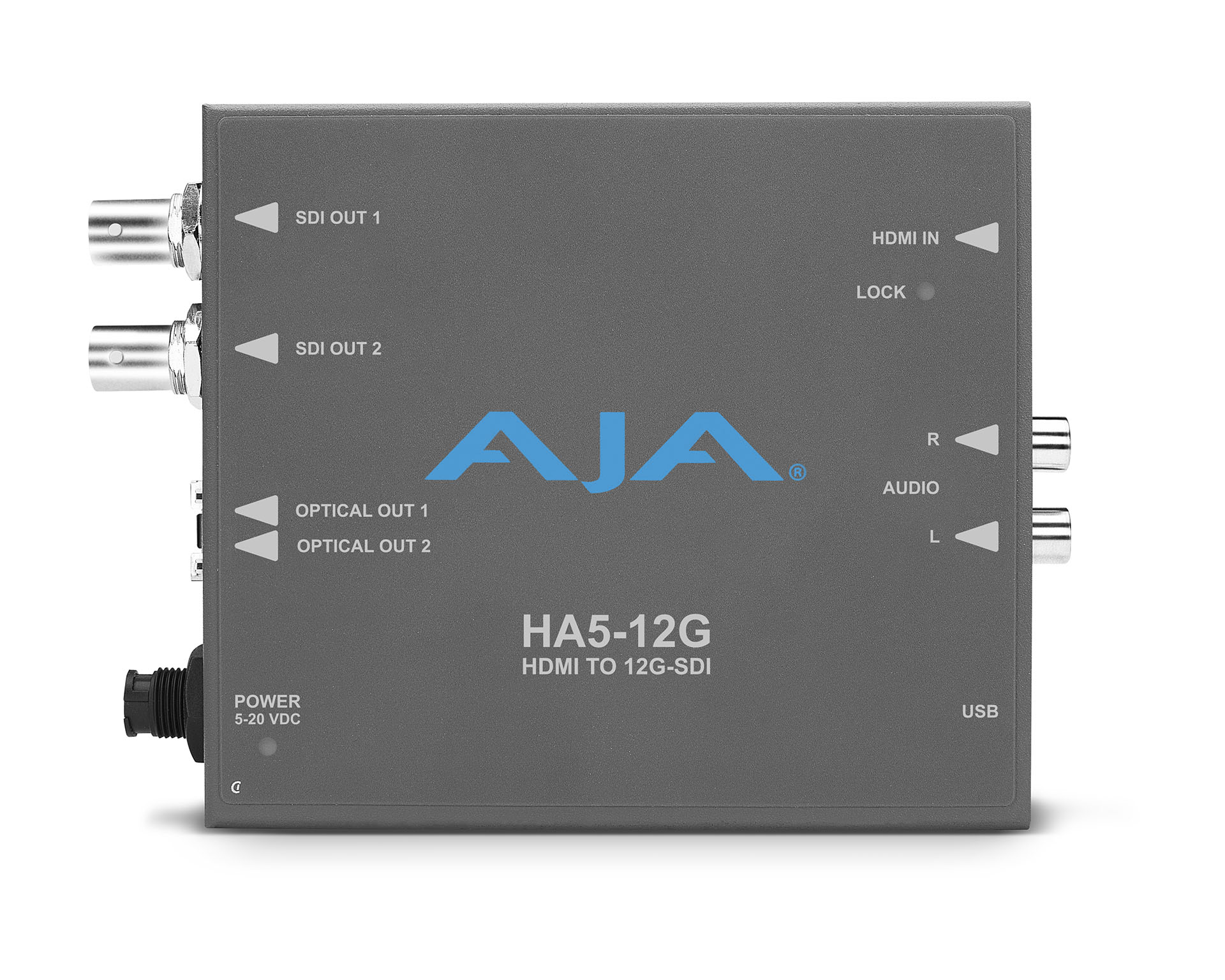

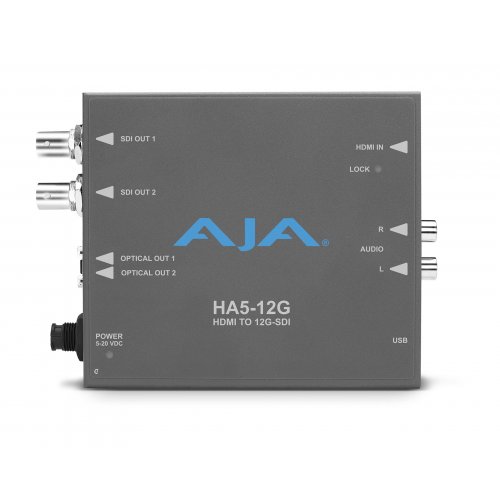

AJA’s HA5-12G allows users to convert an HDMI 2.0 input to two 12G-SDI single link outputs. It includes two SDI DA outputs and transmits 12G-SDI on each SDI link, reducing cable runs when transporting 4K/UltraHD SDI. HA5-12G supports up to 8-Channels of audio from the HDMI source or 2-Channel analog audio (RCA), with eight or two channels of digital embedded audio on 12G-SDI.
Features
- Converts HDMI 2.0 to 12G-SDI, up to 4K 60p
- Supports up to 60p input at 4:4:4/4:2:2/4:2:0
- Supports 2SI (two sample interleave) 4K/UltraHD SDI mapping
- Two 12G-SDI outputs
- Embedded audio can be selected from the HDMI or Analog audio inputs
- Configure via USB port and supplied Mini-Config software
- Uses 5-20 VDC power (DWP-U-R1 universal power supply included)
- Five year warranty
UPC: 812321031492
Reviews: AJA HA5-12G HDMI 2.0 to 12G-SDI Converters
Warranty: AJA HA5-12G HDMI 2.0 to 12G-SDI Converters
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
