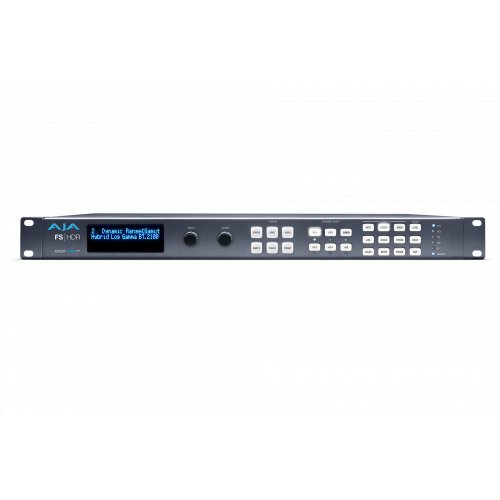

AJA FS-HDR Real-time HDR/WCG Converter

About: AJA FS-HDR Real-time HDR/WCG Converter

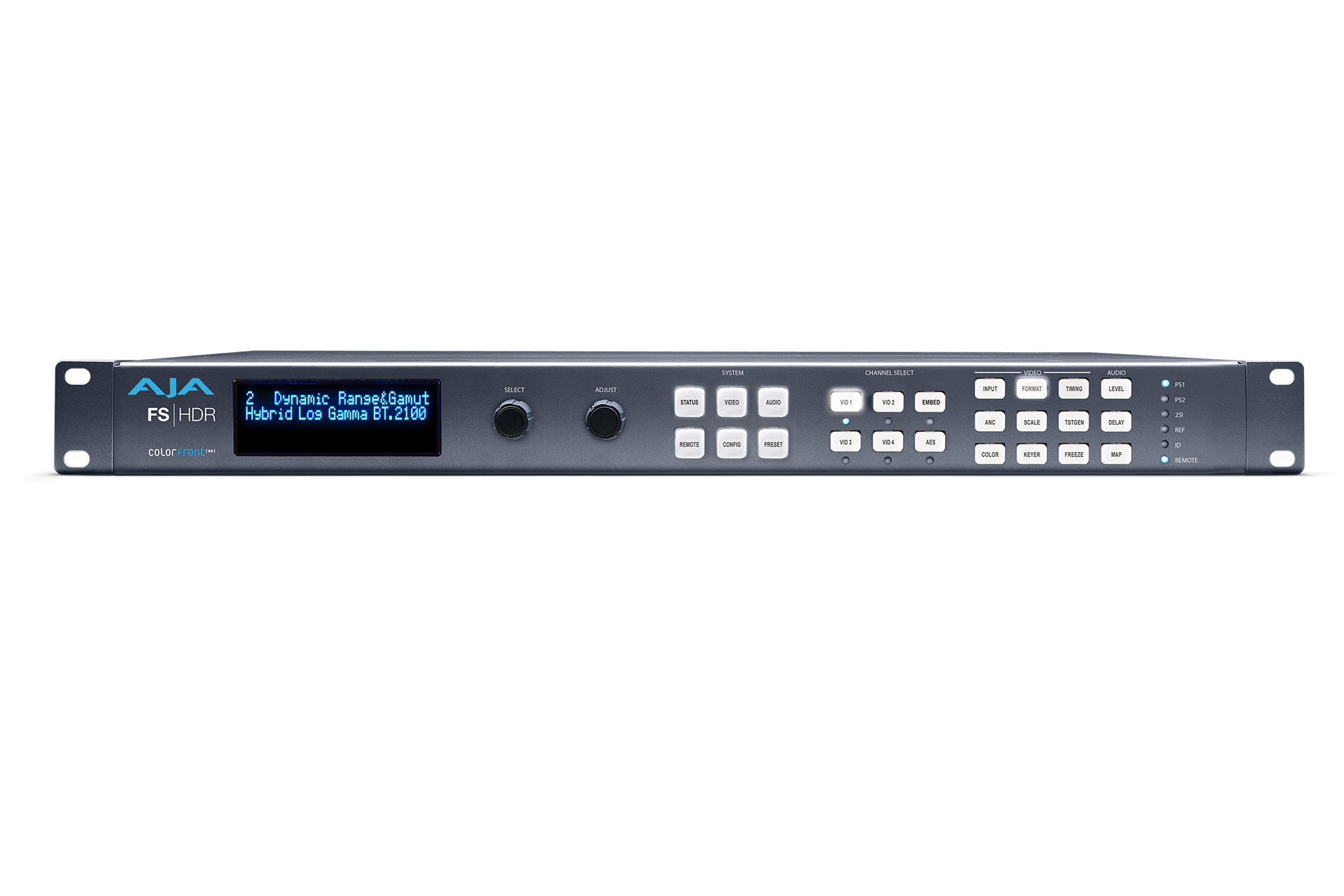

FS-HDR, a 1RU, rack-mount, universal converter/frame synchronizer, is designed specifically to meet the HDR (High Dynamic Range) and WCG (Wide Color Gamut) needs of broadcast, OTT, post and live event AV environments, where real time, low-latency processing and color fidelity is required for 4K/UltraHD and 2K/HD workflows. Developed in partnership with Colorfront, the FS-HDR’s HDR/WCG functionality is powered by Colorfront Engine™ proprietary video processing algorithms.

FS-HDR also serves as a full, 1-Channel up, down, cross-converter for 4K/UltraHD/2K/HD HDR transformation, conversion and frame sync needs and in 4-Channel mode, offers 4 independent channels of 2K/HD conversion including HDR transformations.

Real Time HDR Converter

The pursuit of High Dynamic Range (HDR) is the dream of getting closer to the Human Visual System (HVS) in all that we experience as viewers. FS-HDR has been designed to get us all there faster with a low profile, stand alone and real time device uniquely designed to bridge SDR to HDR, HDR to SDR and HDR to HDR,
all in real time.

HDR Conversions:

• HDR to HDR
• HDR to SDR
• SDR to HDR

WCG Conversions:

• BT.709 and BT.2020

Up and Down Conversions:

• Converting HD SDR BT.709 sources to UHD HDR BT.2020
• Converting UHD HDR BT.2020 sources to HD SDR BT.709

Colorfront Engine™ Maintaining Perceptual Integrity

FS-HDR’s HDR/WCG capabilities leverage video and color space processing algorithms within Colorfront Engine™,  specially-licensed by AJA from Colorfront, and developed by Colorfront’s CTO Bill Feighter and Lead Engineer Tamas Perlaki, both of whom are Academy Award-winners.

Powered by Colorfront Engine, FS-HDR’s extensive HDR and WCG processing support enables  real time processing of a single channel of 4K/UltraHD/2K/HD including down-conversion to HD HDR  or up to four channels of 2K/HD simultaneously.  FS-HDR also enables the conversion of popular camera formats from multiple vendors into the HDR space, plus conversion to-and-from BT.2020/BT.709 as needed, critical for the widespread acceptance of HDR alongside SDR in broadcast and OTT workflows.

Realtime Camera LOG Conversions

FS-HDR can take incoming imagery from some of the most popular professional cameras in the world today and convert their LOG output in realtime to 4K/UltraHD or 2K/HD and output as either HDR or SDR. This greatly simplifies workflows in a mixed camera environment and provides for a unified input workflow to HDR or SDR capable switchers and more. Additionally, FS-HDR provides the ability to convert to Sony S-Gamut/S-Log3 on output from any of these sources for workflows requiring this Log feed to compatible switchers and more.

• Sony S-Gamut3/S-Log3
• ARRI LogC Wide Gamut
• Panasonic Vlog
• Red Log3G10 Wide Gamut
• Canon Log2
• Canon Log 3

Inputs: Dynamic Range/Color Gamut

• SDR BT.709 100 Nits
• PQ BT.2020 1000 Nits
• PQ P3D65 1000 Nits
• Hybrid Log Gamma BT.2100
• Sony S-Gamut3/S-Log3
• ARRI Log C Wide Gamut
• Panasonic V-Log
• RED Log3G10 Wide Gamut
• Canon Log 2
• Canon Log 3

Outputs: Dynamic Range/Color Gamut

• SDR BT.709 100 Nits
• PQ BT.2020 1000 Nits
• Hybrid Log Gamma BT.2100
• Sony S-Gamut3/S-Log3

HDR Workflows for UltraHD and HD with FS-HDR

FS-HDR opens a range of exciting possibilities for the integration of HDR within a range of workflows

• Converting from a house HDR standard to a delivery HDR standard.
• Converting from a camera OETF to a house HDR standard.
• Converting from HDR standard to SDR for delivery or monitoring.
• Converting SDR camera output to a house HDR standard.
• Converting SDR sources to HDR for integrating into an HDR program
• Converting HD SDR BT.709 sources to UHD HDR BT.2020
• Converting UHD HDR BT.2020 sources to HD SDR BT.709
• Converting source inputs to Sony S-Gamut3/S-Log3

FS-HDR Key Features

• HDR to HDR, SDR to HDR and HDR to SDR conversions for Dynamic Range and Wide Color Gamut needs.
• Support for two modes:
  • Single-channel mode for 4K/UltraHD or 2K/HD frame sync and conversion including HDR conversions
  • 4K/UltraHD/2K/HD/SD video processing and up, down, cross-conversion
  • A full range of I/O options for 4K/UltraHD including Quad 1.5G; Dual 3G; and Quad 3G, 6G and 12G over a range of SDI and optional fiber choices
  • SMPTE 2SI I/O support for broad compatibility with 4K/UltraHD devices
• Four-channel mode for simultaneous independent 2K/HD/SD channels including HDR conversions
  • 2K/HD/SD up, down, cross-conversion
  • SD/SD aspect ratio conversion
  • HD/HD cross-conversion (720p/1080i)
• Widely interoperable with 4K/UltraHD/2K/HD raster support,
• Quadrants and 2SI conversion, P, PsF and Interlace support
• A 1RU frame offering space, power and cost efficiencies ideal for broadcast trucks, post production or broadcast settings
• Audio I/O processing with a 272x208 matrix of audio possibilities; support for a flexible range of audio feeds from discrete AES to MADI and embedded SDI audio, with each audio input offering sample-rate conversion
• Simple operation, a redesigned menu structure and quick access to features via front panel buttons, as well as a web-based UI offering control over a LAN or across the web
