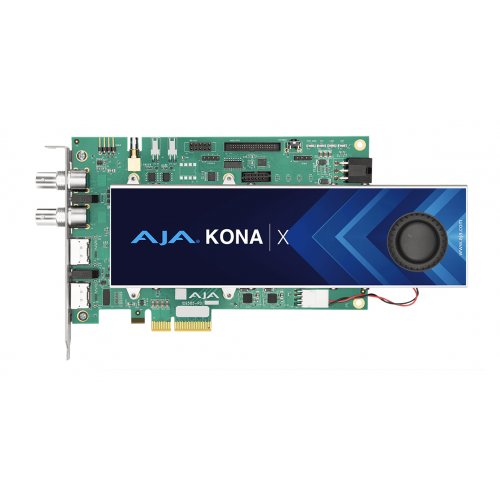

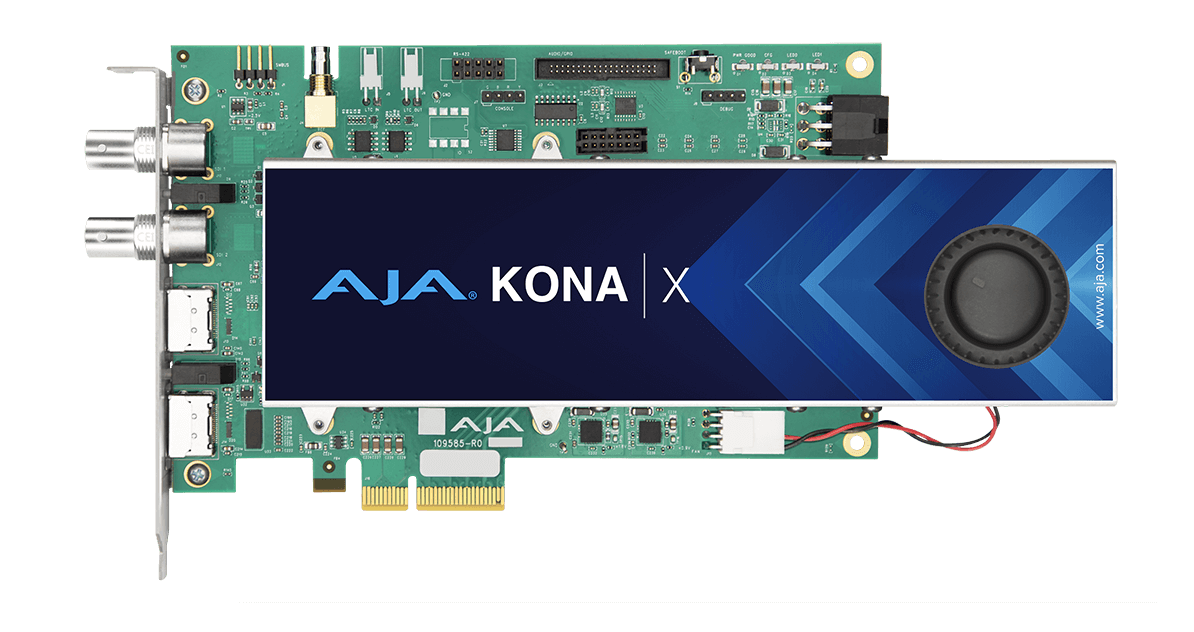

AJA KONA-X-OP 12G-SDI and HDMI 2.0 Ultra-Low Latency PCIe Card - Passive Cooled
Model: KONA-X-OP
About: AJA KONA-X-OP 12G-SDI and HDMI 2.0 Ultra-Low Latency PCIe Card - Passive Cooled
AJA KONA X is a next-generation 4-lane PCIe 3.0 video I/O card engineered for high-performance workflows, including HDR, AI, and AR applications. Equipped with dual bidirectional 12G-SDI and dual HDMI 2.0 connections, it supports a wide range of video formats up to 4K/UltraHD at 60p, making it an ideal solution for professionals in broadcast, post-production, and live event environments.
Features
- Supports 4K/UltraHD/2K/HD/SD video resolutions up to 60p
- Two bidirectional 12G-SDI ports with up to 16 channels of embedded audio
- HDMI 2.0 input and output with up to 8 channels of embedded audio
- Supports RGB 4:4:4 12-bit and YCbCr 4:2:2 10-bit color spaces
- Ultra-low latency with Streaming DMA for real-time workflows
- VESA HDMI I/O compatibility for a wide range of HDMI formats
- HDR support including PQ, HLG, HDR10, HDR10+, and Dolby Vision
- Compatible with leading content creation applications such as Adobe Premiere Pro, Apple Final Cut Pro, and Avid Media Composer
- Optional KONA Xpand board offering additional connectivity: Bi-level/Tri-level Video Reference (BNC), LTC in/out, RS-422, 8 channels of AES/EBU audio, and 2 channels of analog audio
- Three-year warranty
Specifications
| Video Input/Output | 2 x bidirectional 12G-SDI BNC 1 x HDMI 2.0 input 1 x HDMI 2.0 output |
|---|---|
| Audio Channels | Up to 16 channels embedded via SDI Up to 8 channels embedded via HDMI |
| Color Depth | RGB 4:4:4 12-bit YCbCr 4:2:2 10-bit |
| Supported Resolutions | 4K/UltraHD/2K/HD/SD up to 50/60p |
| Compatibility | Windows, macOS, and Linux operating systems |
| Optional Expansion | KONA Xpand board for additional audio and control interfaces |
| Dimensions | Standard PCIe form factor |
| Weight | Not specified |
UPC: 812321032789
