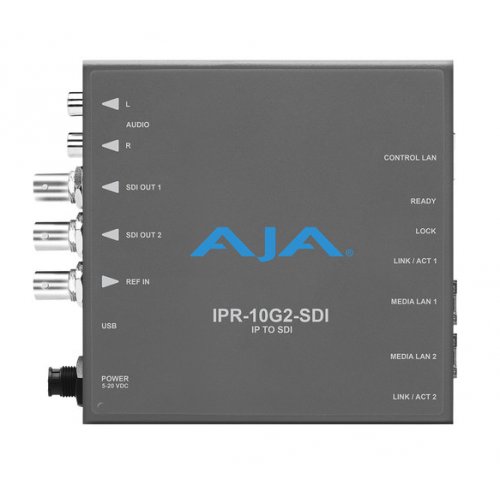

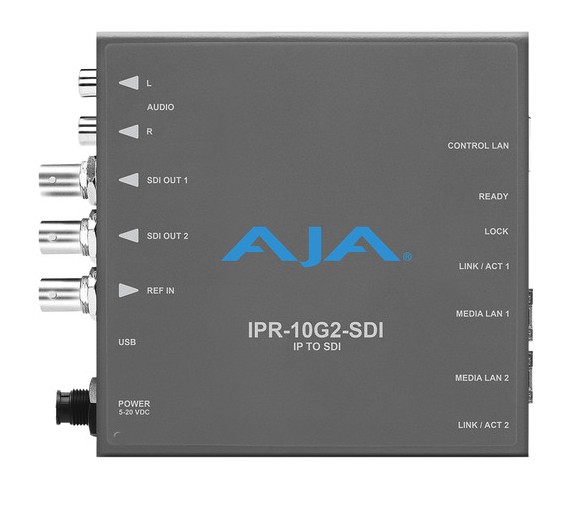

AJA IPR-10G2-SDI Single Channel SMPTE ST 2110 AV IP Decoder to 3G-SDI (HD)
Model: IPR-10G2-SDI
About: AJA IPR-10G2-SDI Single Channel SMPTE ST 2110 AV IP Decoder to 3G-SDI (HD)
AJA IPR-10G2-SDI is a compact and robust Mini-Converter designed to bridge SMPTE ST 2110 IP networks to 3G-SDI outputs, facilitating seamless integration of IP-based video and audio into traditional SDI workflows. This makes it ideal for broadcast, live production, and professional AV environments.
Features
- Receives SMPTE ST 2110 video and audio over 10 GigE and outputs baseband 3G-SDI video
- Dual 10 GigE SFP+ cages supporting hitless switching (ST 2022-7) for redundancy in critical applications
- Supports video resolutions up to 1080p60, 4:2:2, 10-bit YCbCr
- Full 10-bit pixel processing pipeline for high-quality video output
- Dual mirrored 3G-SDI outputs with embedded 8-channel audio
- Analog stereo audio output via dual RCA connectors
- Reference input for synchronizing the baseband output to the local environment
- Web-based user interface accessible through a built-in web server for easy setup and control
- Support for NMOS and Ember+ protocols for discovery, registration, and control
- Customizable control via AJA REST API
- Rugged, fanless design suitable for various installation environments
- Five-year warranty
Specifications
| Video Input | SMPTE ST 2110 over 10 GigE |
|---|---|
| Video Output | 2 x 3G-SDI BNC (mirrored), supporting up to 1080p60, 4:2:2, 10-bit YCbCr |
| Audio Output | Embedded 8-channel audio via SDI; 2 x RCA analog audio outputs |
| Network Interface | 2 x 10 GigE SFP+ cages for media LAN; 1 x 1 GigE RJ-45 for control LAN |
| Reference Input | 1 x BNC for analog/tri-level reference input |
| Control Interface | Web-based UI via built-in web server; mini-USB port for initial network configuration using AJA eMini-Setup software |
| Dimensions | Not specified |
| Weight | Not specified |
UPC: 812321031706
Reviews: AJA IPR-10G2-SDI Single Channel SMPTE ST 2110 AV IP Decoder to 3G-SDI (HD)
Warranty: AJA IPR-10G2-SDI Single Channel SMPTE ST 2110 AV IP Decoder to 3G-SDI (HD)
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
