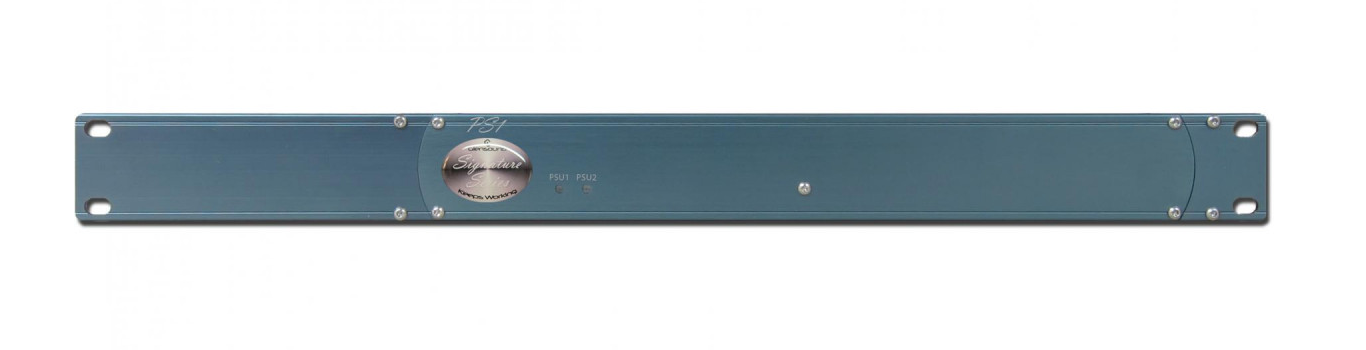

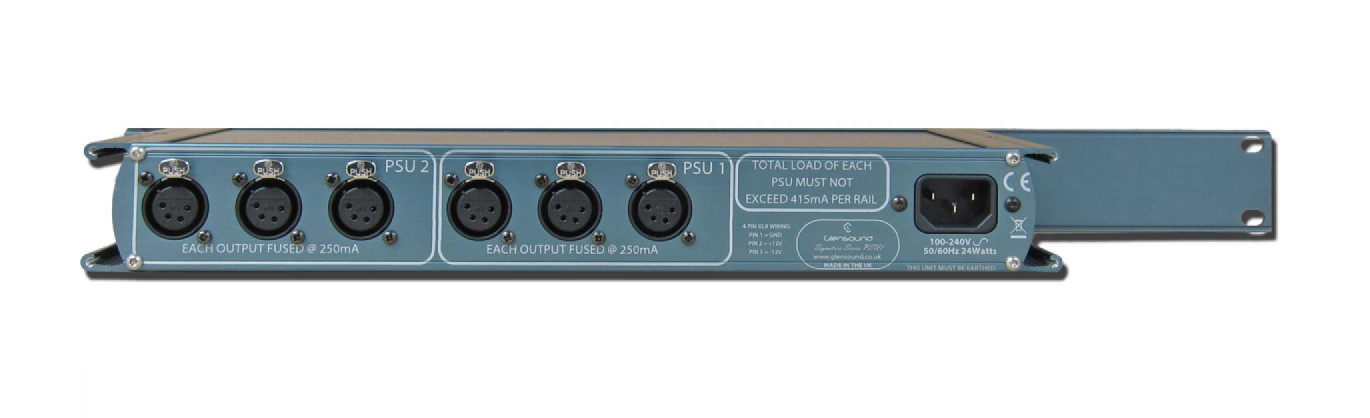

Glensound Signature PS1 Power Station Master Power Supply
Model: PS1
About: Glensound Signature PS1 Power Station Master Power Supply
Glensound Signature PS1 is a power station master power supply designed to provide both primary and redundant power to up to six Glensound Signature Series units. Equipped with dual internal switch-mode power supplies, each capable of powering three units, the PS1 ensures continuous and reliable operation of connected devices. Its versatile design allows for seamless integration into various broadcast and professional audio environments.
Features
- Dual internal switch-mode power supplies, each supporting up to three Signature Series units
- Six individually fused ±12VDC outputs for enhanced safety and reliability
- Includes six 2-meter 4-pin XLR cables for convenient connectivity
- Wide-range AC input (100–240 VAC) for global compatibility
- Compact 336mm width without rack ears, facilitating vertical installation within equipment racks
- Flush mounting side wings for versatile installation options
Specifications
| Mains Input | Filtered IEC, 100 to 240 VAC, 47–63 Hz |
|---|---|
| DC Outputs | Six ±12VDC outputs via 4-pin XLR connectors |
| Output Fuses | Individually fused outputs for protection |
| Dimensions (L x D x H) | 336 x 123 x 44 mm (without rack ears); 482 mm width with rack ears |
| Weight | 1.35 kg |
| Shipping Weight | 2.8 kg |
| Accessories Included | Six 2-meter 4-pin XLR DC cables; rack mounting ears |
