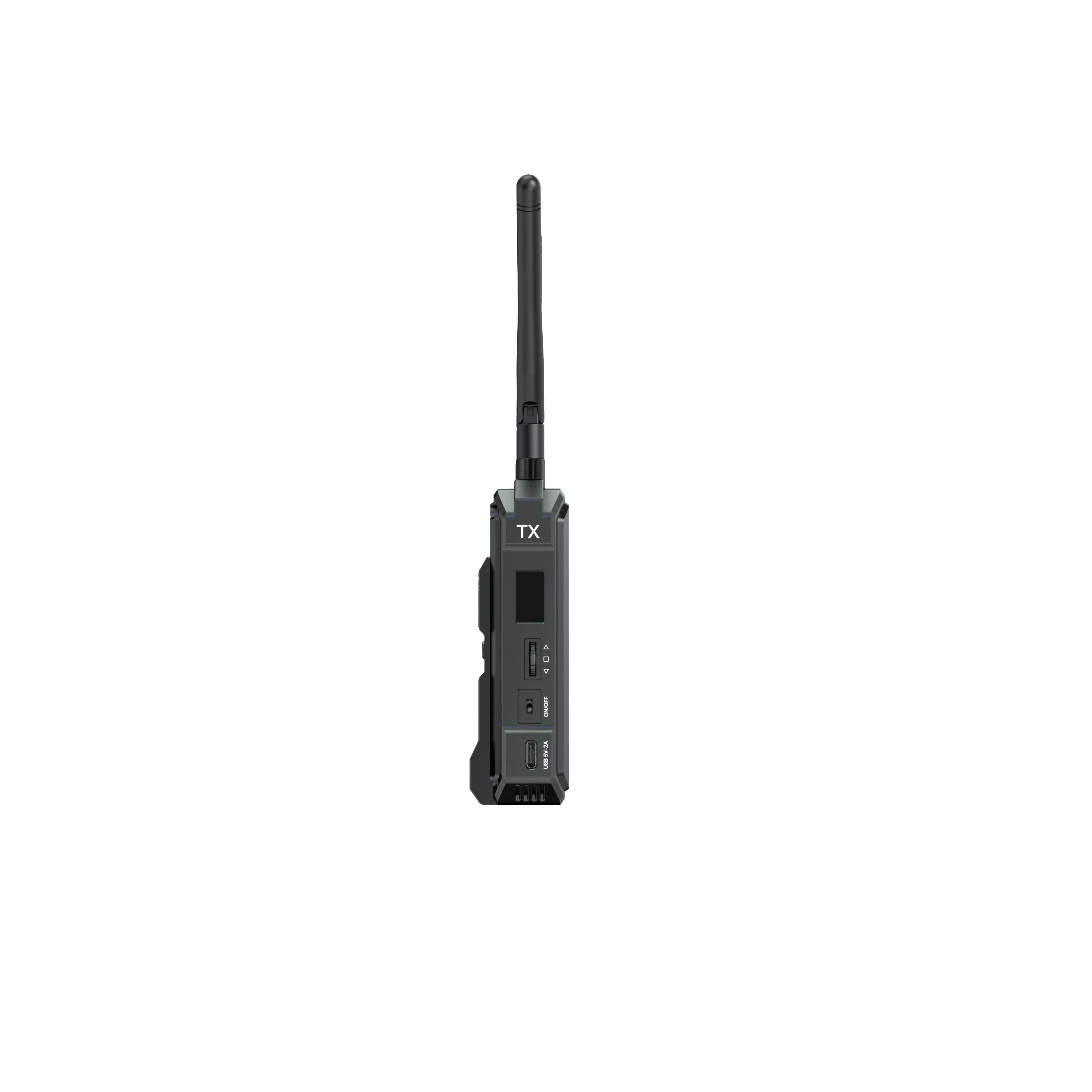

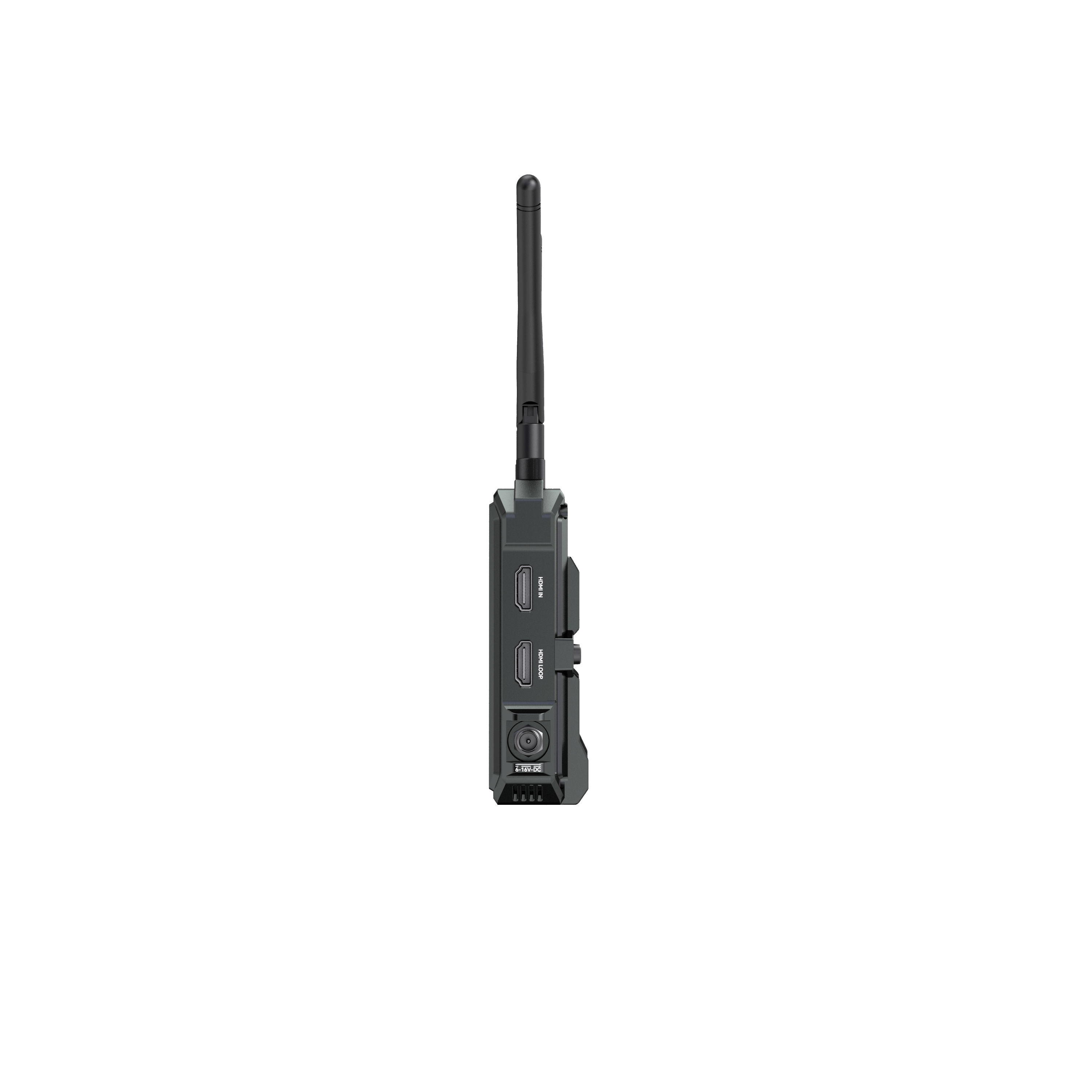

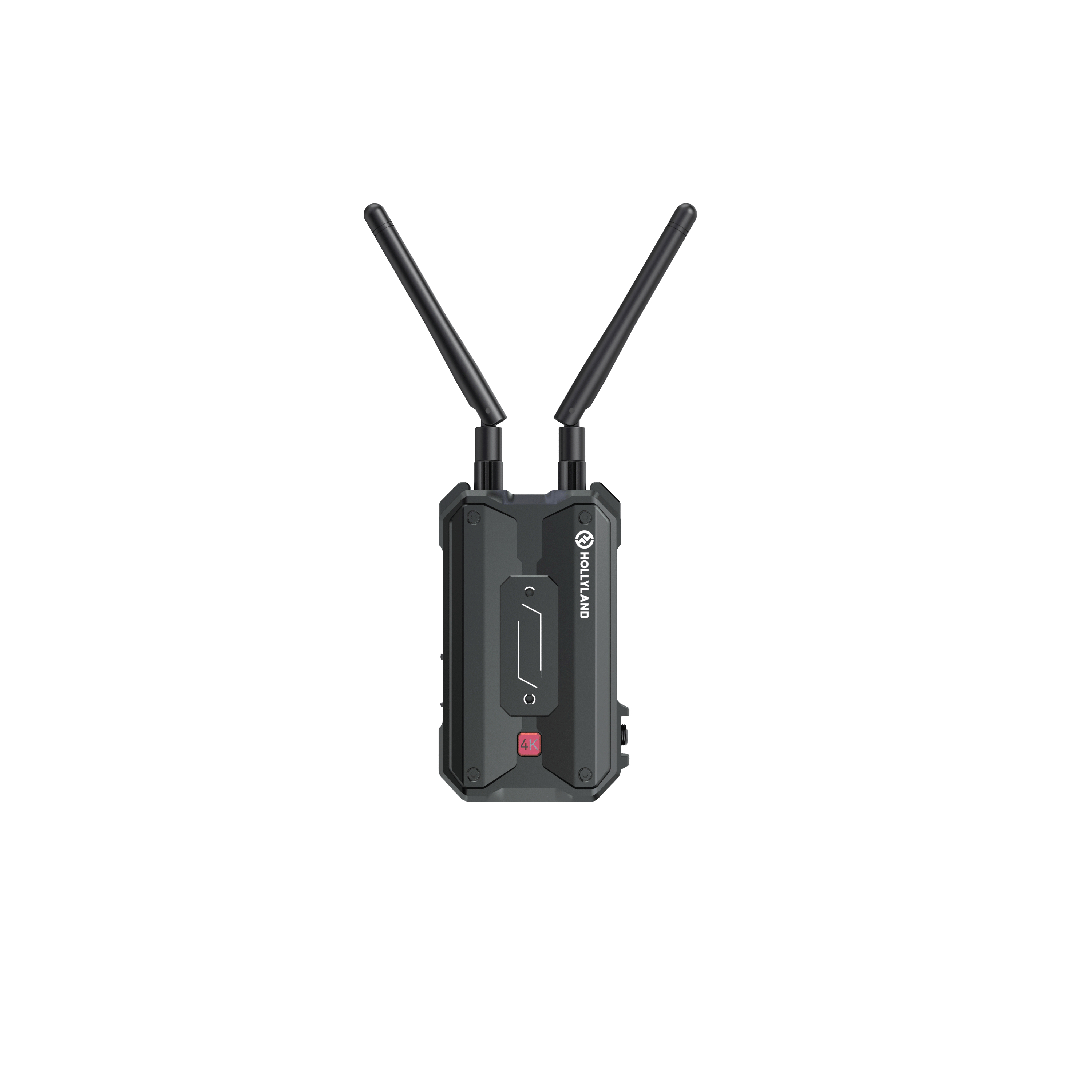

Hollyland Pyro H Wireless Video Transmitter

About: Hollyland Pyro H Wireless Video Transmitter

Pryo H, your ultimate HDMI-only solution specially designed for video transmission at up to 4K/30fps, is now available on the market. With transmission over dual 2.4 GHz and 5 GHz frequency bands, this innovative kit marks Hollyland’s pioneering leap into the realm of 4-receiver support, offering enhanced monitoring stability and collaboration on set. With a new level of performance in transmission range, and latency, among other things, Pyro H is to make a difference.

Specifications

• Port
  • DC Input: 2.0mm Core Socket
  • HDMI Input: HDMI 1.4b
  • HDMI Loopout: HDMI 1.4b
  • USB-C: USB 2.0 OTG
  • Antenna: SMA Male
• Power Supply
  • USB-C: 5V/2A (not supported in Broadcast mode)
  • Battery Voltage Range: 6.8 – 8.4V
  • DC Voltage Range: 6 – 16V
• Power Consumption - <7W
• Net Weight - 192g
• Dimensions (LxWxH) - 4.3 × 2.45 × 1.3 in. (109 × 62.3 × 33.4 mm)
• Input/Output Format
  • HDMI
    • 720p50/59.94/60
    • 1080i50/59.94/60
    • 1080p23.98/24/25/29.97/30
    • 1080p50/59.94/60
    • 4K30/25/24
  • HDMI Loopout
    • 720p50/60
    • 1080i50/60
    • 1080p24/25/30
    • 1080p50/60
    • 4K30/25/24
• Operating Frequency
  • 5 GHz Frequency Band
    • 5.150 – 5.250 GHz
    • 5.250 – 5.350 GHz
    • 5.470 – 5.725 GHz
    • 5.725 – 5.850 GHz
  • 2.4 GHz Frequency Band
    • 2.412 – 2.484 GHz
• Transmit Power - < 23 dBm
• Receiver Sensitivity - /
• Latency - 0.06s (test data when 1080p60 signals are transmitted in a laboratory)
• Range - 1,300ft (400m)(test data in an open, interference-free environment)
• Bandwidth - 20 MHz (Broadcast: 40 MHz)

What's in the Box

• 1x Pyro H Wireless Video Transmitter
• 2x Cylindrical Antenna (2.4GHz & 5GHz)
• 1x Rotatable Cold Shoe Mount
• 1x USB-C OTG Adapter
• 1x Quick Guide
• 1x WarrantyCard
• 1x Packing List Card
• 1x Compliance Information
