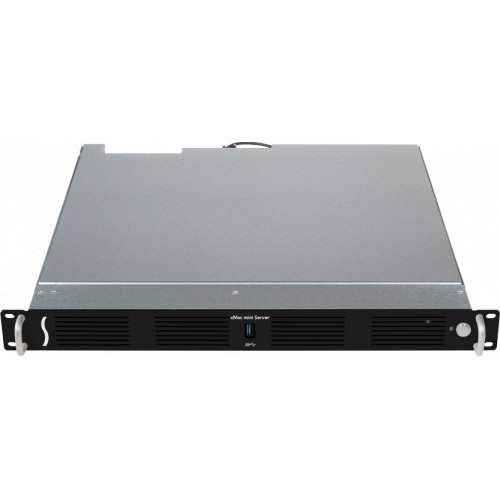

Sonnet xMac Mini Server (Thunderbolt 3 Edition)

Model: XMAC-MS-A-TB3

Sonnet xMac Mini Server (Thunderbolt 3 Edition)
Sonnet xMac Mini Server (Thunderbolt 3 Edition)
Sonnet xMac Mini Server (Thunderbolt 3 Edition)
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed




About: Sonnet xMac Mini Server (Thunderbolt 3 Edition)

For many applications, a Mac mini with Thunderbolt 3 ports has all the processing power necessary to allow it to replace a full-sized desktop or workstation. But for pro audio and video users, the mini’s compact size can limit its potential—there are no slots for PCIe expansion cards needed to provide additional connectivity and functionality, and you need to securely rackmount the computer. Sonnet’s award-winning xMac mini Server™ addresses these issues and maximizes a Mac mini’s capabilities in a big way.

Mac mini and PCIe cards sold separately

xMac mini Server (Thunderbolt 3 Edition): Thunderbolt 3 to PCIe Card Expansion System/1U Rackmount Enclosure

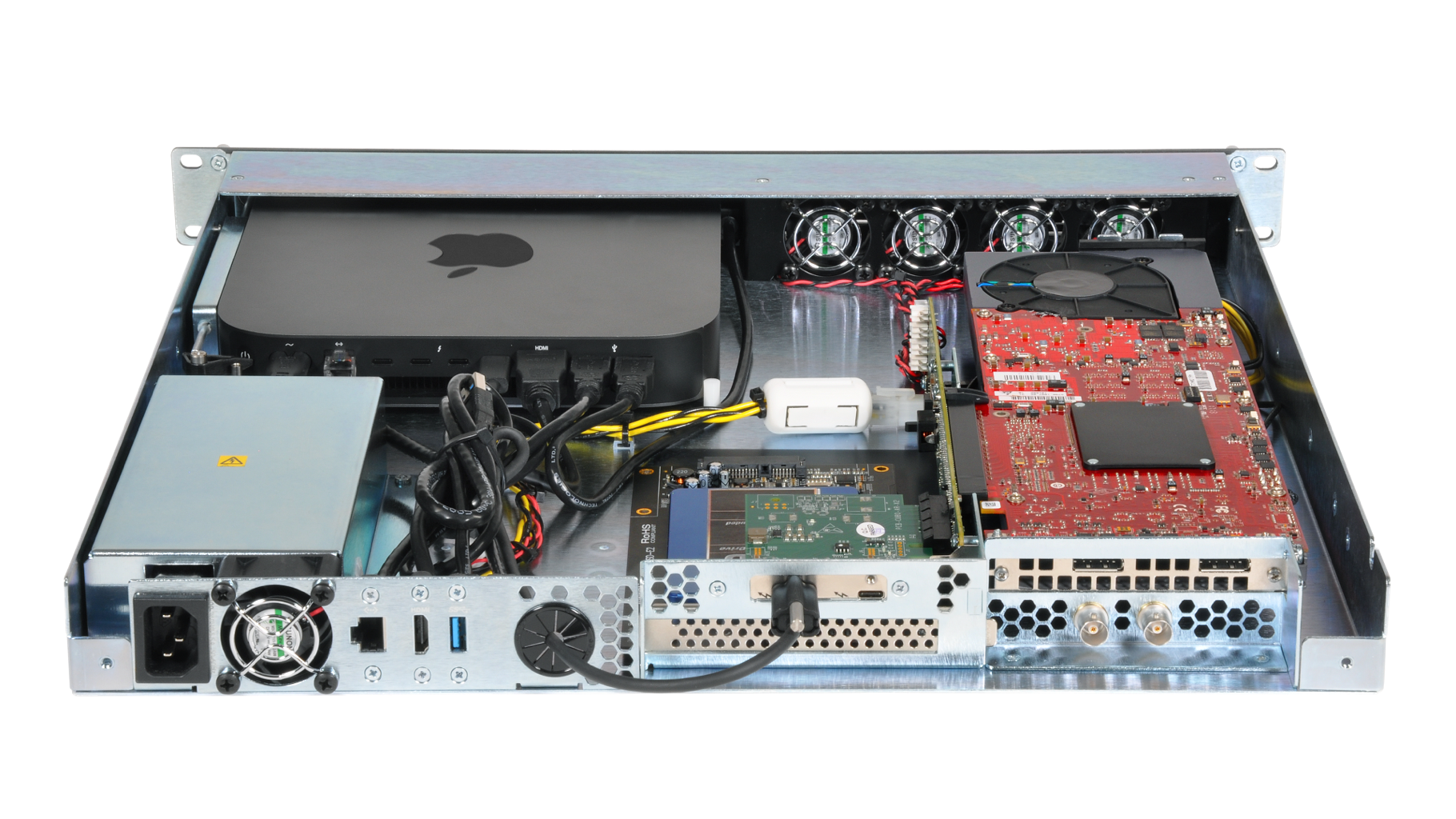

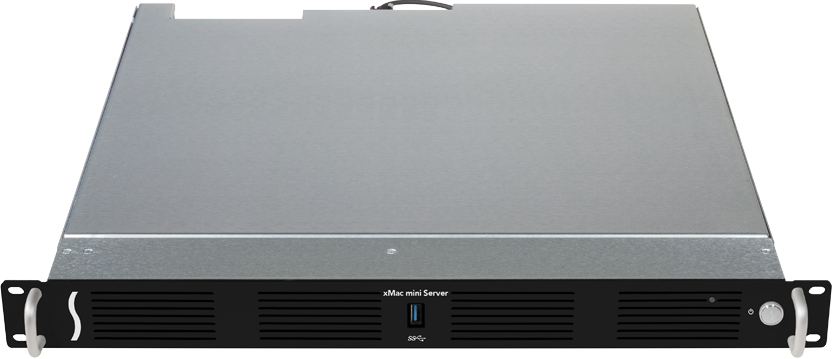

xMac mini Server (Thunderbolt 3 Edition) features a cleverly-designed and rugged 1U enclosure that houses the Mac mini, PCIe expansion slots, power supply, and panel mount cables for convenient external connection.

Key Features:

  • Adds Connectivity and Capabilities to Mac mini 2018-2020 (Intel and M1*)
  • Diverse PCIe Card Support (pro video capture and playout, pro audio, 10GbE, Fibre Channel, SAS/SATA RAID controllers)
  • Server Room Ready
  • Makes Your Mac mini Road-Ready
  • Thunderbolt 3 Interface
  • Two Thunderbolt 3 (40Gbps) Ports

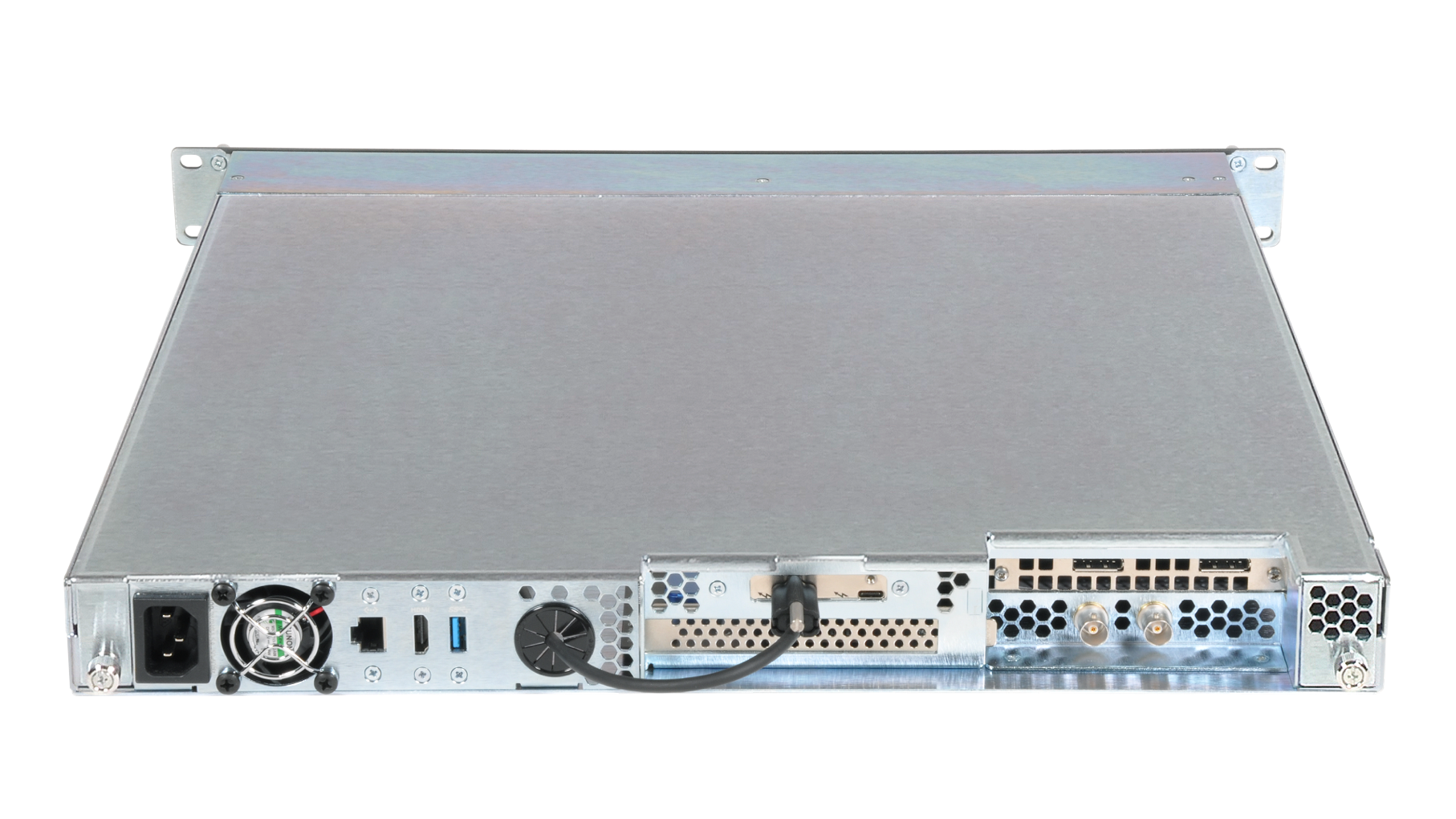

  • Rear Panel Connectivity, Front Panel Operation
  • Integrated 150W Power Supply (with auxiliary power connector for power-hungry PCIe cards)
  • Includes 0.5-meter Thunderbolt 3 (40Gbps) Cable
  • Includes Sonnet's ThunderLok™ 3 Thunderbolt Connector Retainer Clip
  • Dimensions (WxDxH): 19 x 17.75 x 1.72 in. (48.3 x 45.1 x 4.4 cm)
  • 2-year Product Warranty
  • Free Lifetime Customer Technical Support
  • Designed and Made in the USA

*Check with PCIe card vendor for driver compatiblity with M1 Macs.

Compatibility

  • Mac mini (2020 M1) with PCIe cards that have M1
  • compatible drivers
  • macOS 11
  • Mac mini (2018 Intel current version)
  • macOS 10.14.6 – macOS 11
  • Mac mini (Late 2014) with Apple Thunderbolt 3 to Thunderbolt 2 Adapter and Thunderbolt 2 cable
  • OS X 10.10.5 – macOS 11
  • Mac mini (Late 2012) with Apple Thunderbolt 3 to Thunderbolt 2 Adapter and Thunderbolt 2 cable

OS X 10.8.5 – macOS 10.15.7

Hardware

  • Warranty: 2-year
  • Dimensions (WxDxH): 19 x 17.75 x 1.72 in. (48.3 x 45.1 x 4.4 cm)
  • Weight: 16 lbs (7.26 kg)
  • Form Factor: Rackmount
  • External Connectors
    • Two Thunderbolt 3 ports (one open, one used)
    • One RJ-45 Gigabit/10 Gigabit Ethernet port extension
    • Two USB-A port extensions (one front-mount and 1 rear-mount)
    • One HDMI port extension
  • Internal Connectors
    • 6-pin Mini-Fit Jr (provides auxiliary power for PCIe cards that require it)
    • One C-8 power
  • PCIe Expansion Slots
    • One x8 (x4 electrical) PCIe 2.0 half-length
    • One x16 (x4 electrical) PCIe 2.0 full-length
    • Compatible PCIe Cards(x) PCIe cards listed on our supporting PCIe Card Thunderbolt Compatibility Chart and as specified by card manufacturers
  • Power Supply: Universal 150W, 90-260V AC, 50-60 Hz
  • Operating Temperature: 0º C to 35º C (32º F to 95º F)

Package Contents

  • xMac mini Server Thunderbolt 3 Edition, assembled
  • Daughter card mounting bracket
  • 0.5-meter Thunderbolt 3 (40Gbps) cable
  • Thunderbolt 3 cable lock(4)
  • Power cord
  • Documentation

Note: Mac mini and PCIe cards sold separately


UPC: 732311012846
