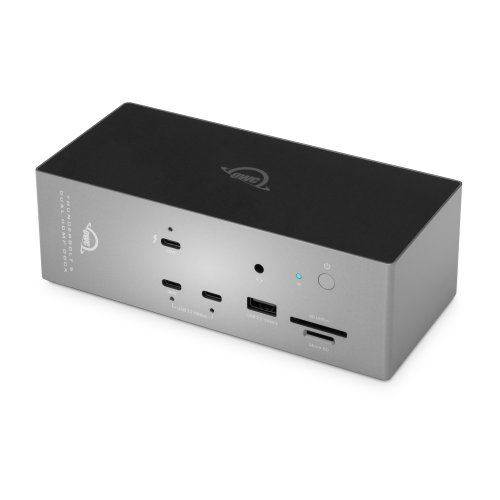

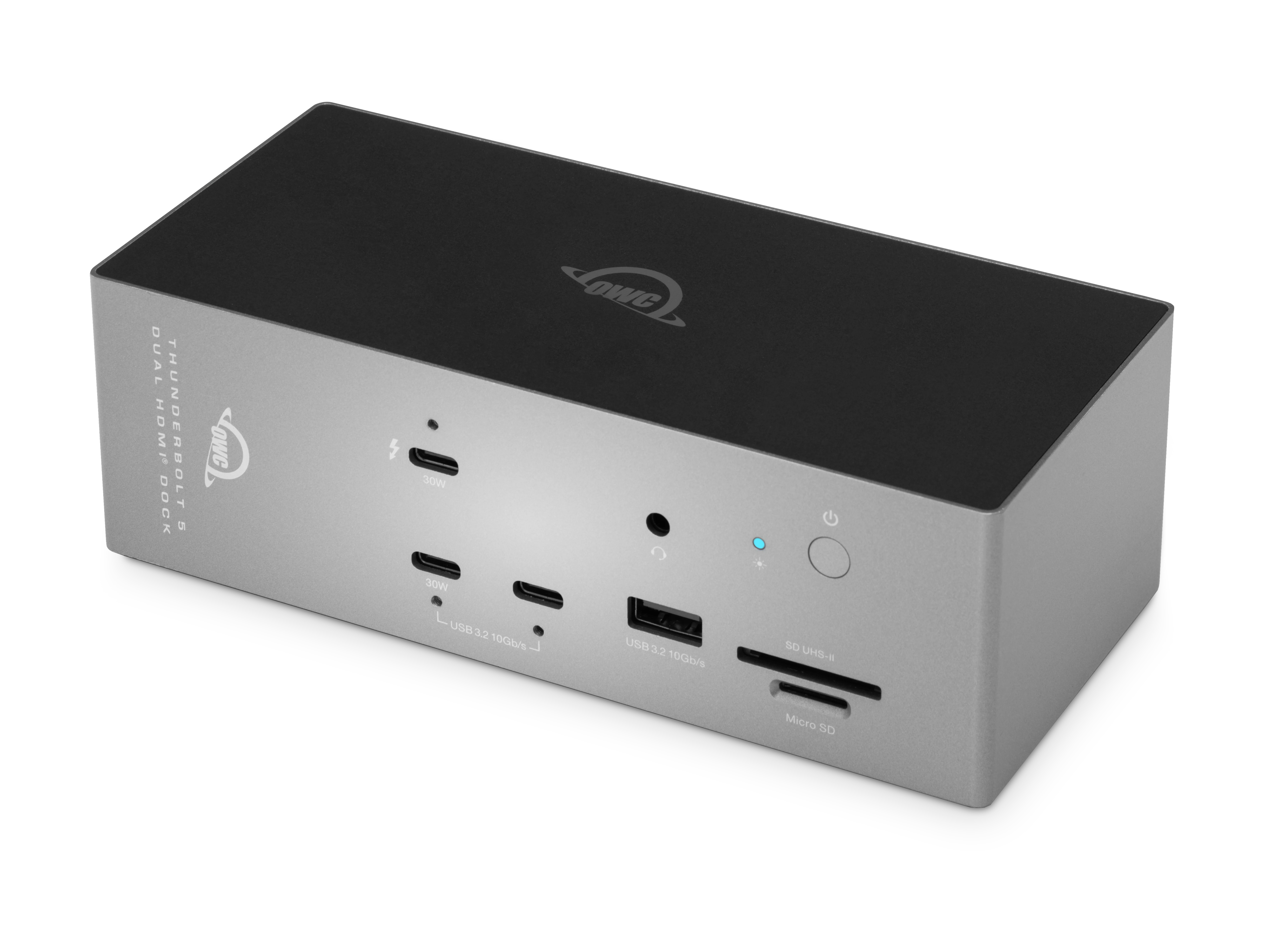

OWC Thunderbolt 5 Dock with Dual HDMI

About: OWC Thunderbolt 5 Dock with Dual HDMI

OWC Thunderbolt 5 Dock with Dual HDMI delivers native dual HDMI 2.1 connectivity with no adapters required. One Thunderbolt 5 cable powers dual displays, 2.5Gb Ethernet, a downstream Thunderbolt 5 port for high-speed storage, UHS-II SD and microSD, eight USB ports, audio, and up to 140W laptop charging.

• Hassle-Free Dual HDMI Displays: HDMI monitors plug in directly. No adapters, version confusion, or guesswork.
• Single-Cable Workstation: One Thunderbolt 5 connection delivers dual displays, storage, networking, and full laptop charging simultaneously.
• Up to 140W Charging: The most demanding laptops stay fully charged at peak performance under any workload.
• 2.5Gb Ethernet: Fast, stable wired connectivity for NAS workflows, large file transfers, and corporate environments.

Dual HDMI Built In. Everything Else Included.

You have HDMI monitors, but your laptop doesn't have HDMI ports. Adapters, dongles, and flicker aren't the answer. OWC Thunderbolt 5 Dock with Dual HDMI is.

Connect your monitors directly without adapter or DisplayPort conversion hassles through two native HDMI 2.1 ports, each running on its own dedicated controller so neither display competes with the other for bandwidth. Plug in one Thunderbolt 5 cable and bring your whole workspace alive at once with wired networking, high-speed storage expansion, memory card offload, and up to 140W of laptop charging.

Just when you think this dock couldn't make things easier for you, it adapts to your desk setup too. Lay it flat next to your keyboard or stand it upright to save space.

Two Displays, Zero Adapters

Plug any HDMI monitor, TV, or reference display straight into the dock. Run dual 8K displays @ 60Hz on a Thunderbolt 5 host or add a third display through the Thunderbolt 5 port itself at 6K @ 60Hz.

• No More Adapter Hunting: Two HDMI 2.1 ports built right in. Any monitor with HDMI plugs directly into the dock with zero compatibility guesswork.
• Pull Media Directly from Cards: UHS-II SD and microSD slots let you offload footage without a separate card reader.
• Everything Through One Cable: A single Thunderbolt 5 connection delivers dual displays, wired networking, storage, card readers, and full laptop charging simultaneously.
• Built for What's Next: Supports dual 4K @ 240Hz or dual 8K @ 60Hz with DSC on Thunderbolt 5 hosts. A third display is possible via Thunderbolt or USB-C. This dock won't become a bottleneck when you upgrade.
• 140W Power Delivery: Keeps MacBook Pros and high-performance Windows laptops fully charged at peak performance while running the entire connected setup.
• Works With the Whole Fleet: Compatible with Thunderbolt 5, Thunderbolt 4, USB4, USB-C, and Thunderbolt 3 (Mac) hosts across Mac and Windows environments.
• Fast Device Charging: The downstream Thunderbolt 5 port runs external SSDs and RAID arrays at full rated speed. The dock will never be the slowest thing in the chain.
• Fits Your Desk, Your Way: Place it flat or stand it upright. This dock is built to support both horizontal and vertical desk placement.
• Fast, Stable Wired Networking: 2.5GbE delivers the throughput needed for NAS workflows, large file transfers, and secure corporate environments.
• One-Click Safe Disconnect: OWC Dock Ejector unmounts every connected drive in a single click. On macOS, an included driver also enables Apple Super Drive support through the dock.

All the Rest Is Built in Too

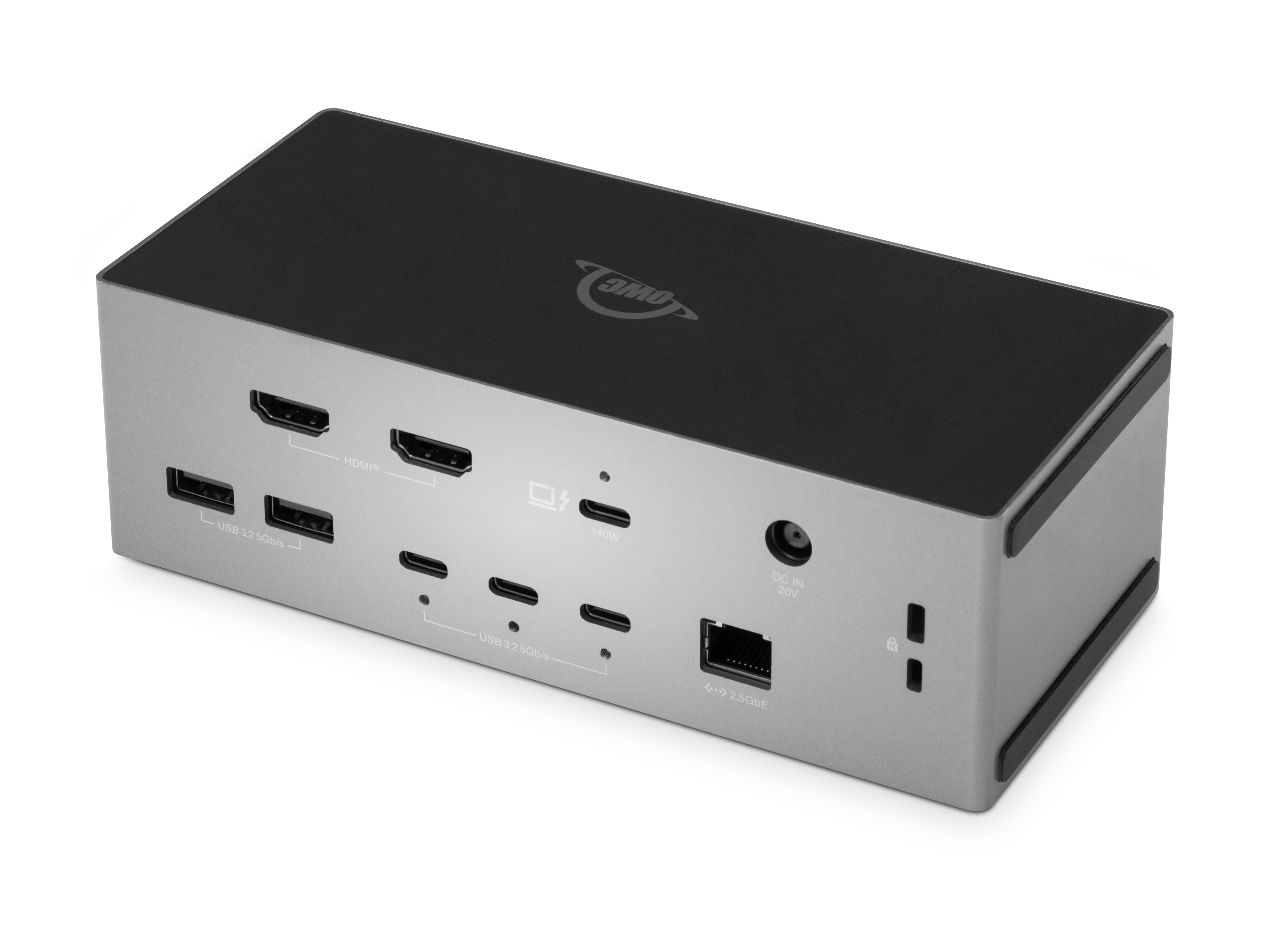

Access a NAS, transfer large files quickly, and log into a secure corporate network without Wi-Fi latency or dropped connections with the 2.5Gb Ethernet port. Round out your desktop setup with eight total USB ports, two USB-C and one USB-A up front, plus three USB-C and two USB-A in back, so your drives, keyboard, mouse, and accessories stay connected without hunting for an open port.

Connect Fast Storage or a Third Display

Connect the latest NVMe SSDs, RAID arrays, or Thunderbolt storage enclosures to the second Thunderbolt 5 port and move massive libraries, project files, or backups at full rated speed without shared-bandwidth bottlenecks. Need a third display instead? Drive it from the same port, up to 6K @ 60Hz or 4K @ 144Hz alongside your two HDMI monitors.

Full Power Charging Even While Running Everything Else

Keep the most demanding MacBook Pro or Windows laptop fully charged and ready to hit the field with up to 140W of charging even while running dual displays, storage, and networking simultaneously. Fast charge a phone or tablet alongside it with up to 30W from the front USB-C port.

Offload Cards and Keep Them Shoot Ready

Pull footage directly from camera cards through the UHS-II SD and microSD slots. When you use OWC Atlas SD cards, you can keep them shoot ready with free Innergize software. Check remaining health and lifespan, restore write performance that's degraded from heavy use, and push firmware updates to stay compatible with new camera releases.

Disconnect In One Click

Safely disconnect multiple drives in a single click. OWC Dock Ejector was designed by OWC hardware and software engineers to ensure all data is written before disconnection, saving time and protecting against data loss. It makes losing your hard-earned work a thing of the past.

Apple SuperDrive Ready

OWC's free Dock Ejector software also includes a special driver that enables your OWC Thunderbolt 5 Dock with Dual HDMI to play and burn CDs and DVDs with the Apple SuperDrive. Just connect the SuperDrive to an open USB-A port on the OWC Thunderbolt Dock for bus power to watch a DVD movie, listen to music CDs, create a backup disk, and install software.

OWC Thunderbolt 5 Cable Included

OWC Thunderbolt 5 Dock with Dual HDMI comes with a certified 1.0M OWC Thunderbolt 5 (USB-C) Cable. But if your workflow demands a different length to make the connection, OWC Thunderbolt 5 (USB-C) Cables are the perfect choice.

Specifications

• Compatibility
  • Interface Requirements
    • Thunderbolt 5
    • Thunderbolt 4
    • Thunderbolt 3 (Mac Only)
    • USB4
    • USB-C
  • Mac OS Compatibility
    • macOS 26.x Tahoe
    • macOS 15.x Sequoia
    • macOS 14.x Sonoma
  • PC OS Compatibility: Windows 11
  • Other OS Compatibility: Chrome OS
  • Driver Required: Yes
    • OWC Dock Ejector for macOS and Windows: Quickly unmount storage connected to the dock. Dock Ejector for macOS contains optional driver to enable Apple Super Drive, Apple USB Keyboard, and charging device support.
    • OWC Innergize for macOS and Windows: For management of OWC Atlas cards via the built-in SD card reader.
    • My OWC for iOS: Access to manuals
  • Other Requirements
    • Thunderbolt 5 Mac systems require macOS 15.3.x or later
    • Thunderbolt 5 PC systems require Windows 11 or later
    • Thunderbolt 3 support is Mac only and requires macOS 15.x or later.
    • Chromebook or Surface systems require the latest version of Chrome OS.
    • iPad systems require the latest version of iPad OS
    • Linux systems require the latest version of Ubuntu.
  • Supports OWC ClingOn: Yes
• Technical
  • IEEE Specification Support
    • 802.1AB
    • 802.1Qav
  • Device Ports
    • (1) Host Port - Thunderbolt 5 (USB-C) up to 80Gb/s bi-directional data speed and up to 120Gb/s display bandwidth
    • (1) Thunderbolt 5 (USB-C) Port
    • (2) USB 3.2 Gen 2 Type-C Ports up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
    • (1) USB 3.2 Gen 2 Type-A Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
    • (3) USB 3.2 Gen 1 Type-C Ports up to 600MB/s
    • (2) USB 3.2 Gen 1 Type-A Ports up to 600MB/s
    • (2) HDMI Ports
    • (1) 2.5 Gigabit Ethernet (2.5GbE) RJ45 Port
    • (1) 3.5mm Stereo Audio Input/Output Combo Port
  • Memory Card Slots
    • (1) microSDXC (UHS-II [312 MB/s])
    • (1) SDXC (UHS-II [312 MB/s])
  • Power Delivery
    • Thunderbolt 5 host port provides up to 140W of power to the host computer.
    • Thunderbolt 5 device port (for external drives and other devices) provides 30W of power.
    • One of the front USB 3.2 Gen 2 Type-C port provides up to 30W of power for fast charging phones, tablets, and other devices.
    • Other USB ports provide up to 7.5W of power for bus-powered drives and device charging
  • UASP Support: UASP (USB Attached SCSI Protocol) is supported
  • Display Support: Up to three 6K displays @ 60Hz
    • or three 4K displays @ 144Hz
    • or two 8K displays @ 60Hz
    • or two 5K displays @ 60Hz
    • or two 4K displays @ 60Hz
    • or one 8K display @ 60Hz
    • or one 4K display @ 120Hz
  • Display Support by Port
    • Thunderbolt 5: Up to two 8K @ 120Hz or three 4K @ 144Hz via a native Thunderbolt 5 display or other displays that support USB-C connections and DisplayPort 2.1
    • Thunderbolt 4: Up to 8K @ 60Hz or 4K @ 120Hz via a native Thunderbolt 4 display or other display that supports USB-C connections and DisplayPort 1.4
    • Thunderbolt 3 (Titan Ridge): Up to 8K @ 60Hz or 4K @ 120Hz via a native Thunderbolt 3 display or other display that supports USB-C connections and DisplayPort 1.4
  • Ethernet Speeds (RJ45)
    • 2.5Gb/s (2.5GBASE-T)
    • 1Gb/s "Gigabit" (1000BASE-T)
    • 100Mb/s (100BASE-T)
  • Data Rate: Thunderbolt 5: up to 80Gb/s bi-directional bandwidth and up to 120GB/s for video intensive applications
  • Chipset / Controller
    • Thunderbolt: Barlow Ridge (JHL-9480)
    • USB: VIA Lab (VL822-Q8, 2x VL817-Q7)
    • Ethernet: Realtek (RTL-8156B)
    • SD Reader: Realtek RTS5350
  • External Power Adapter: Yes
  • Power Supply: External UL-listed universal auto-switching power supply
  • AC Input: 100-240V, 50-60Hz
  • DC Output: ++20V
  • Wattage: 180W
  • Security Slot: Yes
  • Power Button: Yes
  • Housing Color (Chassis): Space Gray
  • Housing Material
    • Chassis: Aluminum
    • Covers: Polycarbonate
  • Ambient Temperature
    • Operating: 32°F to 95°F (0°C to 35°C)
    • Non-Operating: -4°F to 140°F (-20°C to 60°C)
  • Altitude
    • Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
    • Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
  • Humidity
    • Operating: 10% to 90% non-condensing
    • Non-Operating: 5% to 90% non-condensing
  • Dimensions (LxWxH): 3 x 6.5 x 2.2 in (7.5 x 16.5 x 5.6 cm)
  • Weight: 2.29 lbs (1.0 kg)

What's Included

• 1x OWC Thunderbolt 5 Dock with Dual HDMI
• 1x 1.0M (39) Thunderbolt 5 Cable
• 1x External Power Supply and Power Cable
• 1x Support Manual for OWC Thunderbolt 5 Dock with Dual HDMI (digital)
• 1x OWC Dock Ejector for Mac and Windows (digital download)
• 1x User Guide for OWC Dock Ejector (digital)
• OWC Innergize for Mac (digital download)
• OWC Innergize for Windows (digital download)
• 2 Year OWC Limited Warranty

NOTE: Dual video output via HDMI is not currently supported with macOS.
