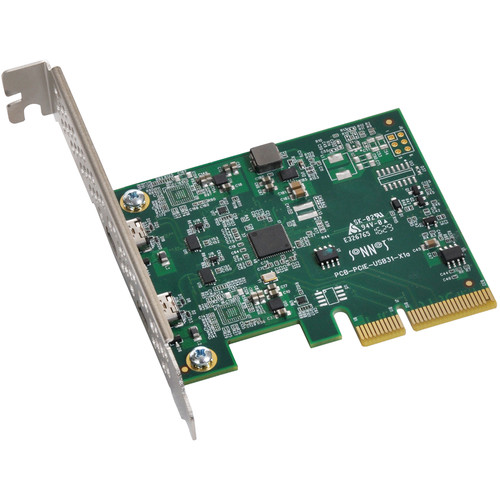

Sonnet Allegro USB-C 3.1 2-Port 10Gb PCIe Card

Model: USB3C-2PM-E

Sonnet Allegro USB-C 3.1 2-Port 10Gb PCIe Card
  • Free Shipping on orders over $199
  •  In Stock - Ship or Pick-up
  • Not yet reviewed




About: Sonnet Allegro USB-C 3.1 2-Port 10Gb PCIe Card

When it comes to supporting the fastest USB drives available, your computer’s USB 3.0 ports are perfectly adequate… for connecting peripherals that don’t depend on the ultimate USB 3.1 speeds. However, common USB 3.0 ports can be underachievers—at 5Gbps, they can’t support the maximum performance from many storage devices, and may not provide enough power to enable them to operate. You need SuperSpeed+ USB. You need Sonnet’s Allegro USB-C PCIe card.

The Allegro™ USB-C PCIe supports data transfers at up to twice as fast as USB 3.0, and can also deliver 15W of power per port to USB-C bus-powered devices (three times the 4.5W specified in the USB 3.0 spec). Don’t settle for mediocre performance or insufficient power for the fastest SSDs—install an Allegro USB-C card to instantly add two Gen 2 USB 3.1 ports to your system and take full advantage of today’s SSD performance.

Speed and Power

Sonnet's Allegro USB-C PCIe computer card supports data transfers up to 960 MB/s when connected to a USB-C Gen 2 SSD RAID device—transfers complete in half the time compared with using a USB 3.0 2.5-inch SSD! Sonnet specially engineered the Allegro USB-C card to provide 15W of power through each of its ports. The ports communicate with the host that 3A of VBUS current is available, enabling this Sonnet solution to support USB-C bus-powered SSDs and SSD RAID devices that need 15W during demanding write operations.

Key Features

  • SuperSpeed+ USB Technology—Adds two 10Gbps USB-C (USB 3.1 Gen 2) ports to your Mac Pro® with PCIe slots, Windows® PC, Linux computer or Thunderbolt™ to PCIe card expansion system; transfers data up to 2x as fast as USB 3.0 connections
  • Super-Powered Ports—Supports USB-C bus-powered SSD, SSD RAID, and hard drive devices with up to 15W (3.0A) power per port
  • Protected Ports—Independent power regulation isolates each port to prevent cross-coupled power glitches that may cause accidental disconnects
  • Resettable Fuses—Device overcurrent fuses are resettable—just shut down your machine to reset a fuse without permanent damage to card or computer
  • PCIe Data Link Auto-Negotiation—Card auto-negotiates one lane data link in a PCIe 3.0 slot and two lanes in a PCIe 2.0 slot, ensuring full 10Gbps performance in either generation PCIe slot
  • Broad USB Device Support & Compatibility—Supports storage, hubs, and other USB-IF compliant USB devices
  • Supports Hot-Swappable Device Connection—Plug in and disconnect peripherals without shutting off your computer
  • Optimized for Thunderbolt—Provides maximum performance over Thunderbolt
  • Easy Installation—Quick and easy user installation into any available PCIe slot

UPC: 732311012136

AVShop.ca is a Canadian authorized Sonnet retailer.

Reviews: Sonnet Allegro USB-C 3.1 2-Port 10Gb PCIe Card

There are currently no product reviews.


Warranty: Sonnet Allegro USB-C 3.1 2-Port 10Gb PCIe Card

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

5 Year Warranty

  • Sonnet Fusion Fibre Storage Products and managed Ethernet switches
  • Sonnet Fusion D, DX, R, and RX Series Storage Products: (except R400S RAID purchased outside of xMac mini RAID Server bundle) with removable 3.5" drives
  • Sonnet Pro Controller Cards: PCIe (Tempo SATA E4P, E4i, 6Gb Pro PCIe 2.0, 6Gb Pro 4-Port, SSD Pro, and Allegro FW800); ExpressCard/34 (Tempo SATA Pro, 6Gb Pro, edge 6Gb Pro, SAS Pro, FireWire 800 Pro, SDXC UHS-I Reader, and Pro Dual Compact Flash Adapter); and PCI-X (Tempo SATA X4P)
  • Sonnet Pro Thunderbolt Products: Echo ExpressCard Pro Thunderbolt Adapter; Echo Express II, Echo Express III-D, Echo Express III-R and Echo Express Pro Thunderbolt Expansion chassis; Echo Express SE 10GbE, Echo Express SE eSATA Pro 4-Port and Echo Express SEL 10GbE Thunderbolt adapters; xMac mini Server, xMac mini Server 2H and xMac mini Server (Third Generation); xMac Pro Server; Fusion DX800RAID Thunderbolt Edition and Fusion DX800 RAID (Thunderbolt 2 Edition)

2 Year Warranty:

  • Sonnet Fusion D, DX, R, and RX Series Storage Products: (except Fibre) with removable 3.5" drives
  • Sonnet Pro Controller Cards: PCIe (Tempo SATA E4P, E4i, and Allegro FW800); ExpressCard/34 (Tempo SATA Pro, FireWire 800 Pro, and Pro Dual Compact Flash Adapter); and PCI-X (Tempo SATA X4P)
  • Sonnet Mobile Storage and Qio Media Readers: Fusion F2, Fusion F2QR, Fusion F3, Qio, Qio E3, Qio CF4, Qio MR

1 Year Warranty:

  • Sonnet Fusion QR
  • Sonnet Fusion R400S RAID (except when purchased as part of xMac mini RAID Server bundle)
  • Sonnet Thunderbolt Products: Echo Express, Echo Express SE, Echo Express SEL
  • Sonnet Enclosures and Brackets: RackMac mini and RackMac Pro; MacCuff mini and MacCuff Pro
  • All other new Sonnet products
