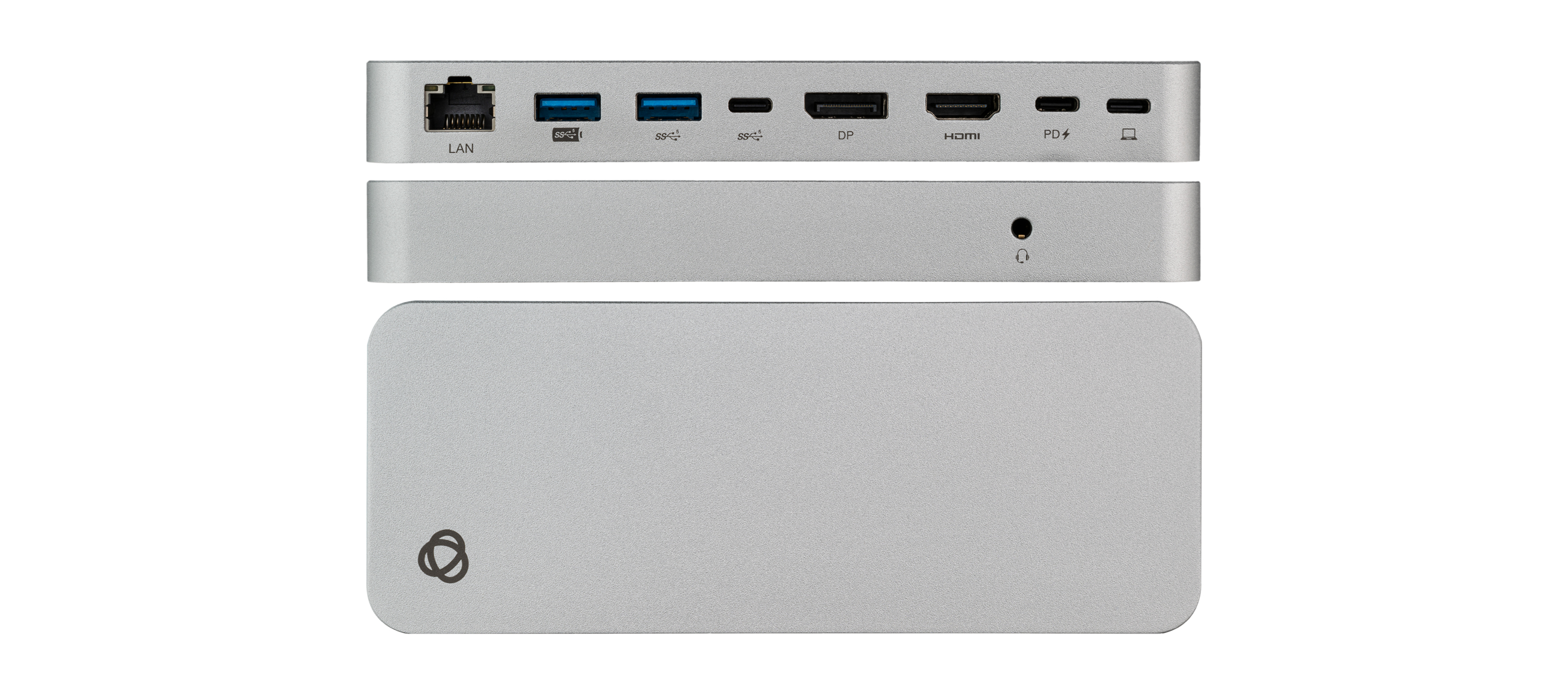

Kramer Kdock-5 USB-C Hub Multiport Adapter

About: Kramer Kdock-5 USB-C Hub Multiport Adapter

KDock-5 is a USB−C hub multiport adapter. KDock−5 can connect your USB−C device to HDMI™, DisplayPort video outputs, 3 USB 3.2 Gen 1 ports, an Ethernet port, an audio and microphone port, and USB−C charging pass−through port (1:8).
KDock−5 is ideal as a personal work station at the office/or at home, and for small meeting rooms or huddle spaces.

•  Supports HDMI and DisplayPort video outputs.
•  Supports USB 5G speed connection between host and docking station.
•  Supports Ethernet 1Gbps.
•  Includes a 3.5 mm headset jack.

Inputs

• 1 USB-C: On a USB Type–C female connector

Outputs

• 1 HDMI: On a female HDMI connector
• 1 DisplayPort: On a female DisplayPort connector

Ports

• 1 USB 3.2 Gen 1: On a female USB type–A connector (5V/1.5A)
• 1 USB 3.2 Gen 1: On a female USB type–A connector (5V/0.9A)
• 1 USB 3.2 Gen 1: On female USB type–C connectors (5V/0.9A)
• 1 Ethernet: On an RJ–45 connector (10/100/1000)
• 1 3.5 mm Headset Jack: For audio and Microphone
• 1 USB: On a female USB type–C connector for charging (100W max)
• 1 USB: On a female USB type–C connector for host connection

Video

• Windows MST Mode Max. Resolution: 3840x2160P@60Hz, when a single display is attached to the device
• Windows MST Mode Max. Resolution: 3840x2160P@30Hz, when two displays are attached to the device
• MAC OS SST Mode Max Resolution: 3840x2160P@60Hz, when a single or dual display is attached to the device

Extended Ethernet

• Max Data Rate: 1000M (Gigabit)/100M/10M
• Includes: Wake–on–LAN (WoL), single Mac address, PXE boot

General

• USB 3.0 Data Transmission Speed: Up to 5.0Gbps
• PRODUCT DIMENSIONS: 16.4cm x 6.4cm x 1.9cm (6.5" x 2.5" x 0.7") W, D, H
• USB 3.2 Gen 1 Data Transmission Speed: Up to 5.0Gbps
• PRODUCT WEIGHT: 174g (0.38lbs) approx
• SHIPPING DIMENSIONS: 18cm x 10cm x 2.8cm (7.1" x 3.9" x 1.1") W, D, H
• SHIPPING WEIGHT: 220g (0.49lbs) approx

Power

• Delivery: 100W
• USB Charging: BC1.2 (5V 1.5A)
• USB Limited Current when Connected to Power via female USB-C port: 1.9A
• USB Limited Current when Not Connected to Power via female USB-C port: 1A
• SELF-CONSUMPTION: 15W

Environmental Conditions

• Operating Temperature: 0° to +70°C (32° to 158°F)
• Storage Temperature: –10° to +55°C (14° to 131°F)
• Humidity: 10% to 90%, RHL non–condensing

Enclosure

• Type: Aluminum

Regulatory Compliance (Standards Compliance)

• Safety: CE
• Environmental: RoHs, FCC
