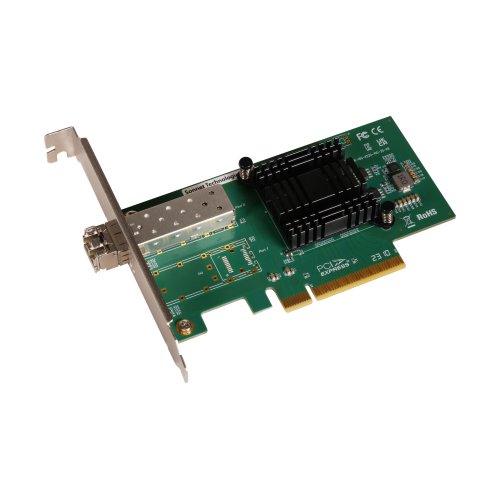

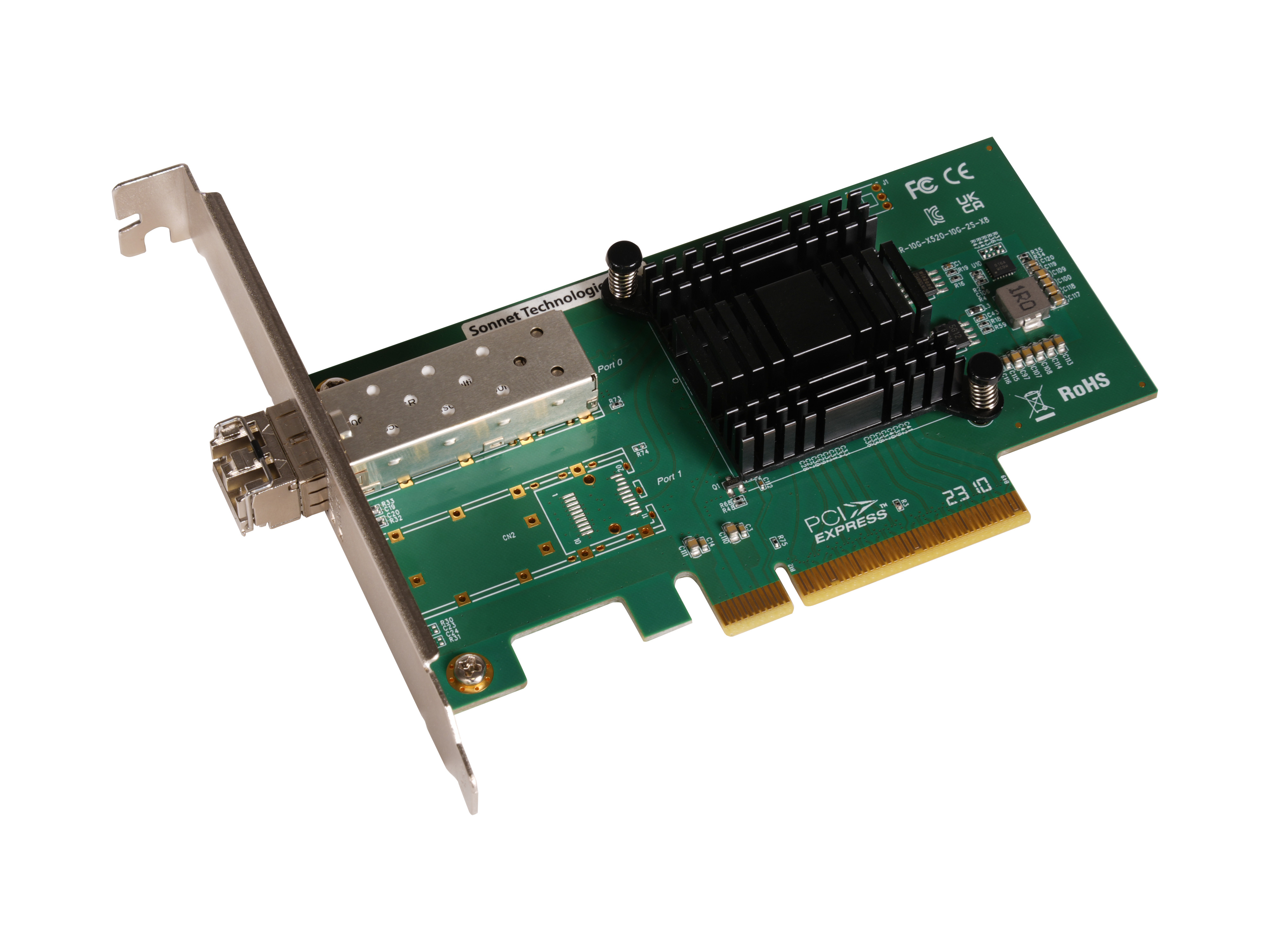

Sonnet Solo10G SFP+ V2 Single-port Optical 10 Gigabit Ethernet PCIe Card

About: Sonnet Solo10G SFP+ V2 Single-port Optical 10 Gigabit Ethernet PCIe Card

As needs for faster data transfer speeds and greater bandwidth grow — especially for tasks such as 4K video editing, and storing files to and retrieving them from high performance shared storage — 10 Gigabit Ethernet (10GbE) connectivity has become a necessity. For many users, the 10Gb Ethernet network infrastructure of choice is optical 10Gb Ethernet, delivering ten times the performance of the standard Gigabit Ethernet most computers offer and greater transmission reliability over long distances. Sonnet makes it easy to add cost-effective 10GbE fiber optic connectivity to your Mac Pro, Windows, or Linux computer or server — check out Solo10G SFP+ V2 PCIe Card.​

• Adds High-performance 10GbE Fiber Connectivity – Cost-effective way to add a high performance 10GbE fiber connection to your 2023 or 2019 Mac Pro, Windows, or Linux computer with PCIe slots.
• SFP+ Transceiver Included – High-performance adapter includes short range (300m) SFP+ transceiver.
• Simple Setup and Configuration – Install the driver, insert the card into an available x8 card slot, connect the card to the network switch or directly to 10GbE-enabled storage, and then configure via your computer’s operating system tools.
• Mac Compatible – Supports 2023 and 2019 Mac Pro computers running macOS 13+, 14.4+.
• Windows Compatible – Supports computers with PCIe 3.0 or 4.0 slots running Windows 11, Windows Server 2025 or 2022.
• Linux Compatible – Supports computers with PCIe 3.0 or 4.0 slots running Linux Kernel 6.1 or 6.12.
• Great for Use in Thunderbolt Expansion Systems – Use in a Sonnet multi-slot Echo or xMac Thunderbolt expansion system to add an optical 10Gb Ethernet connection to your computer without PCIe card slots.
• Compliance – RoHS 3 (Directive 2015/863); IEC62368-1 and IEC62368-2 Safety.
• Package Contents –  Solo10G SFP+ V2 PCIe Card; short-range SFP+ optical transceiver (installed on PCIe card); two PCIe mounting brackets (full-height and low-profile); and documentation.
• Warranty – 2-year warranty.
• Product Support – Lifetime support.
• The Sonnet Advantage – Innovating technology since 1986.

Includes SFP+ Transceiver. Simple Network Connection.

Solo10G SFP+ V2 PCIe Card includes a short-range multi-mode fiber SFP+ transceiver to enable easy connection to your optical 10GbE network at distances up to 300 meters.

• Long Range SFP28 Transceivers Available – Sonnet also offers long-range single-mode fiber modules that support 10Gb connections at up to 10 kilometers.

10x Performance

More bandwidth – ten times the performance of Gigabit Ethernet.

Easy Set-up. Higher-performance Computing.

Solo10G SFP+ V2 PCIe Card connects your computer to high-speed infrastructure and storage without stepping down in speed. Setup is simple — just download and install a driver, install Solo10G SFP+ V2 PCIe Card into one of your computer’s or Sonnet Thunderbolt expansion system’s x8 PCIe slots, and then connect the card to the network switch or directly to 10GbE-enabled storage. Configure the adapter’s settings through macOS Network control panel, Windows Device Manager, or Linux command line (or graphical utility). This Sonnet solution is perfect for high-performance computing where low latency, high bandwidth, and low CPU overhead are required.

Two Mounting Brackets Included. Installs Into Any PCIe Card Slot.

Solo10G SFP+ V2 PCIe Card includes both full-height and low-profile mounting brackets in the box, supporting installation of the card into any x8 or x16 PCIe slot.

Ideal Addition to Echo and XMac Thunderbolt Expansion Systems.

Use a free slot in a Sonnet multi-slot Sonnet Thunderbolt expansion system to add optical 10Gb Ethernet to your computer without card slots.

Got Thunderbolt? Unlock Blazing-fast Optical 10Gb Ethernet

Check out Sonnet Solo10G SFP+ Thunderbolt Adapter for computers with Thunderbolt ports. It’s small and bus-powered, provides the same connectivity, and delivers the performance you need.

Specifications

• Hardware
  • Form Factor: Low-profile x8 PCIe 3.1 card
  • External Connector: SFP+ socket (with short-range SFP+ optical transceiver)
  • 10GbE Controller: Intel x520
  • Network Support: 10Gbps
  • Packets: Maximum packet size: 15872 bytes (jumbo frames)
  • Data Rates Supported: 10Gbps, 1Gbps
  • Advanced Features
    • Flow control support
    • MSI (Message Signaled Interrupts)
    • RSS (Receive-Side Scaling)
    • Multicast filtering
    • 64-bit address support for systems using more than 4GB of physical memory
    • Wake-on-LAN not supported
  • Stateless Offloads
    • TCP, UDP, and IPv4 checksum offloading
    • TSO (TCP Segmentation Offload, AKA Large Send Offload)
    • TRO (TCP Received Offload)
  • Compliance
    • RoHS 3 (Directive 2015/863)
    • IEC62368-1 and IEC62368-2 Safety
  • Warranty: 2-year
• Compatibility
  • Mac Compatibility
    • Mac Pro 14,8 (2023)
    • Mac Pro 7,1 (2019)
    • macOS 14+
    • macOS Tahoe compatible
  • Windows Compatibility
    • Windows 11
    • Windows Server 2025, 2022
  • Linux Compatibility
    • Linux Kernel 6.1, 6.12
  • Thunderbolt Expansion System Compatibility
    • PCIe card installed in a Thunderbolt expansion system with an available x8 or x16 PCIe slot
    • Any Mac, Windows, or Linux computer with Thunderbolt ports

What's Included

• Solo10G SFP+ V2 PCIe Card
• Short-range SFP+ optical transceiver (installed on PCIe card)
• Two PCIe mounting brackets (full-height and low-profile)
• Documentation
