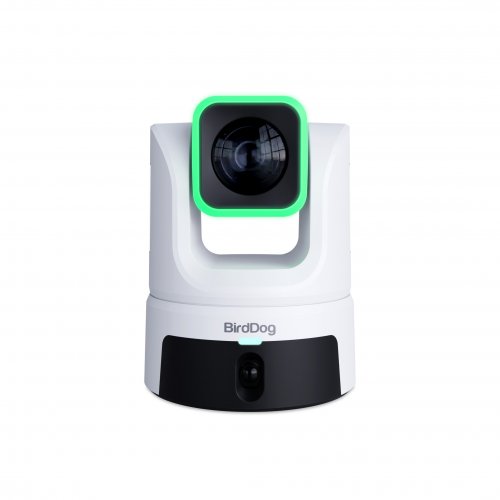

BirdDog XL Ultra 4K PTZ Camera w/ 20x Zoom - White

About: BirdDog XL Ultra 4K PTZ Camera w/ 20x Zoom - White

XL Ultra. Built to Excel.

The cinematic PTZ camera built for broadcast, virtual production, and premium AV.

• 4/3″ sensor. 4K60. Dual cameras. No compromises.

A Colossal Sensor. Cinema Starts Here.

XL features a massive 4/3″ CMOS sensor—the kind found in professional digital cameras.

Combined with a 20x optical zoom lens (40x in HD*), it delivers stunning depth of field, sharp clarity, and incredible low-light performance. It’s not just for capturing footage—it’s for crafting images.

• *40x mode available in TELE mode.

Two Cameras. Twice the Power.

Why settle for one view? XL includes a second built-in 100° panoramic camera powered by a 1/1.8″ sensor—larger than what many PTZs use as their main sensor.

Both cameras shoot in 4K60, are independently controllable, and can output at the same time.

Use NDI for both, or separate SRT, RTSP, RTMP, HDMI, or 3G-SDI for the wide shot. Maximum flexibility. Full control.

Studio Ready. XR Certified.

From LED walls to XR stages, XL is designed for high-end production environments where precision is everything.

• FreeD. For AR/XR workflows.
• Built-in ND Filters. Master the Sun
• Colour Matrix. 50 shades of everything. And more.
• OLPF Filter. Reduce moiré on LED walls.
• Genlock and Timecode. For accurate multi-cam sync.

Built for Unreal Engine. Trusted in broadcast. Ready for any stage.

AI that Understands the Moment.

Moves Smooth. Thinks Smart. XL’s next-gen AI tracking engine delivers natural, human-like camera motion.

You control the speed, style, and sensitivity—whether tracking a speaker, performer, or panel. It’s like having a top-tier camera operator… built into the camera.

Choose Your NDI® Flavour. Or Choose ’em Both.

Stream in NDI® High Bandwidth and NDI®|HX simultaneously — perfect for delivering pristine, full-quality broadcast feeds to production while sending bandwidth-friendly streams to remote contributors, backup systems, or live web platforms without compromise.

Connect to Everything.

Built for Every Workflow, XL is packed with professional I/O:

• RS232/422 Control. Remote control, real precision.
• PoE++. Light on cables, heavy on performance.
• SFP. For fiber or long-distance copper.
• Optical 12G-SDI via SFP+ Module. Broadcast-grade fiber performance.
• Cold Shoe Mount. For microphones and accessories.
• 12G-SDI, 3G-SDI, HDMI. One vision, any connection.
• Balanced XLR.With Phantom Power

It’s ready for anything—and future-ready by design.

Output Everything. Everywhere.

Pick Your Protocol. Use Full NDI for the PTZ, SRT or HDMI for the wide. Each lens can output independently—even over different protocols.

XL supports NDI 6.1 out of the box and is ready for 6.2 and beyond. No compromises. No bandwidth regret.

Mount It Your Way.

The optional XL Mount System is designed to disappear into your rig while delivering professional stability.

Hide cables, flip the camera, and mount it to truss, ceiling, tripod, or studio grid.

Includes 1/4″-20, 3/8″, and safety anchor points.

Signature BirdDog Touches.

Designed for Creators. Built to Move Fast.

• E-ink Displays. Side-mounted and always-on, for IP, camera ID, Frame Rate.
• Bird IU. Faster, smarter Web Interface.
• API and KBD. Full support for the best control experience possible.
• RGB Halo Tally. Fully customizable.

Everything is designed to streamline your setup—not slow it down.

Designed to fit in, with stand-out colour profiles.

XL offers a range of colour profiles tuned to match the most common looks in professional production environments. Whether you’re blending into multi-camera setups or keeping consistency with established workflows, these profiles ensure your images sit naturally alongside industry favourites while still carrying BirdDog’s signature clarity and punch.

NDI® PTZ Control for iPad and iPhone.

Take full control of your BirdDog camera, all from a super-easy to use iPad/iPhone app. Pan, Tilt, Zoom, save and recall pre-set PTZ positions, preview your cameras in full screen, and access all the colour matrix tools and settings for your BirdDog camera.

Advanced features in BirdUI.

BirdUI gives complete access to every function of your XL Ultra, all within a beautiful and intuitive interface. As a browser-based application, it can be accessed from anywhere on the same network as the XL Ultra.

BirdUI adds features, including a dashboard for monitoring the camera and light/dark modes to suit your production environment.

Free Software Tools.

• Central 2.0 Lite. Powerful NDIR Routing.
  • Central 2.0 Lite ushers in a new era of NDIR routing control. Browser-based, real- time NDIR routing with support for 2 receivers and a media playback engine, Central 2.0 Lite is a fantastic tool for all Bird Dog users.
• DYNO. Visual NDIR network performance monitoring.
  • DYNO is a window into your NDIR network performance. Test your network speed, performance, and stability with a single NDI stream or multiple streams. Now you can be confident your network can deliver rock- solid NDIR streams to your hardware and software receivers. All in a beautiful interface.
• BirdUI. BirdDog's beautiful User Interface.
  • BirdUl is the easiest and fastest way to access all the functions and settings of your Bird Dog hardware devices, all within a beautiful and intuitive interface. A browser-based application, it can be accessed from anywhere on the same network as the BirdDog device.

Warranty & Support.

1-Year Mission. Enterprise-Level Support. Every BirdDog O4 ships with a 1-year global warranty and advance replacement in supported regions. Because true support means you’re never left in the dark.

Specifications

• Primary Camera
  • Image Sensor: 4/3" Sony CMOS 5K Sensor
  • Lens: 20x Optical Zoom Lens
  • Video Format: 2160p60
  • Additional Resolutions
    • 2160p60, 59.94, 50, 29.97, 25
    • 1080p60, 59.94, 50, 30, 29.97, 25
    • 1080i60, 59.94, 50
    • 720p60, 59.94,50
  • Focal Length: 9.8mm ~ 186mm
  • Apeture: f2.8~f4.5
  • Focus: Auto, Manual
  • AF Method: PDAF (Phase Detection Auto Focus)
  • Horizontal Field of View: 71° ~ 4°
  • Exposure: Auto, Shutter Priority, Iris Priority, Manual, BLC, WDR
  • Shutter Speed: 1/1- 1/10,000s
  • 3D Noise Reduction: Yes
  • SNR: 300lux-600lux 45-50dB
  • Effective Pixels: 20.89 MP
  • Vertical Field of View: 40° ~ 2°
  • Diagonal Field of View: 79° ~ 4.5°
  • ND Filter: Yes 1, 1/4/ 1/16, 1/64
  • Optical Low Pass Filter (OLPF): Yes
  • Image Stabilization: Digital
  • Digital Zoom: 16x Supersampling
• Secondary Panoramic Camera
  • Image Sensor: 1/1.8" Sony CMOS 4K sensor
  • Lens: Fixed
  • Focal Length: 4.4mm
  • Aperture: f2.0
  • Horizontal Field of View: 85°
  • Vertical Field of View: 53°
  • Diagonal Field of View: 93°
• Mechanical
  • Pan/Tilt Rotation ±170°, -30° ~ +90°
  • Pan Control Speed 0.05° ~ 120°/s
  • Tilt Control Speed 0.05° ~ 90°/s
  • Preset Number 256
  • Integrated Tally Light: Halo Style, RGB (Front), Number Style (Rear)
  • e-Ink Display: 2x 3" Grayscale e-Ink Displays
  • Pan/Tilt Drive System: Ultra-fine drive
  • Quietness: NC 50 (with a sound pressure level corresponding to the 500Hz - 1kHz frequency band being 49 - 51 dB)
• I/O Interface
  • Video Output Interfaces: 12G-SDI, 3G SDI x 2, HDMI 2.0, USB-C, 1Gb RJ45, SFP+ Cage (Ethernet)
  • Video Compression Formats: H.264, H.265, SpeedHQ
  • Network Interfaces: 1x 1GbE Adaptive Ethernet port, PoE++, 1x SFP+ Cage (Ethernet)
  • Encoder Network Protocols: High-Bandwidth NDI® (SpeedHQ), NDI® HX3, NDI® HX2, SRT, RTSP, RTMP
  • Control Interfaces: 1Gb Ethernet, SFP+, RS232 (input & output), RS422, TYPE-C (UVC)
  • Control Protocols: VISCA-IP, NDI®, VISCA Serial, Pelco-P, Pelco-D
  • FreeD Protocol: Supported - UDP / NDI® Embedded
  • Analogue Audio: Balanced Audio XLR x2
  • Digital Audio: Embedded with Main and Secondary HDMI, 12G-SDI, Network Video, USB (UVC)
  • Genlock: Supported
  • Timecode: Supported
  • SD Card Slot: MicroSD - Recording supported
  • Kensington Lock: Supported
  • WebUI Control: Integrated BirdDog BirdUI 2.0
  • API Support: API Support
• AI Features
  • Presenter Tracking: Advanced with Secondary camera assistance
  • Auto-Framing: Advanced with Secondary camera assistance
  • Zone Tracking: Supported
  • Gesture control: Supported
• General
  • Environmental Operation: Internal
  • Input Voltage: DC-12V, PoE++
  • Input Current: 5A
  • Power Consumption: ＜60W (Max.)
  • Working Temperature: 0°C ~ 40°C (32°F ~ 105°F)
  • Working Humidity: ~20% ~ 80% (Non-condensing)
  • Dimension (WxHxD): 8.61 x 11.48 x 10.37in (218.6 x 291.6 x 263.3mm
  • Weight: 8.82 lbs (≈4Kg)
