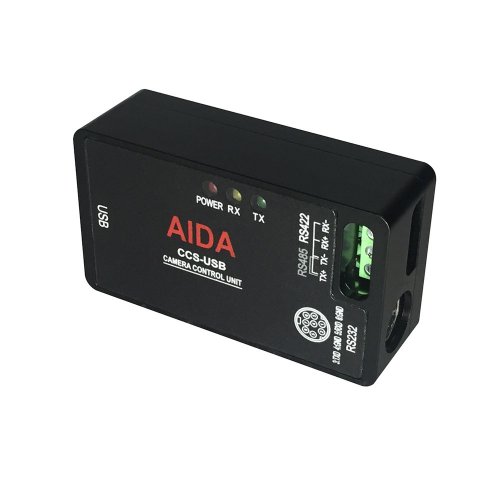

AIDA CCS-USB VISCA Camera Control Unit
Model: CCS-USB
About: AIDA CCS-USB VISCA Camera Control Unit
The CCS-USB camera control unit and software for PC features multi serial port control, making this the go-to software for all your camera control needs. Simply connect the control unit to your computer via USB, then connect your camera to its onboard RS232, RS485 or RS422 and the software will automatically set up your COM ports. Control up to 7 primary cameras utilizing advanced SONY VISCA™ protocol and up to 255 cameras utilizing PELCO™ protocol. Compatible with Windows and Mac OSX™ operating systems. Includes an RS232 to Cross-RJ45 converter for longer communication relays when you need it most. The camera control unit is designed for mobility and versatility, its compact in size and rugged design truly make the CCS-USB small but mighty and the one CCS to control them all.
FEATURES
- SONY VISCA Compatible and work with most of major VISCA protocol products.
- Support PELCO Pan / Tilt / Zoom / Focus protocol.
- Control up to 7 VISCA control cameras and 255 third party control cameras.
- User friendly software interface.
- Support RS-232, RS-485, RS-422.
- USB interface for easy installation.
- Windows and MAC OSX compatible.
- Compact and rugged design.
SPECIFICATIONS
- Control
- Camera Interface RS-232C
- RS-485/RS-422: Terminal Block Connector
- Protocol VISCA for Camera Settng up to 7 Cameras
- PELCO for Pan/Tilt/Zoom Control up to 255 Cameras
- User Interface Graphic User interface
- PC interface USB
- Compatibility All VISCA Protocol Camera
- All PELCO Protocol Camera
- Main Functions on VISCA Control
- Image Contrast, Satura..on, Sharpness, Gamma
- Exposure Auto, Shutter Priority, Iris Priority, Manual, Flickerless
- White Balance Auto, Manual, ATW
- Backlight WDR, BLC
- Physical
- Camera Control RS-232C: 8 Pin Mini Din Connector
- RS-485/RS-422: Terminal Block Connector
- Accessory CBL-RJ45 (RS232 to Cross-RJ45 converter cable)
- Operation Temp 32° F - 104° F
- Dimension 62m x 35m x 19mm / 2.44" x 1.37" x 0.74"
- Weight 50g / 0.11Lbs
- Power USB Powered
UPC: 710928970544
Reviews: AIDA CCS-USB VISCA Camera Control Unit
Warranty: AIDA CCS-USB VISCA Camera Control Unit
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
AIDA gives a two (2) year warranty to the original owner/user of any AIDA product. The warranty will be in effect from the original date of purchase
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and AIDA Imaging do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
