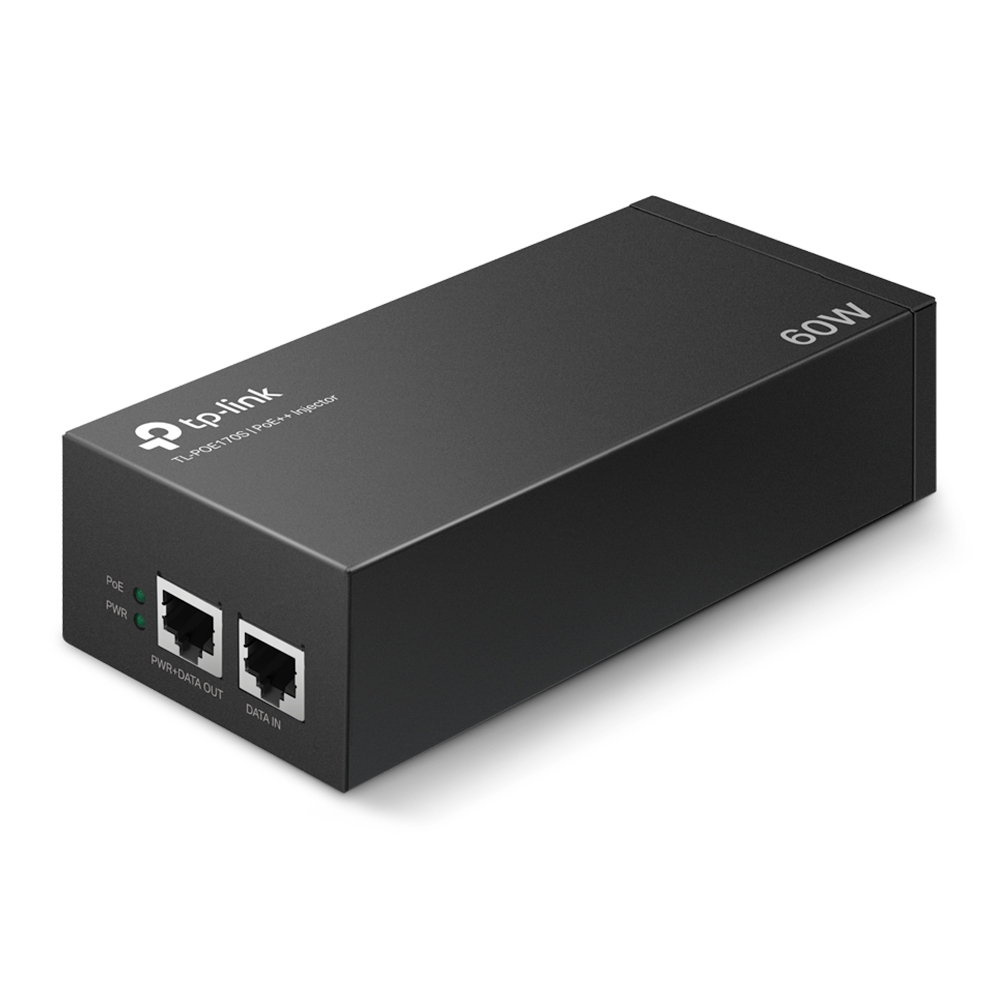

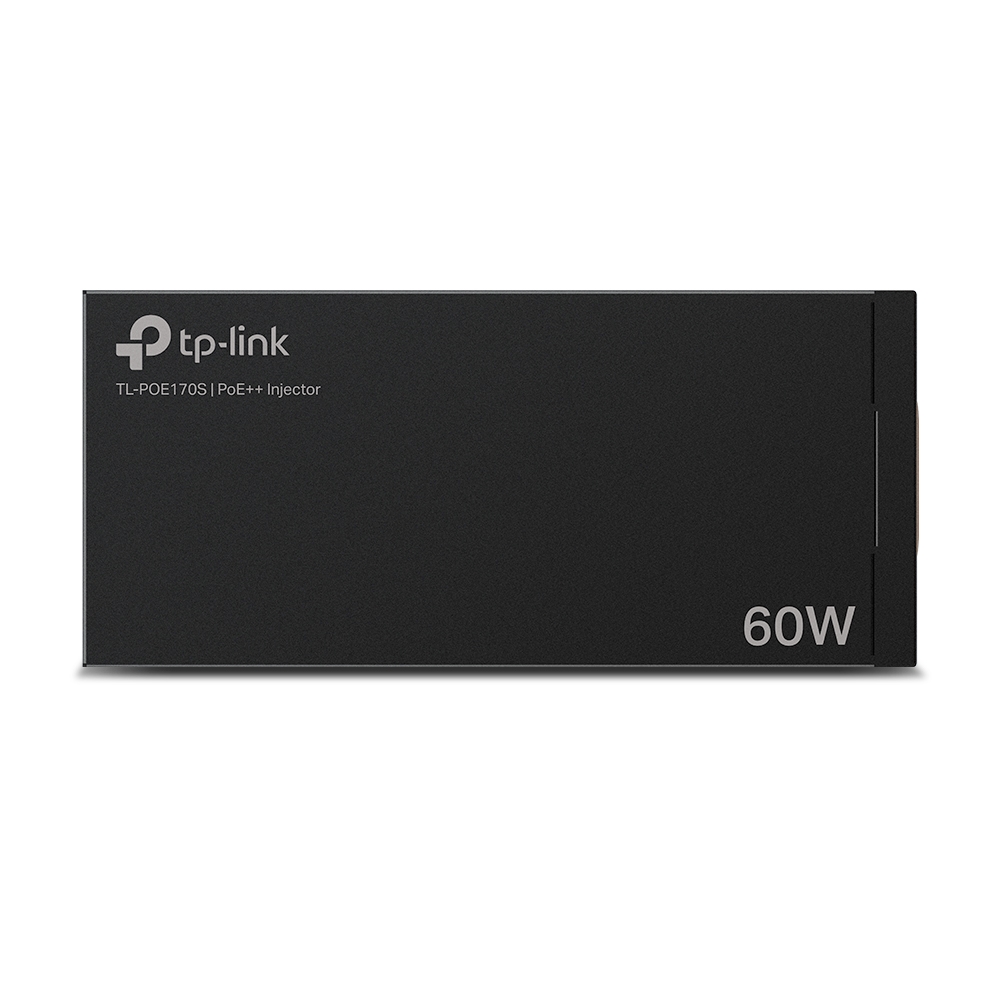

TP-Link TL-POE170S PoE++ Injector

About: TP-Link TL-POE170S PoE++ Injector

The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt* standards with up to 60 W power supply. It can easily expand your network to where there are no power line or outlet, where you wish to fix devices such as PTZ IP Cameras, LED, etc.

• *TL-POE170S is incompatible with EAP235, EAP225, and EAP225-Outdoor. To power up these EAPs, TL-POE160S is recommended to use.

Features

• 2 Gigabit ports ensure faster transmission
• Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W
• Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
• Automatically determines and supplies the exact power to meet the device's need
• Wall-mounting and desktop design accommodates most installation scenarios
• Plug & Play installation, requires no configuration
• Integrated power supply
• Durable metal casing

Specifications

• NETWORK
  • Standards and Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*
• GENERAL
  • Certification -  FCC, CE, RoHS
  • Environment Operating
    • Temperature: 0°C to 45°C (32°F to 113°F)
    • Storage Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Humidity: 10% to 90%RH non-condensing
    • Storage Humidity: 5% to 90%RH non-condensing
  • Material -  Metal Casing
• HARDWARE FEATURES
  • Network Media
    • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
    • EIA/TIA-568 100Ω STP (maximum 100 m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
    • EIA/TIA-568 100Ω STP (maximum 100 m)
    • 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

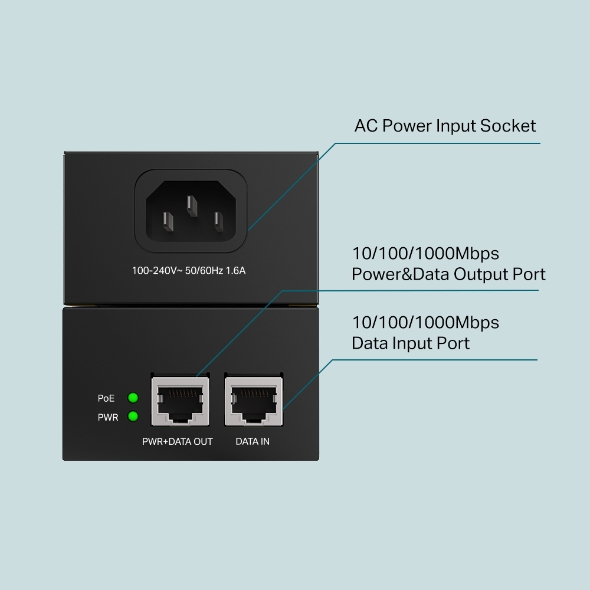

  • Ports -
    • 1 10/100/1000Mbps RJ45 data-in port
    • 1 10/100/1000Mbps RJ45 power+data-out port
    • 1 AC socket
  • Power Consumption
    • Input: 100-240 V, 50/60 Hz, 1.6A
    • Output: Auto-determine the necessary power requirements (max. 60 W)
  • Basic Function
    • Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD
    • Auto-determine the necessary power requirements
    • Wall-mounting and desktop installation supported
    • Plug-and-Play
  • Dimensions (WxDxH) -  6.1 x 2.8 x 1.7 in (155 x 70 x 42 mm)

PACKAGE CONTENTS

• PoE++ Injector TL-POE170S
• Installation Guide
• Power Cord
• RJ45 Cable
