Hollyland Pyro 7 Ultra 7-inch Wireless Transceiving Monitor

About: Hollyland Pyro 7 Ultra 7-inch Wireless Transceiving Monitor

Pyro 7 Ultra is an integrated 7-inch TX/RX monitor that delivers dual-flagship performance in both premium monitoring and cinema-grade wireless transmission. Its QD-LCD architecture ensures pristine, broadcast-grade color accuracy for high-end productions. Powered by its all-in-one TX/RX design and the robust performance of TWiFi, it eliminates the complexity of external wireless transmission setups while significantly reducing signal interference in demanding environments—delivering ultimate transmission control across elite on-camera, precision focus pulling, and mobile director monitoring workflows.

• TX/RX · Monitor
• △E<1.5
• QD-LCD
• 1500nits
• Focus Mode
• 1,000m Range
• 1 TX & Unlimited RX
• Pyro Ecosystem

TX/RX Monitor, All-in-One

Master on-camera, focus pulling, and mobile director monitoring workflows with Pyro 7 Ultra-your all-in-one monitor and wireless transmission system.

Pristine Color. Calibrated for Pros.

• Color Accuracy - Delta E < 1.5: Every Pyro 7 Ultra undergoes rigorous factory calibration via Calman software to deliver broadcast-grade reference standards right out of the box.
• Color Fidelity - 95% DCI-P3: Cinema-grade color with richer tones and smoother gradients for lifelike visuals.
• Grayscale - Gamma 2.4: Enhanced midtone control and contrast for consistent,  cinematic on-set monitoring.
• Daylight-Viewable - 1500 nits: Clear viewing in outdoor and high-light conditions.

Ultra-accuracy. PC-Free. 3-Minute Calibration.

Eliminate the pain of complex setups and mismatched third-party probes. As the industry’s only fully integrated original ecosystem, simply plug the Hollyland Color Calibrator via USB-C for PC-free, flawless color fidelity in just 3 minutes.

QD-LCD Optical Architecturefor Exceptional Color Purity

Pyro 7 Ultra incorporates a professional QD-LCD Optical Architecture,channeling blue LED light directly into a proprietary Quantum DotEnhancement Film (QDEF). This specialized nanostructure converts the light intonarrow-band red and green states to synthesize a high-purity RGB spectrum,delivering exceptional color purity with cinematic depth.

HollyOS - Next-Gen Interactivity & Control

Built for fast-paced professional workflows, the reimagined HollyOS UIdrives direct, hardware-level display controls and supports customizabletemplates with quick-toggle image analysis modules.

Image Analysis

Advanced analysis tools paired with granular parameter control forabsolute on-set visual precision.

• Waveform
• Histogram
• Focus Peaking
• LUT
• False Color

Camera Control

By integrating official SDKs from leading camera brands, Pyro 7 Ultra unlocks a rich array of features with smooth, native responsiveness. You can effortlessly toggle control between the camera-top transmitter and wireless receiver— transitioning between local adjustments and long-range rigging to suit any scenario.

TWiFi - Proprietary Dual-BandTransmission

Proprietary TWiFi (Twin-WiFi) technology redefines signal resilience by establishing a synchronized “twin-path” across both 2.4G and 5G spectrums. This link triggers automatic frequency hopping to avoid congested channels in signal-heavy environments—unlocking the same extensive transmission distance, ultra-low latency, and unlimited receiver expansion proven by Pyro Ultra.

• ​Infinite Reach: 1 TX & Unlimited RX
• Range: 3,300 ft (1km)
• Dual-Band: 2.4 GHz & 5 GHz
• Ultra-Low Latency: 20ms
• Video Transmission: 4K60

Pyro Synergy

Deeply integrated with the Pyro series to deliver proprietary ecosystem synergy and streamlined multi-device pairing.

Universal Compatibility

Developed in collaboration with Tilta, Pyro 7 Ultra is designed for professional cinema setups, offering compatibility with the Nucleus-M II Wireless Lens Control System and custom monitor cages for added protection in demanding production environments.

Review Instantly. Direct Remotely.

• Video Playback: Record video on set and review footage instantly with precision playback.
  • Playback
  • Reverse Play
  • Marked Playback
  • Loop Play
• On-screen Marker: Mark shots to coordinate scenes remotely, eliminating the need for constant on-site adjustments.

All-Scenario Adaptability

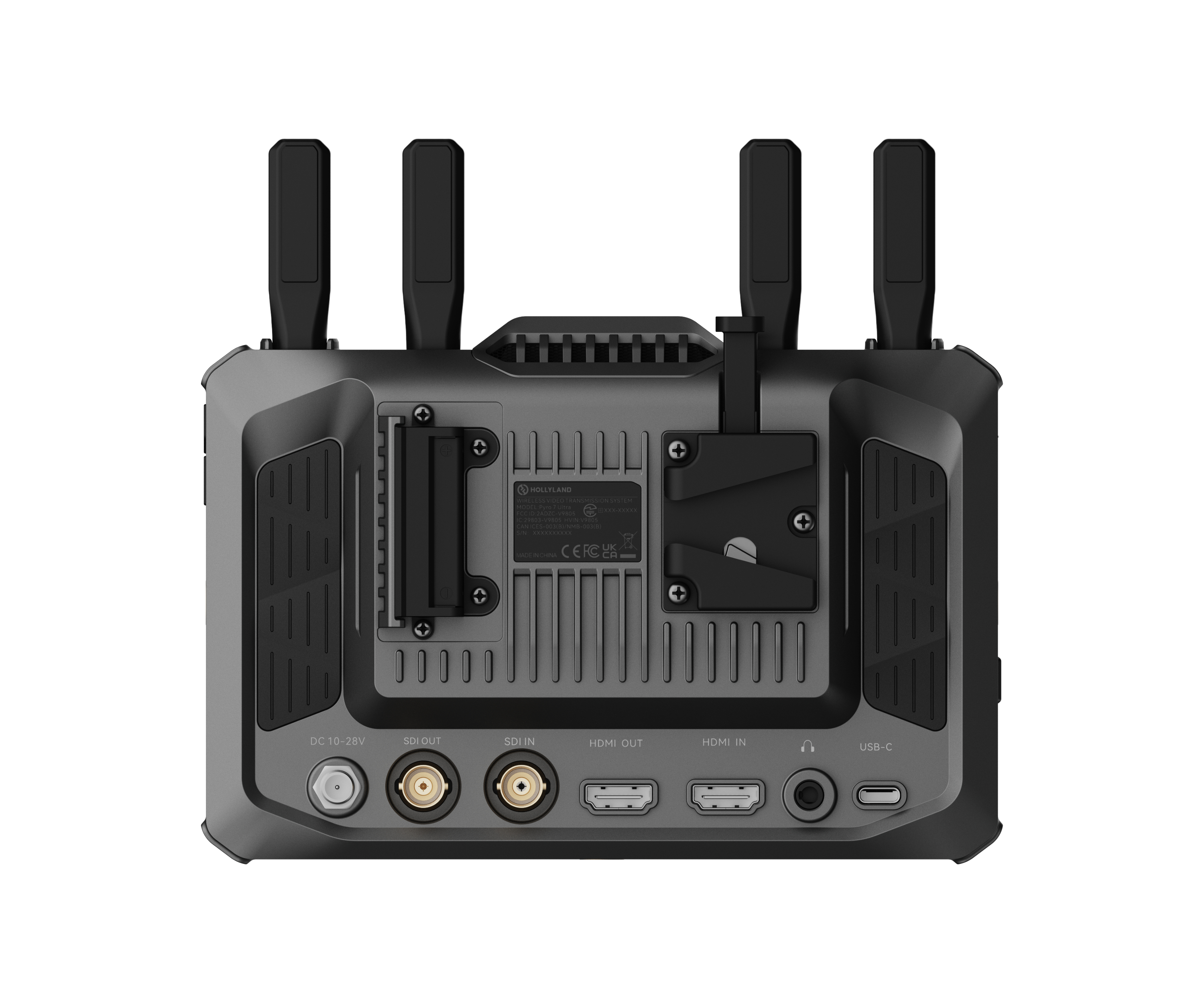

Pyro 7 Ultra features HDMI/SDI cross-conversion for flexible signal routing, while an integratedV-mount plate and DC input ensure non-stop powering in any environment.

Specifications

• Video Input /Output: HDMI 2.0 + 3G-SDI
• Antenna Interface: 4 x SMA Male
• Power Input: DC Input (2.0mm) /V-Mount Battery
• Monitoring: 3.5mm Headphone Jack
• Data Transmission: USB-C 2.0
• Screen Size: 7.02″ Touchscreen
• Resolution: 1920 x 1200
• Aspect Ratio: 16:9
• △E: ≤1.5
• Color Gamut: Rec.709 ≥ 99% DCI-P3≥95%
• Contrast Ratio: 1000：1
• Brightness: 1500 nits
• Supply Voltage: 10~28V
• Power Consumption: TX≤25W / RX ≤20W
• Operating Frequency: 5.1–5.8GHz /2.412–2.484GHz
• Transmission Power: ＜24dBm
• Receiver Sensitivity: ＞-80dBm
• Display Latency: ＞27ms
• Transmission Latency: ＞20ms
• Range: 1km
• Bandwidth: 20MHz / 40MHz (Broadcast Mode)
• Operating Temperature: -10℃~45℃
• Storage Temperature: -40℃~60℃
• Dimensions (including battery plate): 7.09 x 4.57 x 1.82 inch (180 x 116 x 46.2mm)
• Net Weight: 1.39 lbs (≤630g)
• HDMI Input
  • 4K23.98/24/25/29.97/ 30/50/59.94/60
  • 1080p23.98/p24/ p25/p29.97/p30/p50/ p59.94/p60
  • 720p50/p59.94/p60
    • HDMI Loop Out/Output
      • 4K23.98/24/25/29.97/ 30/50/59.94/60
      • 1080p23.98/p24/ p25/p29.97/p30/p50/ p59.94/p60
      • 720p50/p59.94/p60
    • SDI Loop Out/Output
      • 1080p23.98/ p24/p25/ p29.97/p30/ p50/p59.94/p60
      • 1080p23.98/p24/ p25/p29.97/p30/p50/ p59.94/p60
      • 720p50/p59.94/ p60
• SDI Input
  • 1080p23.98/ p24/p25/ p29.97/p30/ p50/p59.94/p60
  • 1080i50/i59.94/ i60
  • 1080psf25/ psf29.97/ psf30
  • 1080psf23.98/ psf24
  • 720p50/p59.94/ p60
    • HDMI Loop Out/ Output
      • 1080p23.98/ p24/p25/ p29.97/p30/ p50/p59.94/p60
      • 1080p30/p29.97/ p25
      • 1080p25/p29.97/ p30
      • 1080p23.98/p24
      • 720p50/p59.94/ p60
    • SDI Loop Out
      • 1080p23.98/ p24/p25/ p29.97/p30/ p50/p59.94/ p60
      • 1080i50/i59.94/ i60
      • 1080i50/i59.94/ i60
      • 1080p23.98/p24
      • 720p50/p59.94/ p60
    • SDI Output
      • 1080p23.98/ p24/p25/ p29.97/p30/ p50/p59.94/p60
      • 1080p30/p29.97/ p25
      • 1080p25/p29.97/ p30
      • 1080p23.98/p24
      • 720p50/p59.94/ p60

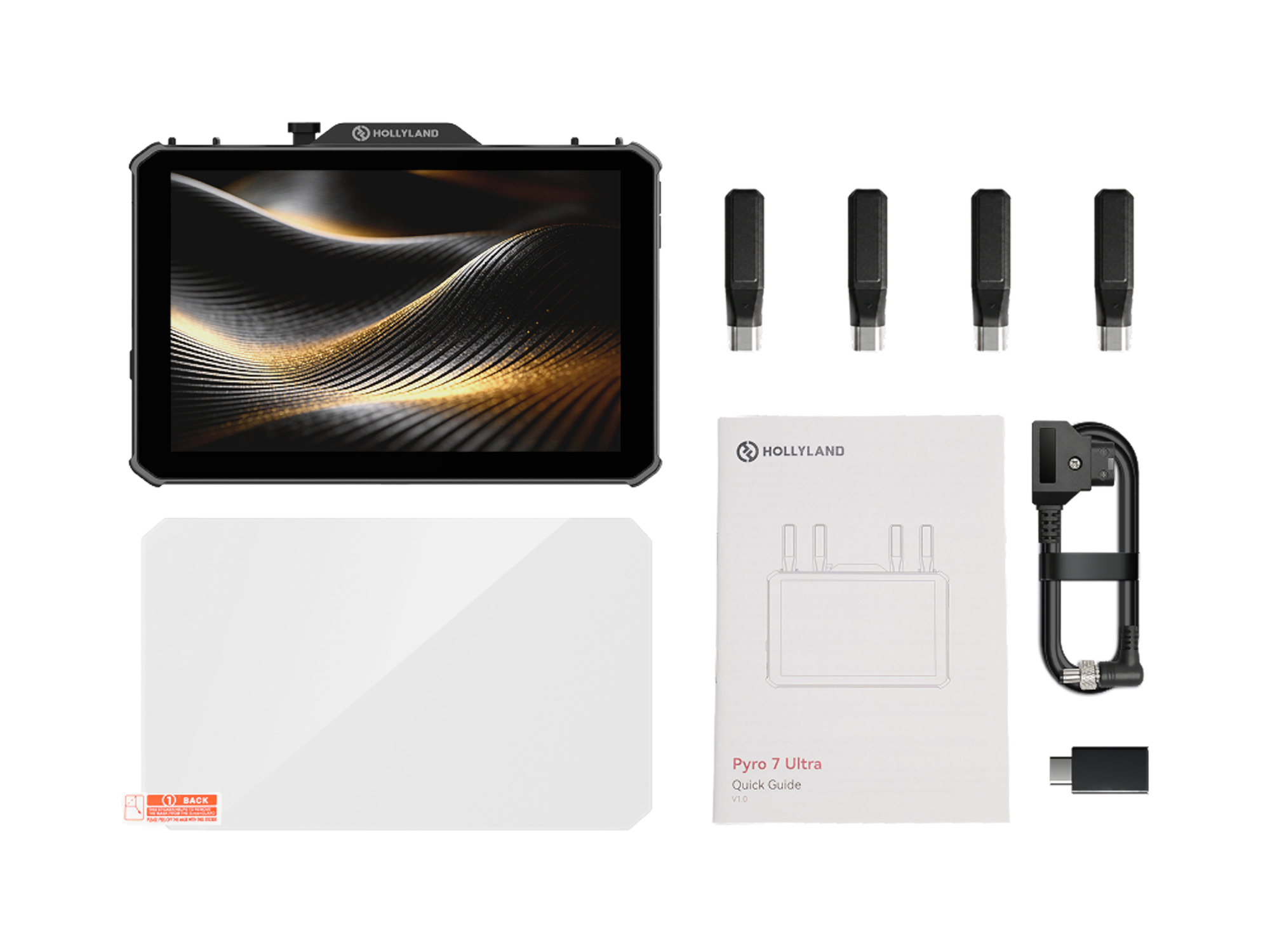

What's in the Box

• 1x Pyro 7 Ultra Monitor
• 4x Easy-Install Short Antenna
• 1x Tempered Glass Screen Protector
• 1x D-Tap to Locking DC Power Adapter Cable
• 1x USB-C OTG Adapter
• 1x Quick Guide
