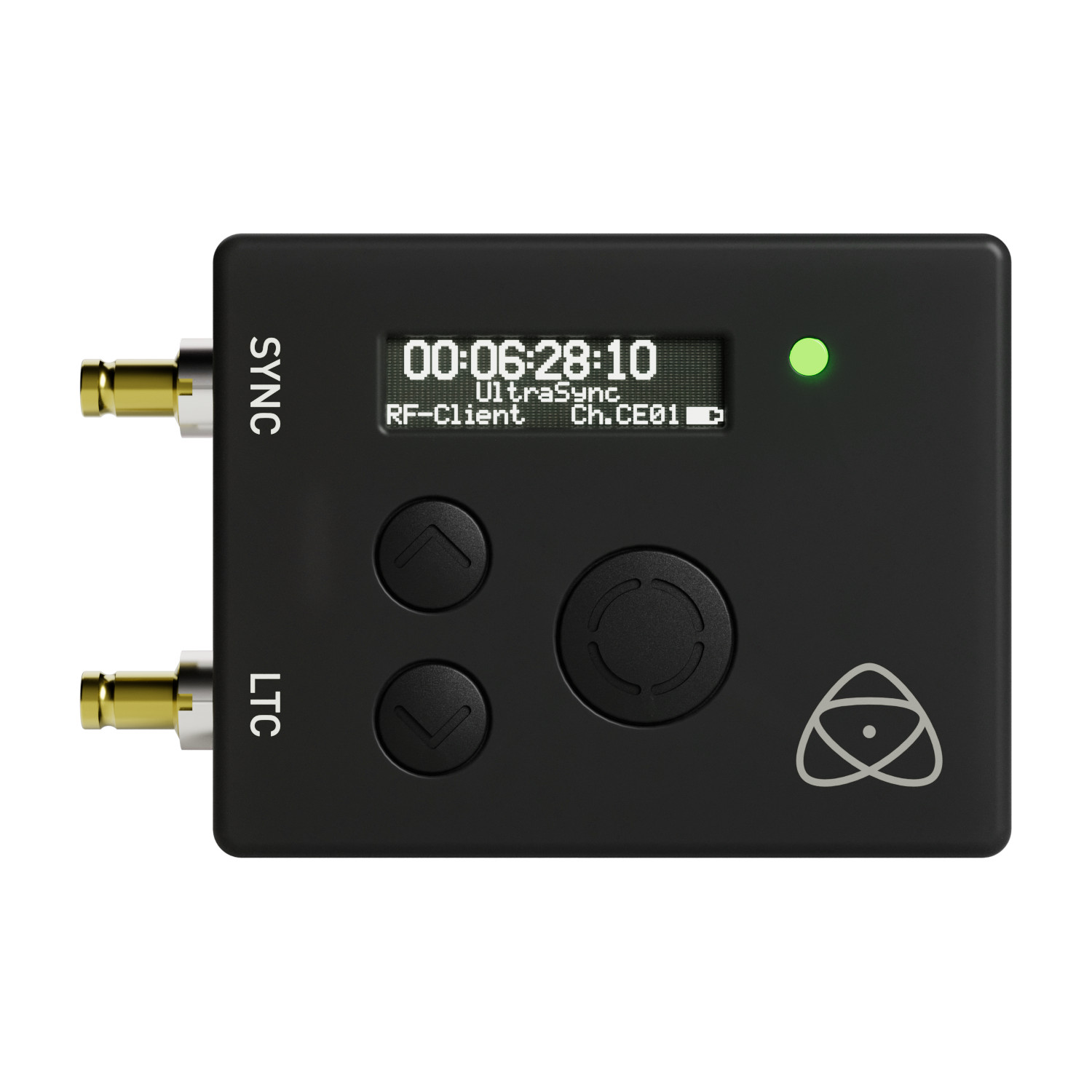

Atomos AtomX UltraSync One Timecode Sync

About: Atomos AtomX UltraSync One Timecode Sync

The UltraSync ONE is a highly accurate, wireless timecode, genlock and word clock all in one product. Configure UltraSync ONE as a timecode transmitter or receiver. Set the transmitter to generate timecode internally, or to follow external timecode. You can even use the SYNC port for a second LTC, genlock or word clock output. Or alternatively jam to house timecode or an OB truck. The UltraSync ONE can provide timecode to any device with an LTC input, and can also record mic level audio timecode onto a spare audio track for those that don’t.

• Compact, lightweight and cost-effective wireless sync solution
• AirGlu RF compatible for long range, ultra-reliable wireless connectivity
• 25+ hours use on a single charge

It has the flexibility to configure as a transmitter timecode server or as a receiver client device. The battery life allows a run time to easily last throughout the longest shooting day. Integrating the most features to enable advanced timecode and sync options for multicamera workflows. UltraSync ONE is the smallest and most cost-effective, RF-powered wireless timecode and genlock/wordclock solution on the market.

Accurate Long Range Reliability

The uncongested sub-GHz RF network guarantees completely accurate synchronization with a range of up to 200m. Beyond that, receiving devices will free-run reliably until they are back within range of the transmitting unit. This two-way RF communication not only makes UltraSync ONE a highly reliable timecode solution, it also opens up the added ability to monitor and control units using the Ninja (with Atomos Connect) or Shogun user interface when in timecode server mode to other transmitting Atomos AirGlu devices.

Long lasting 25 Hour Battery Life

With 25 hours battery life from a single charge, the UltraSync ONE is guaranteed to last a full shooting day. That’s with RF, genlock and the OLED display all running at full capacity. And even with all this extra power, it’s still unbelievably small and light.

Portable & Versatile

UltraSync ONE brings new levels of portability, versatility and ease of use to wireless timecode synchronisation, with compact proportions, a 128 x 32 high resolution OLED display, professional locking miniature DIN connectors for timecode IN/OUT and Genlock OUT, a USB C Connector for firmware updates and battery charging, and concealed internal diversity antennas all built in.

Simple setup. Multiple applications.

Whether you’re working in a multicamera environment with timecode and genlock, need a solution for your VR rig or are using DSLRs, UltraSync ONE can be adapted to fit your workflow – it’s the most versatile solution available. The AirGlu RF network allows for complete workflow flexibility, with no restrictions on what combination of products are used. Sync multiple UltraSync ONE units with each other or combine them into a wider timecode network using other Atomos AirGlu products, such as the UltraSync Blue, Ninja V/V+, Ninja and Ninja Ultra with Atomos Connect, Shogun, Shogun Ultra ad Shogun Connect.

Specifications

• Construction
  • Body: ABS Polycarbonate Plastic
  • Cooling: Passively cooled
  • Multi-Function Buttons: Circular Up / Down + Confirm Key for Menu Navigation
• Power
  • Battery: Built-In Lithium-Ion Battery
  • Battery Capacity: 800 mAh
  • Battery Runtime: 25+ Hours from a single Charge
  • Operating Power: Less than 1W
  • USB: USB-C Input for Charging at 5V & Continuous Power
• Timecode / Sync
  • Wireless Transmission Type: RF
  • RF Network Range: 200m (Line of Sight)
  • RF Frequencies: 865.050 MHz to 923.200 MHz (Region dependent)
  • Multi Channel Digital RF Transceiver: 865.050 MHz to 923.200 MHz
  • Number of RF Channels: Up to 14 (Region dependent)
  • RF Antenna: Internal Antennas with Diversity Reception Capability
  • Timecode Accuracy: Free Running: TCX0 0.5 ppm (~1 Frame Drift in 24 Hours) – RF Locked to Server: 0 ppm
  • Frame Rates: 23.976, 24, 25, 29.97, 29.97DF, 30, 30DF
  • Bluetooth: Not Available
• Physical
  • Dimensions (WxHxD): 2.16 x 1.7 x 0.67 inch (55 x 44 x 17mm)
  • Weight: 0.086 lbs (39g)
  • Mounting Points: Dedicated area for Velcro Strip on the rear of the enclosure
  • Connectors: 2 x Mini DIN 1.0/2.3 for Timecode In/Out & Genlock & Wordclock Out, 1 x USB-C (Charging)

What's in the Box

• 1x UltraSync ONE
• 1x USB-C Charging Cable
• 2x Mini DIN 1.0/2.3 to BNC Cable
