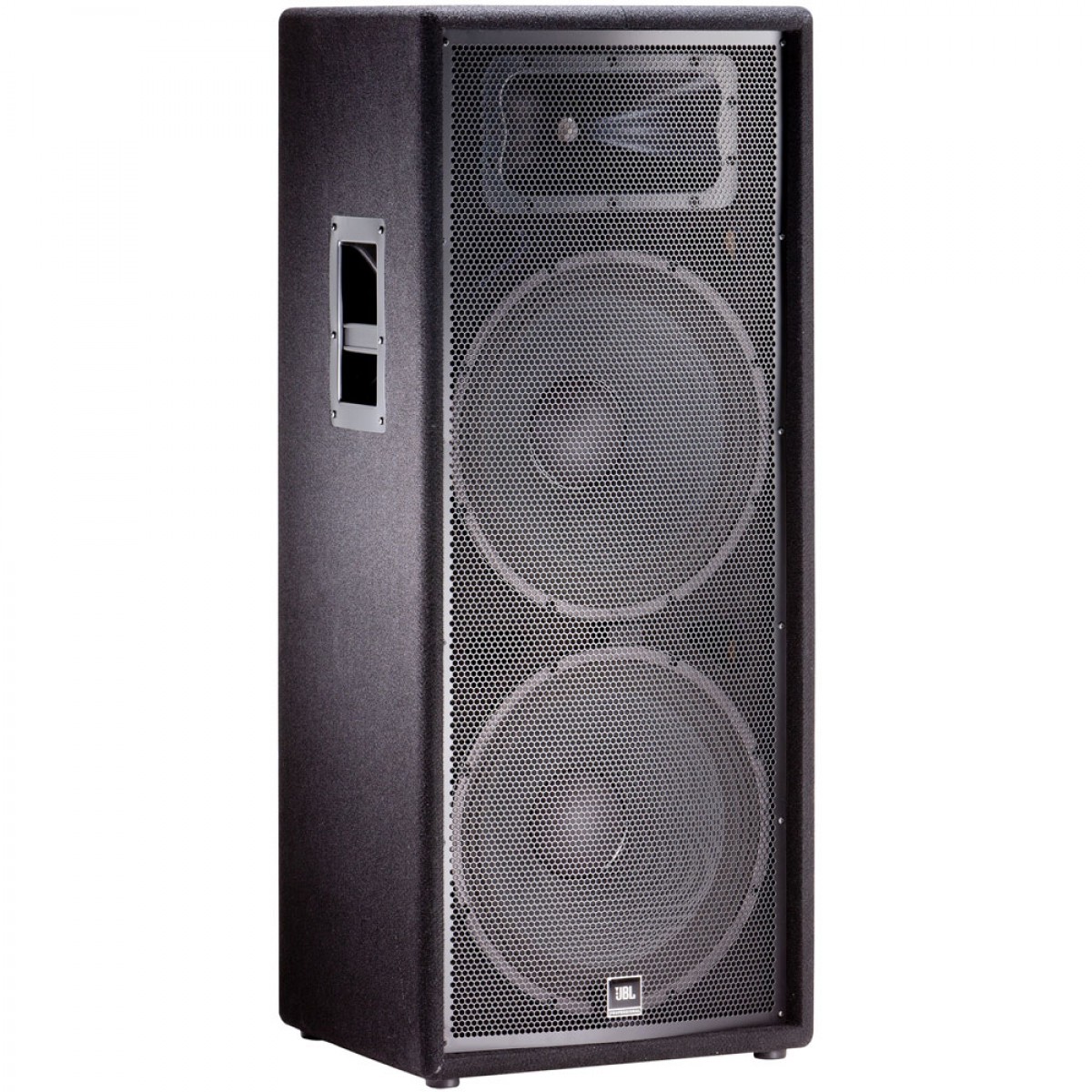

JBL JRX225 Dual 15in Passive Speaker
Model: JRX225
About: JBL JRX225 Dual 15in Passive Speaker
The JRX225 is a portable, dual fifteen-inch, two-way speaker system designed specifically for applications in live music performance and music playback.
Features:
- Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
- JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
- The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
- High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
- Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
- The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
- SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
- Non-resonant, all-steel handles are used.
- Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
Specifications:
- Power Rating : 500 W / 2000 W
- Frequency Range (-10 dB) : 42 Hz - 18 kHz
- Frequency Response (±3 dB) : 62 Hz - 13 kHz
- Sensitivity (1w/1m) : 100 dB SPL
- Nominal Impedance : 4 ohms
- Recommended Amplifier Power : 500 W to 1000 W into 4 ohms
- Maximum SPL : 133 dB
- Nominal Dispersion : 90º x 50º
- Crossover Frequency : 2.2 kHz
- Dimensions (H x W x D) : 1092 mm x 464 mm x 432 mm / (43 in x 18.3 in x 17 in)
- Weight : 42.6 kg (94 lb)
- High Frequency Driver : JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide
- Low Frequency Driver : JBL M115-8A x 2
- Input Connectors : Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel
- Grille : 18-gauge, powder-coated steel
UPC: 050036904513
Reviews: JBL JRX225 Dual 15in Passive Speaker
Warranty: JBL JRX225 Dual 15in Passive Speaker
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Pro Products:
The warranty on JBL professional loudspeaker products (except for enclosures, electronic components, and portable products) is valid for 5 years from the date of the first consumer purchase. Enclosures and electronic components are warranted for 1 year from the date of original purchase.
Extended 7 Year Warranty
- EON ONE Compact
- EON700 Series
- EON ONE MK2
- PRX ONE
Note: The extended warranty program applies to all product components, except batteries, which continue to include a robust, three-year warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and JBL do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
