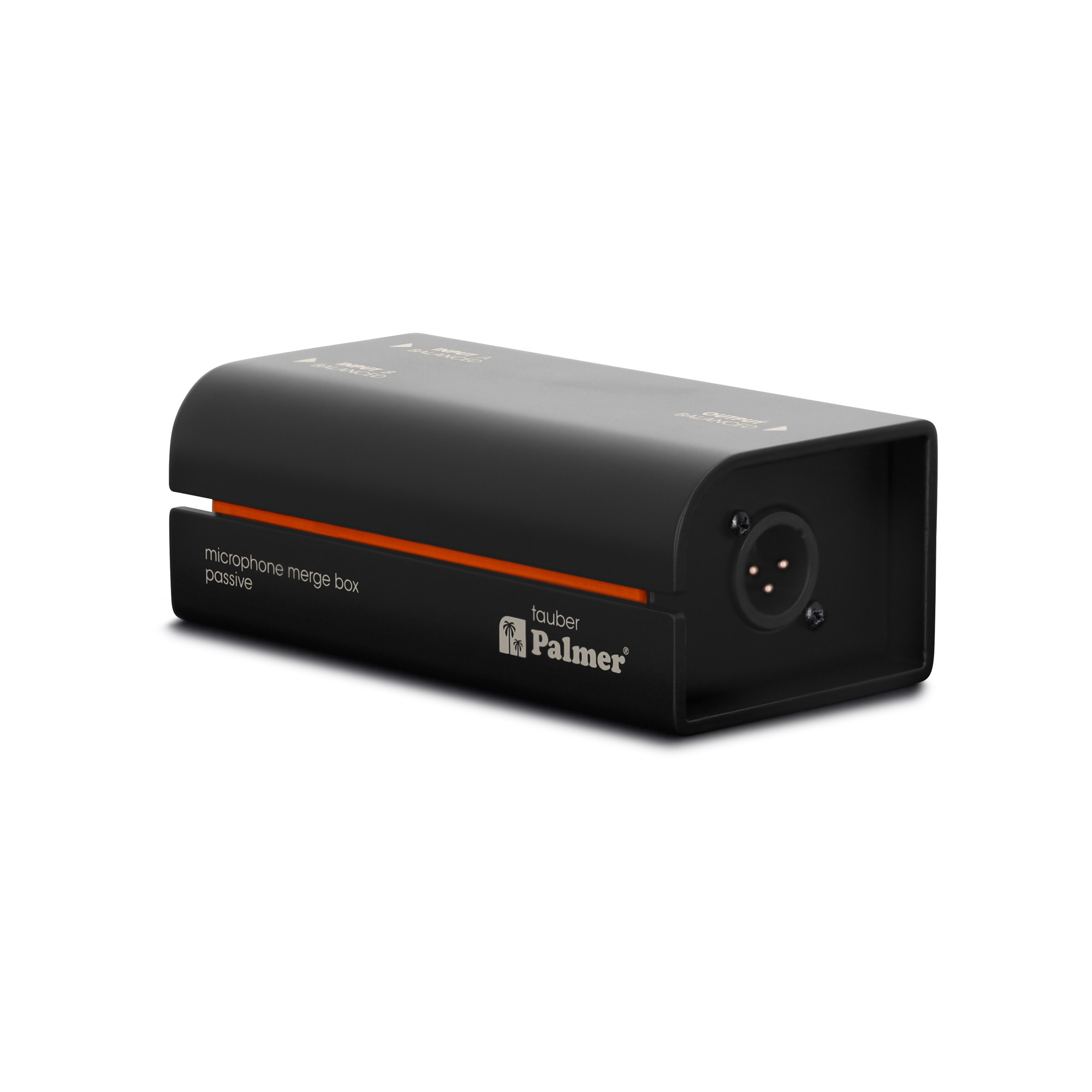

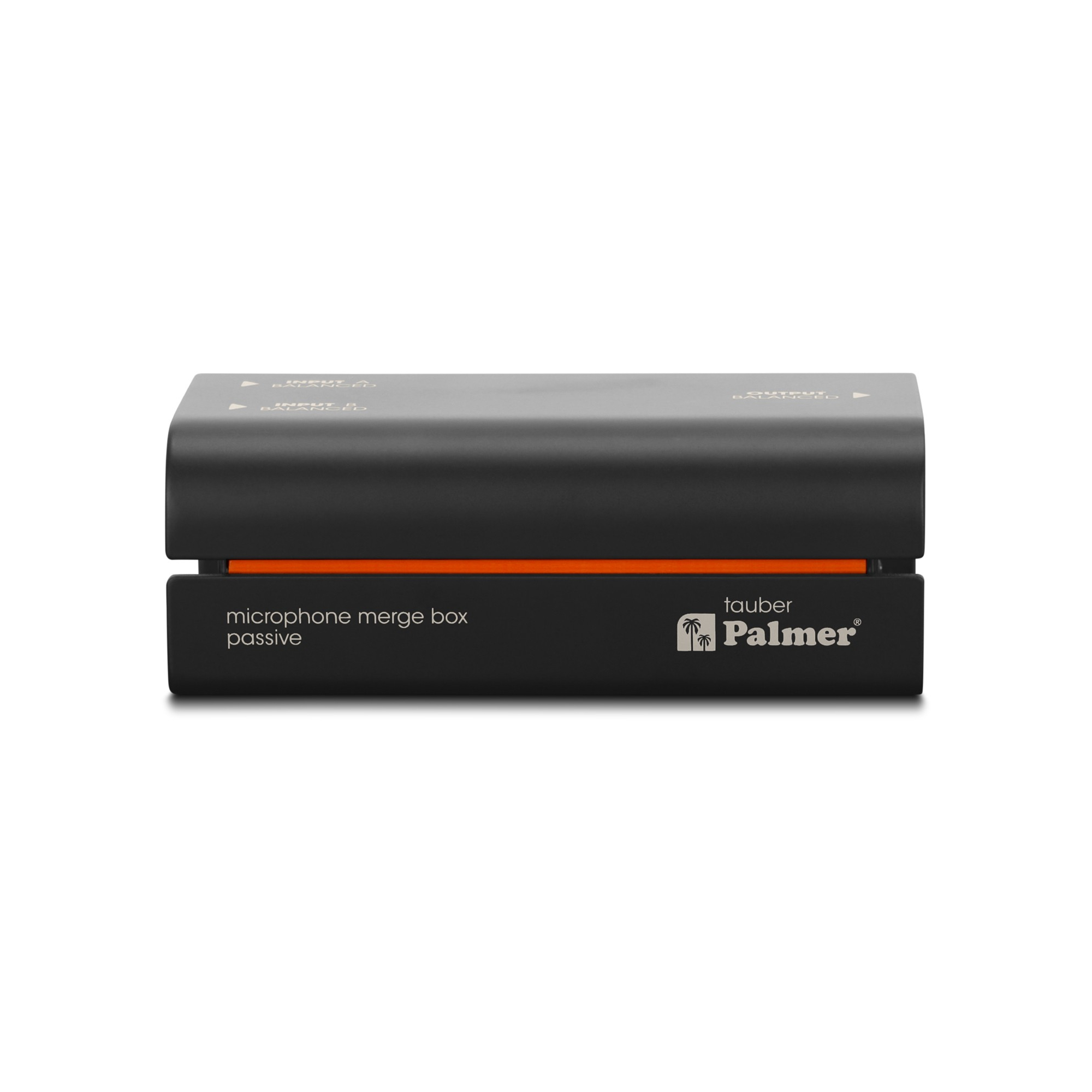

Palmer RIVER tauber Passive Microphone Merge Box

About: Palmer RIVER tauber Passive Microphone Merge Box

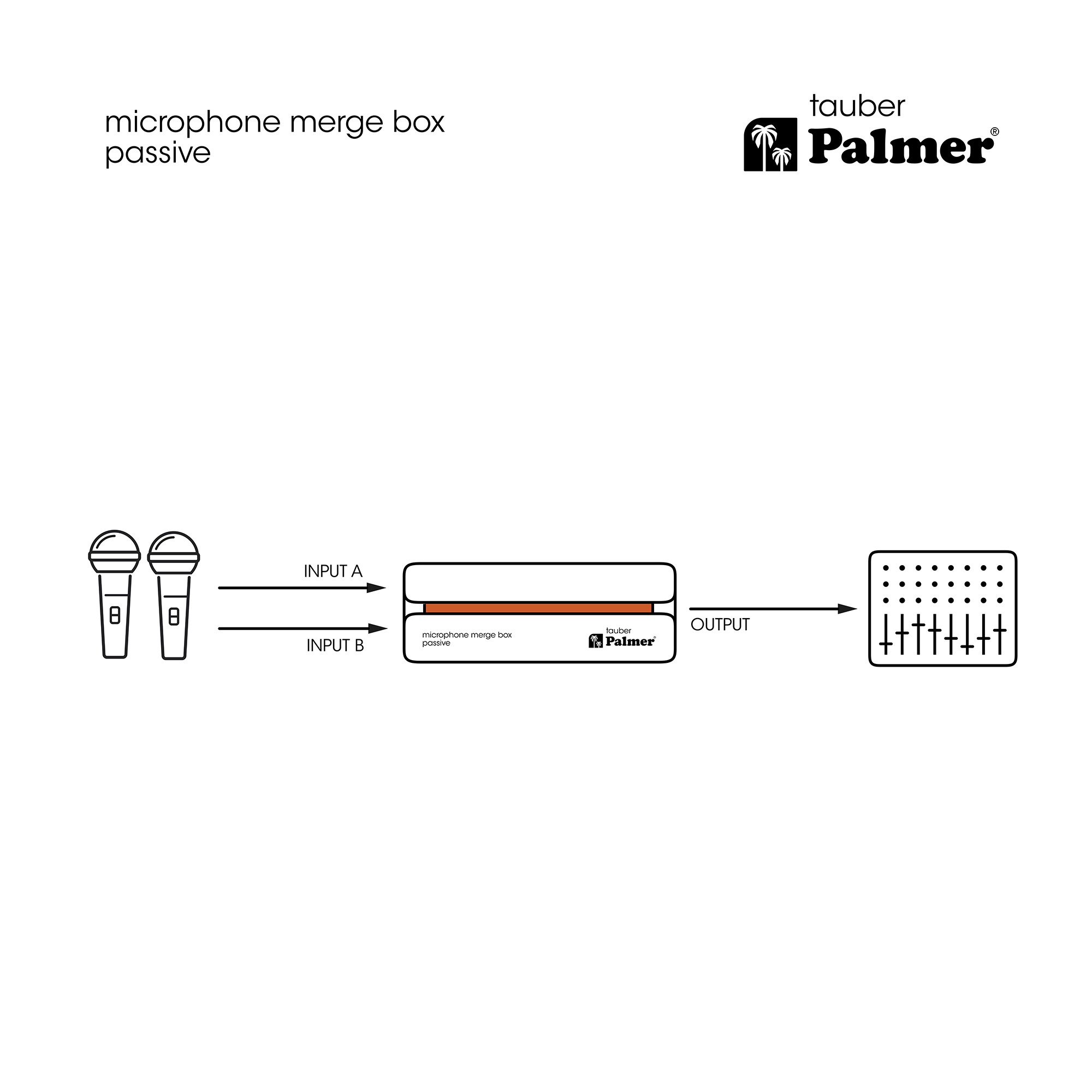

Do you have two microphones, but just one free microphone input? This problem has existed for as long as there have been PA systems! The Palmer tauber Microphone Merge Box solves the problem in a simple way. It has two balanced microphone inputs that are summed via a resistor matrix to a balanced mono signal which is routed to a single XLR output. It's as easy as it sounds!

• For connecting two microphones to one microphone input

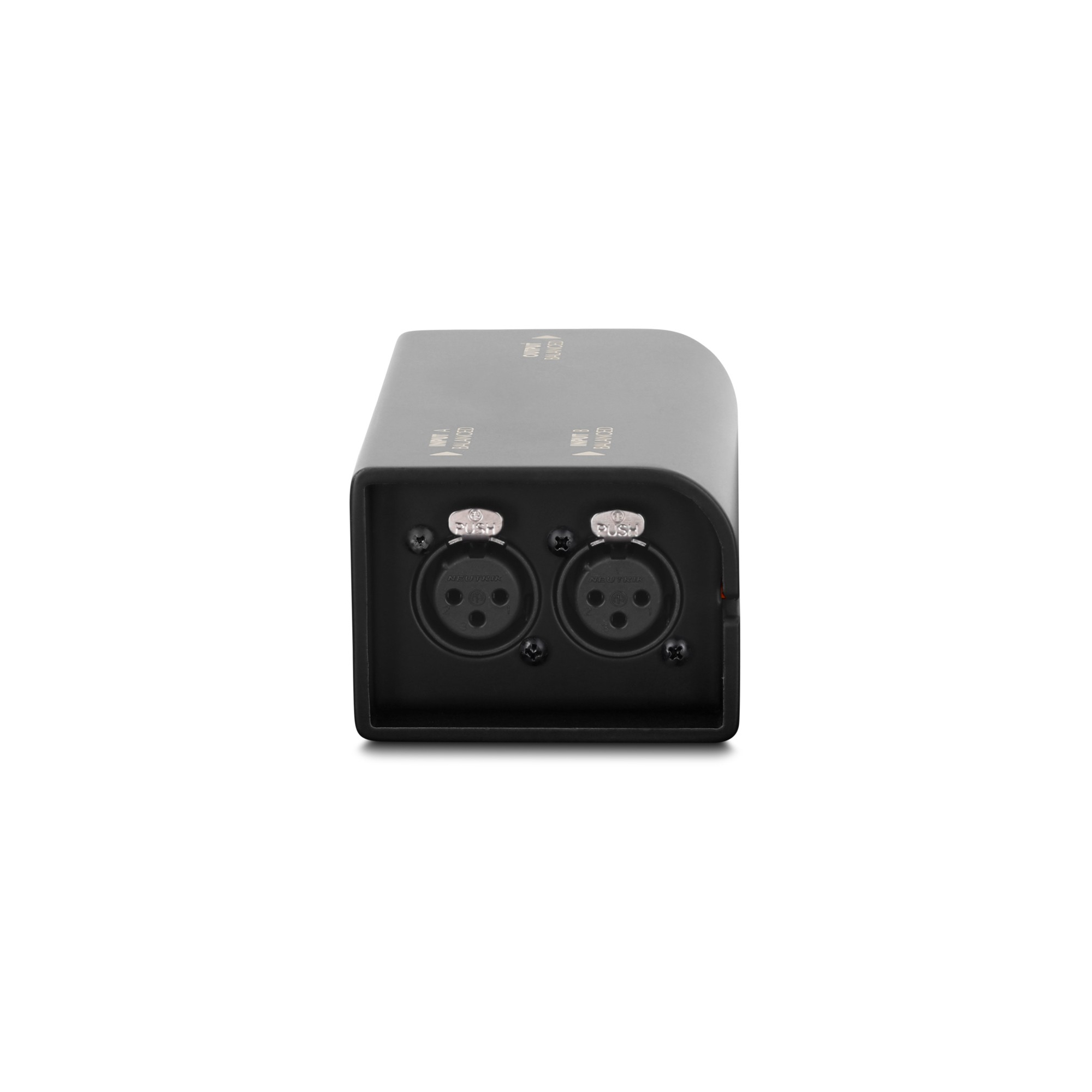

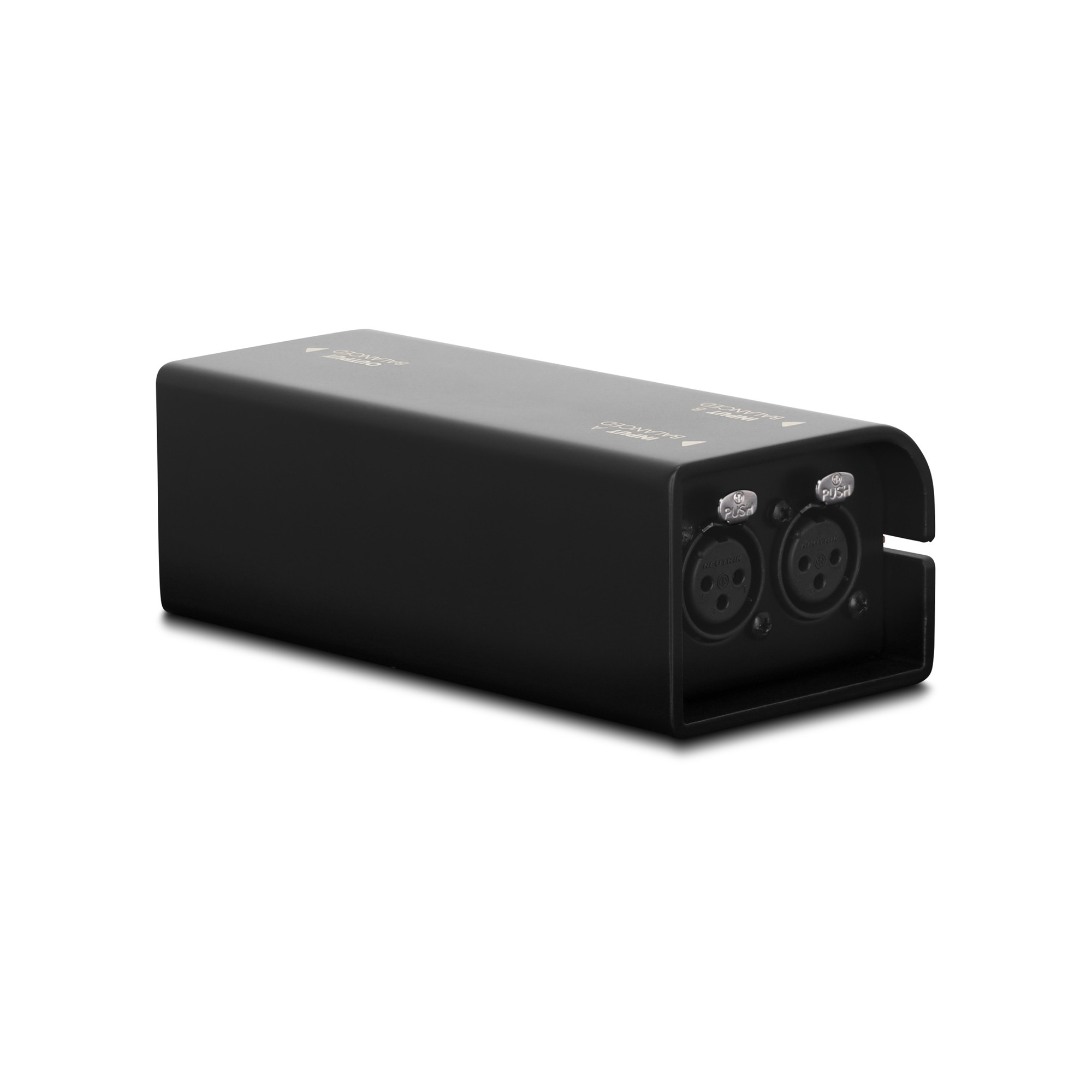

• Two balanced XLR inputs

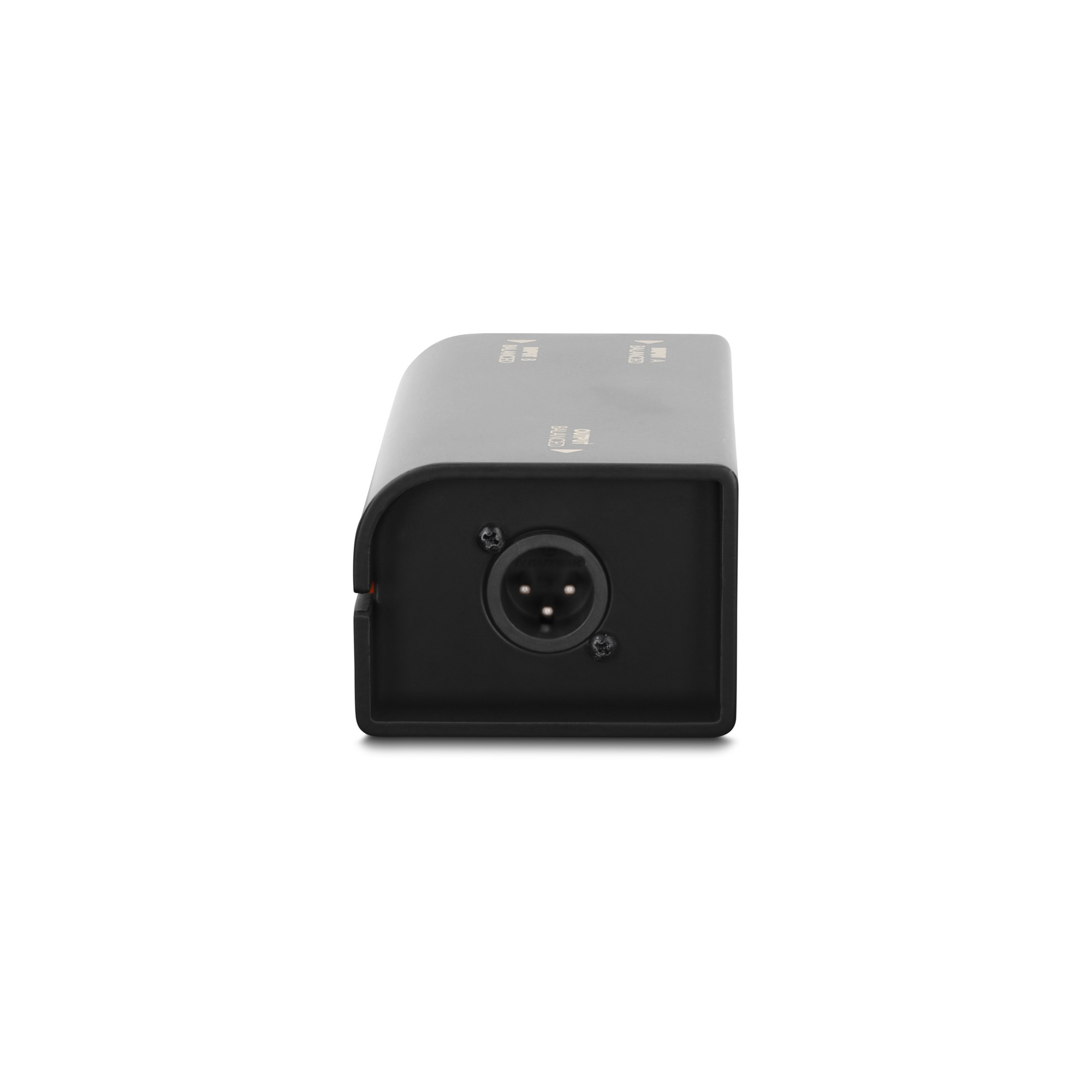

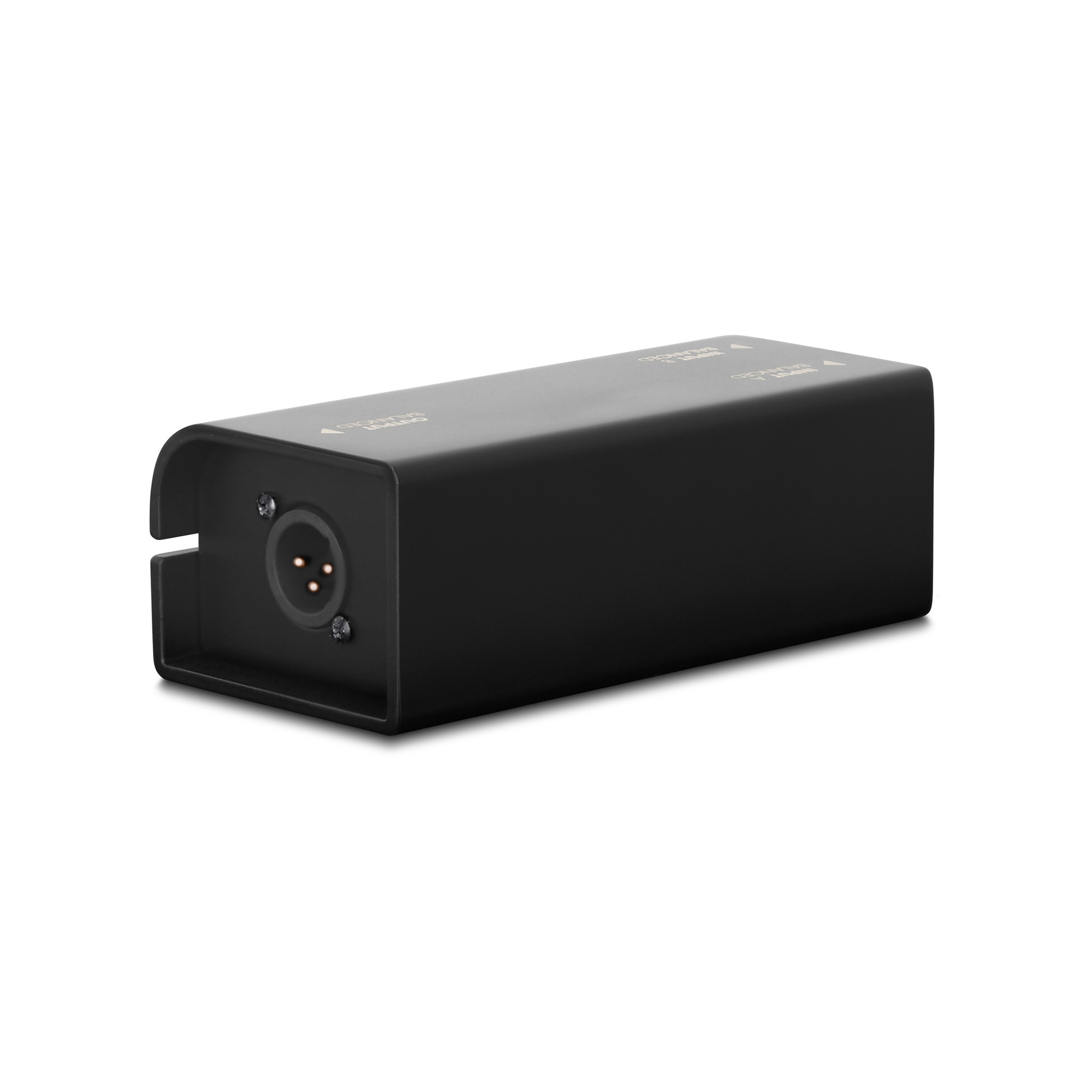

• One balanced XLR output
• For two dynamic microphones or two condenser microphones
• Phantom power can pass through
• Reliable problem-solver for PA systems with a shortage of mixer channels
• Extremely fail-safe
• Passive switching, no power supply required
• Solid casing made of aluminium and steel
• Incl. rewritable tour label for attachment onto the back of the tauber
• Engineered in Germany

It can be used for two dynamic microphones or two condenser microphones. Ideally, they should be identical or similar microphone types to avoid any undesirable level differences. Phantom power is passed through to both inputs.

Due to its passive circuitry, the tauber works without any sound colouration and does not require a power supply. The casing and sockets are extremely robust and longlasting.

Tough and Durable New Design

We know that the demands of stage and studio require equipment that is not only high performing, but also rugged and durable. The River Series represents a new design philosophy that combines form and function to create audio tools that are as rugged as they are stunning. These units are built to last, with rugged metal chassis and reinforced connectors. We've tested them in the harshest conditions, so you can count on the River Series to deliver, gig after gig, session after session, year after year.

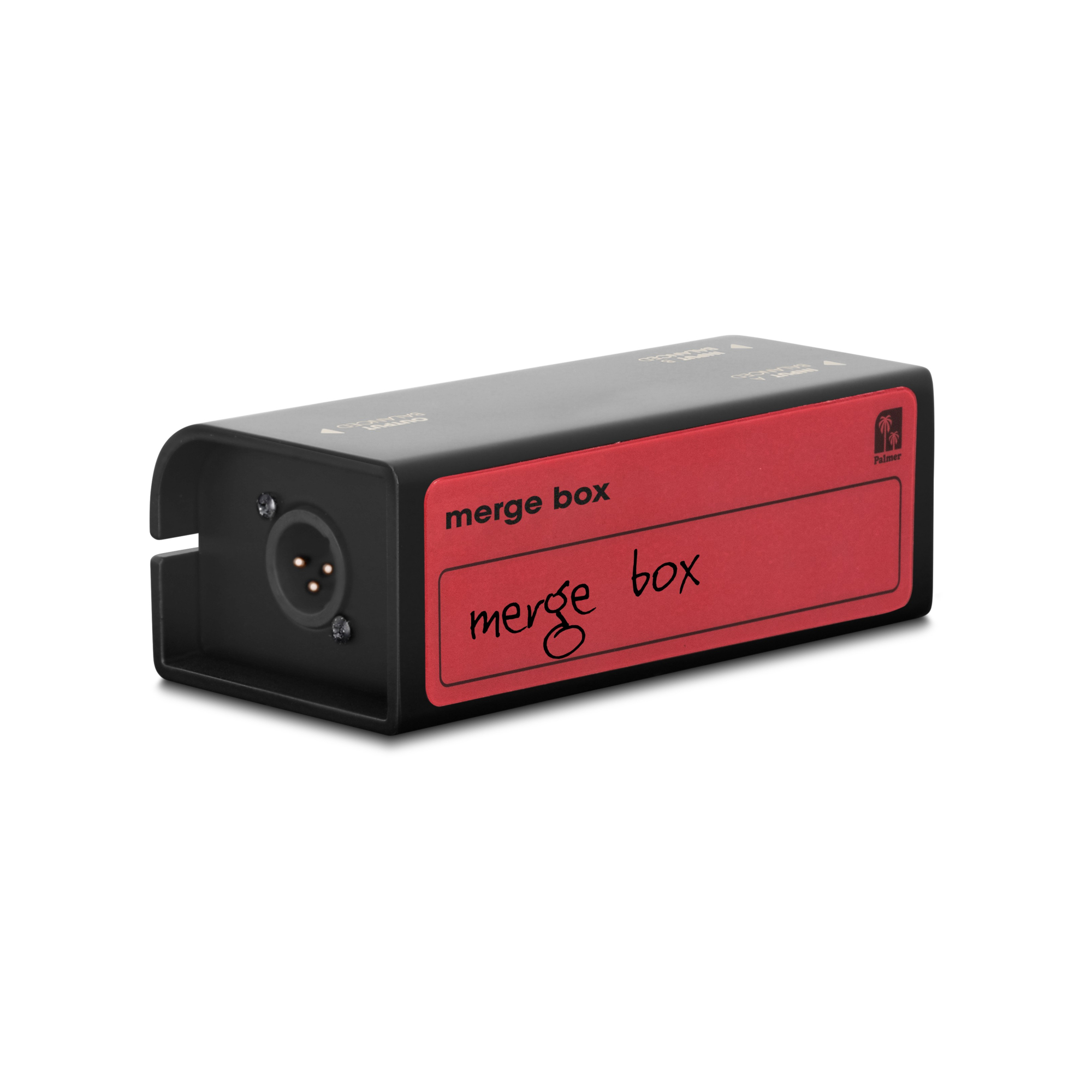

Rewritable Tour Labels

In the world of professional audio, organisation is king. Misplaced or incorrectly connected equipment can turn a flawless performance into an unforgettable disaster. That's why the River Series introduces an innovative feature: rewritable tour labels. These color coded handy labels let you customize your di-boxes, line isolators splitters & mergers, ensuring each piece is in the right place, every time whether in the busy backstage area of a rock concert or the tangled web of cables in a recording studio.

Specifications

• Audio
  • Input impedance (1 kHz): 644 kOhm
  • Output impedance (1 kHz): 400 Ohm(s)
• Product type: Microphone summing unit
• Type: passive
• Number of channels: 1
• Transformer isolated: No
• Number of inputs: 2
• Input type: balanced
• Input connections: XLR
• Number of outputs: 1
• Output type: balanced
• Output connections: XLR
• Ground lift switch: Yes
• Housing: Aluminum continuous casting
• Ambient temperature during operation: -20 - 70 °C
• Relative humidity: < 80%, non-condensing
• Dimensions (HxWxD): 1.97 x 5.51 x 2.68 in (50 x 140 x 68 mm)
• Weight: 0.79 lbs (0.36 kg)
• Accessories (included in delivery): Labeling plate (tour label), rubber feet
