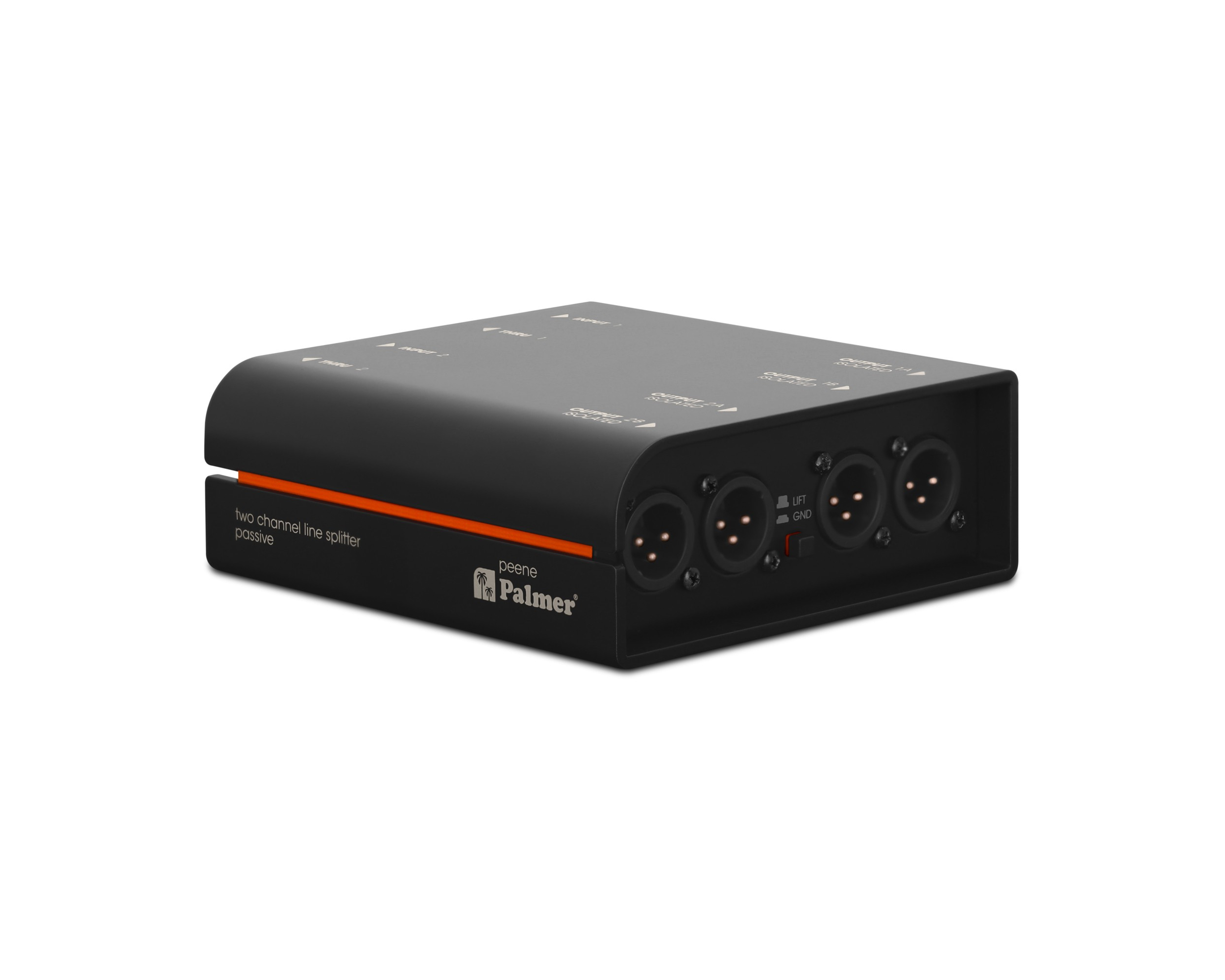

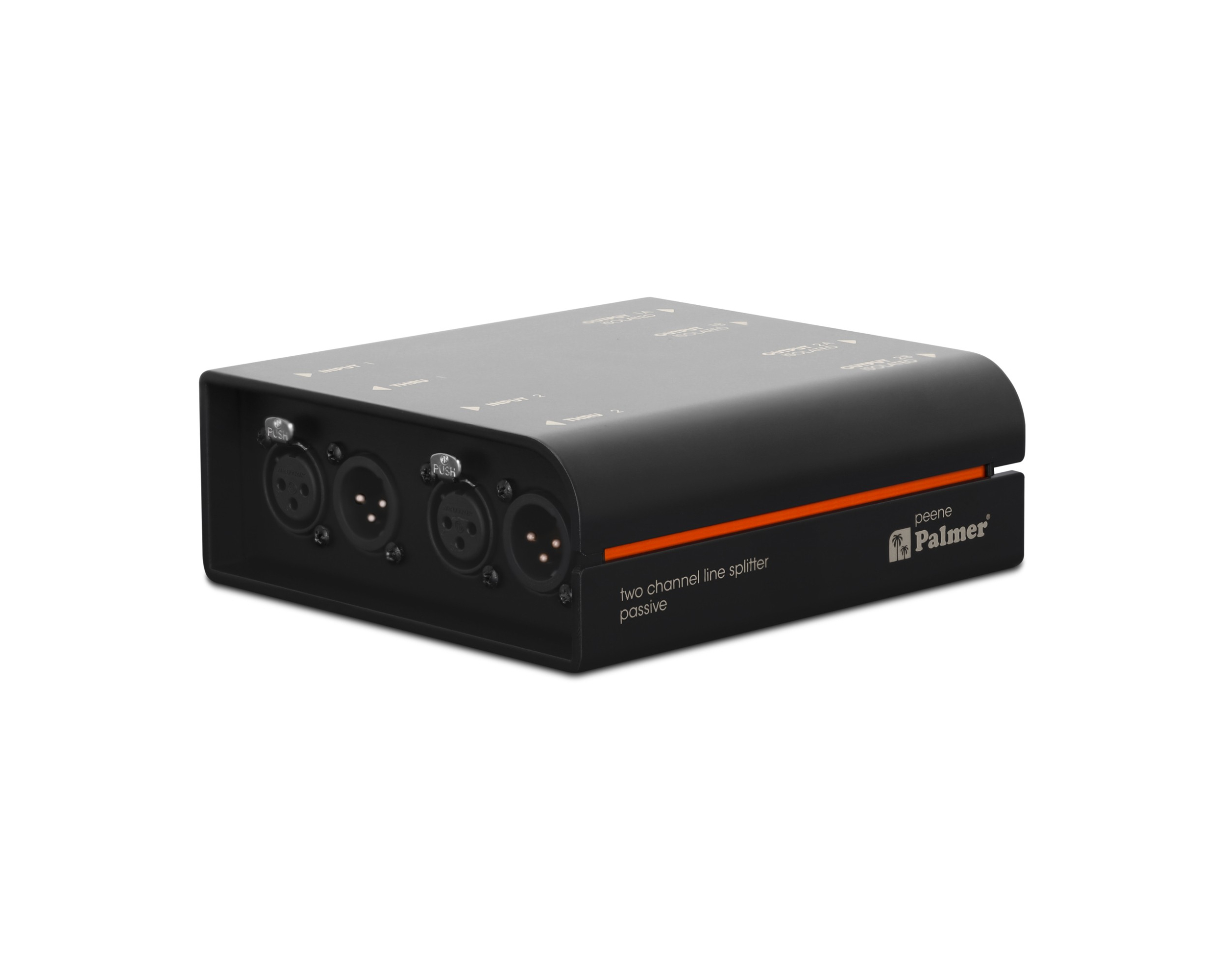

Palmer RIVER peene Passive 2-Channel Line Splitter

About: Palmer RIVER peene Passive 2-Channel Line Splitter

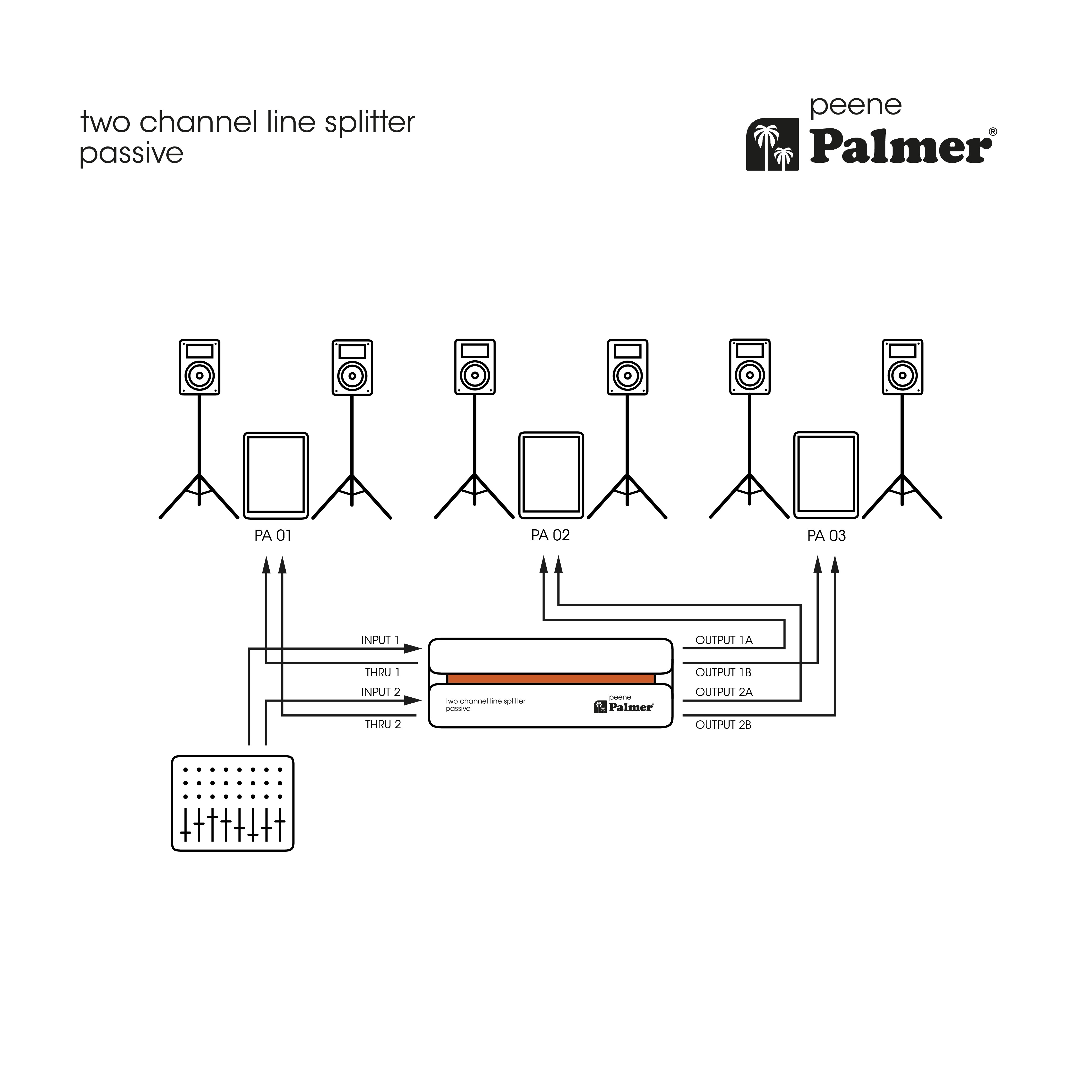

Do you want to distribute a line signal – stereo or dual mono – to multiple devices without introducing unwanted noise like hum? The Palmer peene line splitter box is the perfect tool for the job. It operates passively with generously sized isolation transformers that can handle even high levels without distortion. This allows you, for example, to send the stereo output signal from a mixing console to multiple power amplifiers without creating ground loops. Naturally, the Palmer peene features a ground lift switch. In addition to the two transformer-separated outputs, the peene also has a link output that directly passes the input signal through.

The Palmer peene is all you need to distribute line signals to multiple devices: a reliable audio tool with ultra-simple handling and professional sound characteristics.

• Distributes two input signals to two outputs each + Link Outs
• For line signals
• Galvanic isolation of the outputs by transformers

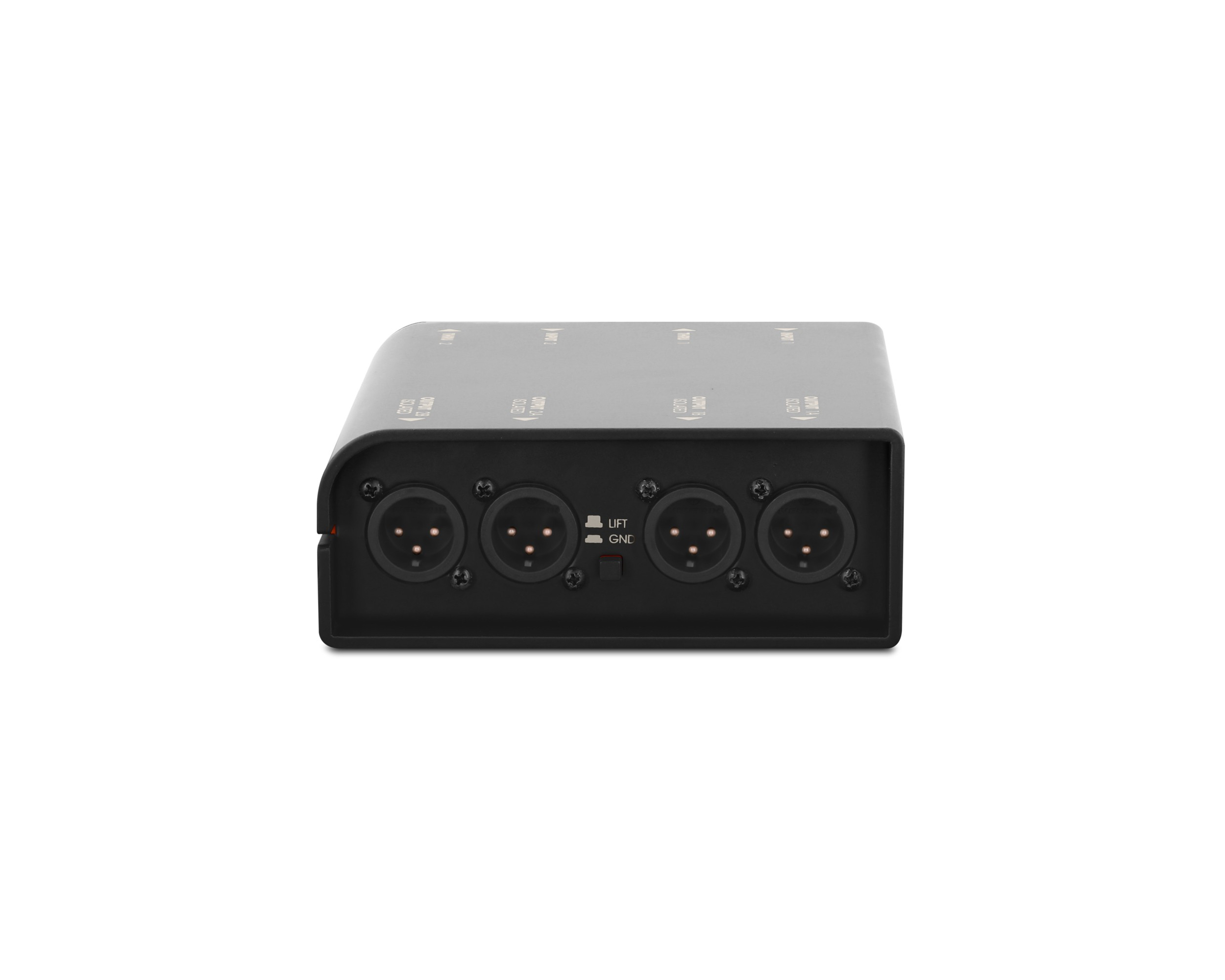

• Switchable ground lift for breaking up ground loops
• Sound neutral
• High headroom (+20 dBu max. input level)
• Passive design, no power supply required
• Extremely reliable
• Road-ready housing made of aluminum and steel
• Includes a rewritable tour label for attachment to the back of the peene
• Engineered in Germany

Tough and Durable New Design

We know that the demands of stage and studio require equipment that is not only high performing, but also rugged and durable. The River Series represents a new design philosophy that combines form and function to create audio tools that are as rugged as they are stunning. These units are built to last, with rugged metal chassis and reinforced connectors. We've tested them in the harshest conditions, so you can count on the River Series to deliver, gig after gig, session after session, year after year.

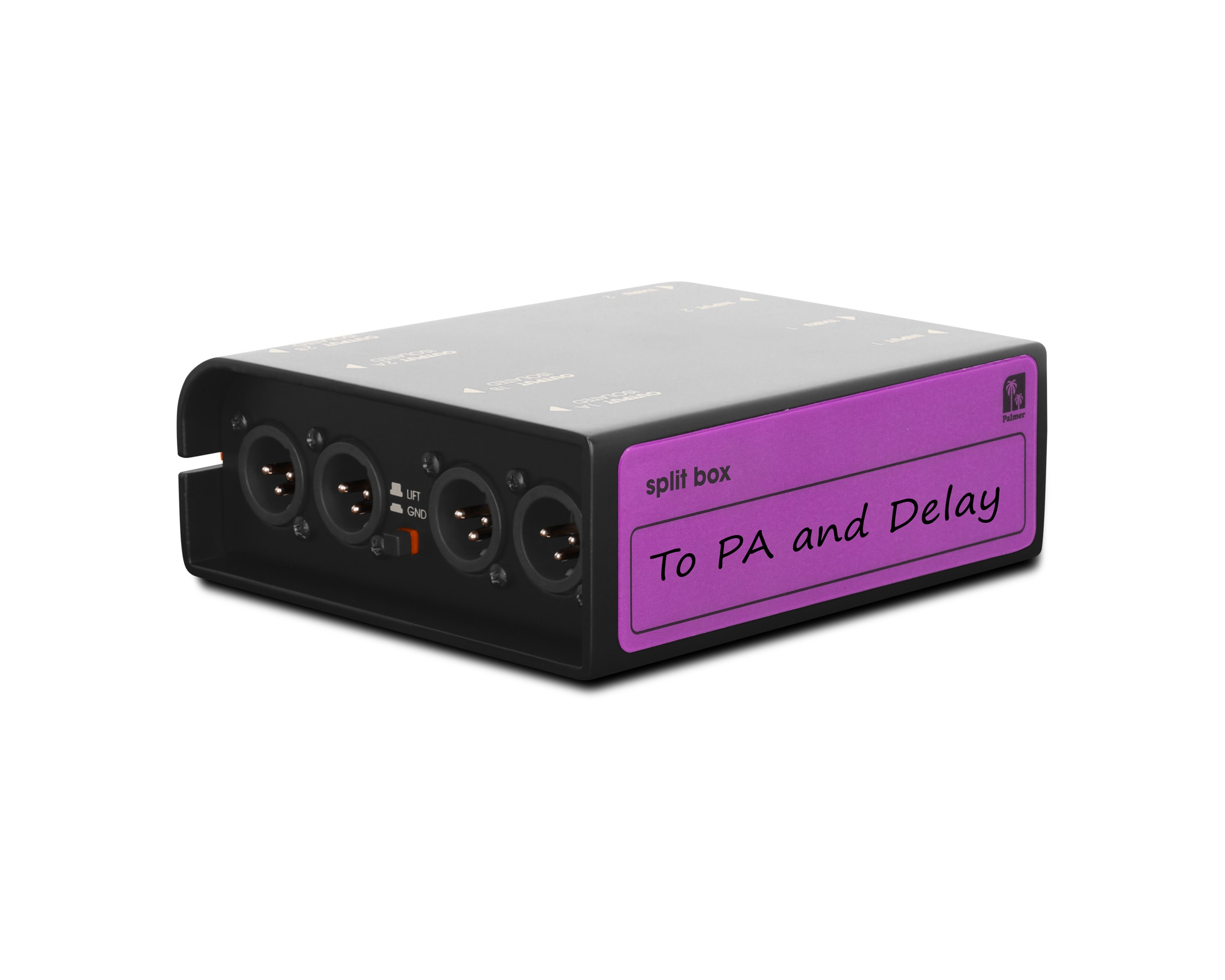

Rewritable Tour Labels

In the world of professional audio, organisation is king. Misplaced or incorrectly connected equipment can turn a flawless performance into an unforgettable disaster. That's why the River Series introduces an innovative feature: rewritable tour labels. These color coded handy labels let you customize your di-boxes, line isolators splitters & mergers, ensuring each piece is in the right place, every time whether in the busy backstage area of a rock concert or the tangled web of cables in a recording studio.

Specifications

• Audio
  • Max. input level (< 1% THD, 20 Hz): +20 dBu
  • Max. input level (< 1% THD, 1 kHz): +32 dBu
  • Frequency response (±1 dB, relative 1 kHz): 10 Hz - 30 kHz
  • Input impedance (1 kHz): 6.8 kOhm
  • Output impedance (1 kHz): 500 ohms
  • THD (30 Hz, +4 dBu, unity, unweighted): < 1%
  • THD (1 kHz, +4 dBu, unity, unweighted): < 0.02%
  • IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu): < 0.01%
  • Transformer ratio: 1:1:1
• General
  • Product type: Line Splitter
  • Type: passive
  • Number of channels: 2
  • Transformer isolated: Yes
  • Number of inputs: 2
  • Input type: symmetrical
  • Input connections: XLR
  • Number of outputs: 4
  • Output type: symmetrical
  • Output connections: XLR
  • THRU - Outputs per channel: 1
  • Ground lift switch: Yes
  • Housing: Aluminum continuous casting
  • Ambient temperature during operation: -20 - 70 °C
  • Relative humidity: < 80%, non-condensing
  • Dimensions (HxWxD): 1.97 x 5.51 x 5.04 in (50 x 140 x 128 mm)
  • Weight: 1.78 lbs (0.385 kg)
  • Accessories (included in delivery): Labeling plate (tour label), rubber feet
