Palmer MONICON S G2 Passive Volume Controller - Black

About: Palmer MONICON S G2 Passive Volume Controller - Black

The MONICON S is an extremely compact volume controller for any set-up. Digital volume controls on laptops or audio interfaces are often imprecise or cumbersome. The MONICON S offers a precise, hands-on, and convincingly touch-responsive solution. It is easily connected between the audio interface and active speakers via RCA inputs and outputs, where it takes over the central level control.

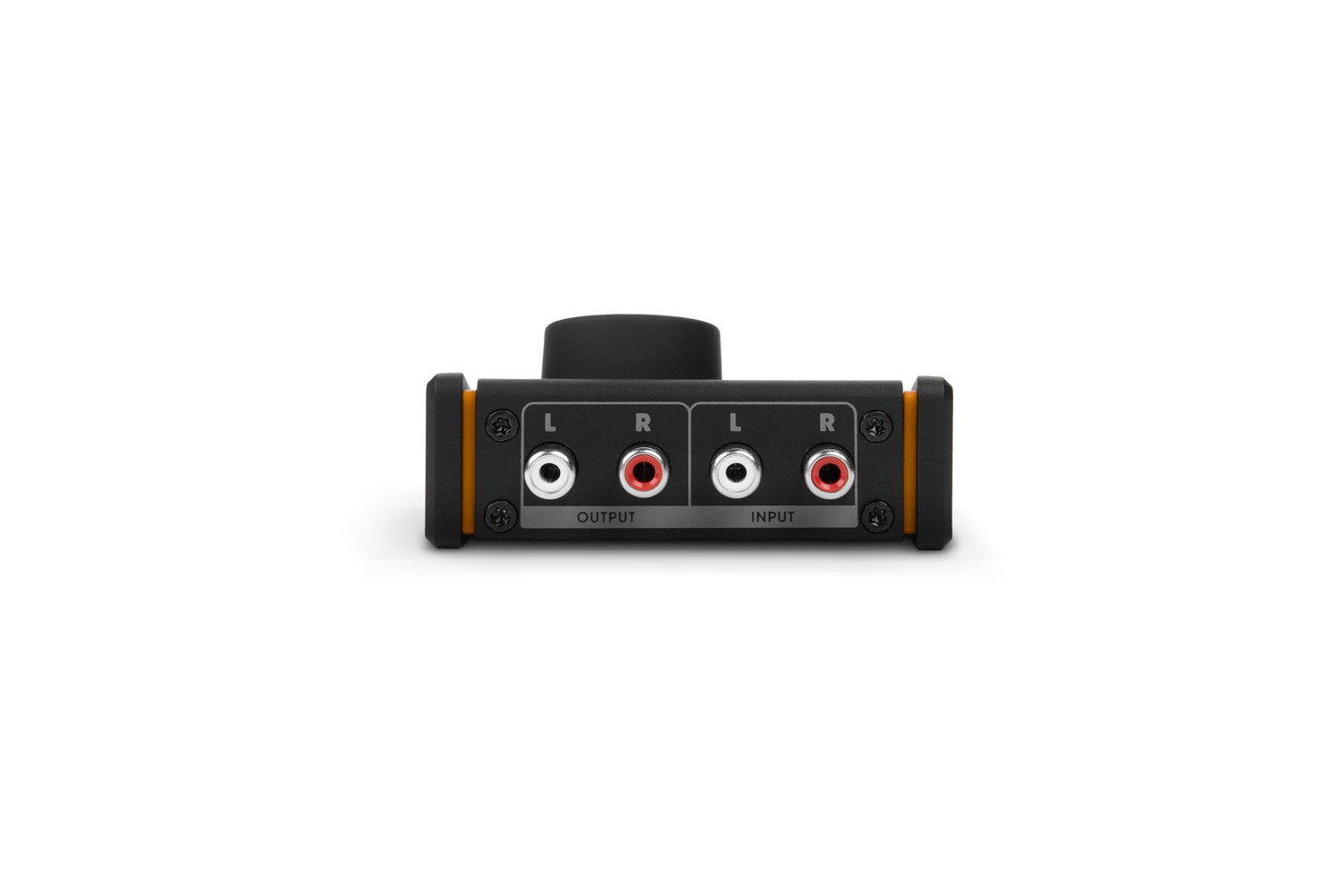

• Input: 1x Stereo (RCA)
• Output: 1x Stereo (RCA)

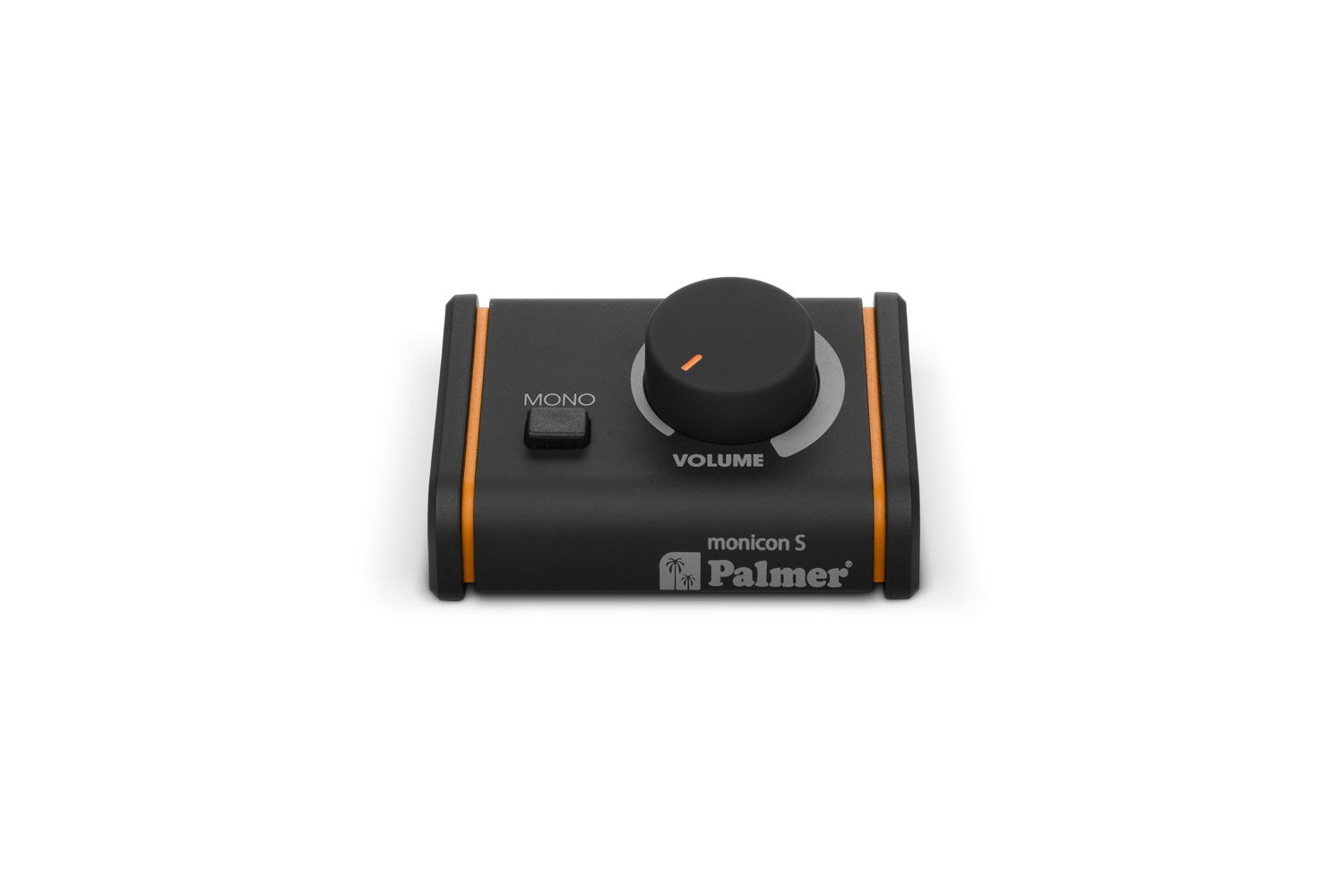

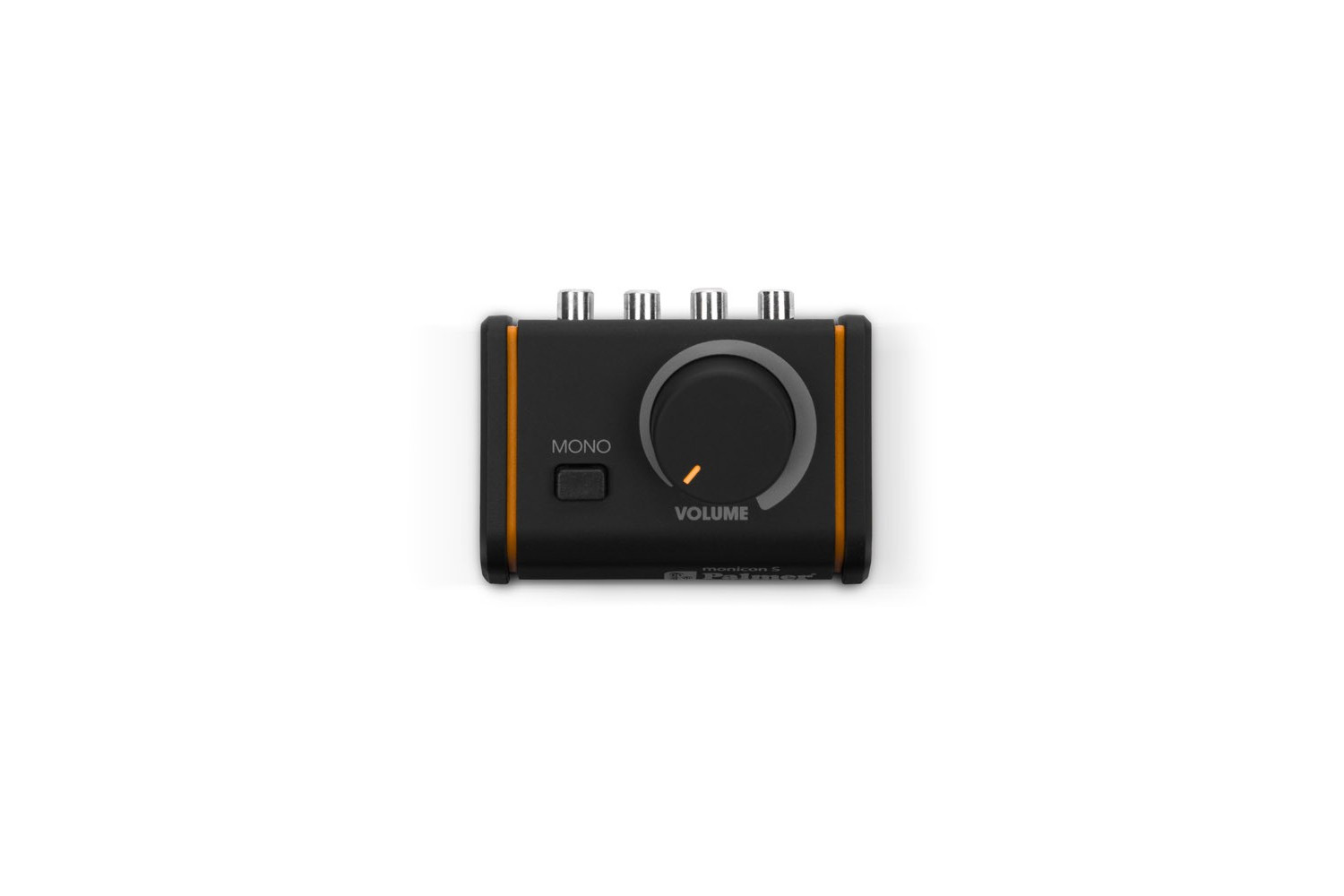

• Large precision volume control
• MONO switch to check the mono compatibility
• Ultra-compact design for space-saving integration
• latency-free analogue audio signal path
• Engineered in Germany

The large analogue rotary control allows the volume to be carefully and accurately adjusted. Its completely passive design means it requires no power supply and guarantees latency-free, pristine sound.

Thanks to its robust design and straightforward operation, the MONICON S is the ideal addition for small studios or mobile set-ups where sound fidelity and direct operability are required.

Specifications

• General
  • Type: Passive
  • Material: Plastic, Steel sheet
  • Coating: Powder coated
  • Frequency response (±0.2 dB, rel. Avg): 20 - 20,000 Hz
  • Colour: Black
  • Number of channels: 1
• Inputs
  • Input signal type: Unbalanced
  • Balanced Line-In connector type: 2 x RCA female (Stereo)
  • Number of unbalanced line inputs: 1
• Line input performance
  • Input impedance (balanced): 10 kΩ
  • Min. SNR (< 1% THD, 1 kHz, unity, A-weighted): 112 dB
• Outputs
  • Output signal type: Unbalanced
  • Number of unbalanced line outputs: 1
  • Unbalanced line outputs connector type: 2 x RCA female (Stereo)
• Line output performance
  • Max. output level (<1 % THD, 20 Hz - 20 kHz): 20 dBu
  • Unbalanced output impedance (1 kHz): 600 Ω
• Environmental
  • Ambient temperature: 0 - 40 °C
  • Maximum air humidity (non-condensing): 80 %
• Dimensions (WxHxD): 3.39 x 1.54 x 2.6 inch (86 x 39 x 66mm)
• Weight: 0.27 lbs (120g)
