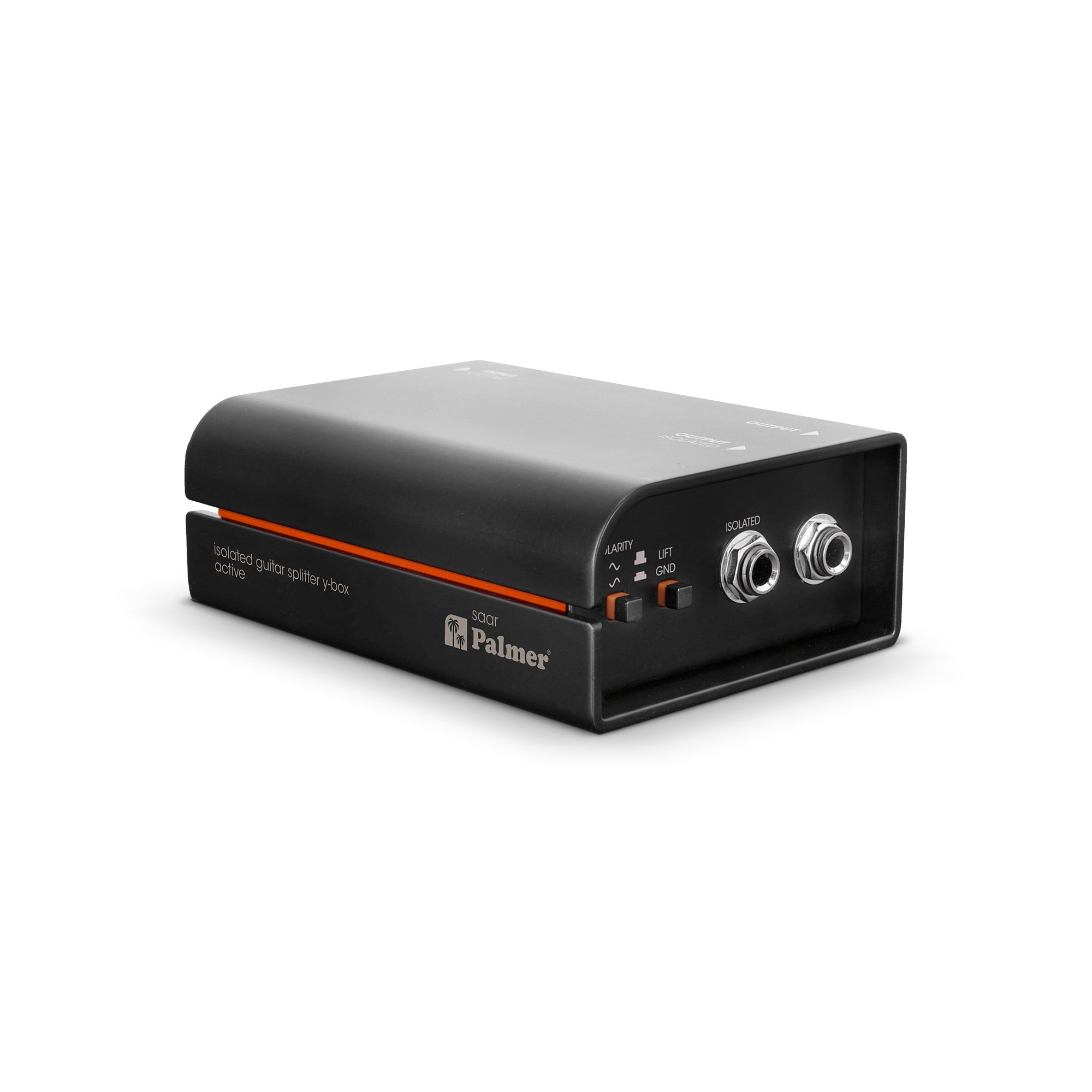

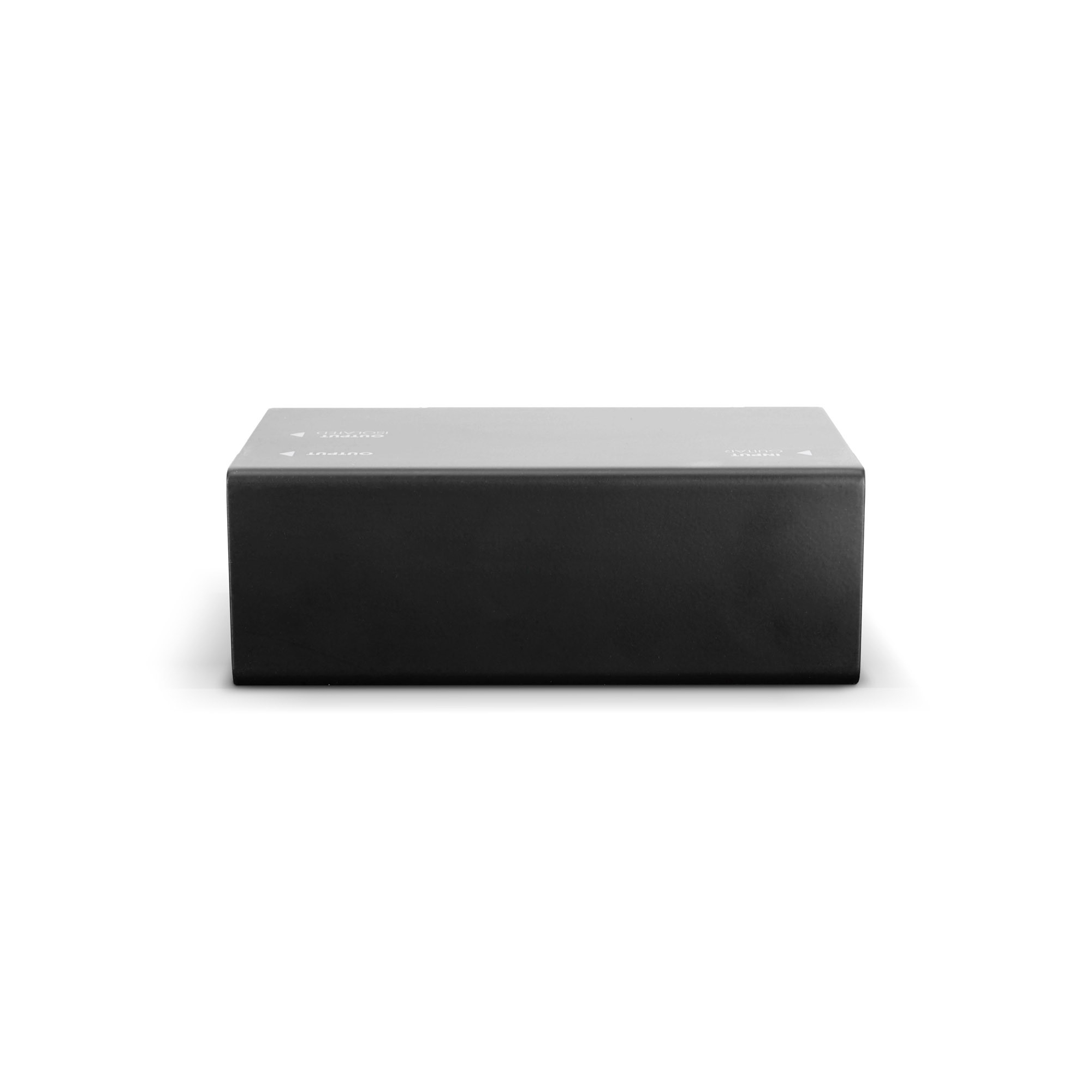

Palmer RIVER saar Active Guitar Splitter Y-Box

About: Palmer RIVER saar Active Guitar Splitter Y-Box

You want to play your guitar or bass through two amps simultaneously. The problem: there's a hum. And not just a little, but an unpleasantly loud one. The Palmer saar Guitar Splitter Box reliably solves this problem. It separates the ground potentials of both amplifiers, thus preventing ground loops that almost inevitably occur when connecting multiple amps.

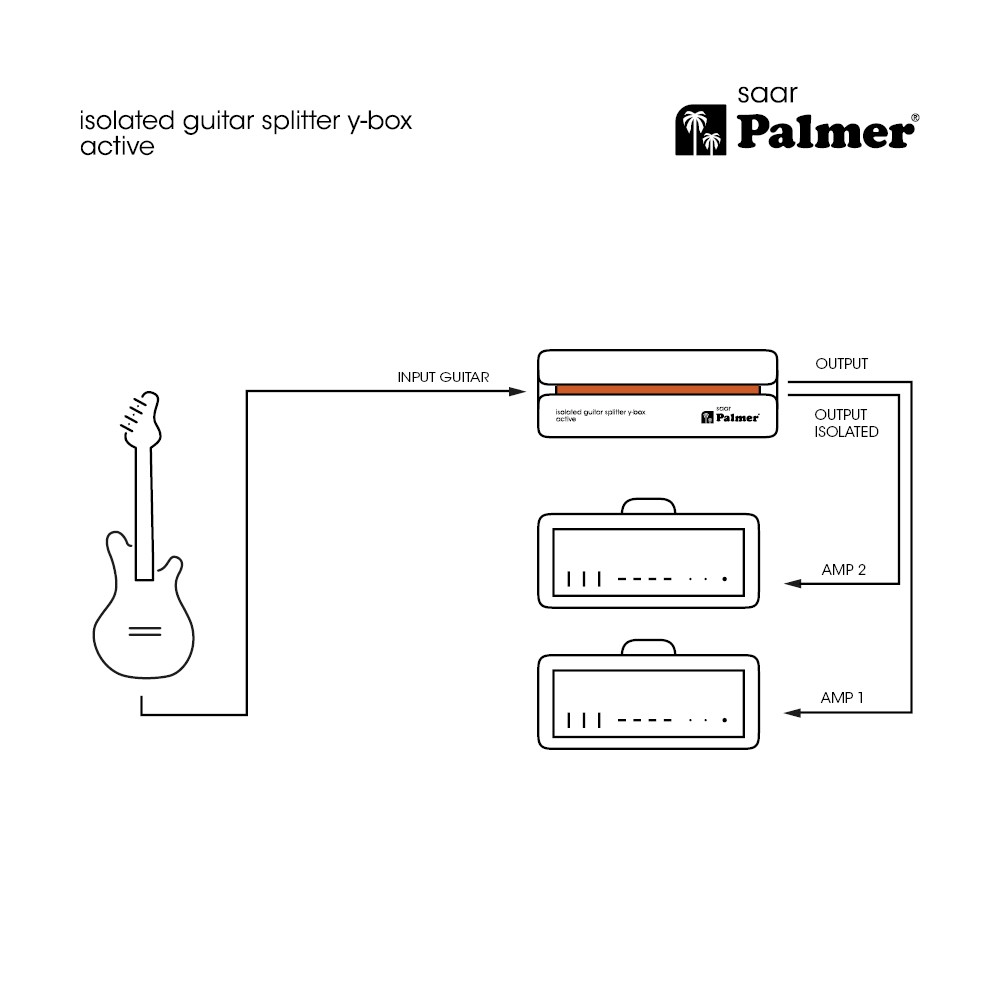

• Distributes the guitar/bass signal to two outputs simultaneously.
• Reliably eliminates ground loops using isolation transformers
• No sound loss whatsoever due to active FET input circuitry
• The input signal is passed through to Amp 1 output.
• Amp 2 Output is actively buffered and can withstand longer cable runs without any loss of sound quality.

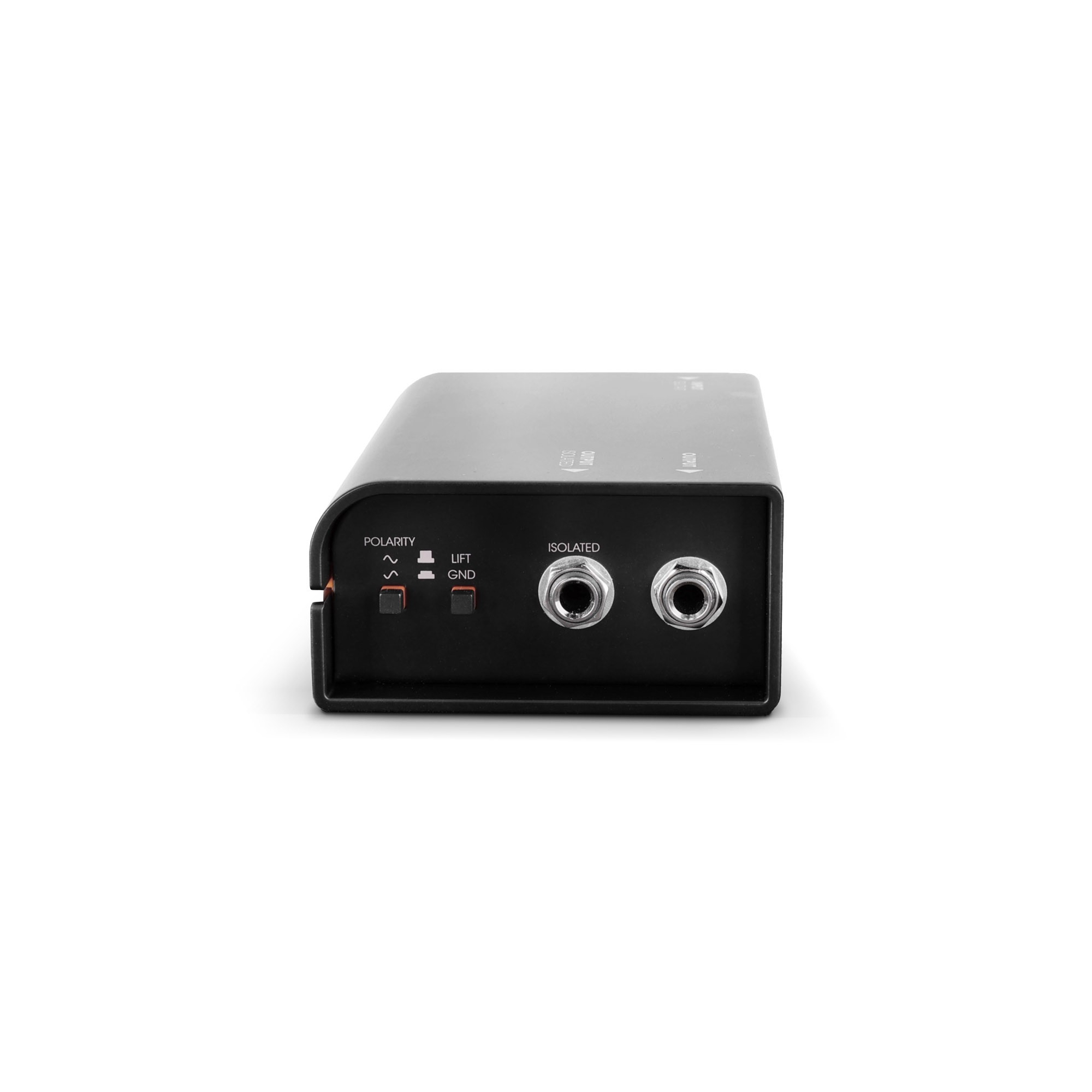

• Phase Reverse switch for output 2 for correct sound with out-of-phase amps.
• Ground Lift Switch

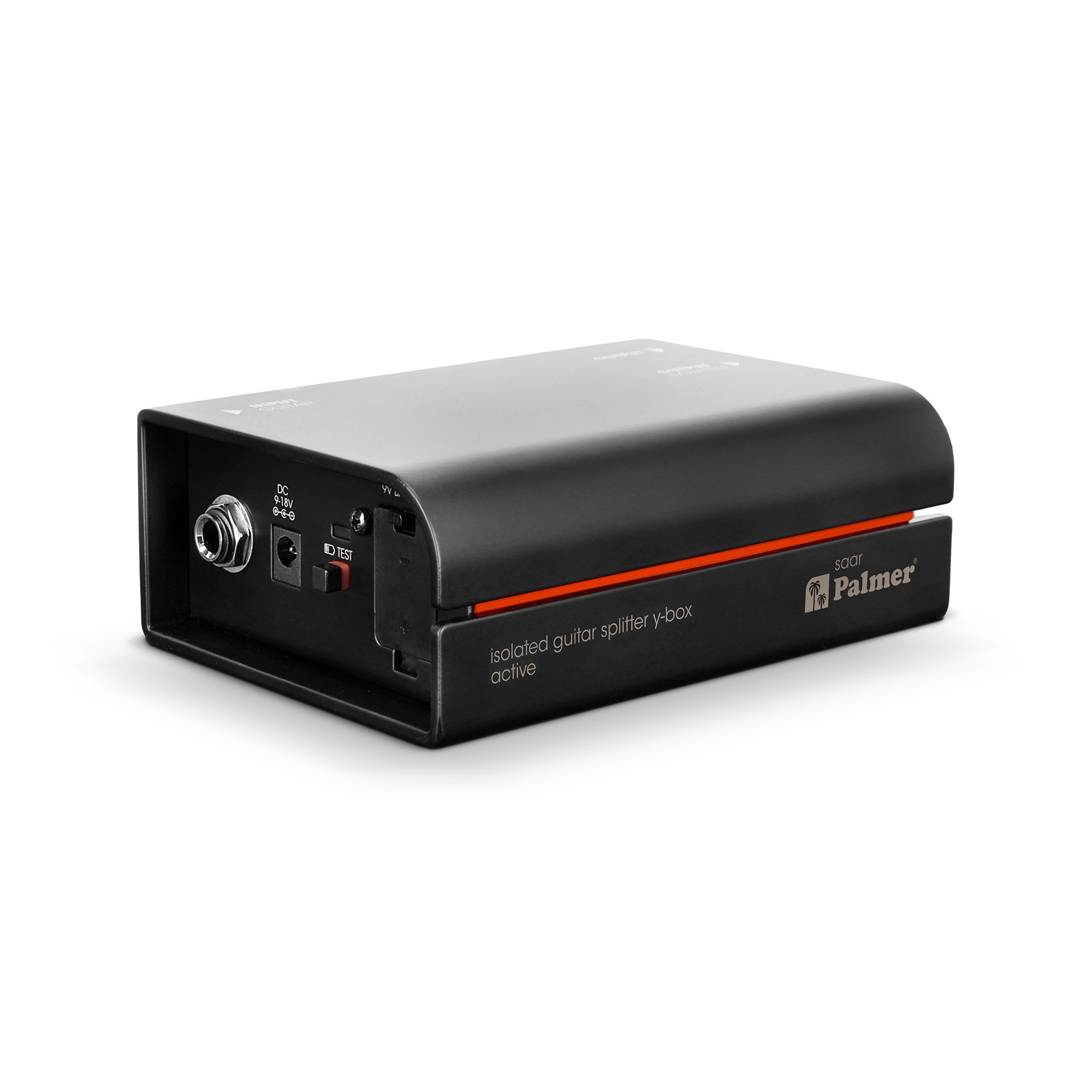

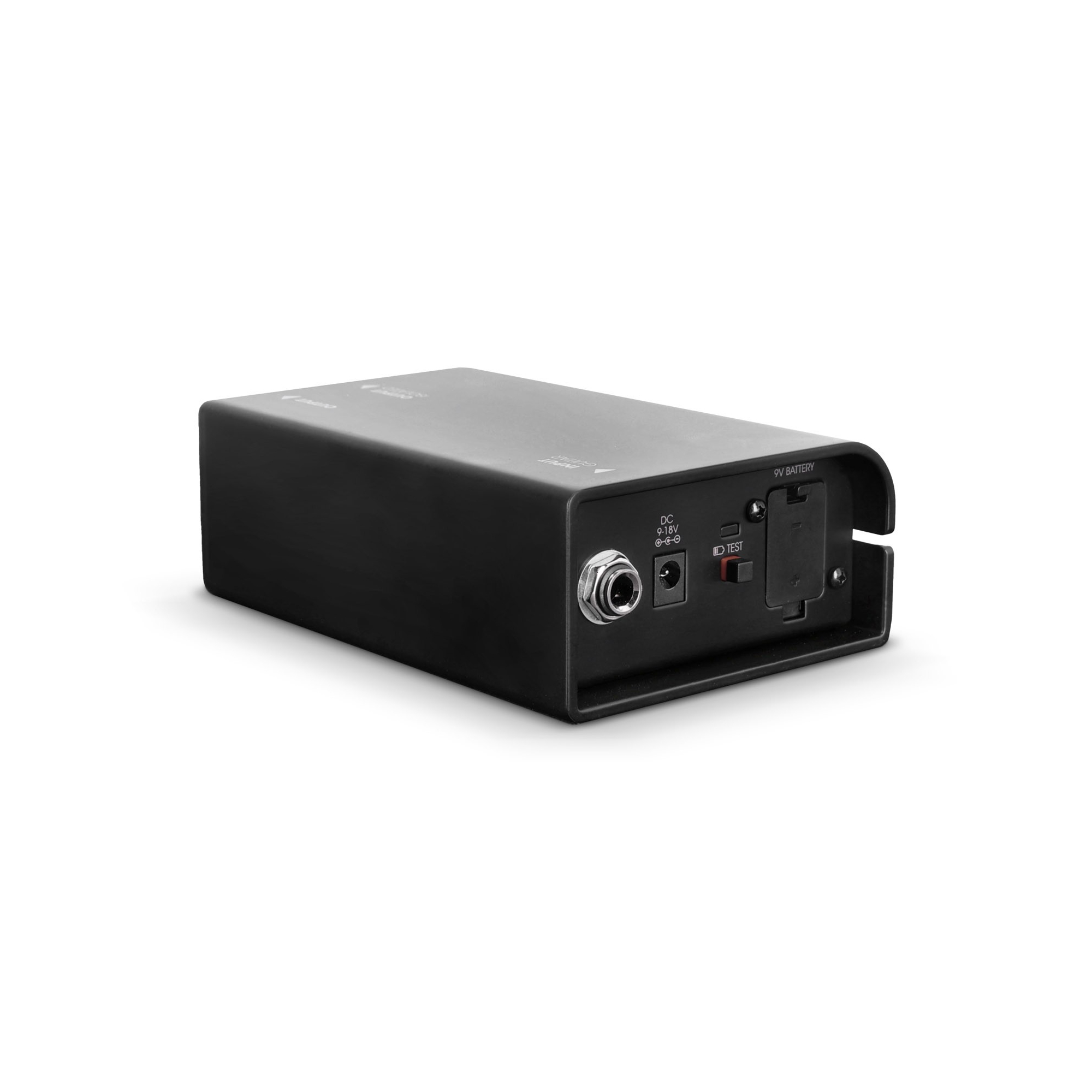

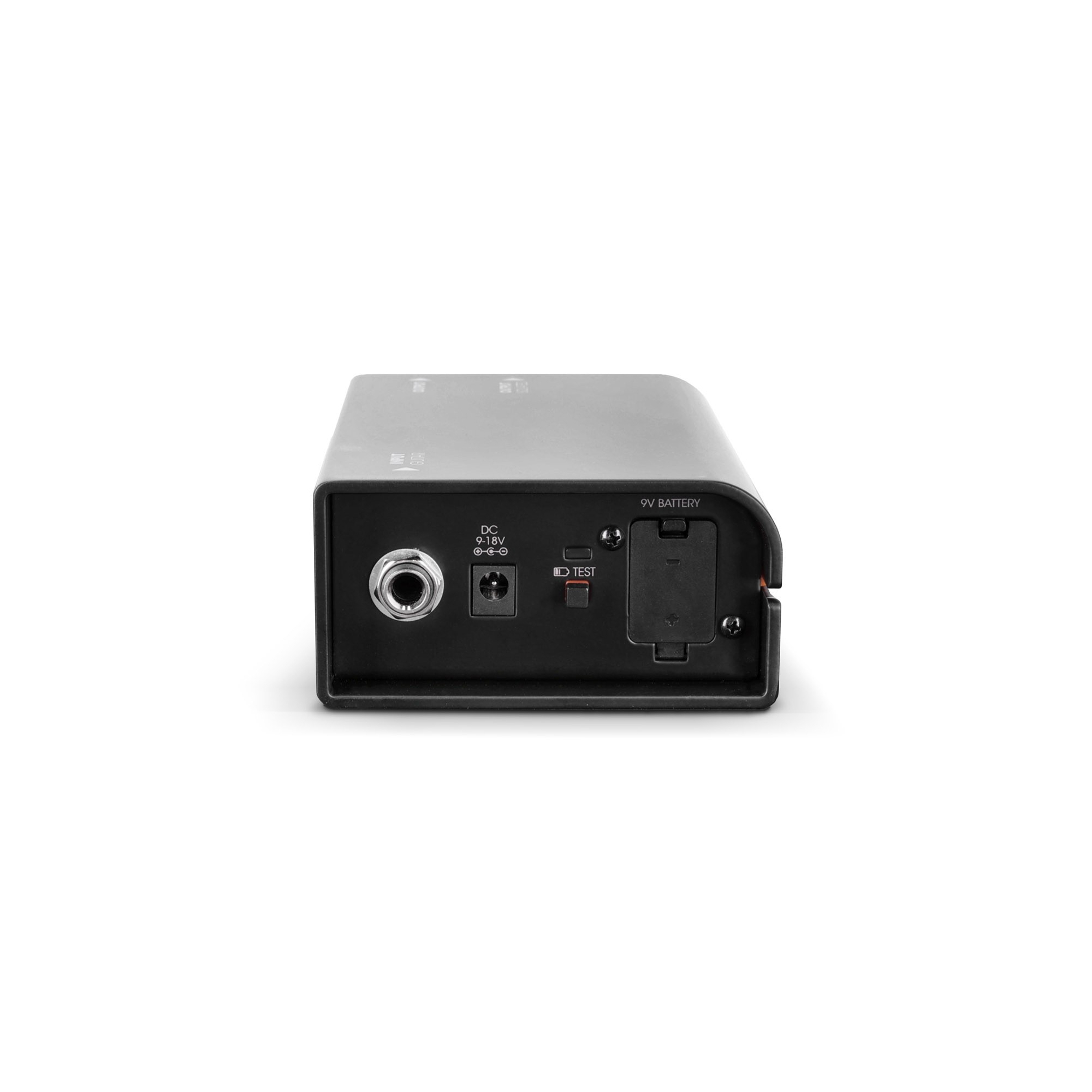

• Power supply via 9V battery or standard 9V power adapter

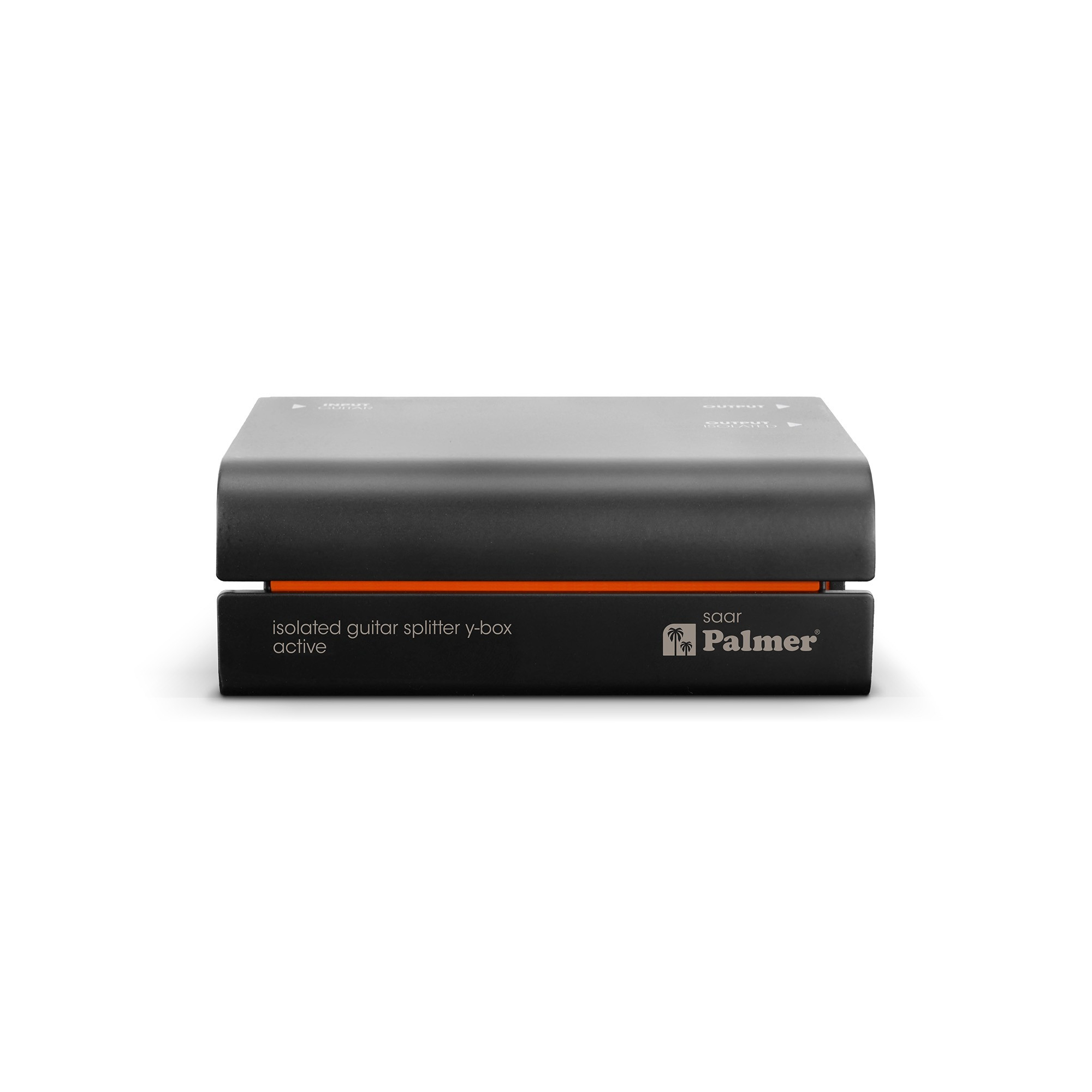

• Road-ready housing made of aluminum and steel
• Includes a rewritable tour label for attachment to the back of the Saar.
• Engineered in Germany

The Palmer Saar passively passes the input signal to Amp Out 1, while an active FET circuit taps off the signal for Amp Out 2. This occurs without any loss of sound quality, as the FET input stage has a very high impedance. Amp Out 2 is also decoupled from the circuit ground via a transformer. This allows ground loops to be eliminated by pressing the Ground Lift switch.

The signal from Amp Out 2 has a low impedance and is therefore less susceptible to interference, allowing for longer cable runs without any loss of sound quality. An important feature is the Phase Reverse switch for the second output. The signal polarity of guitar/bass amplifiers is not standardized. When operating two amps simultaneously, they can be in phase or out of phase. In the latter case, the sound will be thin – which can be remedied by pressing the Phase Reverse switch on the Palmer Saar. Of course, you can also use the Phase Reverse function for sound shaping, as sometimes an out-of-phase sound can be very cool.

The Palmer saar is a tool that is as simple as it is effective, allowing you to finally enjoy the widescreen sound of two amps – completely without hum and interference.

Tough and Durable New Design

We know that the demands of stage and studio require equipment that is not only high performing, but also rugged and durable. The River Series represents a new design philosophy that combines form and function to create audio tools that are as rugged as they are stunning. These units are built to last, with rugged metal chassis and reinforced connectors. We've tested them in the harshest conditions, so you can count on the River Series to deliver, gig after gig, session after session, year after year.

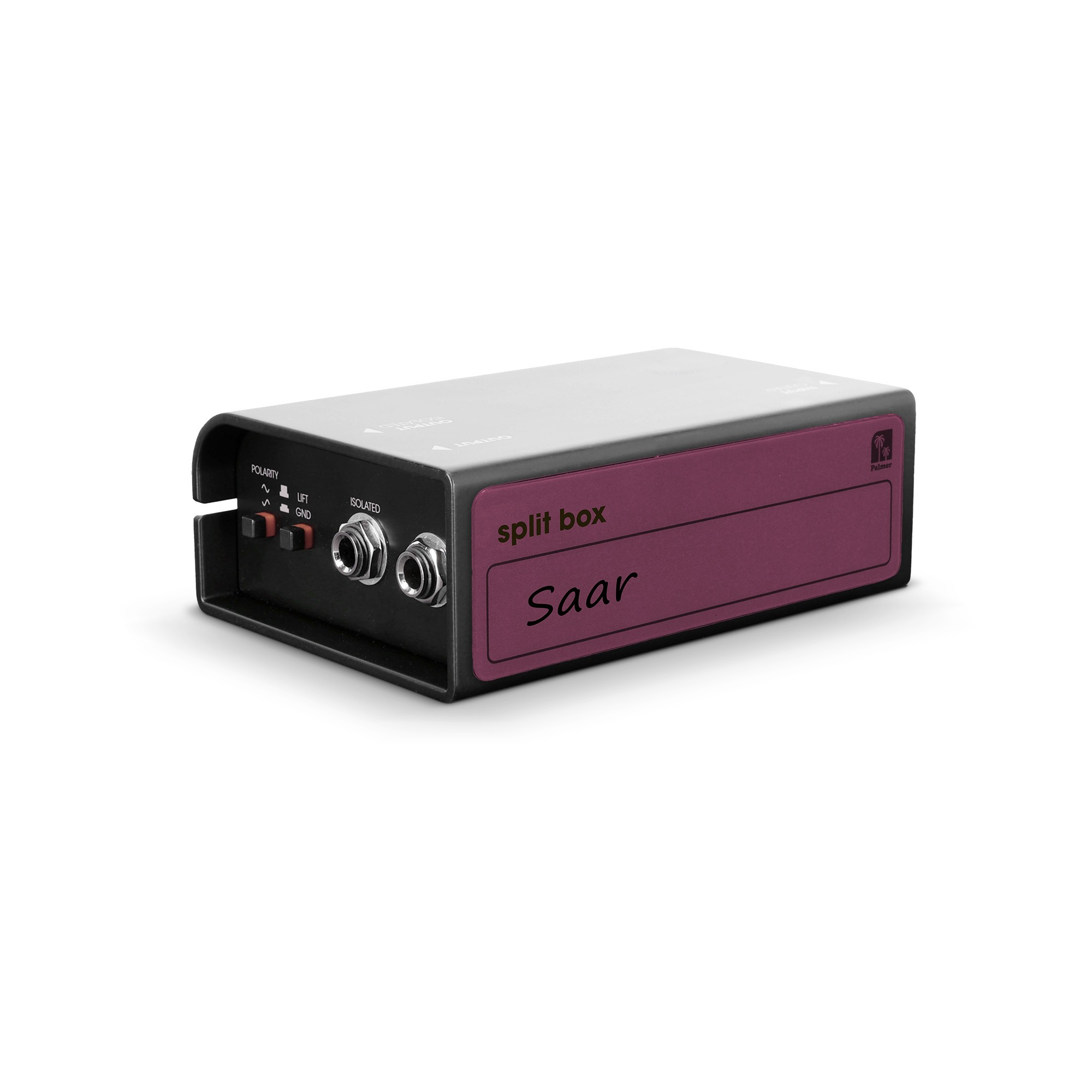

Rewritable Tour Labels

In the world of professional audio, organisation is king. Misplaced or incorrectly connected equipment can turn a flawless performance into an unforgettable disaster. That's why the River Series introduces an innovative feature: rewritable tour labels. These color coded handy labels let you customize your di-boxes, line isolators splitters & mergers, ensuring each piece is in the right place, every time whether in the busy backstage area of a rock concert or the tangled web of cables in a recording studio.

Specifications

• Audio
  • Max. input level (< 1% THD, relative 20 Hz): 21 dBu
  • Max. input level (< 1% THD, relative 1 kHz): 24 dBu
  • Maximum output level: 20 dBu
  • Frequency response (±1 dB, rel. Avg): 20 - 20,000 Hz
  • Input impedance: 1 MΩ
  • Symmetrical output impedance (1 kHz): 64 Ω
  • Max. THD+N (30 Hz, +4 dBu, unity, unweighted): 0.0006%
  • Max. THD+N (1 kHz, +4 dBu, unity, unweighted): 0.0005%
  • Max. IMD (SMPTE, 60 Hz, 4:1, +4 dBu): 0.0015%
  • Max. IMD (SMPTE, 7 kHz, 4:1, +4 dBu): 0.0015%
  • Min. SNR (+4 dBu, 22 kHz BW, unity, unweighted): 120 dB
  • Transformer Ratio: 1:1.1
• General
  • Product type: Splitter
  • Type: Active
  • Number of channels: 1
  • Transformer isolated: Yes
  • Number of inputs: 1
  • Input signal type: Asymmetrical
  • Connector types Inputs: 6.3 mm jack TS
  • Number of instrument inputs: 1
  • Output signal type: Asymmetrical
  • Connection types Outputs: 6.3 mm jack TS
  • THRU Outputs per channel: 1
  • Ground Lift: Yes
  • Additional functions: Polarity, switchable
  • Operating voltage: 9 V DC - 18 V DC (external power supply)
  • Battery: 1x 9V Block (6LR61)
  • Power consumption: 0.5 W
  • Housing: Aluminum continuous casting
  • Ambient temperature during operation: -20 - 70 °C
  • Maximum humidity (non-condensing): 80%
  • Dimensions (HxWxD): 1.97 x 5.51 x 3.89 in (50 x 140 x 98 mm)
  • Weight: 1.26 lbs (0.57 kg)
  • Accessories (included in delivery): Labeling plate (tour label), rubber feet
